Which DMX modes are available?

Eight personalities are documented: 21CH, 26CH, 35CH, 43CH, 78CH, 92CH, 97CH and 119CH. Match the selected mode to the installed firmware and fixture profile before programming.

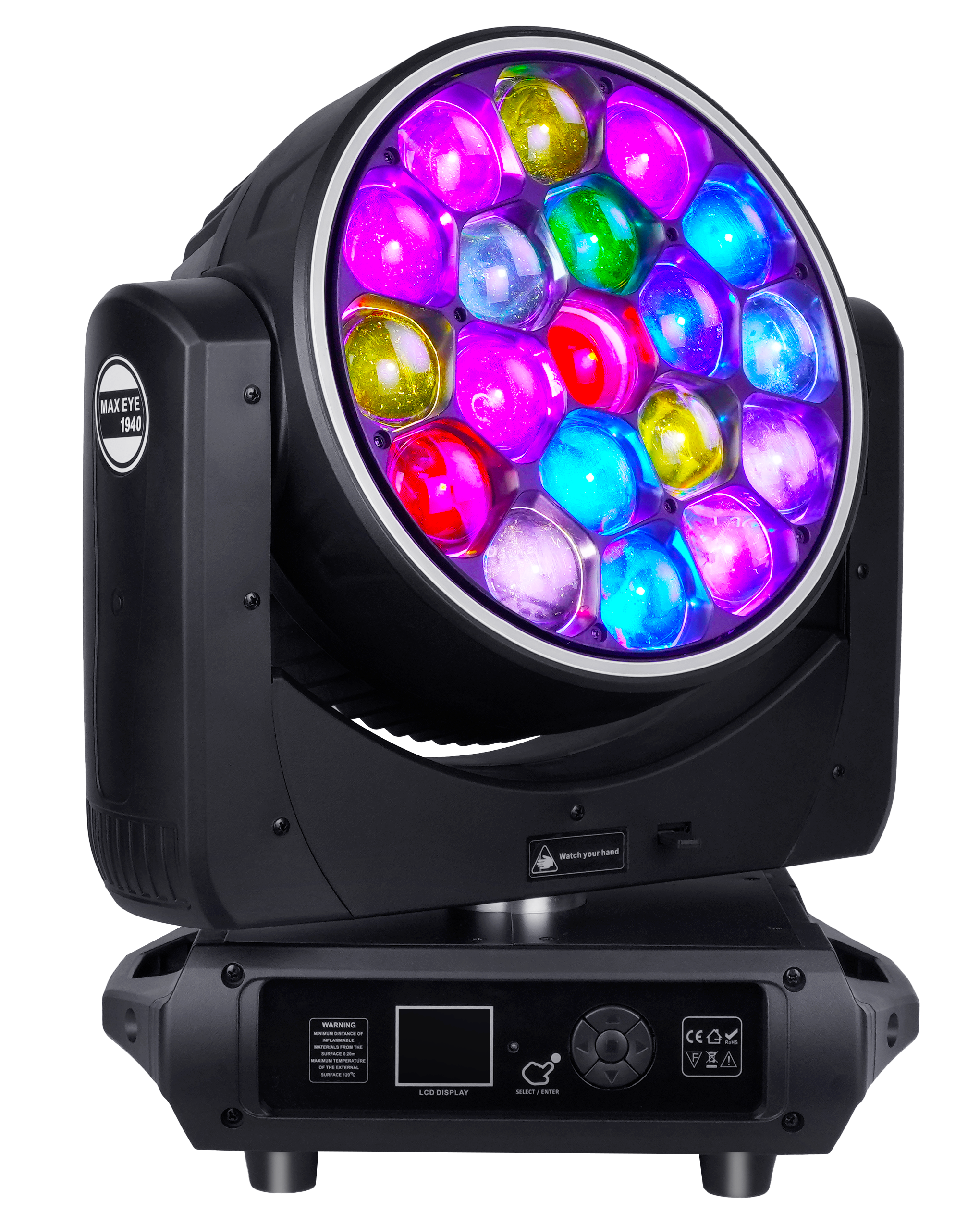

RGBW OutputTransparent three-quarter product view showing the nineteen-cell RGBW optical face illuminated.

LED BEE EYE MOVING HEAD

AL1940WZ19×40W LED Bee Eye Moving Head Halo

A nineteen-cell RGBW Bee Eye moving head with motorized zoom, rotating honeycomb optics, individual pixel control and a programmable halo ring.

AL1940WZ combines 19 × 40W RGBW LEDs, 7°–45° motorized zoom, rotating honeycomb optics and eight DMX personalities in an IP20 moving-head platform.

LED Source: 19 × 40W RGBW
Motorized Zoom: 7°–45°
Optical Effects: Rotating honeycomb + halo
DMX Modes: 21 / 26 / 35 / 43 / 78 / 92 / 97 / 119 CH
Ingress Protection: IP20 indoor
Net Weight: 16.2 kg

Get a Quote Download User Manual

Applications: Rental · Stage · Studio · Venues
Sample: Subject to stock confirmation
Lead time: Confirmed with quotation
Support: Manual · DMX chart · remote support

Get Quote

01 — PRODUCT OVERVIEW

Nineteen RGBW cells. Rotating honeycomb optics. A programmable halo layer.

Eight DMX personalities cover compact whole-fixture control, pattern programming and extended pixel control: 21CH, 26CH, 35CH, 43CH, 78CH, 92CH, 97CH and 119CH. The 97CH and 119CH mappings provide direct RGBW data for all nineteen main cells, while the 78CH and 92CH mappings expose direct RGB data.

19 × 40WRGBW LED engine

7°–45°Motorized zoom

8 modesDMX personalities

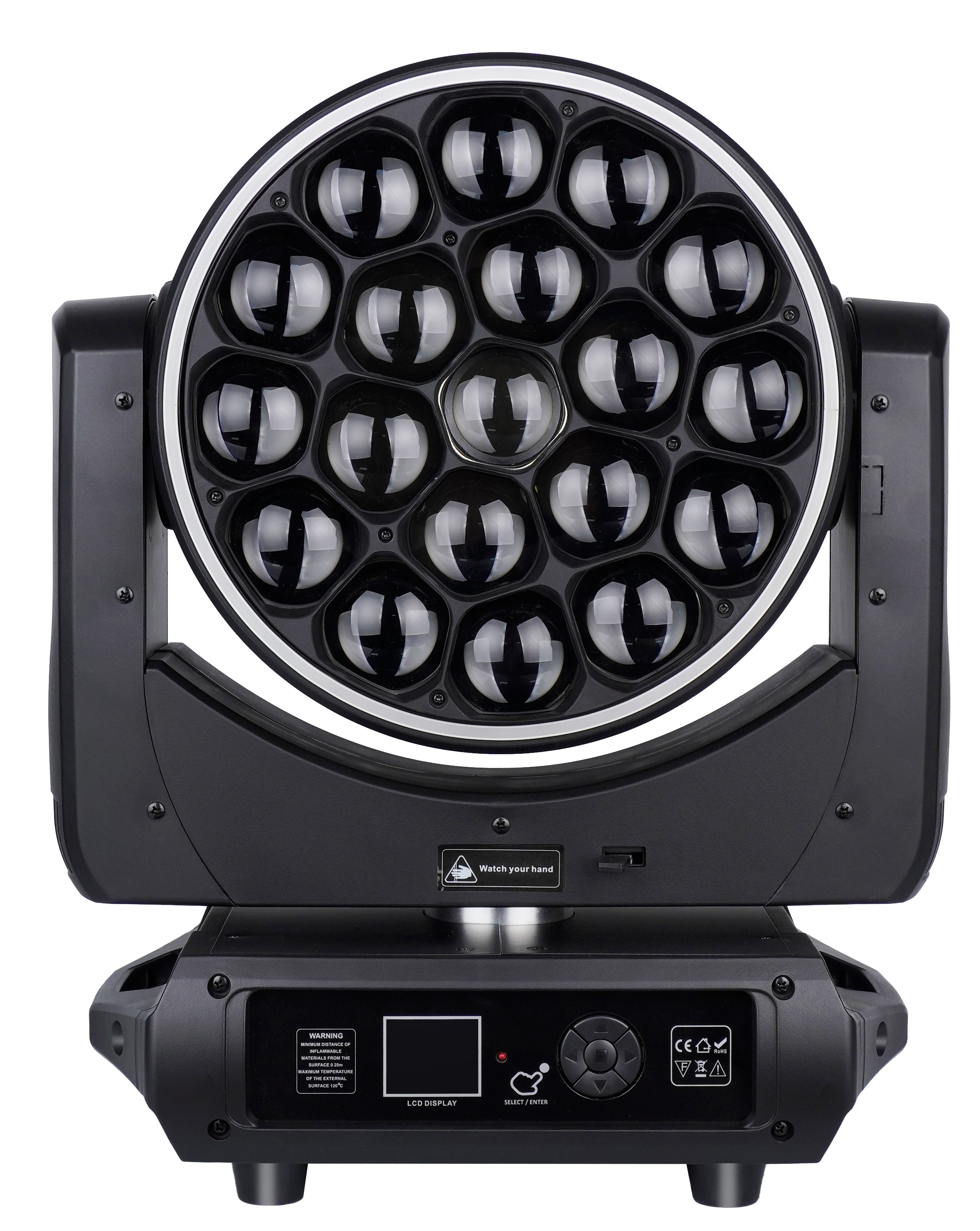

AL1940WZ nineteen-cell RGBW optical face

03 — HIGHLIGHT

Nineteen 40W RGBW Cells

Nineteen RGBW 4-in-1 LEDs form the main optical engine. The extended 97CH and 119CH personalities provide separate red, green, blue and white control for every cell, supporting detailed pixel programming as well as grouped wash operation.

19 × 40W RGBWIndividual cellsExtended pixel modes

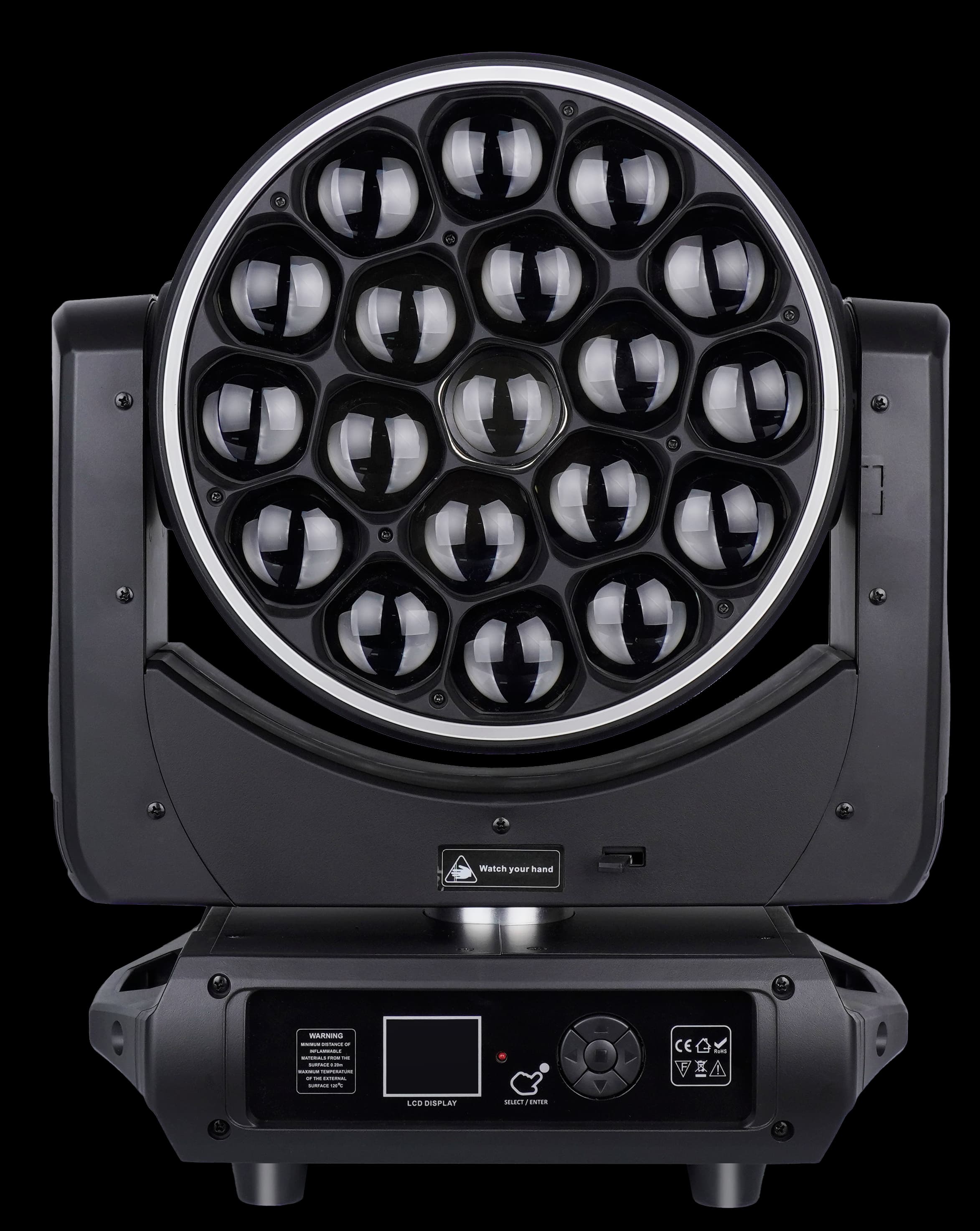

AL1940WZ front honeycomb optical assembly

04 — HIGHLIGHT

7°–45° Zoom and Rotating Honeycomb

The documented motorized zoom changes the field from a tighter 7° beam to a broader 45° wash. The front honeycomb lens supports indexed positioning and bidirectional rotation for changing optical-face patterns and movement effects.

7° narrow45° wideBidirectional lens rotation

05 — HIGHLIGHT

Pattern and Halo Control

The 35CH and 43CH modes add static or dynamic pattern tools, foreground and background layers, transition controls and halo functions. The halo can be programmed with dimmer, strobe, color macro and speed parameters in the documented modes.

Static and dynamic patternsHalo layerForeground and background

07 — OPTICAL, COLOR & CONTROL

Model-specific performance.

We publish model-specific optical, color, movement and control data for each selected fixture configuration.

19 × 40W

RGBW LED engine

Nineteen four-color main cells

7°–45°

Motorized zoom

Tighter beam to broad wash

8 modes

DMX personalities

21CH through 119CH

1–25 Hz

Electronic strobe

Manual-derived range

540°

Pan travel

With 16-bit fine control

16.2 kg

Net weight

Model-labelled manual

Professional concert stage lighting application

08 — APPLICATIONS

Built around professional show workflows.

We help production teams match optics, control, protection and fixture format to each professional lighting application.

Concert & Touring

Evaluate the zoom, cell control, rotating optics and halo layer for programmed indoor concert rigs.

Explore application 02

Rental & Event Production

Select compact, pattern or full-pixel personalities to match the required programming footprint.

Explore application 03

Theatre & Stage Performance

Use repeatable RGBW wash, zoom and movement cues in protected indoor environments.

Explore application 04

TV & Studio Evaluation

Test dimming, strobe, halo appearance and camera interaction with the intended camera settings.

Explore application 05

Clubs & Entertainment Venues

Combine wash coverage with visible honeycomb and halo effects in indoor entertainment installations.

Explore application

09 — TECHNICAL SPECIFICATIONS

Engineering data by system.

We organize model-specific optical, electrical, control and mechanical data for clear project planning.

Light Source

Main LEDs: 19 × 40W RGBW 4-in-1
Pixel control: Nineteen individually controllable RGBW cells in 97CH and 119CH modes
Halo: Independent dimmer, strobe, color macro and speed controls in documented modes

Optical System

Motorized zoom: 7°–45°
Front optics: Rotating honeycomb lens
Lens rotation: Indexed position plus clockwise / counterclockwise movement, mode-dependent
Output roles: Beam · wash · pixel patterns · halo effects

Color & Effects

Color system: RGBW
Dimmer: 0–100% with fine control in selected modes
Strobe: Electronic strobe with synchronized, pulse and random functions; mode-dependent
Color tools: Linear CTO · color macros · RGBW background controls
Pattern tools: Static and dynamic patterns · speed · fade · transition · angle / position

Movement

Pan: 540° with 16-bit fine control; menu limits 540° / 360° / 180°
Positioning: Position memory, feedback and automatic correction

Control & Protocols

DMX personalities: 21CH · 26CH · 35CH · 43CH · 78CH · 92CH · 97CH · 119CH
Protocols: DMX512 · RDM
Standalone: Automatic · sound-active · test / manual
Display: Chinese / English menu display

Connections

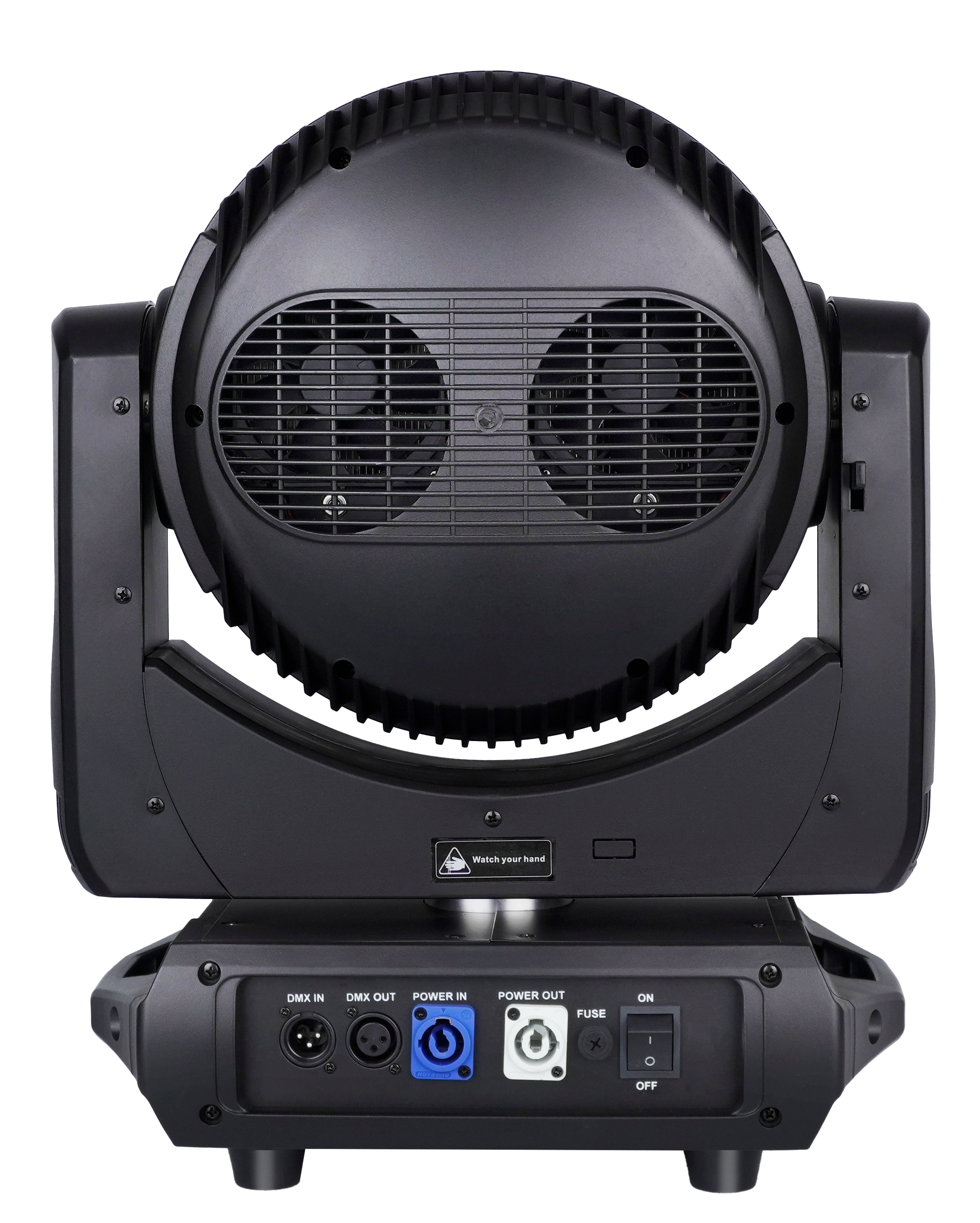

DMX: 3-pin XLR input/output

Electrical

Input voltage: AC 100–240 V, 50/60 Hz

Housing & Physical

Ingress protection: IP20 — protected indoor use
Net / gross weight: 16.2 kg / 18.7 kg
Protection: Fan and temperature protection · automatic reset

10 — PRODUCT DIMENSIONS

Plan the rig with the model drawing.

Download original drawing

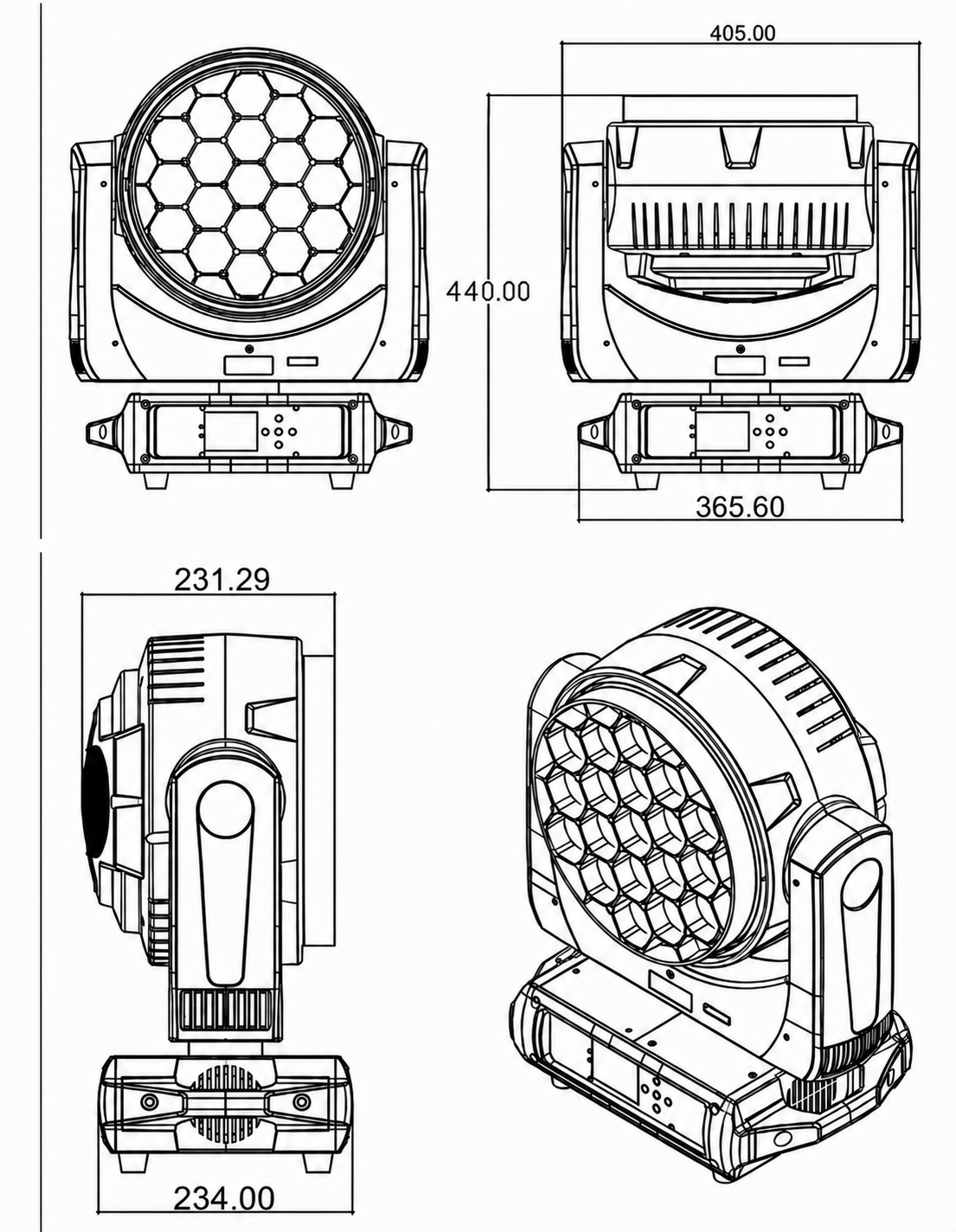

AL1940WZ Bee Eye moving head dimension drawing with black lines and text on white background

Drawing overall width: 405.00 mm
Drawing upright height: 440.00 mm
Drawing base width: 365.60 mm
Drawing head depth: 231.29 mm
Drawing side-view base width: 234.00 mm

11 — DOWNLOADS & FIXTURE LIBRARIES

Model-specific technical files.

We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.

Product Documents

Model-labelled AL1940WZ files supplied for technical evaluation.

AL1940WZ User Manual

PDF · 929 KBDownload

AL1940WZ User Manual

DOCX · 620 KBDownload

Technical Drawings

AL1940WZ Dimension Drawing — Black Line Edition

PNG · 1.7 MBDownload

Need a fixture file?Tell our technical team which console and software version you use.

Contact Technical Support

12 — FAQ

Product questions, answered by Aolait.

Our team provides clear model, control, application and technical-file guidance for professional projects.

Yes. The 97CH and 119CH personalities provide direct RGBW control for all nineteen cells. The 78CH and 92CH modes provide direct RGB data for the nineteen cells.
