Multi-head motion, linear LED arrays, six-, ten- and twelve-head Waver platforms, integrated laser effects and dual-sided Wash and Strobe systems—developed for dynamic stage looks and effect-driven show programming.
An IP65-rated ten-pixel RGBW moving bar with 5°–35° motorized zoom, 220° tilt, cool-white, warm-white and RGB line effects, and five DMX programming depths.
Product type: Wash FX Moving Head
LED configuration: 10 × 60W RGBW
Effect architecture: 10×60W IP65 Moving Bar
Movement structure: Single ten-cell IP65 linear moving bar with 220° motorized tilt and separate white/RGB line-effect sources
Control: 17 / 27 / 99 / 108 / 168 CH
Ingress: IP65
Ten 60W RGBW Main Pixels · Cool-White, Warm-White and RGB Line Effects · 5°–35° Zoom with 220° Tilt

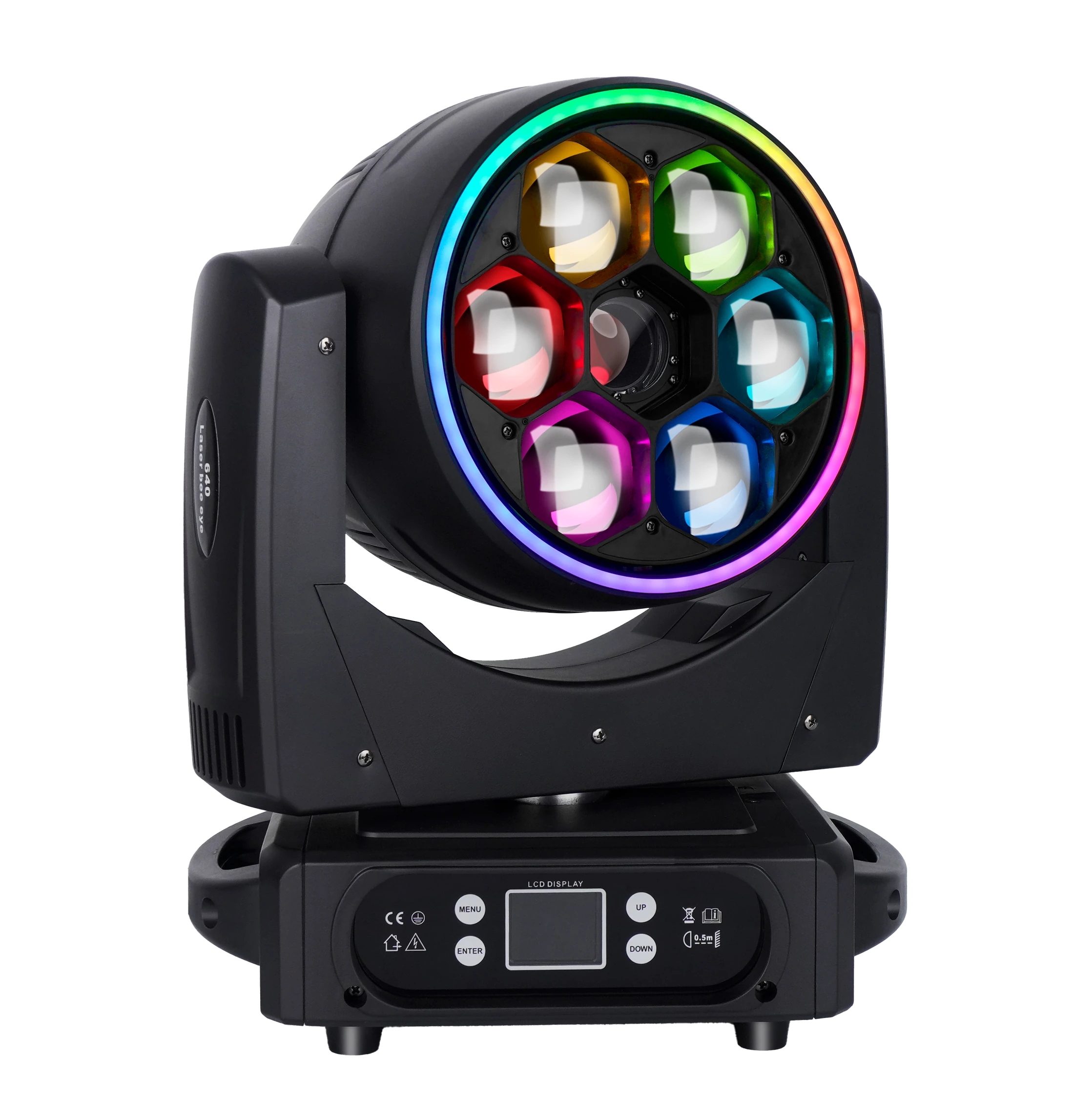

A compact indoor Wash FX moving head combining six RGBW Bee Eye cells, an RGB halo and an 8W animated RGB laser for layered beam, wash and audience-facing effects.
Product type: Wash FX Moving Head
LED configuration: 6 × 40W RGBW
Effect architecture: 6×40W Wash + 8W Laser
Movement structure: Six wash cells surrounding a central laser aperture
Control: 49CH / 73CH
Ingress: IP20
Six 40W RGBW Bee Eye Cells · 8W Animated RGB Laser Layer · 4.5°–45° Zoom and Rotating Front Lens

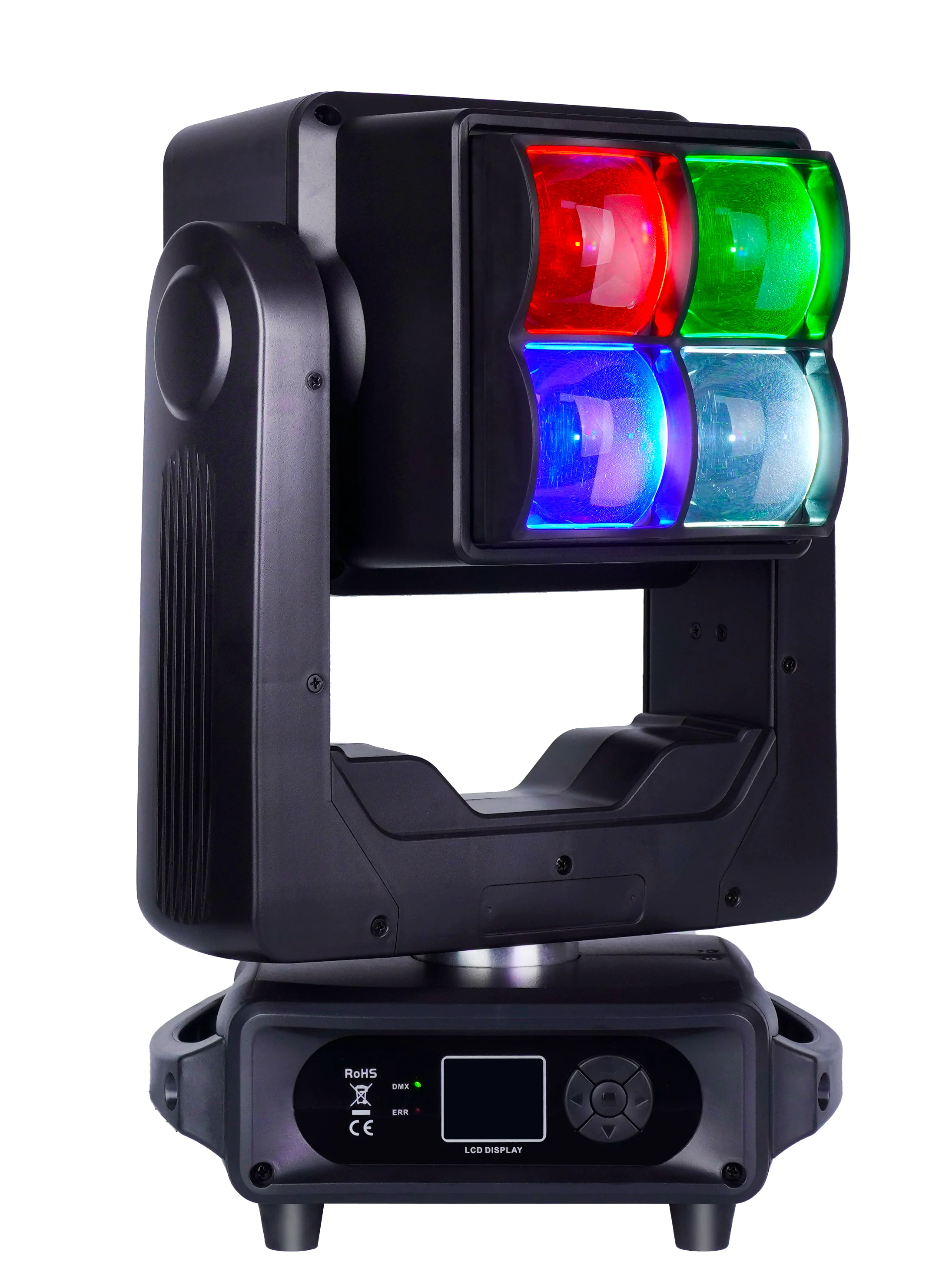

4×60W LED Wash and Strobe Double-Sided Moving Head
A double-sided continuous-rotation moving head combining RGBW wash, white strobe and programmable auxiliary effects for indoor stages and entertainment venues.
A six-head RGBW moving-effect platform with independent tilt and motorized zoom, continuous base pan rotation and synchronized wave, fan, beam and wash programming.
Product type: Wash FX Moving Head
LED configuration: 6 × 60W RGBW
Effect architecture: 6×60W Waver
Movement structure: Six independently moving 60W RGBW heads with motorized zoom on one linear base
Control: 23 / 38 / 62 / 92 / 94 CH
Ingress: IP20
Six Independent 60W RGBW Heads · Independent Tilt for Wave and Fan Effects · Per-Head Zoom and RGBW Color Control

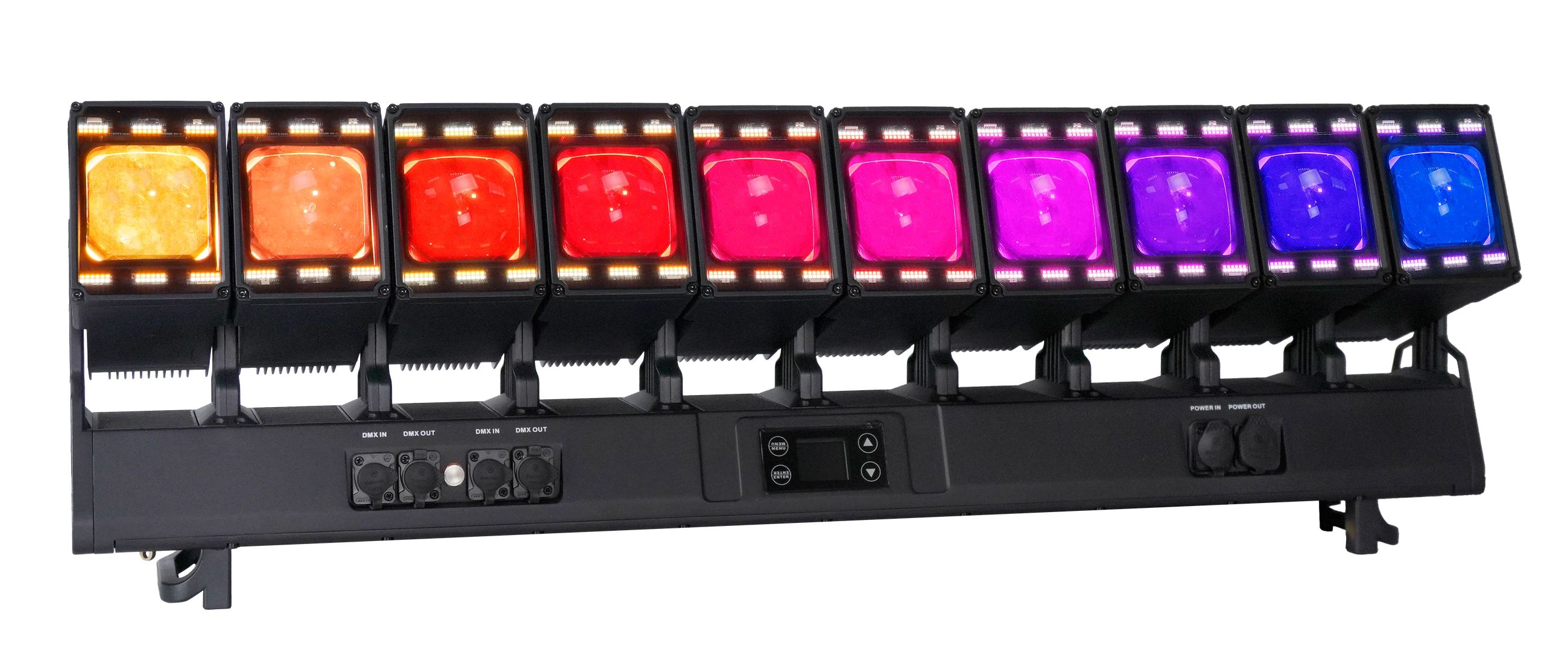

A ten-head motorized RGBW effect bar for synchronized wave, fan, wash and 'Thousand Hands' looks, with independent tilt, zoom and auxiliary dual-white control.
Product type: Wash FX Moving Head
LED configuration: 10 × 80W RGBW
Effect architecture: 10×80W Waver
Movement structure: Ten independently moving 80W RGBW heads with motorized zoom and dual-white auxiliary arrays on one linear base
Control: 29 / 56 / 144 / 216 / 262 / 282 CH
Ingress: IP65
Ten Independent 80W RGBW Heads · Synchronized Wave and 'Thousand Hands' Motion · Dual-White Auxiliary Effect Arrays

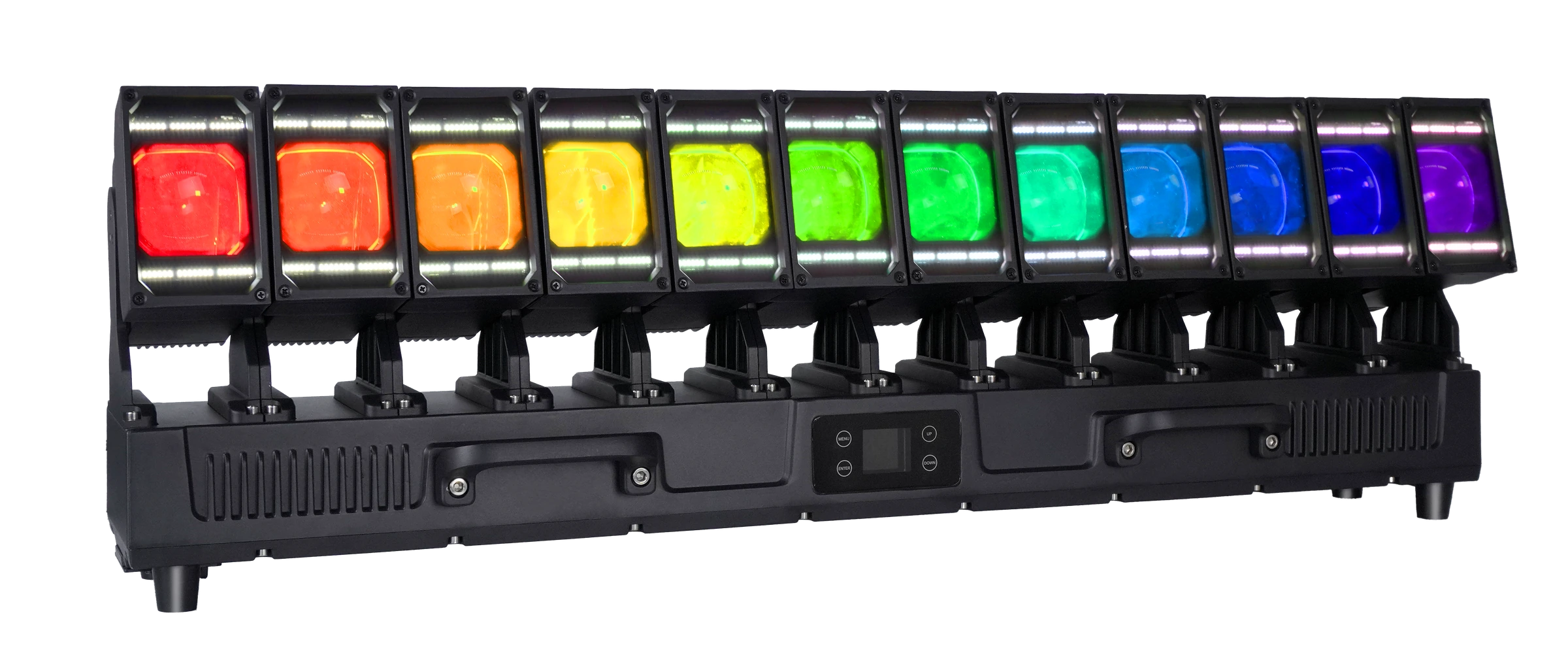

A weather-protected twelve-head RGBW Waver with independent tilt, motorized zoom and a separate white / golden-amber auxiliary system for synchronized wave, beam and wash effects.
Product type: Wash FX Moving Head
LED configuration: 12×60W
Effect architecture: 12×60W Waver
Movement structure: Twelve independently moving 60W heads with motorized zoom, 432-pixel auxiliary white/amber array and IP65 linear base
Control: 26 / 59 / 128 / 152 / 182 / 314 / 329 CH
Ingress: IP65
Twelve Independent 60W RGBW Heads · 432-Pixel White and Golden-Amber Auxiliary System · IP65 Housing for Weather-Protected Rigs
We classify Wash FX products by physical structure and light-source combination: Tornado, Moving Bar, Wash + Laser, dual-sided Wash + Strobe and Waver architectures.
01
Tornado Five-Head AL5120T / AL5120TIP / AL0580T
Five main wash heads form one linear Tornado platform for layered motion, multi-source coverage and coordinated dynamic effects.
02

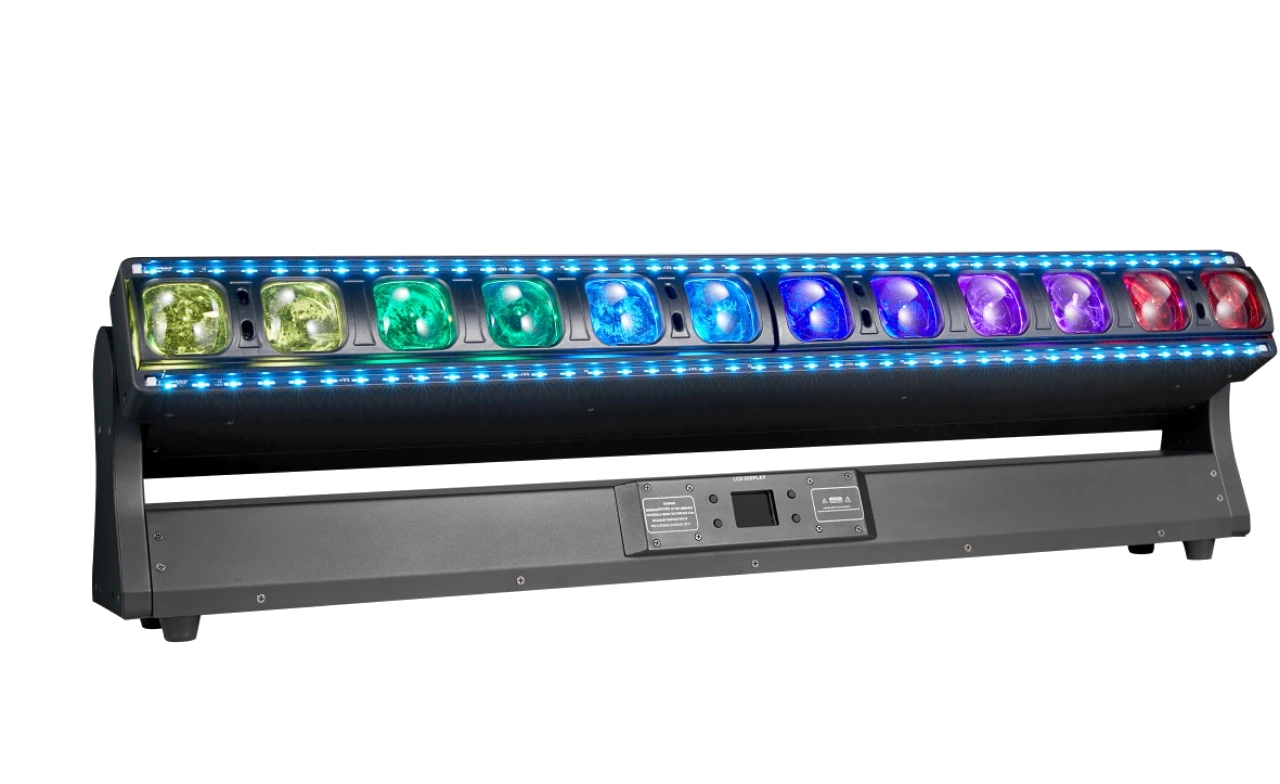

12×40W Moving Bar AL1240WB
Twelve RGBW cells form a horizontal moving bar for broad linear coverage, segmented looks, chases and dual-zoom programming.
03
10×60W IP65 Moving Bar ALP1060WB
Ten RGBW main pixels, separate cool-white, warm-white and RGB line sources, 5°–35° zoom and 220° tilt form an IP65 linear Wash FX platform.
04
6×40W Wash + 8W Laser AL640WX
Six RGBW wash cells and a central 8W laser module combine color coverage and controlled laser effects in one moving fixture.
05
4×60W Wash + Strobe Dual-Sided Fixture AL0460WX
Four 60W RGBW wash cells form one optical face, while a reverse white-strobe/RGB effect face supports fast transitions between two effect planes.
06

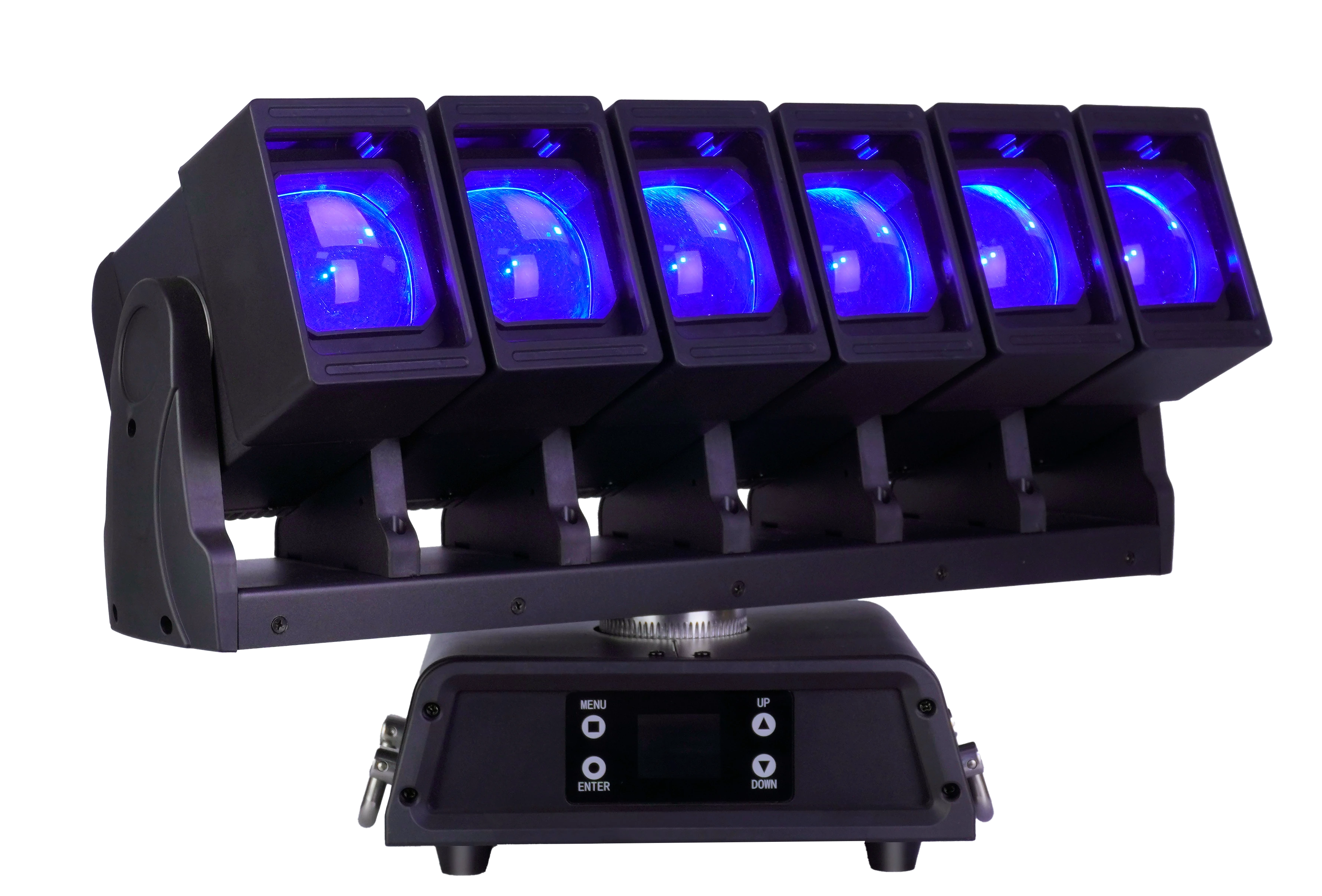

6×60W Waver AL0660WV
Six independently controlled 60W RGBW heads with motorized zoom form a compact Waver platform for coordinated wave, fan, beam and wash looks.
07
10×80W Waver ALP1080WV
Ten independently controlled 80W RGBW heads with motorized zoom and dual-white auxiliary arrays form a long-format Waver platform for coordinated wave, wash and fan looks.
08

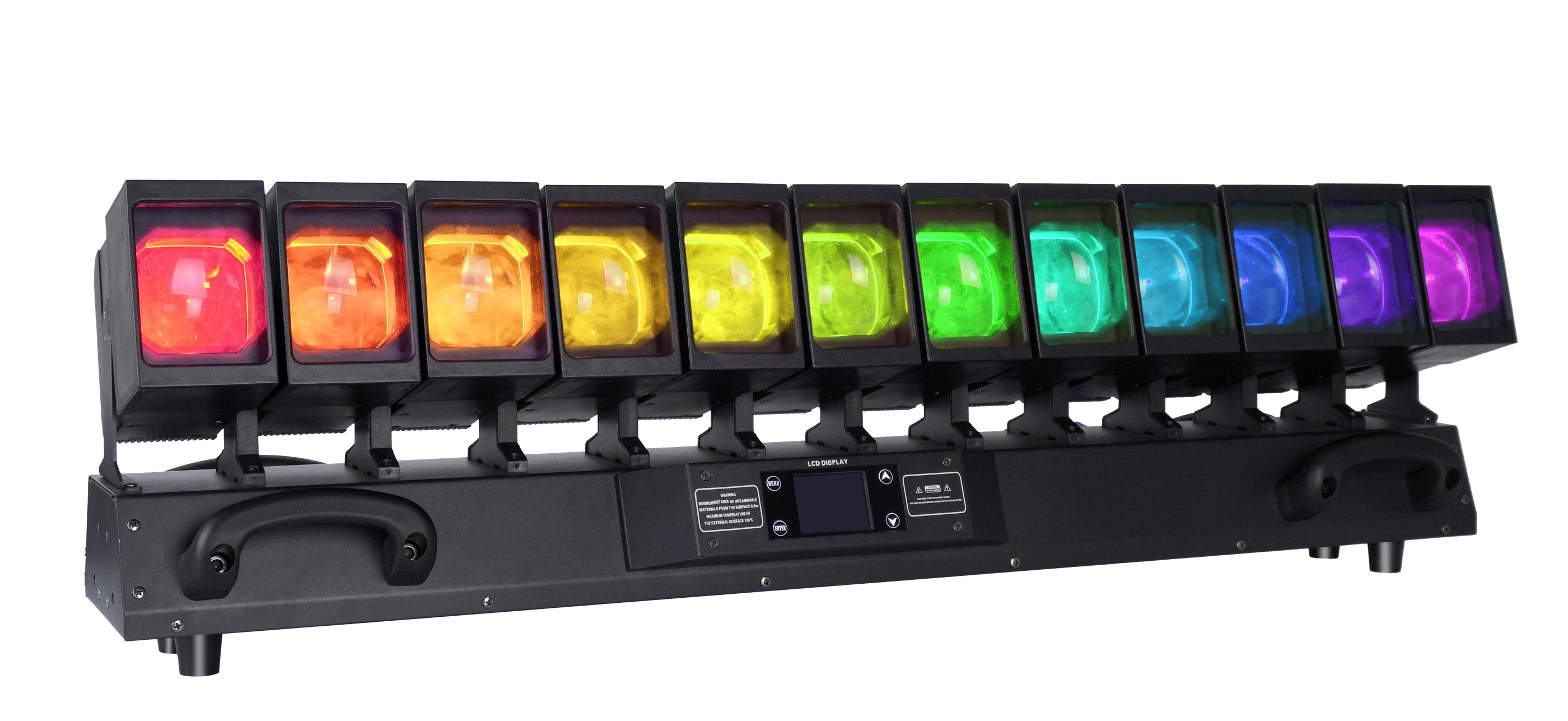

12×60W Waver AL1260WV / ALP1260WV
AL1260WV and ALP1260WV are separate twelve-head Waver products: the former is an indoor IP20 platform and the latter an IP65 platform with a white / golden-amber auxiliary array.
AL1240WB fixture assembly and functional testing
MOTION, OPTICS AND CONTROL
Engineering Multi-Source Effects into One Fixture
We coordinate optical, mechanical, electronic and control work around the selected architecture, then build prototypes, approve the golden sample and complete assembly and model-specific functional testing.
Optics
Develop wash lenses, zoom travel and model-specific laser or strobe integration around the intended output structure.
Mechanics
Engineer five-head motion, linear-bar tilt, six-, ten- or twelve-head Waver tilt/zoom, or dual-sided movement with service access and repeatable positioning in view.
Control
Coordinate DMX personalities, cell or zone addressing, movement behavior, electronics and firmware for the documented mode.
Thermal & power
Review cooling paths and power distribution for each source combination instead of applying one platform assumption to the full family.
Prototype approval
Build and review samples, lock the approved golden sample and confirm technical files before repeat production.
Production testing
Use assembly checks, function testing and continuous-operation testing appropriate to the confirmed product configuration.

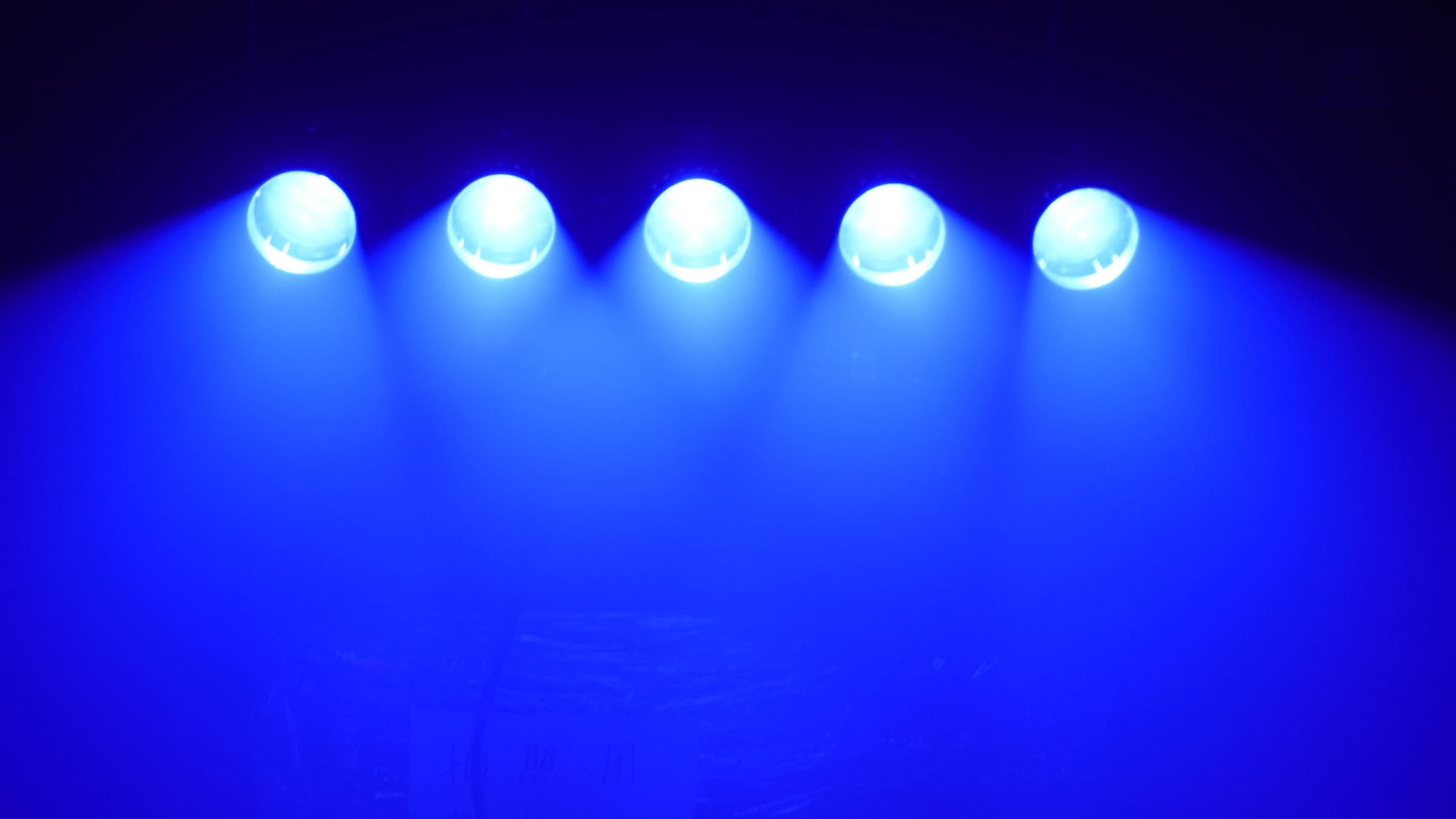

AL5120T Tornado EffectFive-head blue output positions
APPLICATIONS
Wash FX Applications
Choose the architecture for the required motion, coverage and effect layer. Every scene and show file still needs model-specific rigging, control and safety planning.
01
Concerts and Touring
Combine multi-head motion, linear bar looks and model-specific effect layers in repeatable programmed cues.
02
Music Festivals
Use wide linear coverage, synchronized movement and layered effects within the approved rigging and safety plan.
03
Clubs and Entertainment Venues
Build rhythmic color, moving-bar chases and fast wash-to-strobe transitions for controlled venues.
04
TV and Show Productions
Test dimming, refresh behavior, laser operation and every selected DMX personality with the production system.
05
DJ and Live Performance
Coordinate Tornado movement, wash color and effect changes with music-led show programming.
06
Rental and Event Production
Select the physical architecture and control footprint that match transport, service and programming needs.

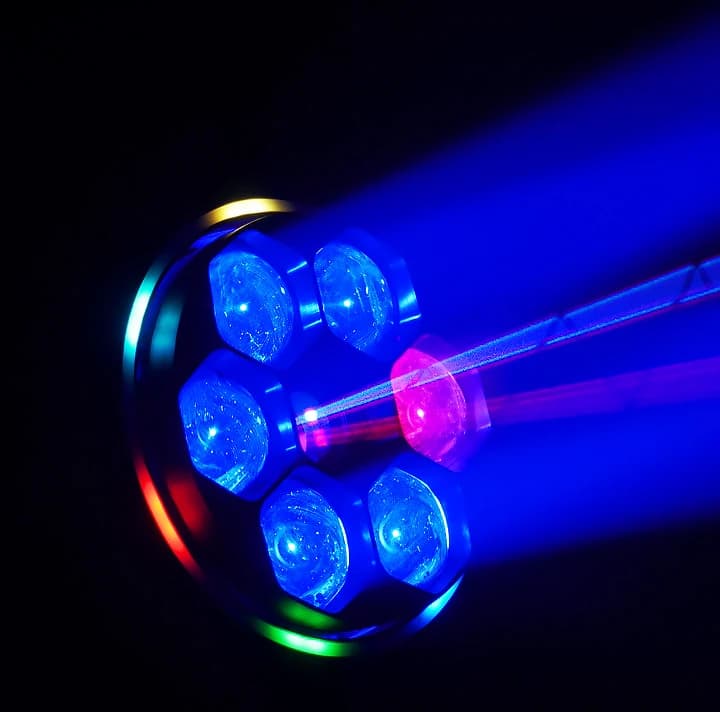

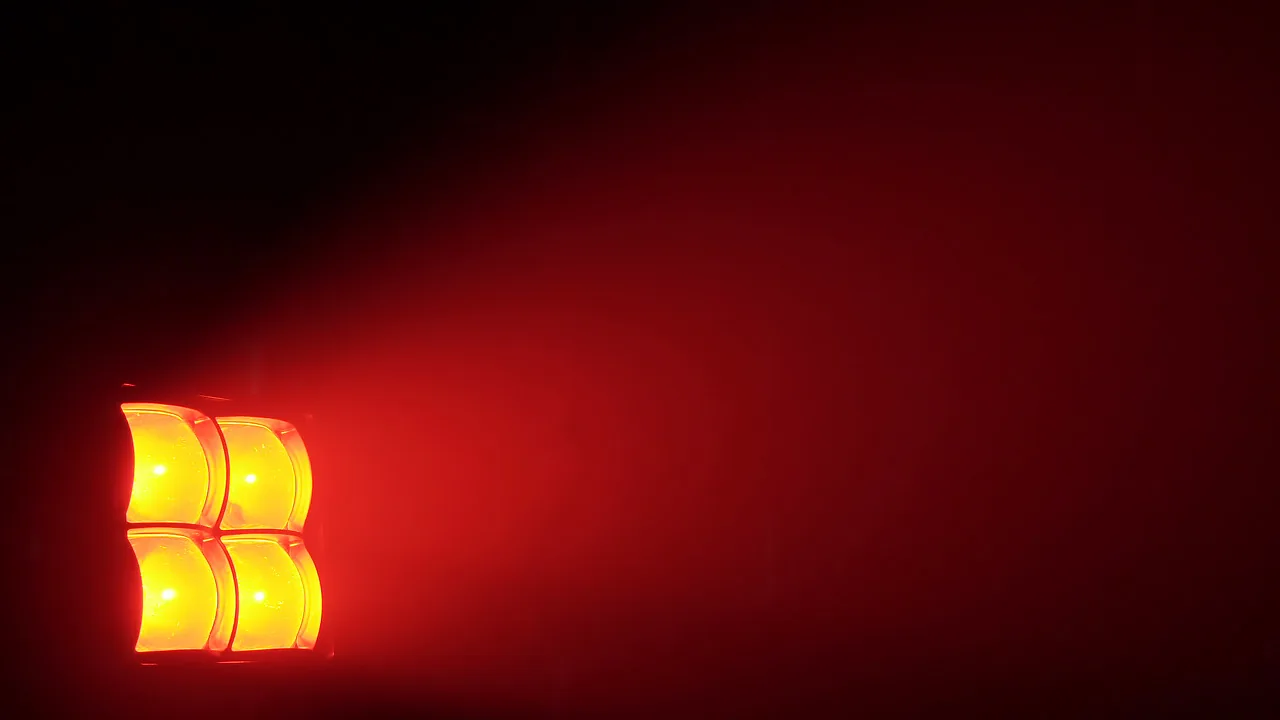

Tornado EffectFive-head amber outputWash + Laser EffectBlue wash with red and blue laser layersRGBW Wash FaceRed front-face wash output
TECHNICAL FAQ
Wash FX Moving Head Questions
Direct answers about physical classification, model structures, control depth and customization.
01What is a Wash FX moving head?
A Wash FX moving head is classified by its physical effect architecture, light-source combination and primary effect format. At AOLAIT, the formal family covers five-head Tornado, 12×40W and IP65 10×60W moving bars, six-head 6×60W Waver, ten-head 10×80W Waver, twelve-head 12×60W Waver, 6×40W Wash + 8W Laser and dual-sided 4×60W Wash + Strobe structures.
02Which products belong to the Aolait Wash FX family?
The current registered range contains AL5120T, AL5120TIP and AL0580T five-head Tornado fixtures, AL1240WB 12×40W Moving Head Bar, ALP1060WB 10×60W LED Moving Bar IP65, AL0660WV 6×60W Waver, ALP1080WV 10×80W Waver, separate AL1260WV indoor and ALP1260WV IP65 12×60W Waver products, AL640WX 6×40W Wash + 8W Laser hybrid and AL0460WX dual-sided Wash + Strobe moving head.
03How is Wash FX different from Zoom Wash?
Zoom Wash is centered on adjustable wash coverage. Wash FX requires one of the approved physical effect structures; pixel control, a halo, an RGB ring, auxiliary backlight or the word effect does not by itself move a conventional Zoom Wash into this family.
04How is Wash FX different from Bee Eye?
Bee Eye fixtures use a multi-cell optical face for wash and visual effects. They remain Bee Eye products even when they support pixel control, rotating optics or kaleidoscope-style looks. Wash FX membership is determined by the eight approved structures shown on this page.
05What is a five-head Tornado fixture?
A five-head Tornado fixture places five main wash heads on one linear base. AL5120T and AL5120TIP combine head-specific RGBL, movement and zoom data, while AL0580T combines head-specific RGBW, movement, motorized focus and aura-ring data for layered waves, fans and multi-directional effects.
06What is the purpose of a moving LED bar?
A moving LED bar arranges its main emitters in a horizontal line for broad linear coverage, chases and segmented looks. AL1240WB uses twelve 40W RGBW cells, 270° tilt and 29/68CH personalities. ALP1060WB uses ten 60W RGBW cells, separate white/RGB line sources, 5°–35° zoom, 220° tilt and five personalities from 17CH to 168CH.
07How does the Wash and Laser hybrid work?
AL640WX combines six 40W RGBW wash cells with a central 8W laser module so wash color and laser effects can be programmed in one moving fixture. We provide the model-specific laser label and technical files for the selected configuration, and operation follows the applicable local laser-safety rules.
08What is a dual-sided Wash and Strobe fixture?
AL0460WX has a four-cell RGBW wash face and a reverse face with white and RGB auxiliary sources. Indexed and continuous movement can present either optical face during a cue, supporting transitions between wash, strobe and auxiliary effects.
09Are the effects individually or independently controllable?
Control depth differs by architecture and DMX personality. The Tornado models provide head-specific data in extended modes, including AL0580T control through 85CH and 88CH; AL1240WB exposes twelve RGBW pixels in 68CH, ALP1060WB exposes ten RGBW pixels plus white/RGB line layers in its extended modes, AL0660WV documents five personalities from 23CH to 94CH, ALP1080WV documents six personalities from 29CH to 282CH, AL1260WV documents six personalities from 20CH to 179CH, ALP1260WV documents seven personalities from 26CH to 329CH, AL640WX exposes six RGBW cells in 73CH and AL0460WX exposes expanded cell and reverse-face control in 93CH. Use the current model manual and console profile for programming.
10Can Aolait customize Wash FX fixtures?
Yes. We support OEM and ODM requirements for branding, packaging, documentation localization and selected product development. Our team coordinates samples, technical files and the production configuration for each project.
DISCUSS YOUR PROJECT
Define the Wash FX Architecture for Your Show
Share the required effect structure, application, control workflow, quantity and destination. We will coordinate the model configuration, available technical files and quotation.
