10-PIXEL RGBW IP65 MOVING BAR / LINE-EFFECT WASH FX
An IP65-rated ten-pixel RGBW moving bar with 5°–35° motorized zoom, 220° tilt, cool-white, warm-white and RGB line effects, and five DMX programming depths.

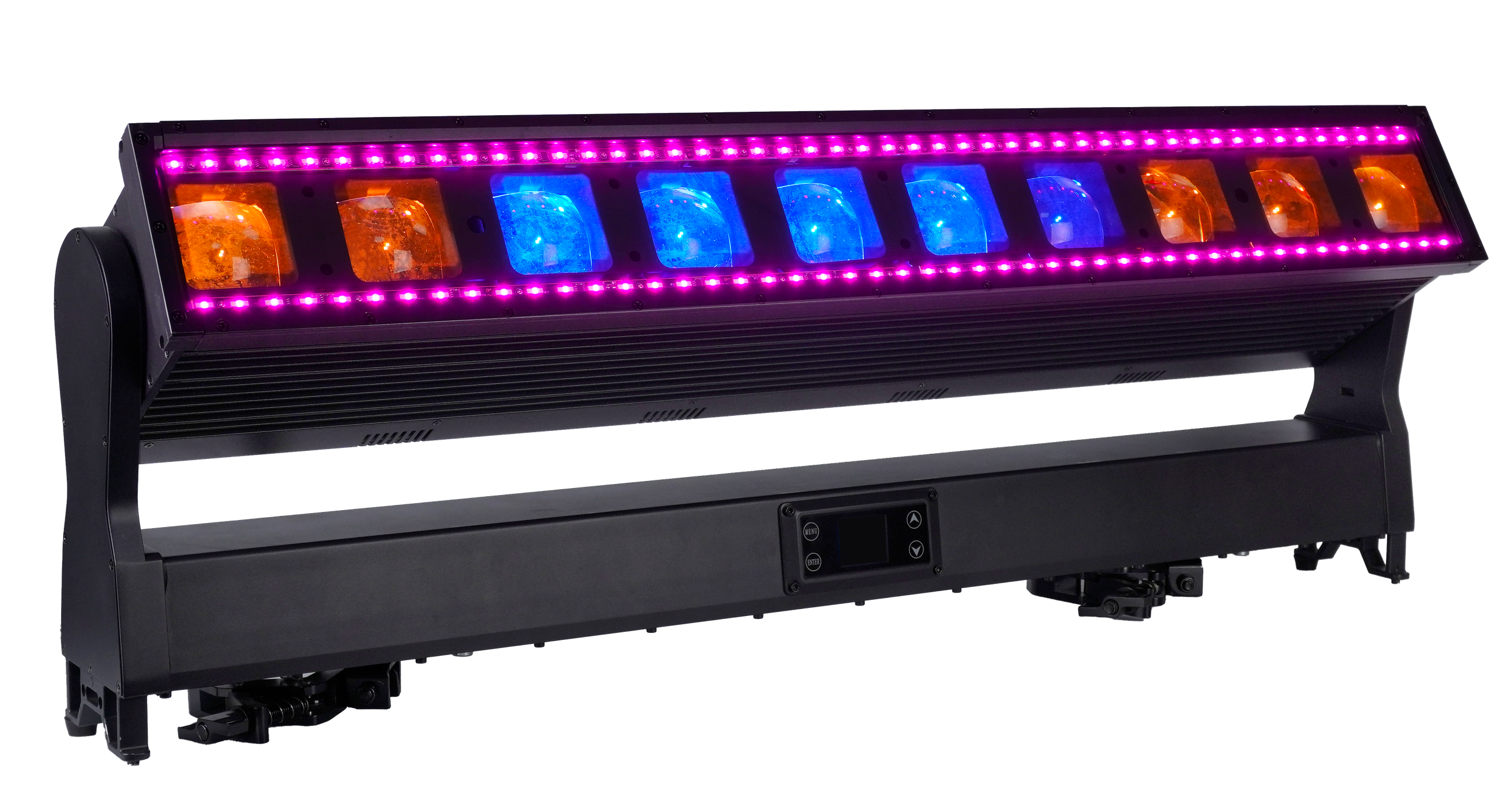

ALP1060WB is a 10×60W LED Moving Bar IP65 combining ten RGBW main pixels with separate cool-white, warm-white and RGB line-effect systems.
01 — PRODUCT OVERVIEW

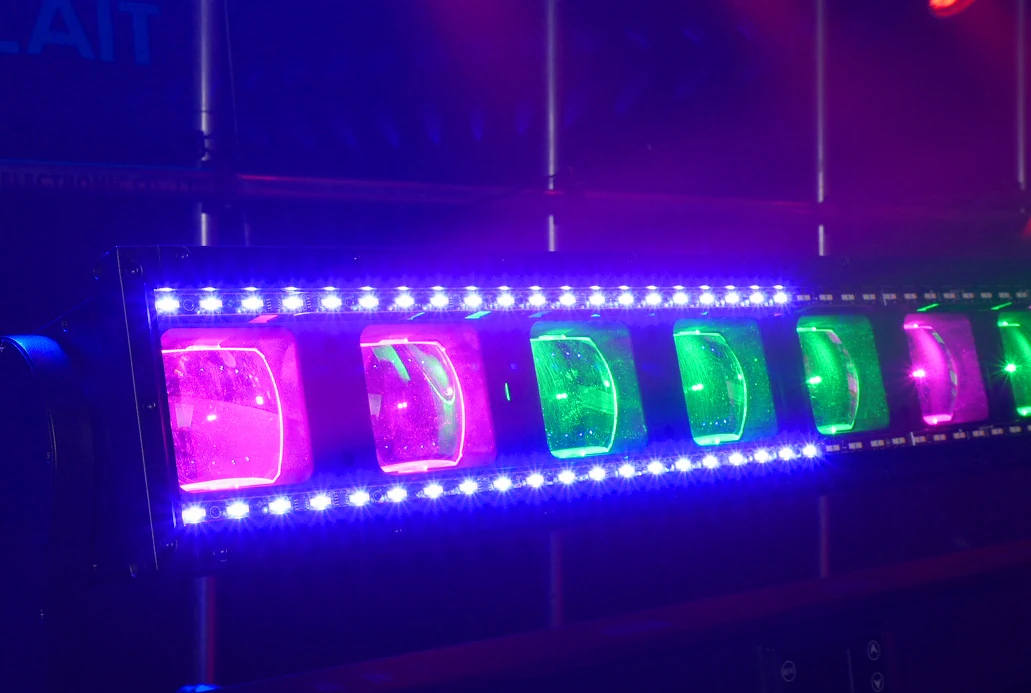

Two additional light layers run along the optical face: 96 × 1W cool-white LEDs, 96 × 1W warm-white LEDs and 96 × 0.5W RGB 3-in-1 LEDs. Their dimming, strobe, color and effect controls can be combined with the ten main RGBW pixels without treating the line sources as measured photometric output.
02 — PRODUCT VIDEO
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
03 — HIGHLIGHT

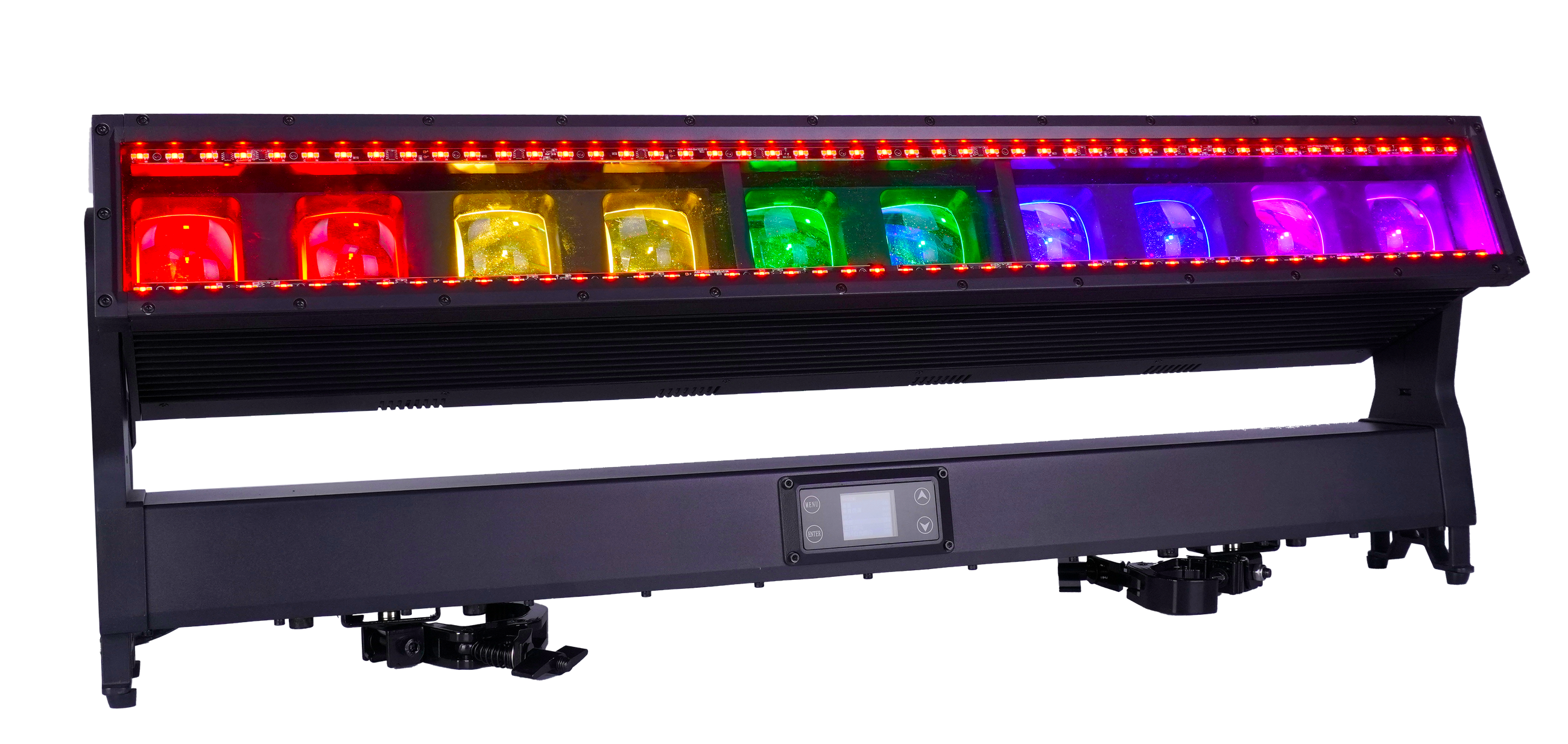

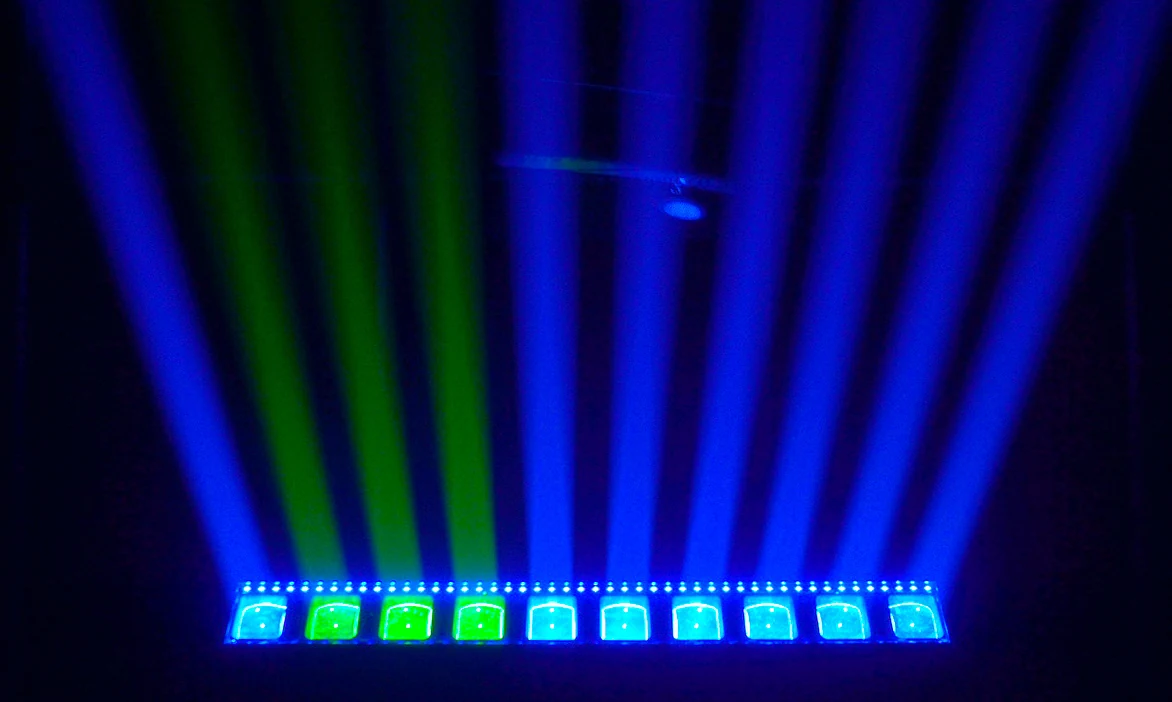

Ten RGBW 4-in-1 emitters form the main wash and pixel layer. The 99CH, 108CH and 168CH personalities assign separate red, green, blue and white intensity to pixels 1–10, while 17CH and 27CH provide grouped main-source control.
04 — HIGHLIGHT
The auxiliary system combines 96 × 1W cool-white LEDs, 96 × 1W warm-white LEDs and 96 × 0.5W RGB 3-in-1 LEDs. The extended personalities provide twelve- or twenty-four-pixel white-line and RGB-line layouts, depending on the selected mode.
07 — OPTICAL, COLOR & CONTROL
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
Ten four-color main pixels
1W cool-white and warm-white LEDs
RGB 3-in-1 auxiliary LEDs
Source-stated 7:1 range
16-bit coarse/fine control
17CH through 168CH
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.

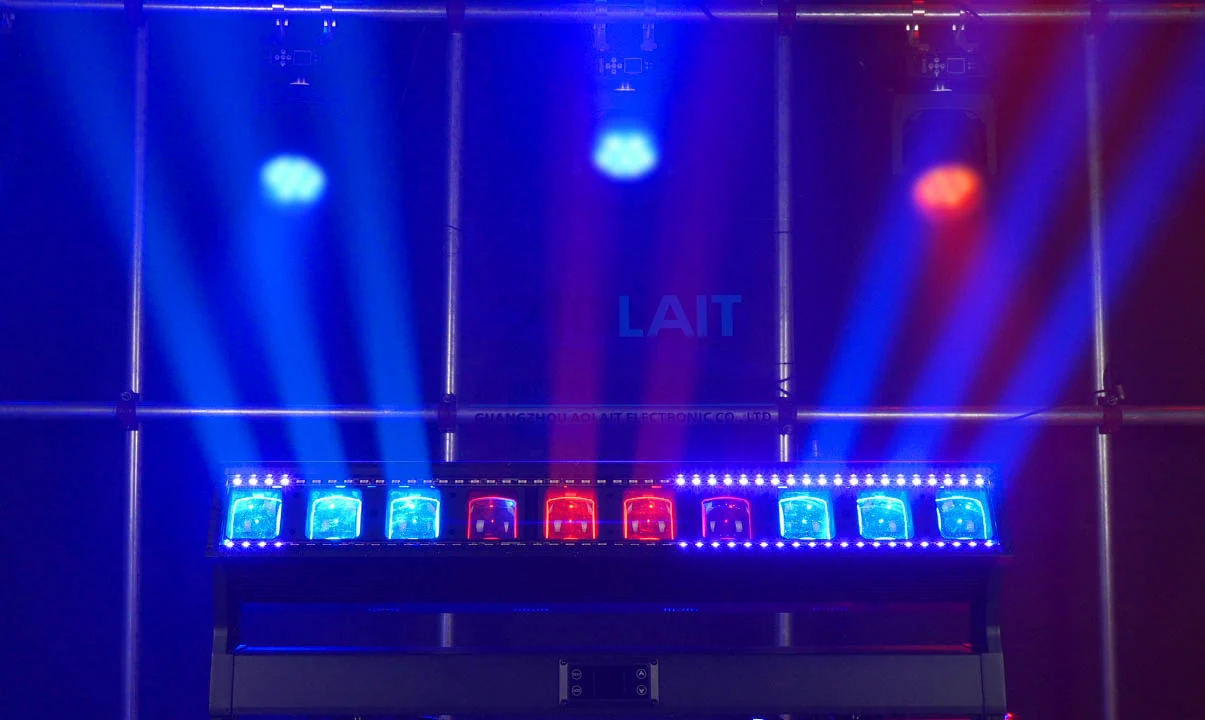

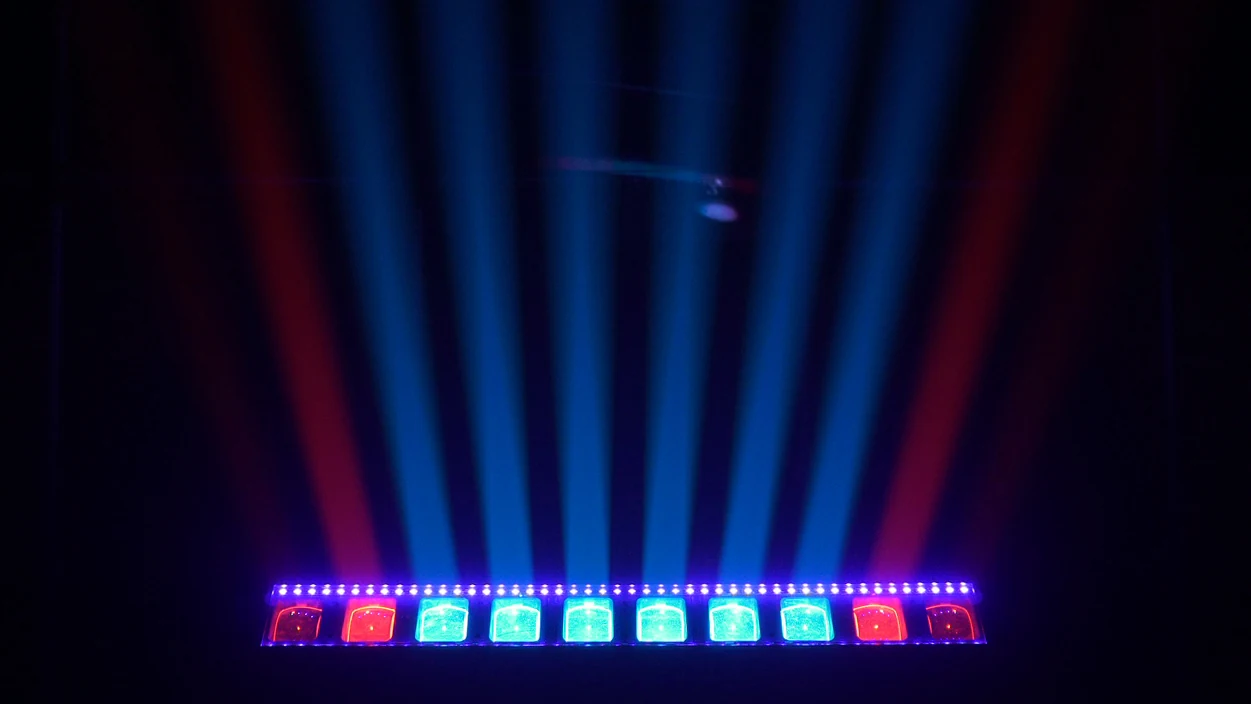

Evaluate the ten-pixel linear face, 220° tilt, zoom and three light layers for touring show programming.
Explore application 02The manual-stated IP65 configuration supports outdoor-event evaluation when every seal, cap and compatible connector is correctly fitted.
Explore application 03Five DMX footprints support grouped operation, macro workflows and extended pixel programming for professional rental systems.
Explore application 04Use 16-bit tilt, motorized zoom and layered line effects when evaluating repeatable scenic movement and color cues.
Explore application 05Evaluate broad linear coverage, segmented pixels and protected connections for temporary architectural-event applications.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.

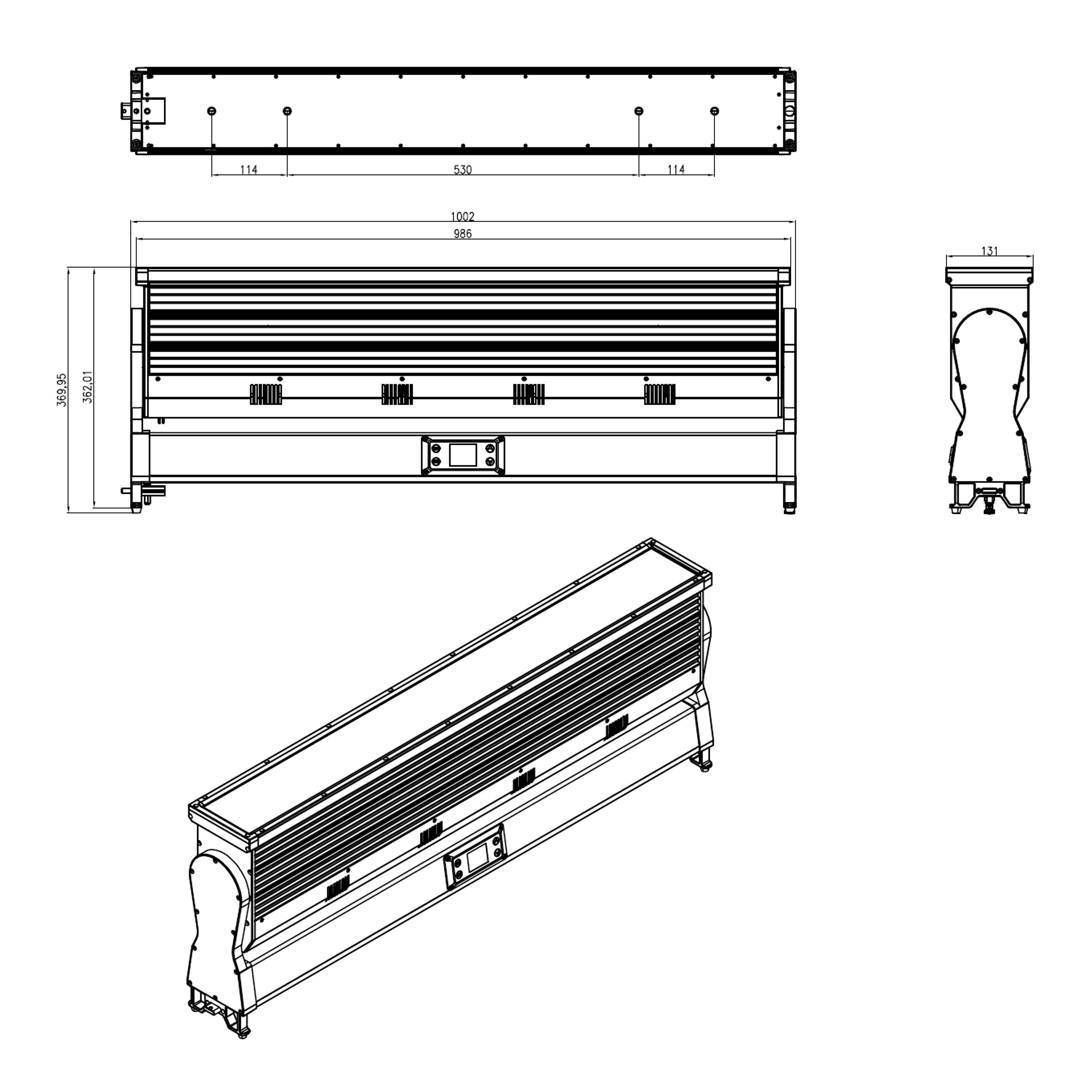

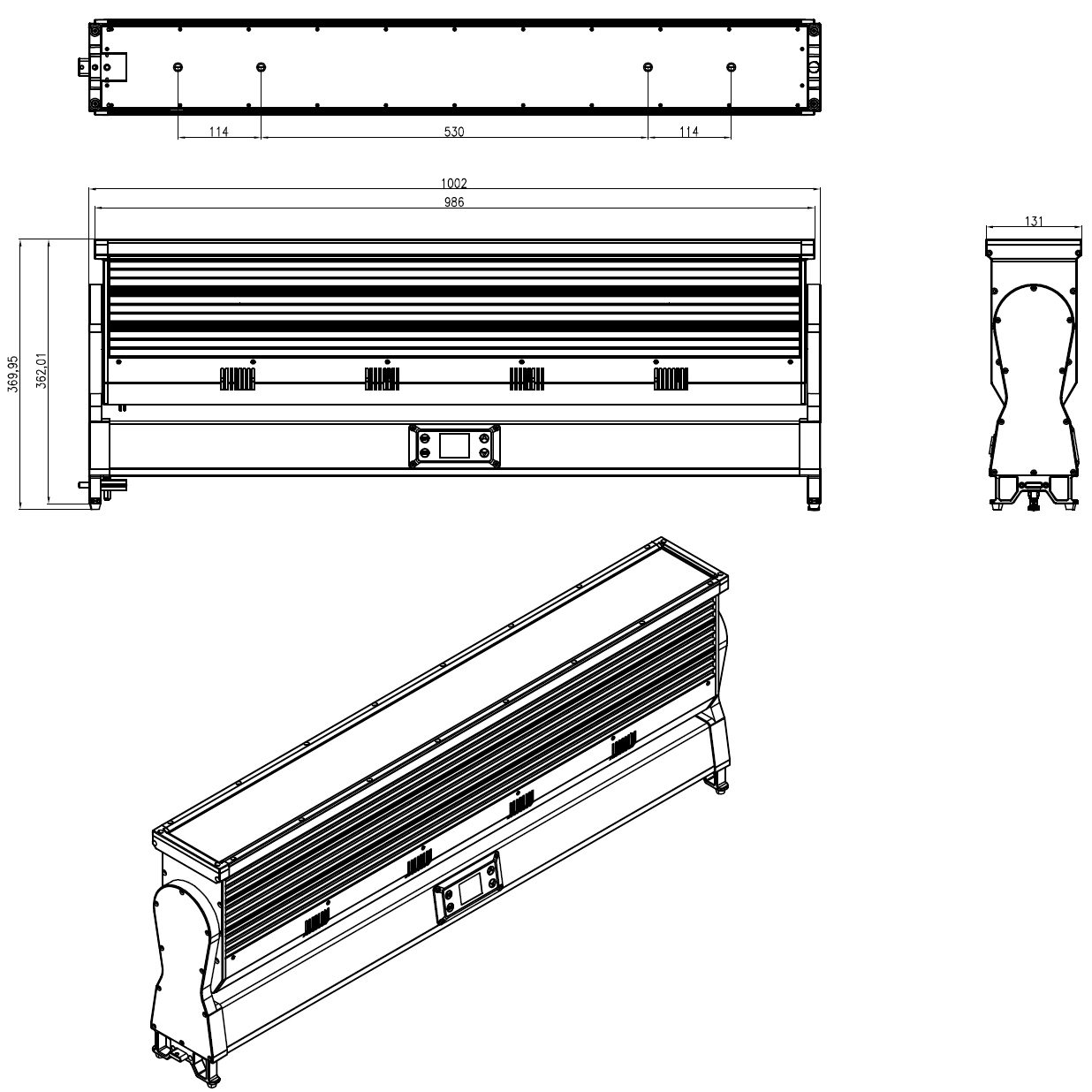

10 — PRODUCT DIMENSIONS
11 — DOWNLOADS & FIXTURE LIBRARIES
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
The information-bearing white background is retained. The enhanced preview and untouched manual-embedded source remain separate files.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
ALP1060WB is a linear Wash FX fixture with ten 60W RGBW main pixels, separate cool-white, warm-white and RGB line-effect sources, 5°–35° motorized zoom, 220° tilt and five DMX personalities.
Yes in the 99CH, 108CH and 168CH personalities. Channels 9–48 assign separate red, green, blue and white intensity to main pixels 1–10. The 17CH and 27CH modes use grouped main RGBW control.
The 99CH and 168CH modes expose 24 cool-white/warm-white pixel pairs, while 108CH exposes 12 pairs. The RGB line is global in 99CH, mapped as 12 pixels in 108CH and 24 pixels in 168CH. The 27CH mode provides grouped dimming, macro, speed and fade tools.
13 — RELATED KNOWLEDGE
Use these focused Aolait articles for product selection, control, operation and project preparation.

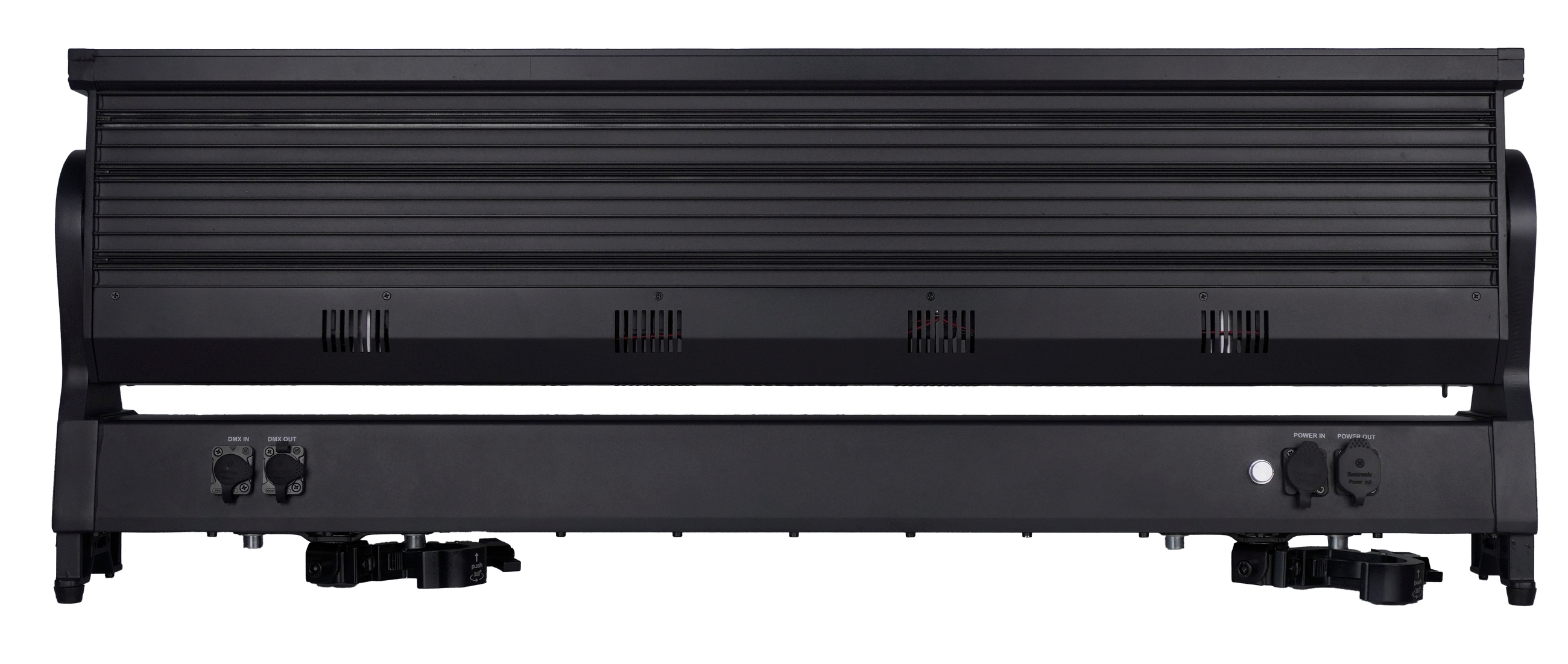

Coordinate enclosure protection with connectors, cables, deployment and maintenance.
