AOLAIT ZOOM WASH SERIES
Variable zoom, smooth color mixing and uniform field coverage—developed for touring productions, theatres, studios, venues and professional lighting installations.
ZOOM WASH PRODUCTS
Compare LED configuration, zoom range, color system, protection rating and control features across the current Aolait Zoom Wash range.

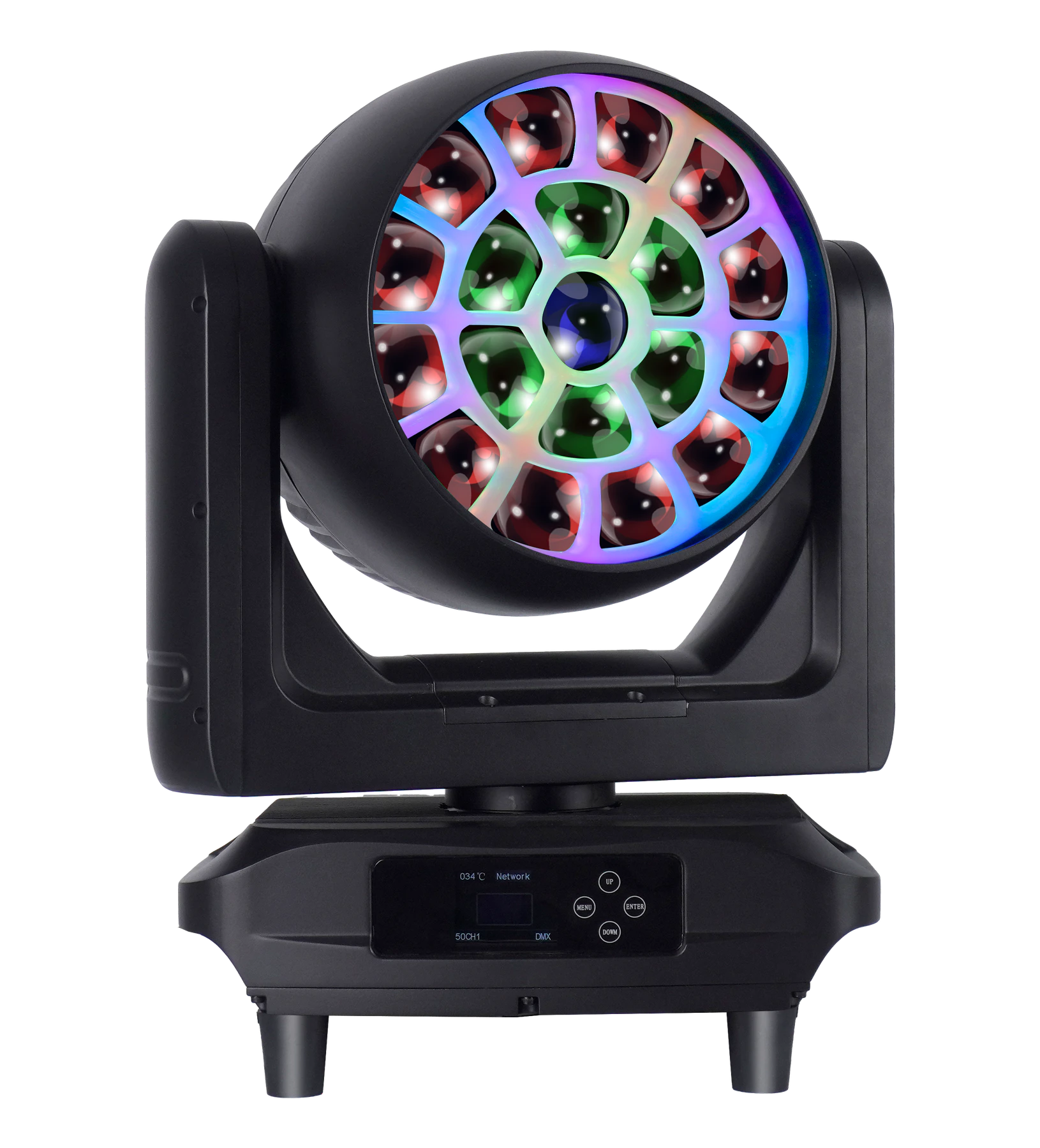

AL1950WX combines a 19 × 50W RGBL LED engine, wide motorized zoom, individual cell control and professional network protocols in a robust moving-head platform.

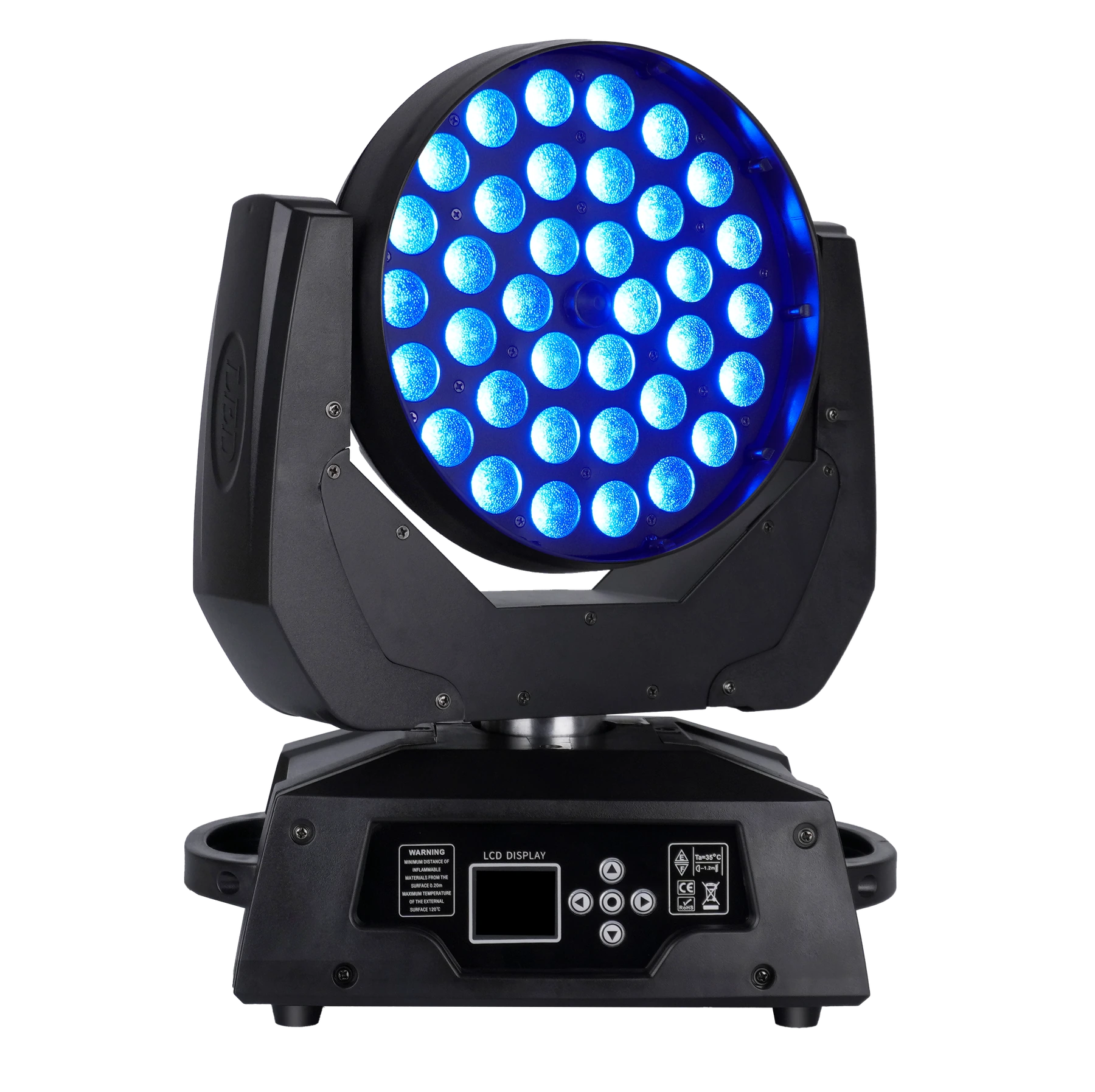

AL1036WZ combines thirty-six 12W RGBW 4-in-1 LEDs, smooth dimming, motorized zoom and DMX512, automatic, sound-active and master/slave operation.
AL1019WZ combines nineteen 15W RGBW 4-in-1 LEDs, broad motorized zoom and two DMX personalities in a 7.5 kg IP20 moving-head platform.

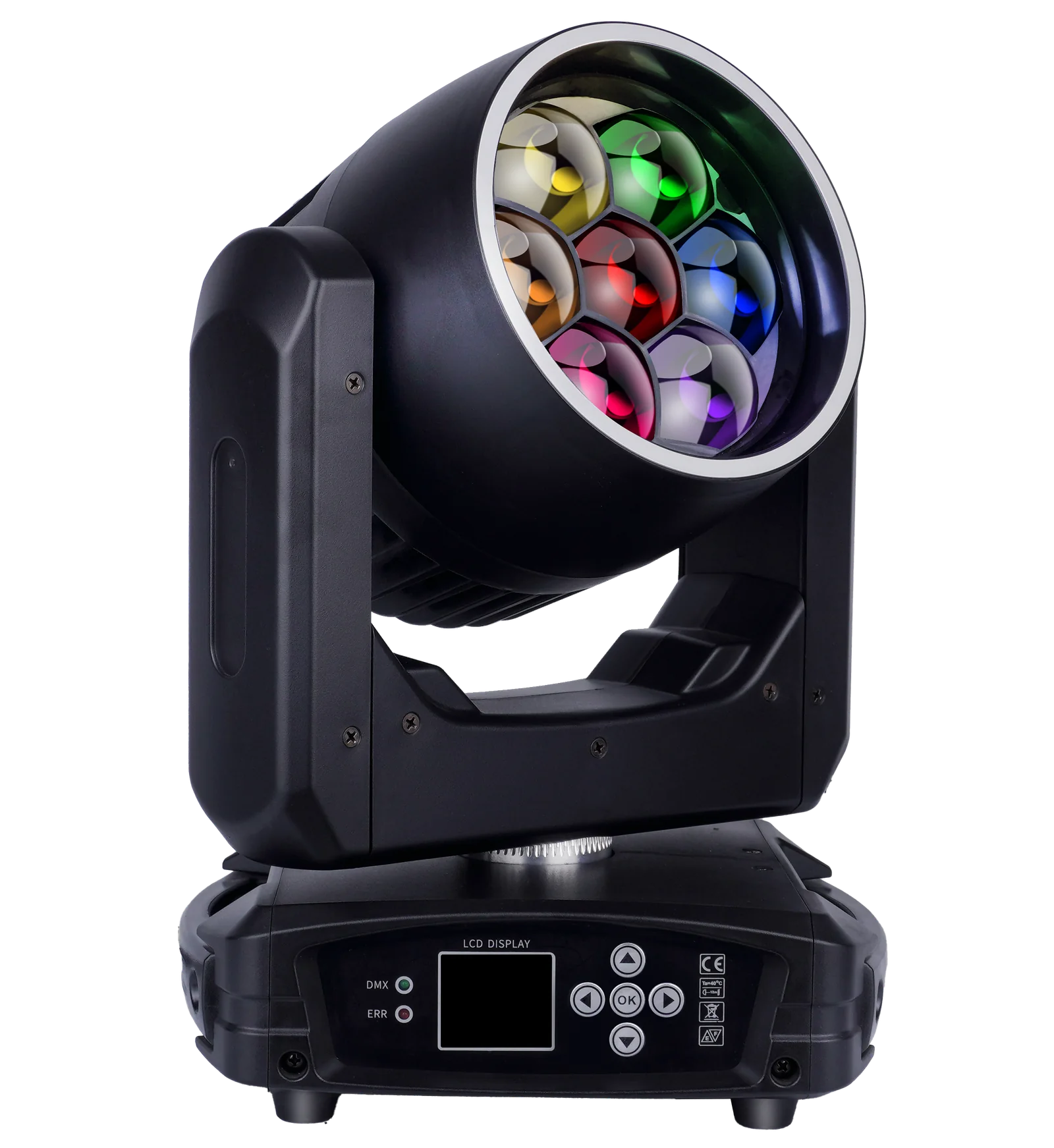

AL740WZ combines seven individually controllable 40W RGBW LEDs, 3°–60° motorized zoom, rotating-lens effects and an RGB halo ring in a compact moving-head format.

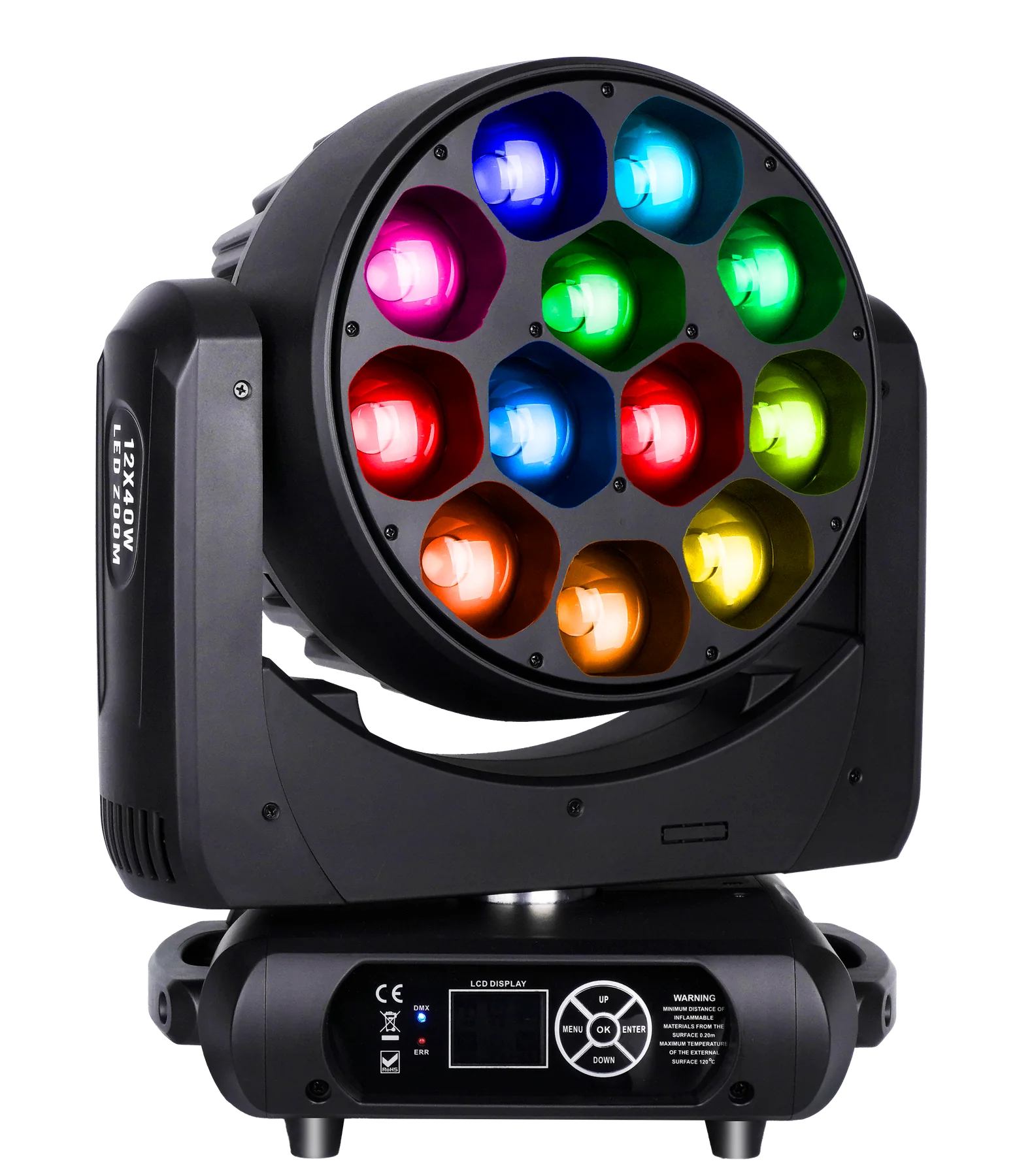

AL1240WZ combines twelve 40W RGBW 4-in-1 LEDs, broad motorized zoom and independent control of every LED in its 67-channel personality.

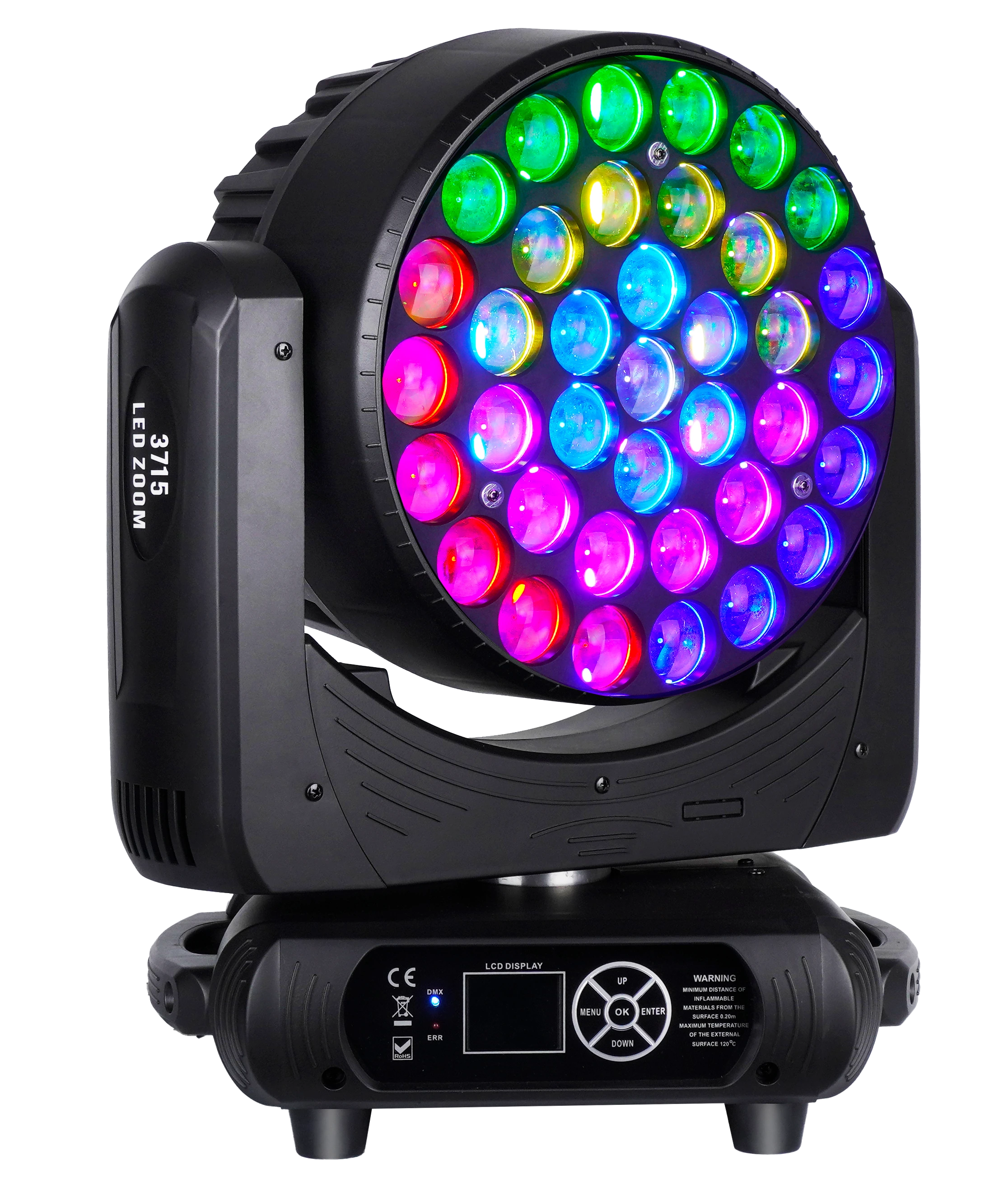

A 37-cell indoor RGBW zoom wash with 5°–60° motorized zoom, five DMX personalities and four-area or seven-area control.

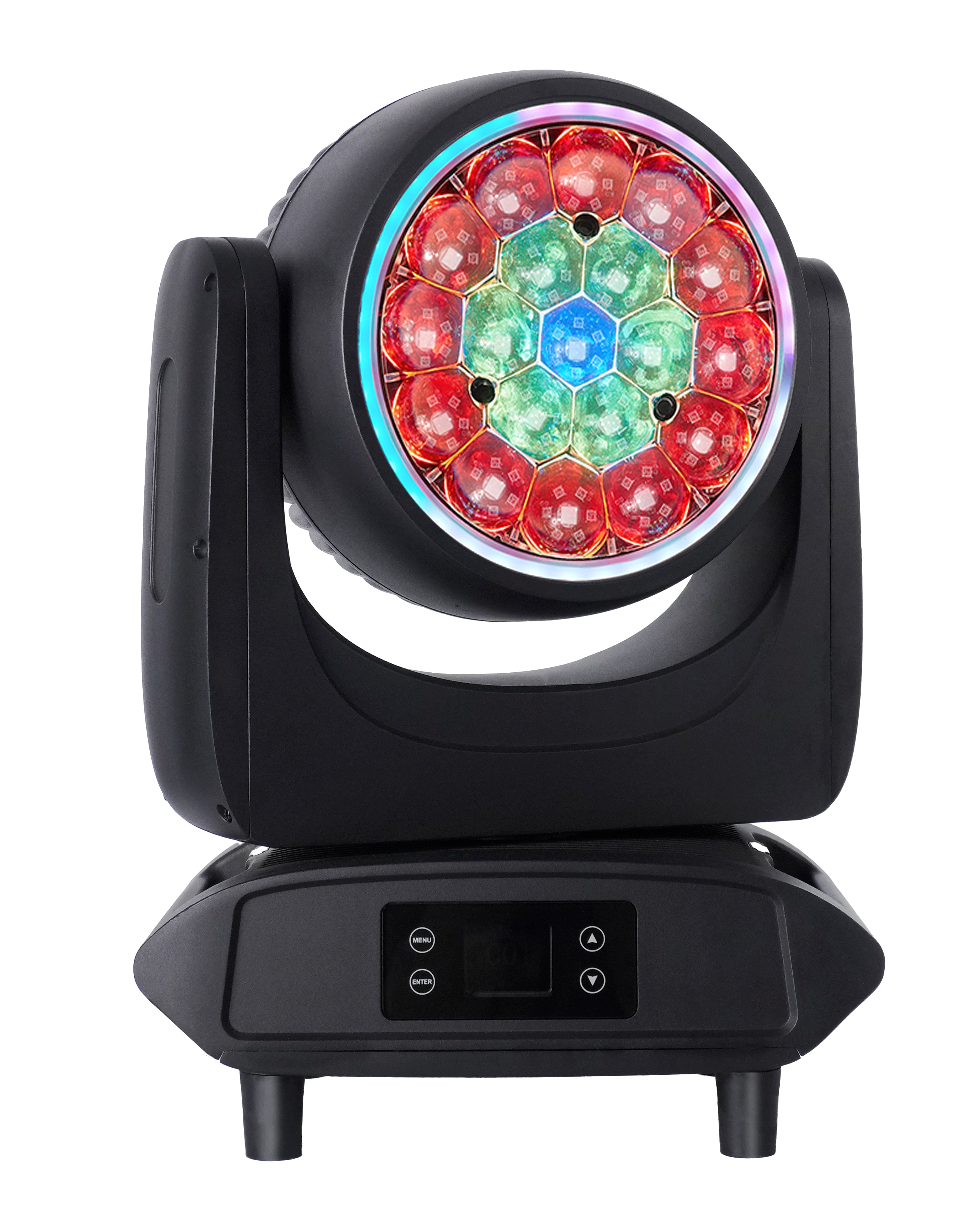

Aolait ALP1940WZ combines a 19×40W RGBW optical engine, three-zone effects and four DMX personalities in a 14kg full die-cast aluminum housing designed for mobile indoor and outdoor production workflows.

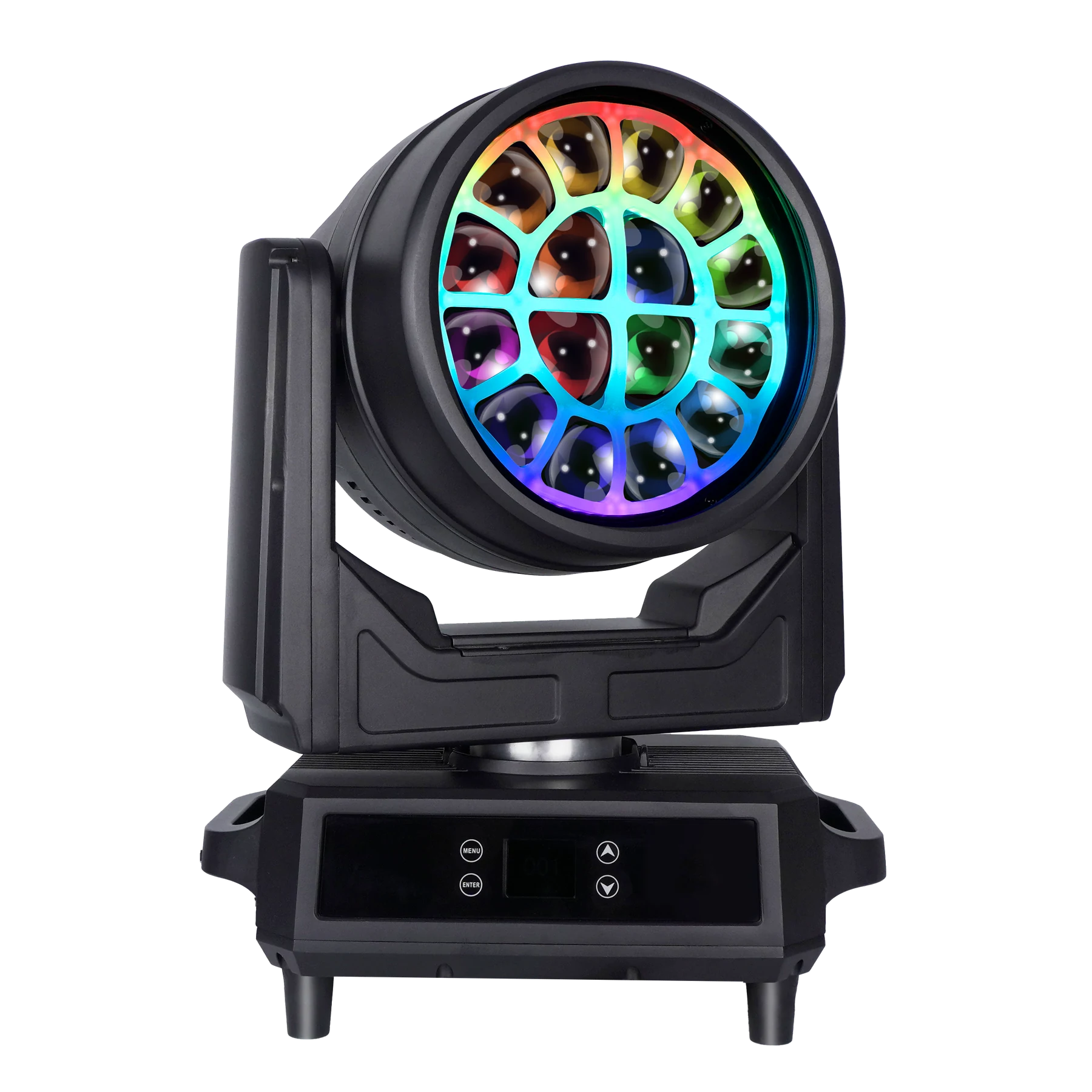

AL1650WX pairs sixteen 50W RGBL 4-in-1 LEDs with a 4°–60° motorized zoom, independent main-light control and a separately programmable RGB halo.
AL150WX combines a 150W RGBL wash source with a 24-pixel RGB ONE-effect array, dynamic zoom-pulse effects and five DMX personalities.

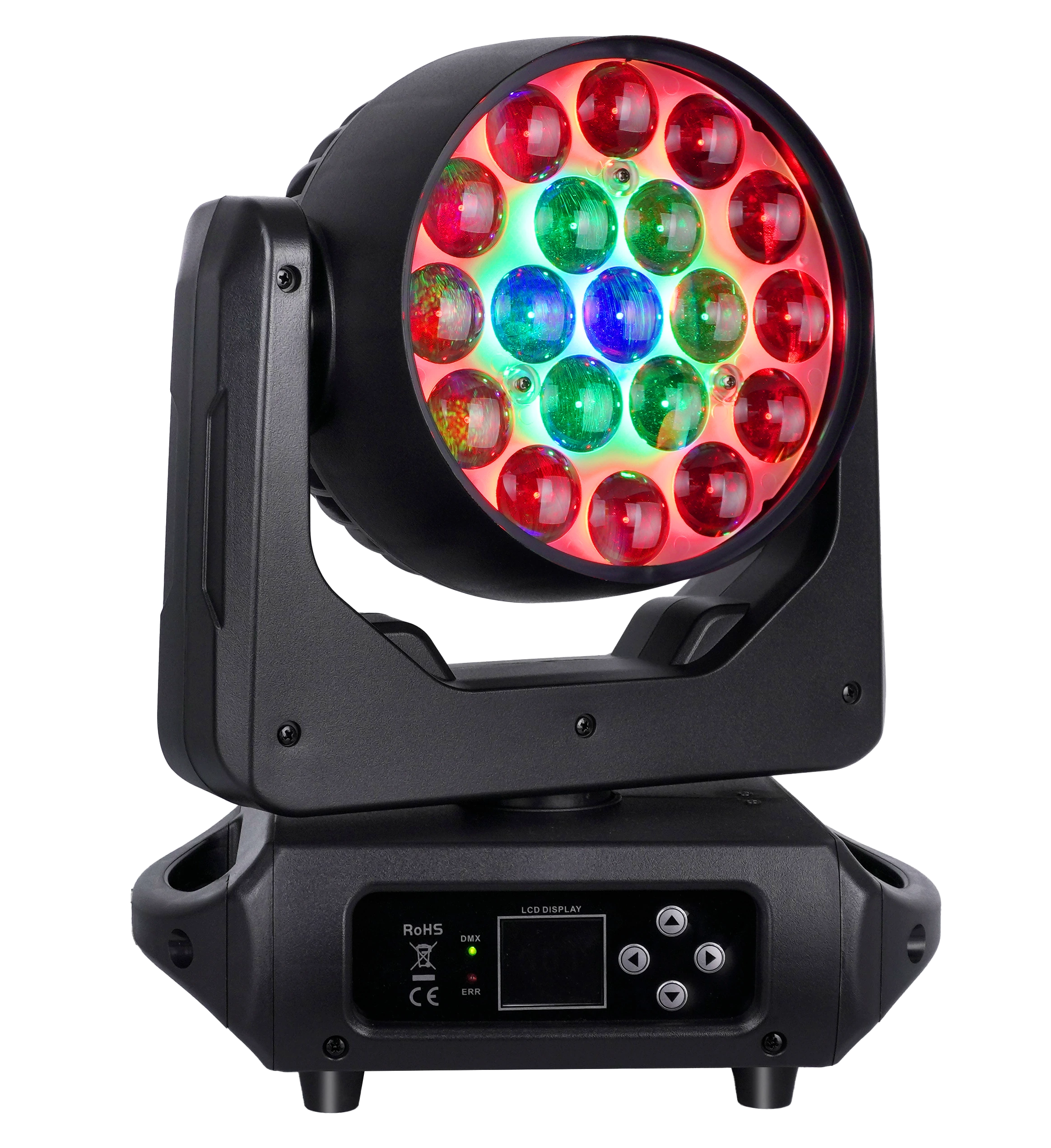

C08 uses nineteen 15W RGBW 4-in-1 LEDs for beam, wash, color-mixing, macro and three-zone effects in a compact IP20 platform.

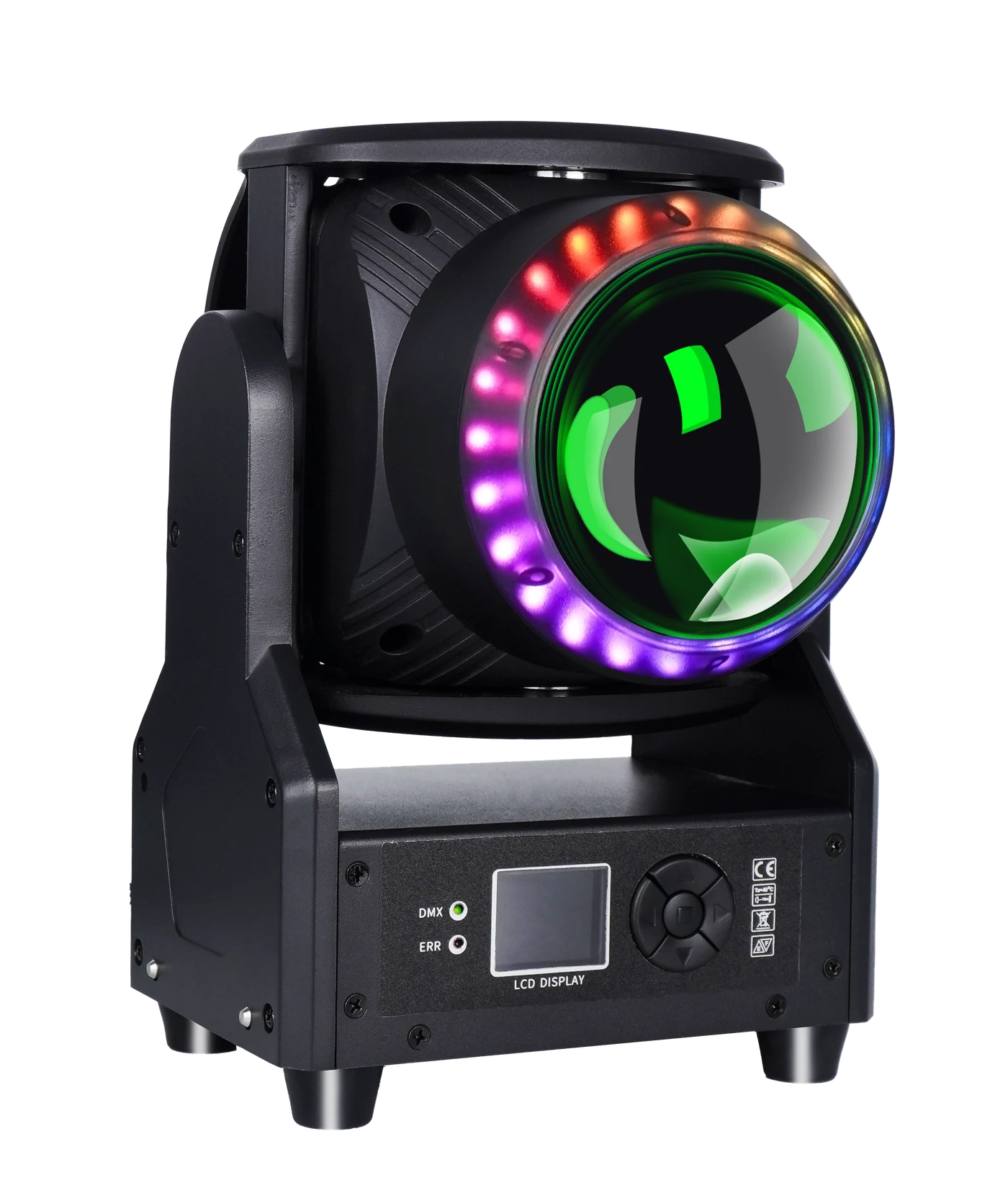

AL120T combines one 120W RGBL main LED with twenty-four individually addressed RGB halo zones for beam, wash and circular effect programming.

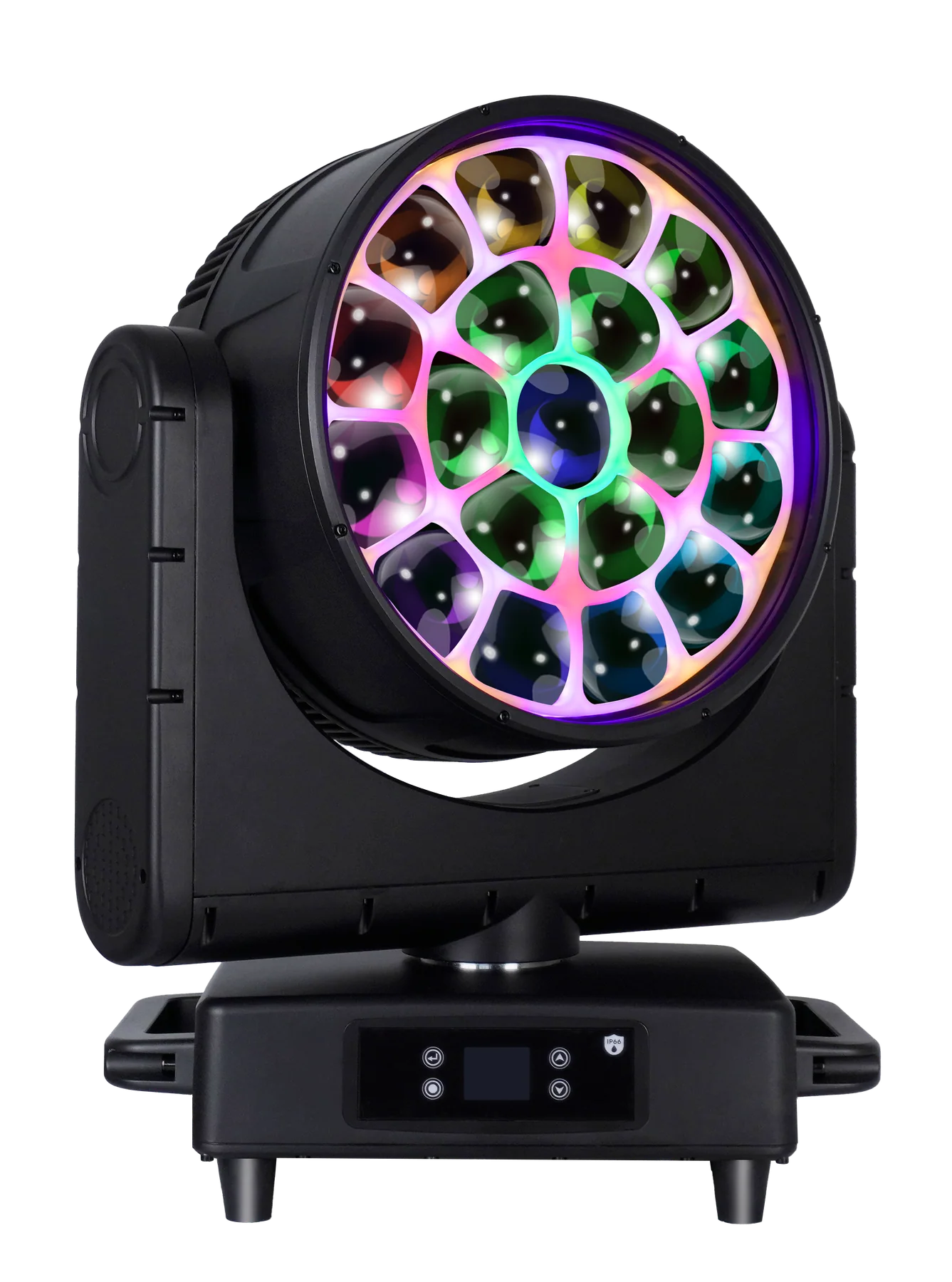

ALP1980WX combines a documented 19 × 80W main LED engine, an RGB halo layer, electric focus and six DMX personalities in a large-format moving-head fixture.
CORE PERFORMANCE
Zoom endpoints, optical field, color architecture, dimming and control depth differ across the family. The current model data below keeps those differences visible instead of applying one configuration to every fixture.
Our Zoom Wash range uses model-specific optical systems. A narrower setting concentrates the field for tighter looks, while a wider setting increases stage, scenery or performer coverage.
Our current family includes RGBW and RGBL platforms with model-specific emitter layouts, channel structures and console profiles.
We develop LED alignment, lens geometry and motorized zoom travel together to support controlled wash coverage across each fixture's optical range.
We provide model-specific dimming, strobe, movement and DMX personalities, including individual-cell or zone control on selected fixtures.
DEVELOPMENT AND VALIDATION

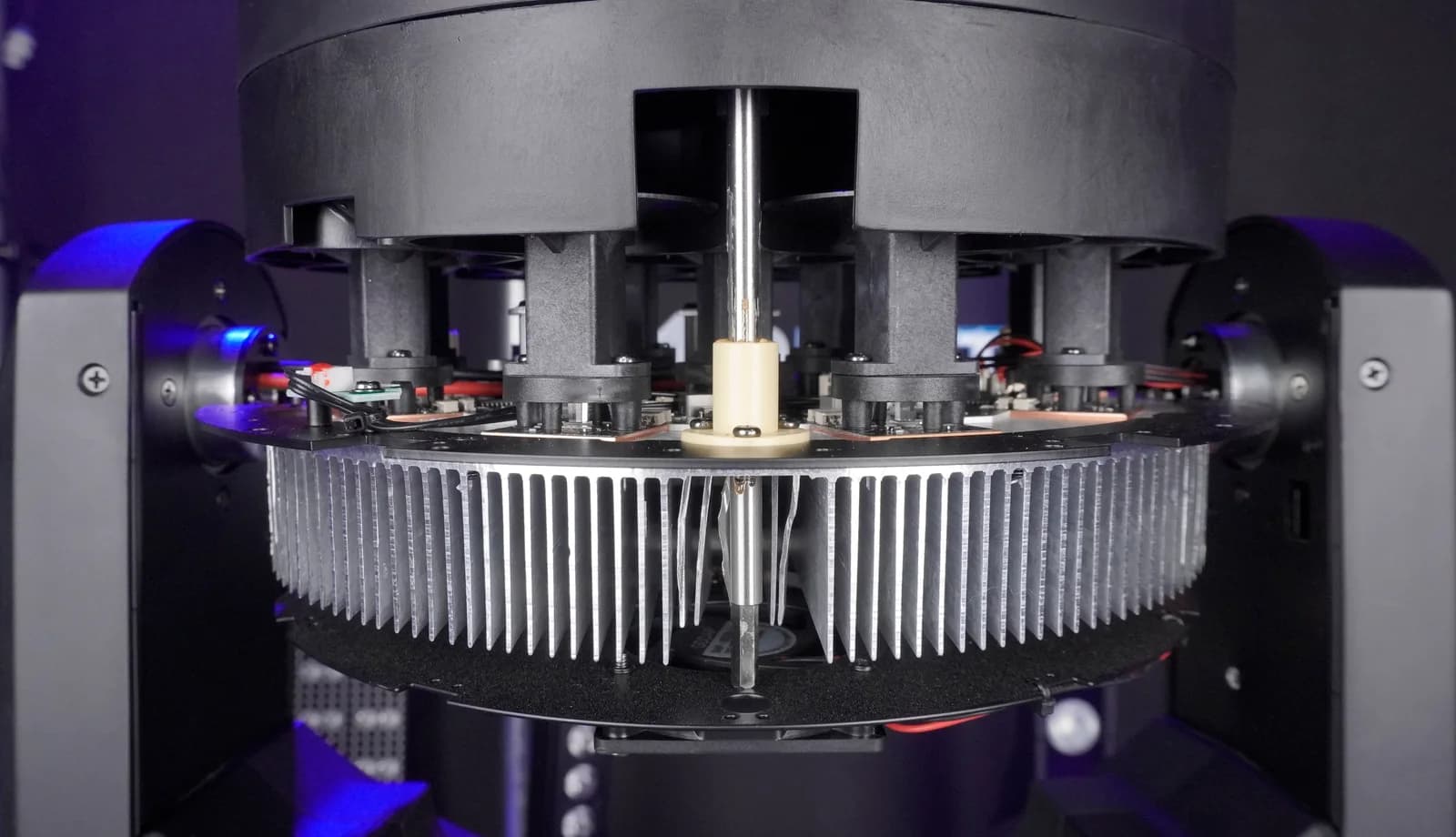

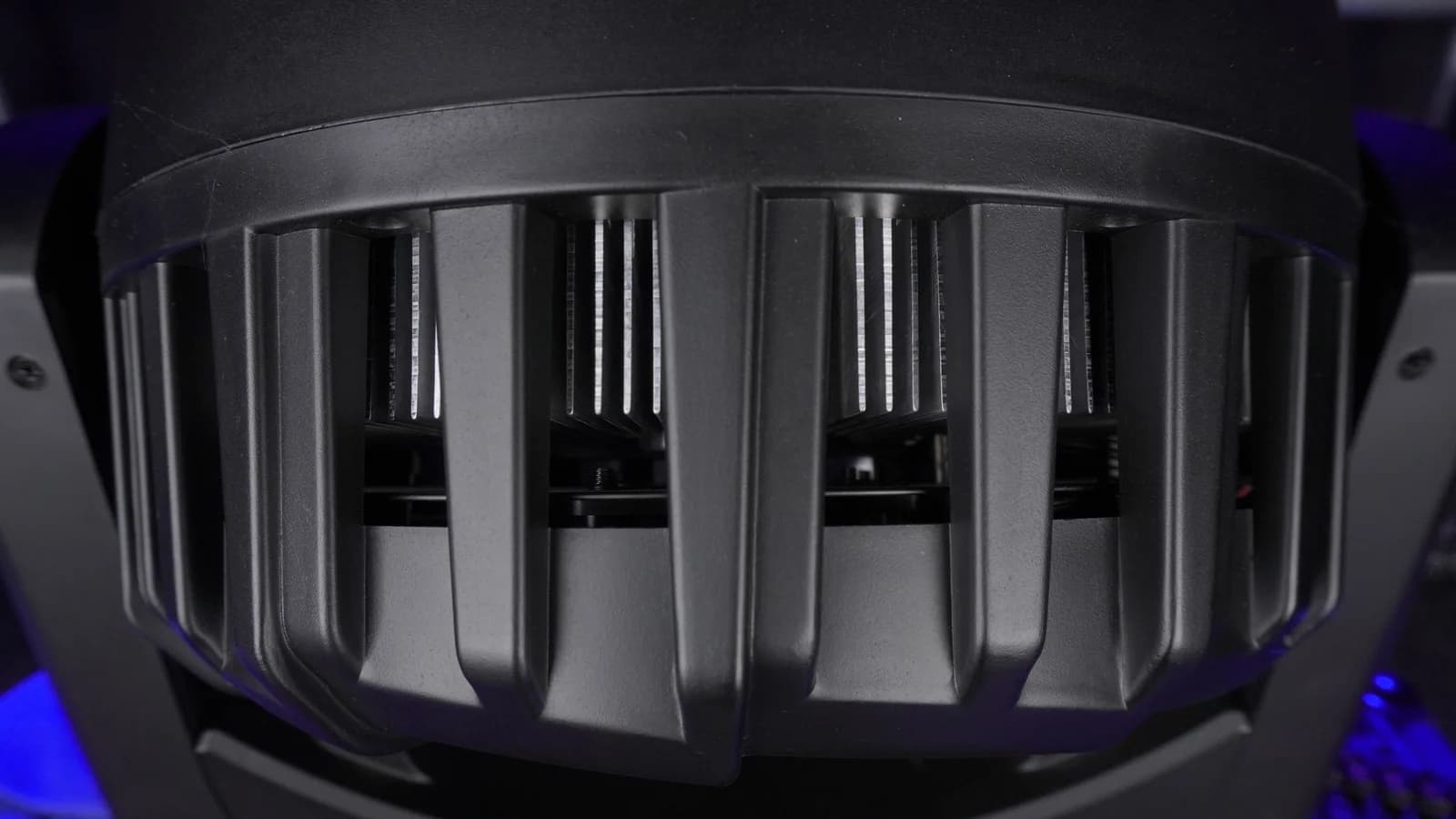

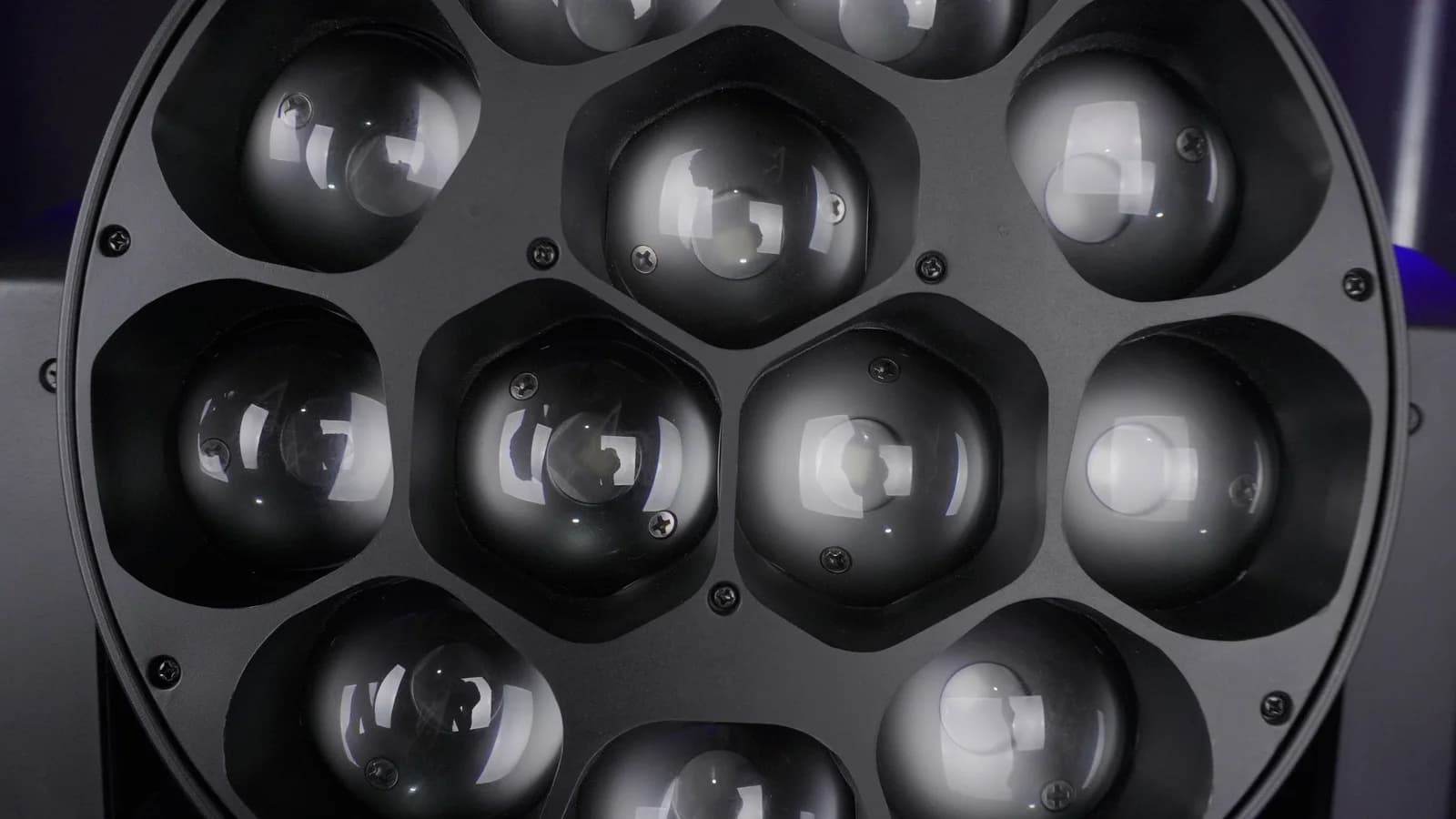

Our zoom-development footage shows the optical field changing through motorized lens movement. The close-up photography presents the optical face, heat-management structure and internal assembly used in our product development work.
APPLICATIONS
We match field coverage, control depth and enclosure protection to the trim height, throw, scenery, camera position and installation distance of the project.

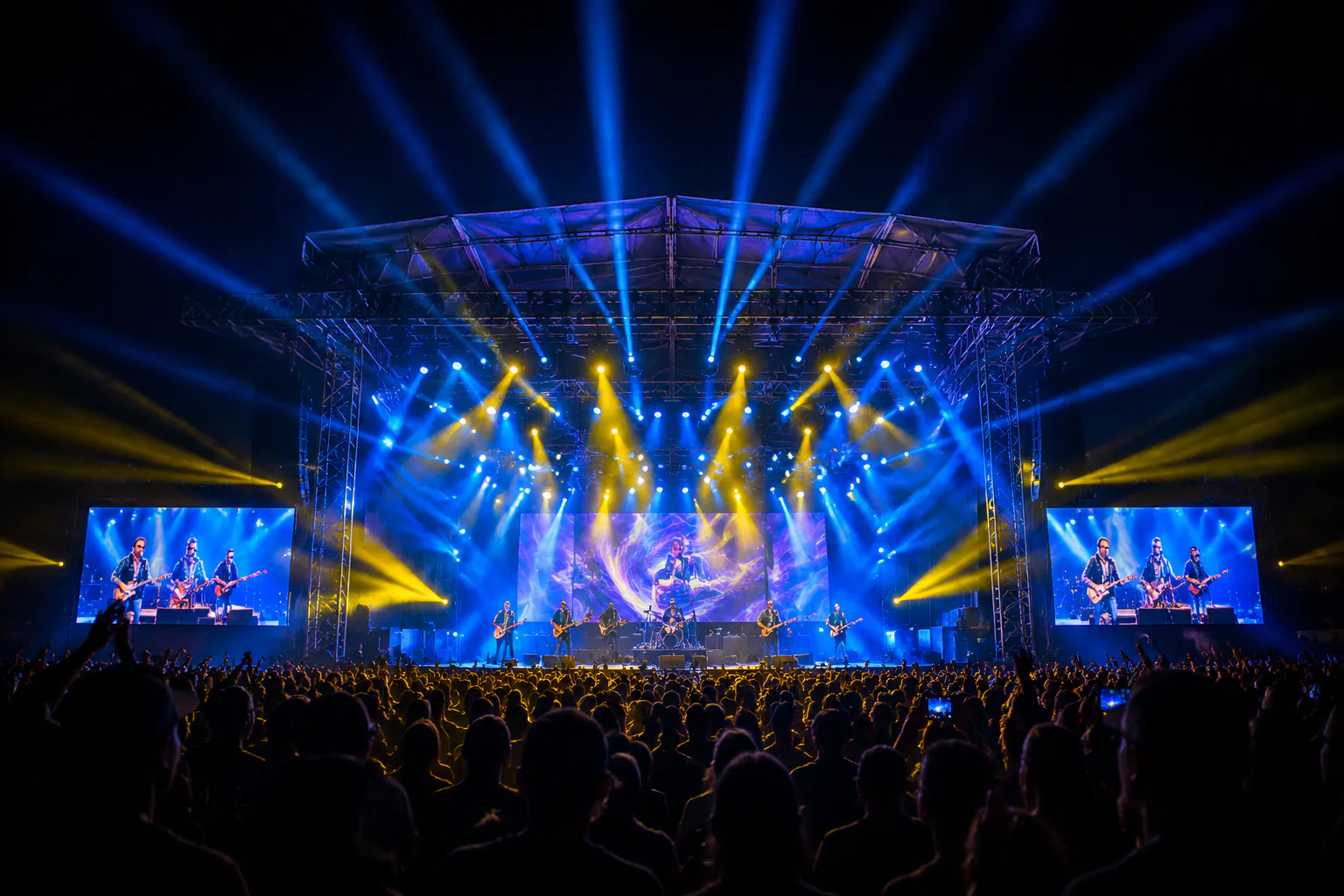

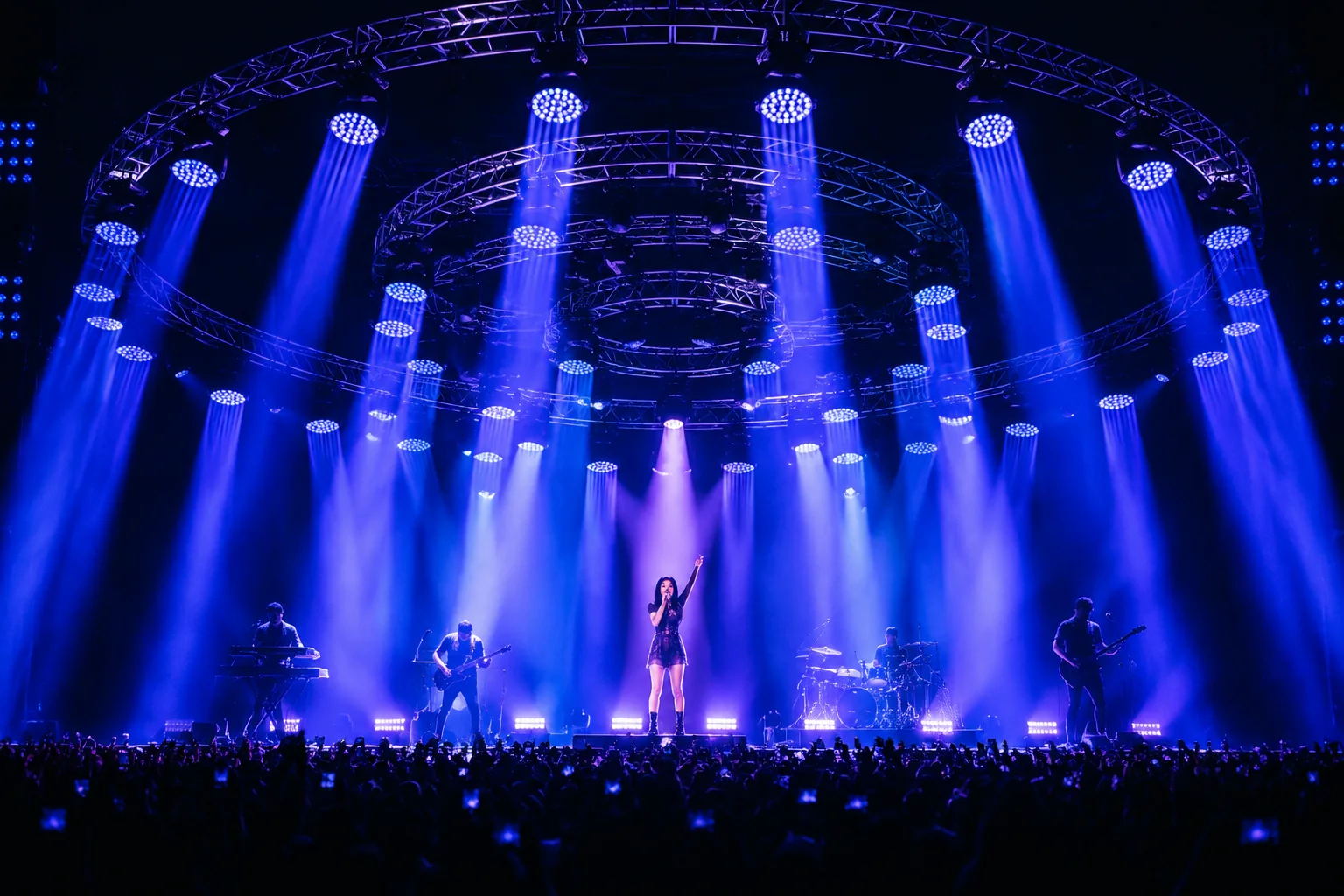

Move between broad stage color and tighter aerial layers while keeping zoom, color and movement cues inside one programmed fixture workflow.
Adjust coverage for performers, scenery and stage zones, then evaluate dimming, fan behavior and repeatability in the intended room.
Test color, dimming frequency, field quality and zoom positions with the actual cameras, frame rates and control profile.

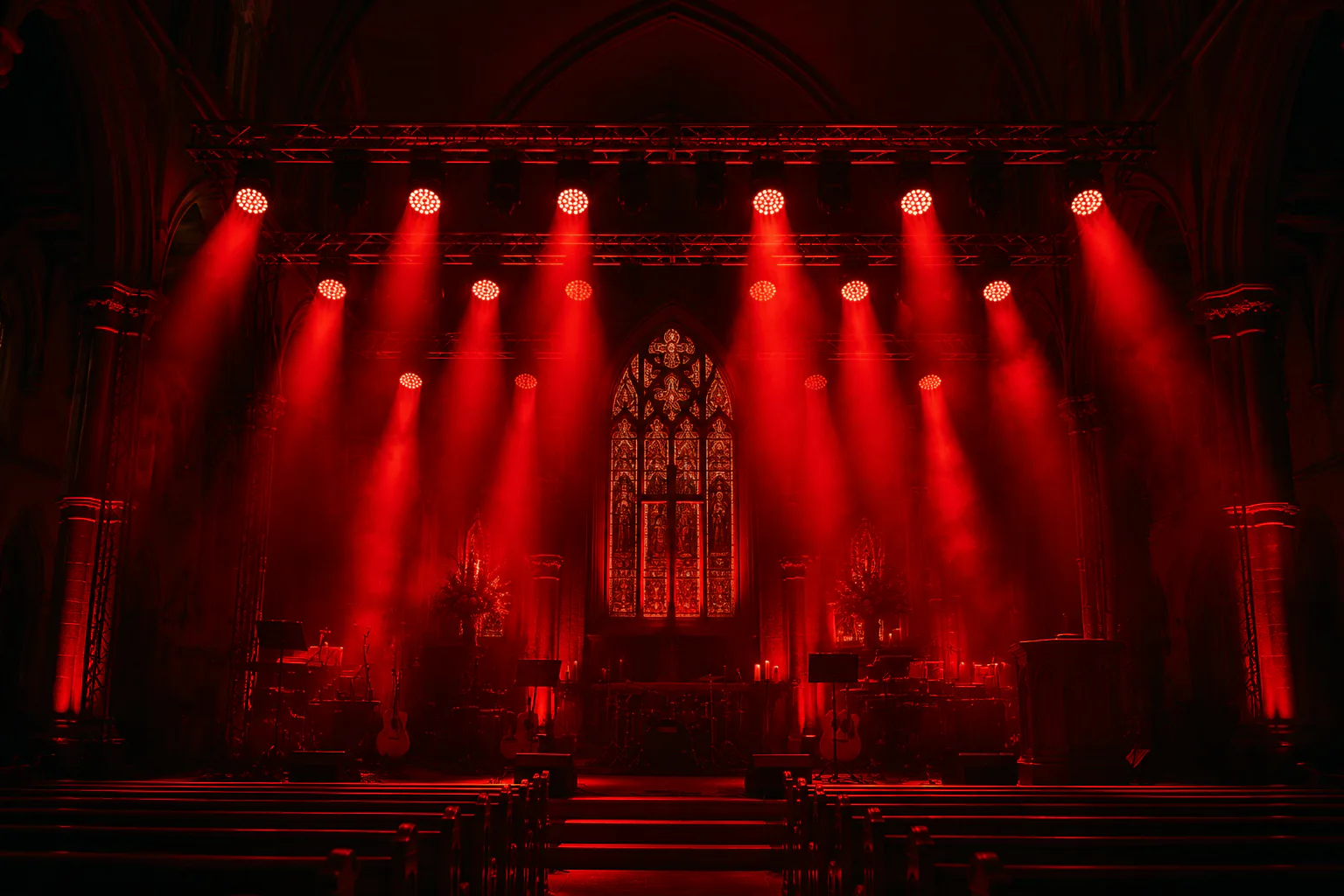

Use motorized coverage changes for dance floors, stages and audience-facing looks without assuming every model includes pixel effects.

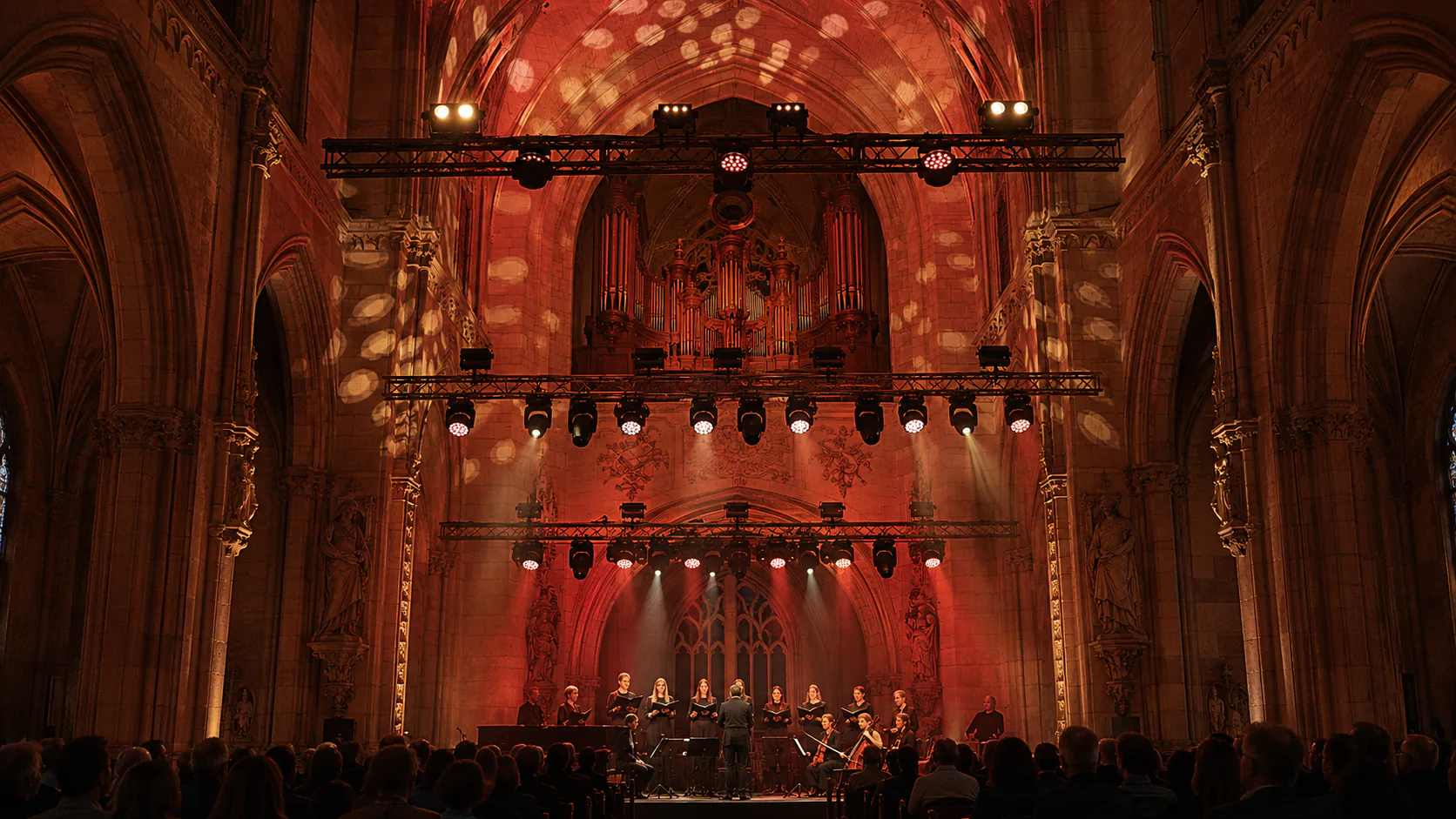

Adapt weekly stage coverage for speaking, music and broadcast positions while keeping fixture noise and camera behavior in the selection process.
Compare transport weight, mode size, service access and repeatability alongside zoom and color performance before standardizing a fleet.
MODEL COMPARISON
Compare the published LED, power, color, zoom, control, movement and weight fields for each Aolait model.
Swipe sideways to compare all fields.
| Model | LED configuration | Rated power | Color system | Zoom range | Pixel control | IP rating | Pan / tilt | DMX channels | Fixture weight | Product page | Specification |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AL1950WX | 19 × 50W RGBL + 210 RGB backlight LEDs | 950 W | RGBL | 6°–55° | Individual cell and graphical effects | — | 540° / 270° | 26CH / 50CH1 / 50CH2 / 127CH | 17 kg | View product | — |
| ALP1980WX | 19 × 80W | 1950 W | — | — | Extended cell, halo and dynamic wash effects | — | 540° / — | 27 / 41 / 84 / 98 / 103 / 117 | — | View product | — |
| AL740WZ | 7 × 40W RGBW + RGB ring | 350 W | RGBW | 3°–60° | 7 individually controllable RGBW cells in 57CH mode plus RGB halo | — | 540° / — | 18 / 29 / 41 / 57 | 6.5 kg | View product | — |
| AL1240WZ | 12 × 40W RGBW | 550 W | RGBW | 5°–60° | 12 individually controllable RGBW cells in 67CH mode | IP20 | 540° / 270° | 19 / 67 | 14.2 kg | View product | — |
| AL3715WZ | 37 × 15W RGBW | 600 W | RGBW | 5°–60° | Four RGBW areas in 26CH mode and seven RGBW areas in 48CH mode | — | 540° / 270° | 14 / 17 / 20 / 26 / 48 | 13.5 kg | View product | — |
| AL1036WZ | 36 × 12W RGBW | — | RGBW | — | — | IP20 | 540° / 270° | 14 / 15 | — | View product | — |
| AL1019WZ | 19 × 15W RGBW | — | RGBW | 8°–63° | Three RGBW zones in 24CH mode | IP20 | 540° / 270° | 16 / 24 | 7.5 kg | View product | — |
| ALP1940WZ | 19 × 40W RGBW | 800 W | RGBW | 4°–60° | — | IP65 | 540° / 270° | — | 14 kg | View product | — |
| AL1650WX | 16 × 50W RGBL | 900 W | RGBL | 4°–60° | Individual main cells | IP65 | 540° / 270° | 24 / 44 / 48 / 113 | 21 kg | View product | — |
| AL150WX | 1 × 150W RGBL | 200 W | RGBL | 19°–27° | — | — | 540° / 200° | 20 / 36 / 108 / 20a / 24 | 4.4kg | View product | — |
| C08 | 19 × 15W RGBW | 250 W | RGBW | 8°–50° | Three control zones | IP20 | 540° / 270° | 16 / 24 | 6.3 kg | View product | — |
| AL120T | 1 × 120W RGBL | 142 W | RGBL | — | — | IP20 | — | 22 / 24 / 94 | — | View product | — |
Contact our team for the current model configuration and technical file.
AOLAIT DEVELOPMENT AND MANUFACTURING
Aolait has manufactured professional stage lighting since 2013. We combine optical, mechanical, electronic and firmware development with prototype work, assembly, functional inspection and model-specific technical support.
TECHNICAL FAQ
Direct answers about coverage, color systems, pixel control, environmental status, files and fixture development.
A zoom wash moving head is an automated stage fixture that combines pan and tilt movement with a variable optical field. The zoom changes coverage from a tighter field to a wider wash, while the LED engine supplies model-specific color mixing and control.
A narrower angle concentrates the field over a smaller area, while a wider angle spreads light across more scenery, performers or stage surface. We recommend evaluating edge transition, color consistency and usable output at several zoom positions for the intended venue.
Our Zoom Wash family centers on variable coverage and wash performance. Our Bee Eye family uses visible multi-cell optics for pixel and rotating-lens effects. Each Aolait model appears in one primary family for clear comparison.
Our Zoom Wash fixtures center on adjustable wash coverage. Our Wash FX family uses defined physical architectures: five-head Tornado, linear Moving Bar, Wash + Laser, dual-sided Wash + Strobe and six-, ten- or twelve-head Waver platforms.
Our current range includes RGBW and RGBL platforms. AL1950WX and AL1650WX use RGBL engines, while AL1019WZ, AL740WZ, AL1240WZ and C08 use RGBW engines.
No. AL740WZ, AL1240WZ, AL1650WX and AL1950WX provide individual main-cell control in extended modes. AL1019WZ and C08 use three RGBW control zones. Our team can match the DMX mode and channel footprint to the programming workflow.
Our IP-rated Zoom Wash models display their protection level on the product page. AL1650WX is an IP65 Zoom Wash fixture, while AL1019WZ, AL1240WZ and C08 are IP20 indoor models. Our team helps match enclosure protection, connectors, cabling and operating conditions to the project.
Yes. We provide model-specific manuals, DMX channel information and available fixture files for our current products. Our technical team also supports firmware, channel-mode and console-profile matching for project programming.
Yes. We support OEM and ODM work covering product requirements, optics, mechanics, electronics, firmware, branding, labels, packaging, documentation and sample approval.
Start with throw distance, required field sizes, color workflow and control depth. Then compare weight, power, fan behavior, movement, service access, profile compatibility and documentation. Test the current production sample and lock the firmware, mode and inspection criteria before fleet approval.
