An IP65 outdoor zoom wash combining sixteen RGBL main emitters, a 204-pixel RGB halo and four controller personalities.

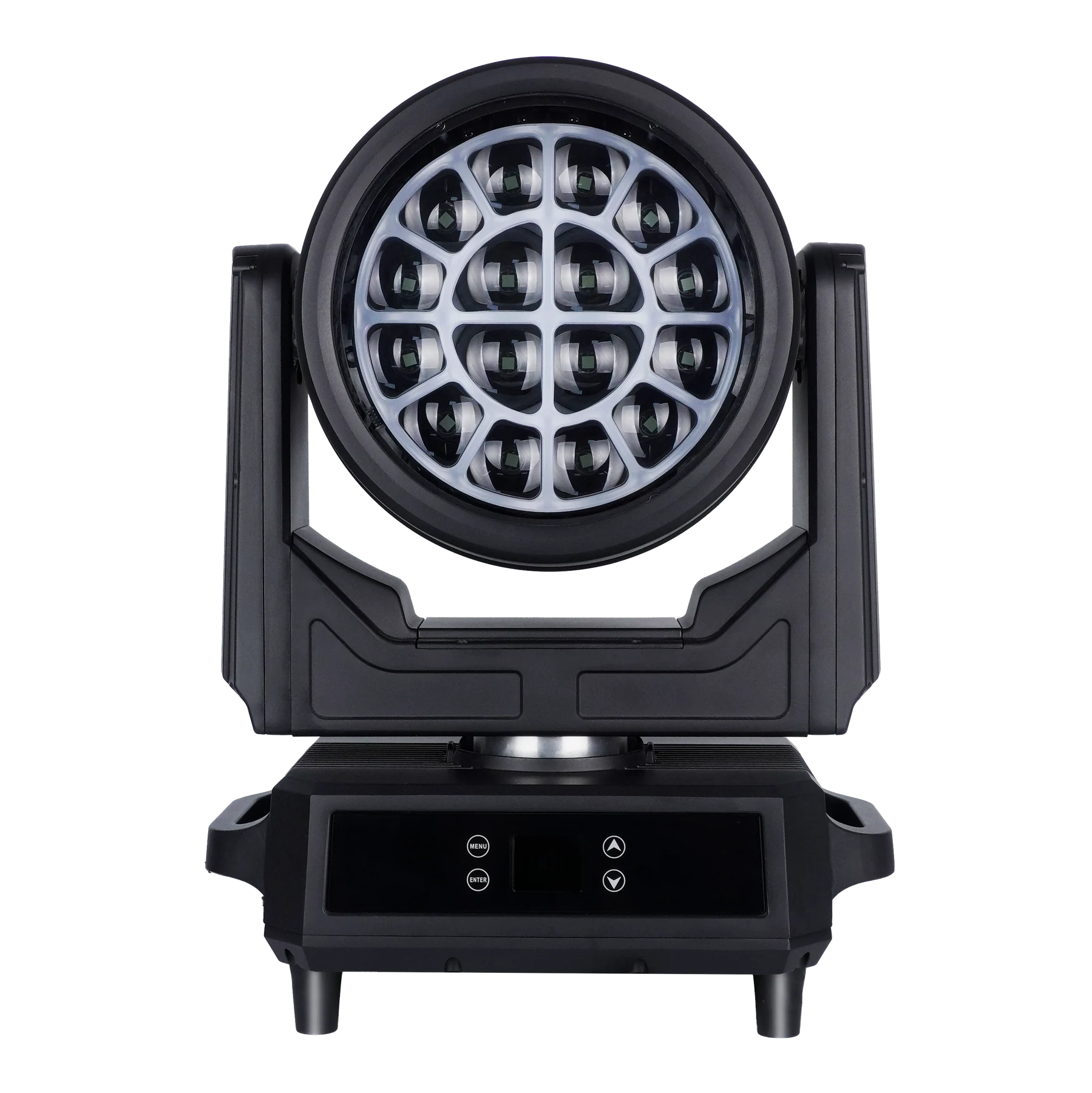

AL1650WX pairs sixteen 50W RGBL 4-in-1 LEDs with a 4°–60° motorized zoom, independent main-light control and a separately programmable RGB halo.
01 — PRODUCT OVERVIEW

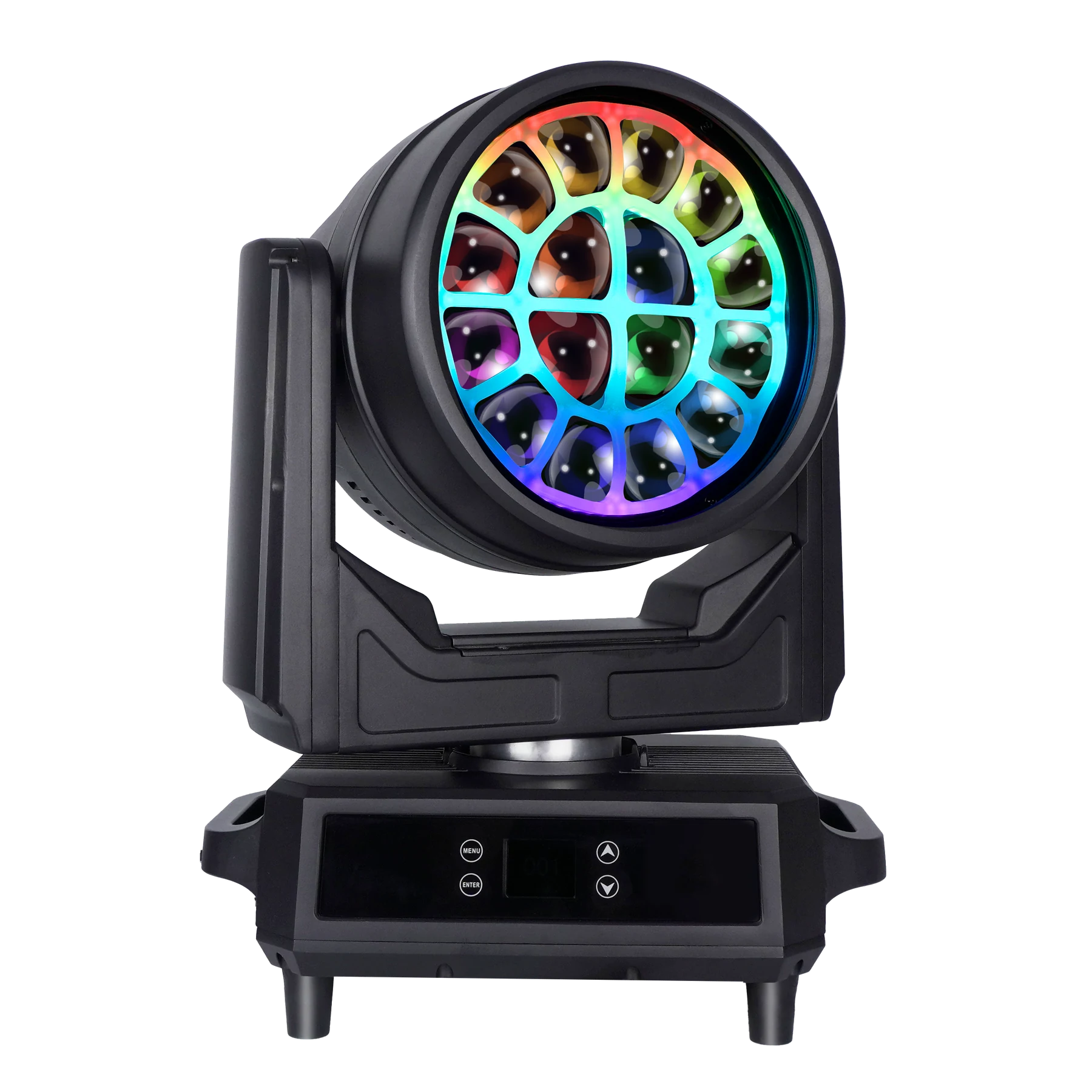

A 204-pixel RGB halo adds a separate effect layer around the main optical system. The manual describes foreground and background colors, effect selection, direction, speed and fade controls for the main light and halo system.
02 — PRODUCT VIDEO
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
03 — HIGHLIGHT

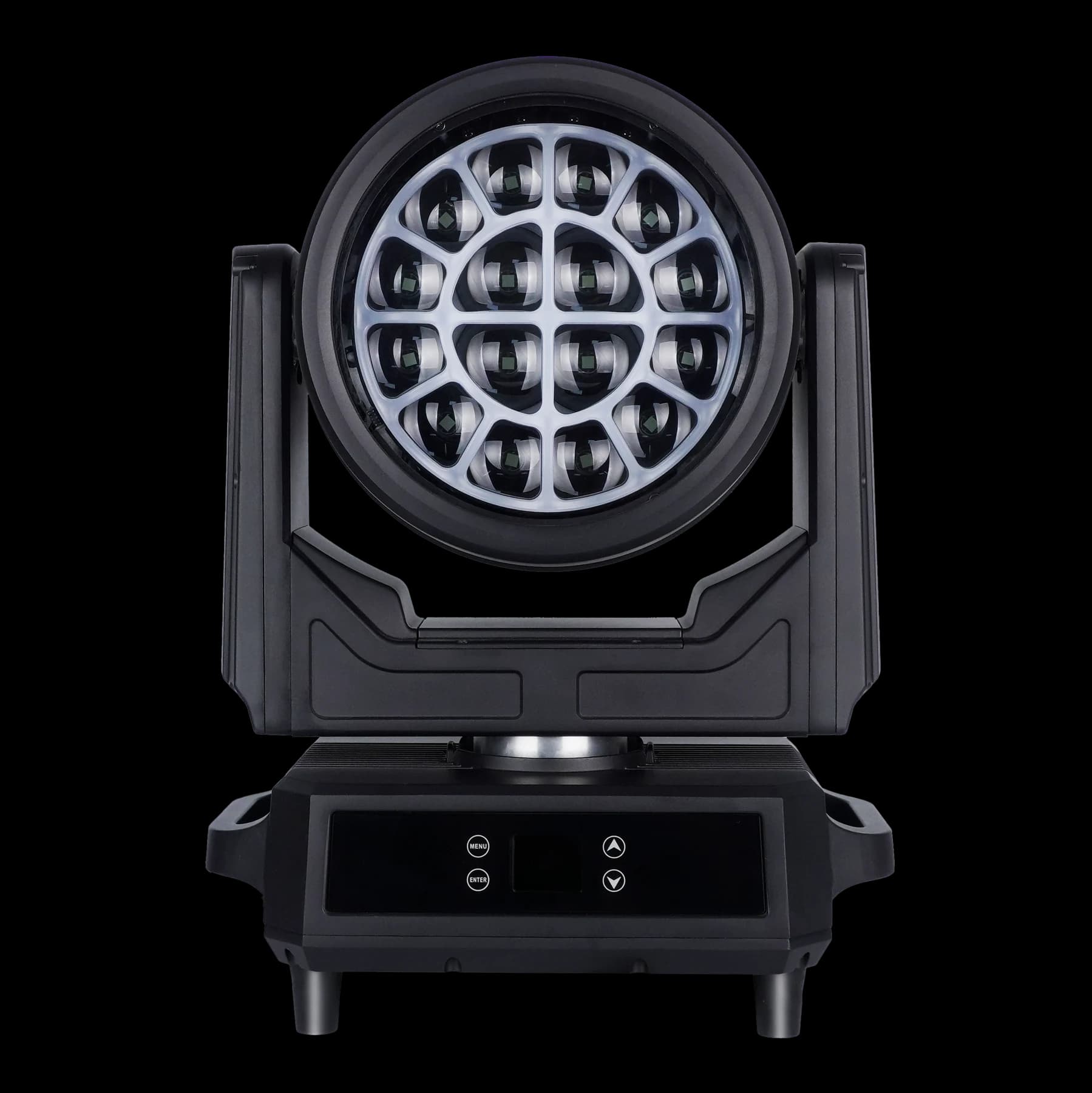

Sixteen RGBL 4-in-1 LEDs form the main wash engine. The 113-channel personality documents separate four-channel control for each of the sixteen main-light positions, while compact modes provide grouped color and effect control.
07 — OPTICAL, COLOR & CONTROL
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
Sixteen four-color main emitters
Coarse and fine zoom control
Includes source-documented random strobe
Both with 16-bit fine control
24CH, 44CH, 48CH and 113CH
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.
Choose compact or extended DMX personalities to match rental programming depth and network workflow.

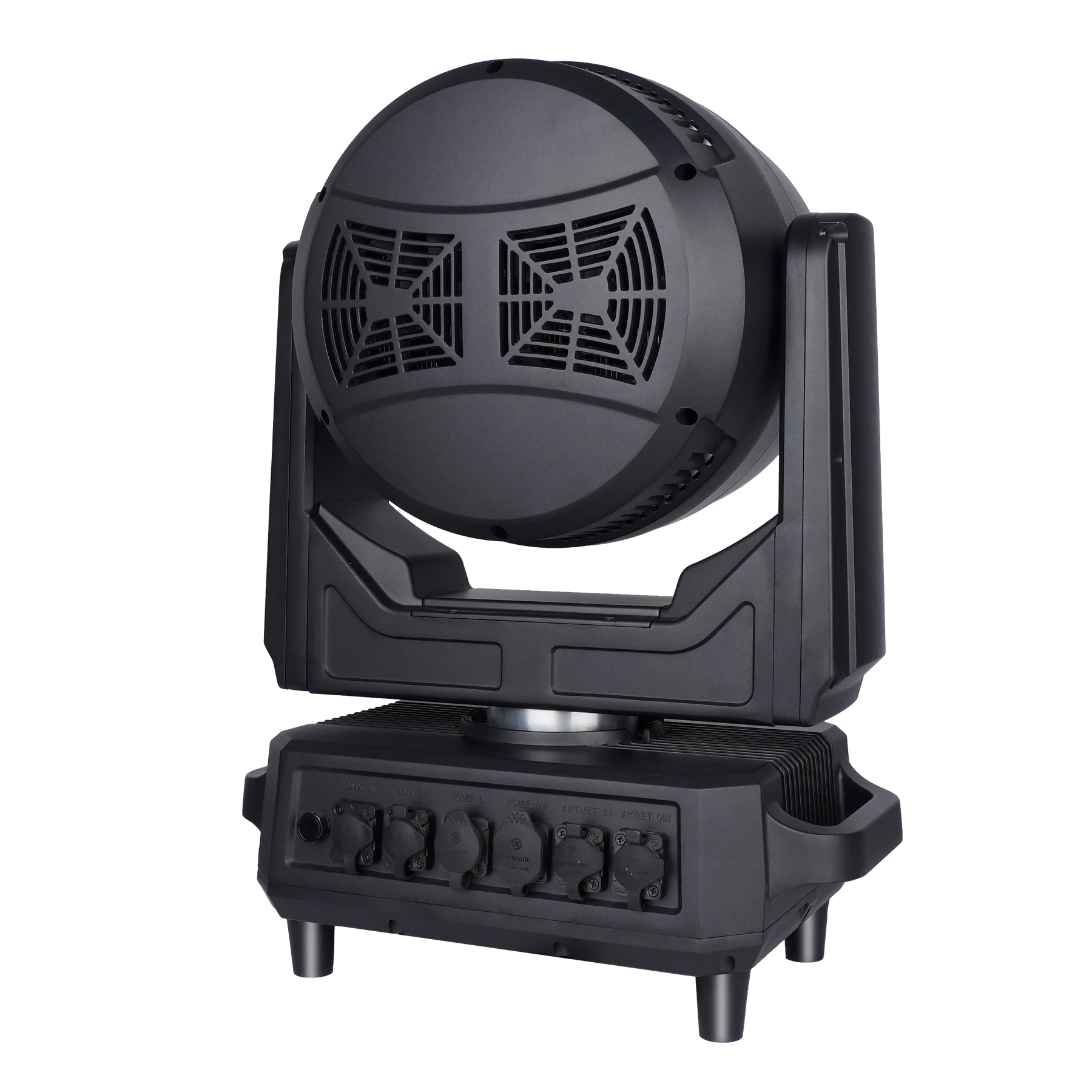

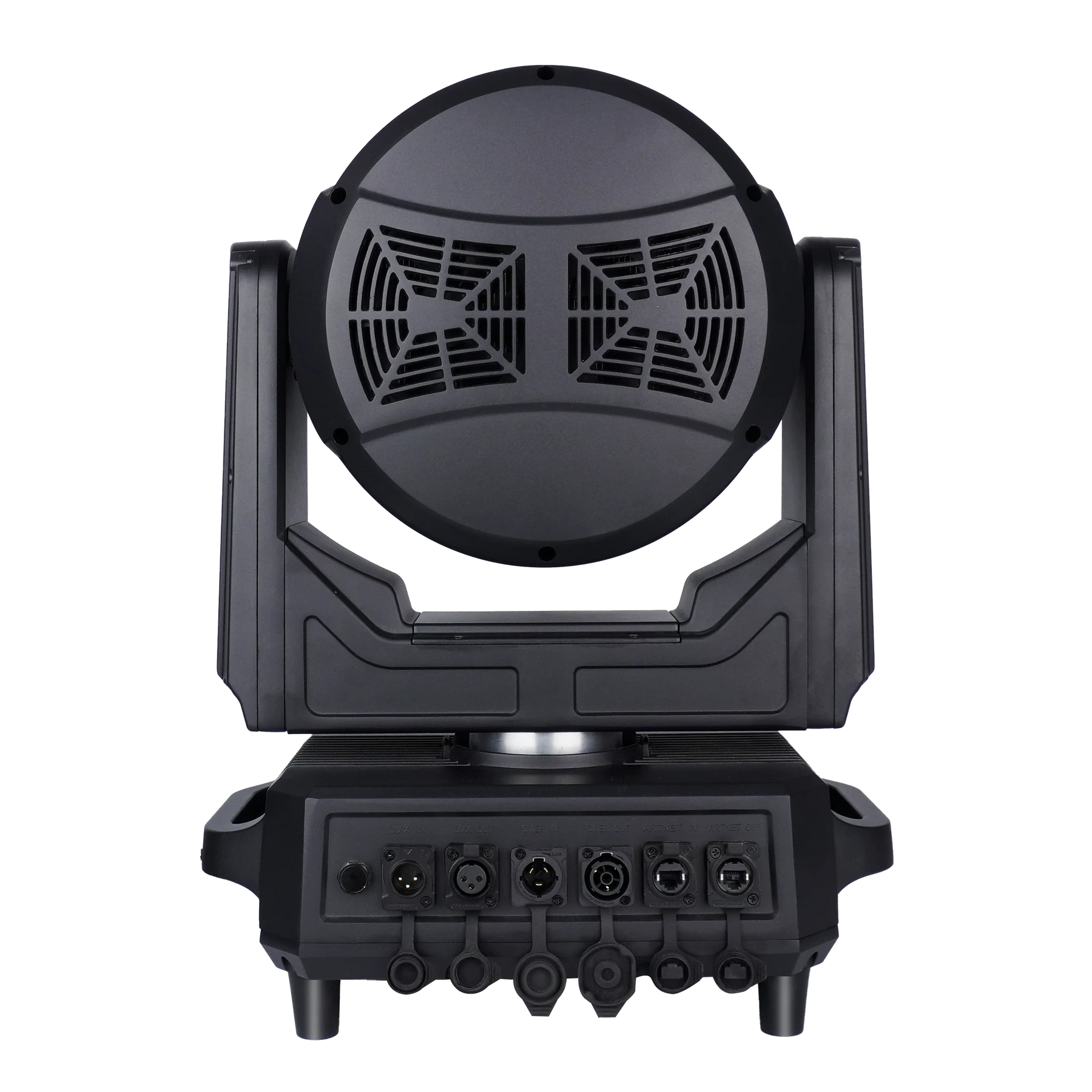

Explore application 02Evaluate the IP65 housing and sealed connectors for temporary outdoor production under the manual's installation requirements.
Explore application 03Program repeatable wash, color, zoom, movement and halo cues for performance spaces.
Explore application 04Test PWM, dimming and camera interaction with the intended camera system before production use.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.
11 — DOWNLOADS & FIXTURE LIBRARIES
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
Model-labelled AL1650WX material supplied for technical evaluation.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
Yes. The 113-channel personality documents four channels for each of sixteen main-light positions. The halo also has dedicated effect, color, speed and background controls, although the manual does not expose 204 separate halo pixels as individual DMX channels.
