A high-output RGBL LED wash moving head developed for professional touring, event production and demanding rental applications.
AL1950WX combines a 19 × 50W RGBL LED engine, wide motorized zoom, individual cell control and professional network protocols in a robust moving-head platform.
01 — PRODUCT OVERVIEW
AL1950WX is designed for production teams that need broad wash coverage and programmable visual effects from one fixture type. Its 19 × 50W RGBL 4-in-1 LED engine is supported by 210 RGB backlight LEDs, giving designers a main wash layer plus pattern and auxiliary-light possibilities. The 6°–55° motorized zoom moves from tighter aerial looks to wide stage coverage without changing fixtures.
02 — PRODUCT VIDEO
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.

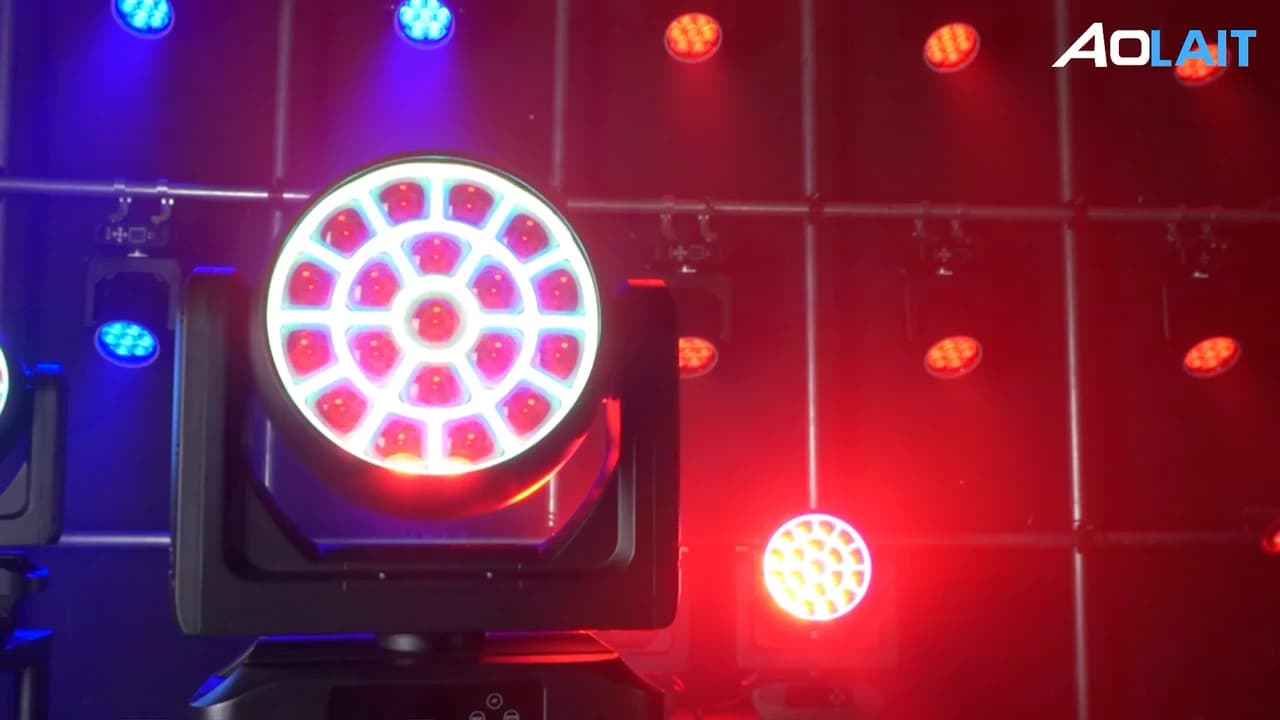

A 60-second overview of the fixture, color states, movement and effects.
03 — HIGHLIGHT

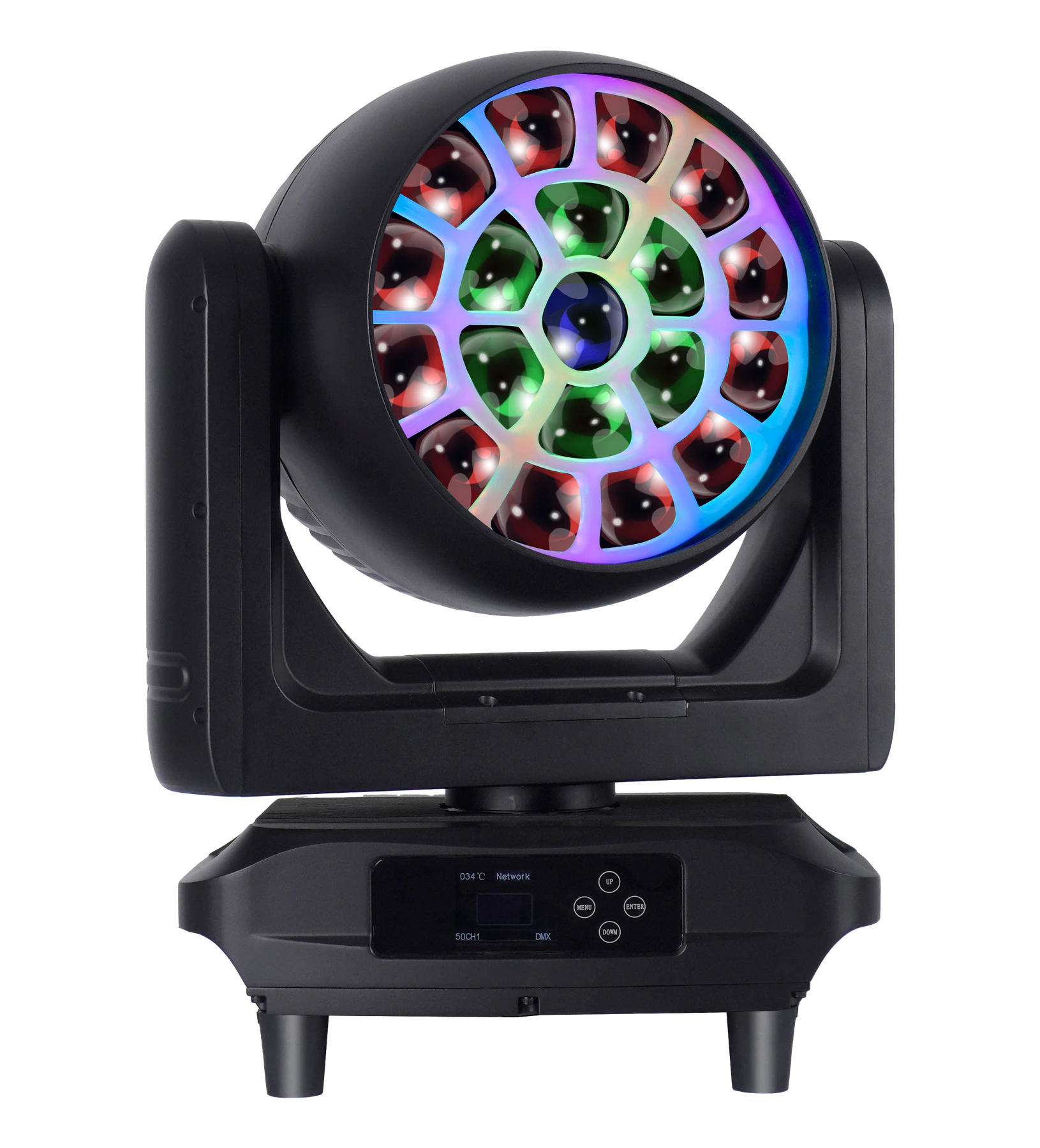

Nineteen 50W RGBL 4-in-1 LEDs create the fixture's main wash layer, while 210 RGB backlight LEDs add a separate visual layer around the optics. The combination supports saturated color, pastel mixing and camera-facing effects without relying on a separate effect fixture.
04 — HIGHLIGHT

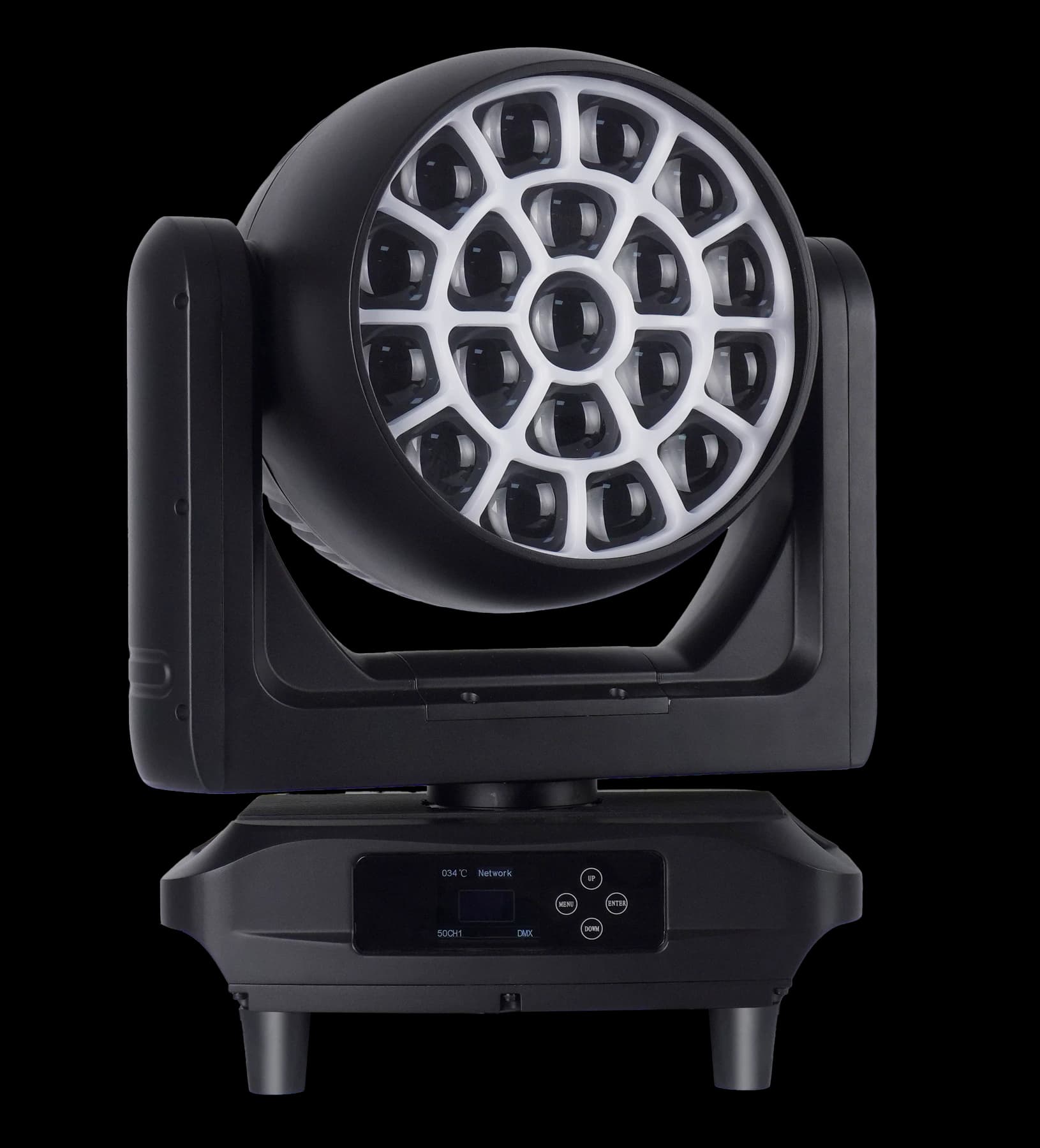

A documented 6°–55° zoom range lets programmers move between defined aerial looks and broad wash coverage. Coarse and fine zoom channels are included in every documented DMX mode for repeatable control from production consoles.
05 — HIGHLIGHT

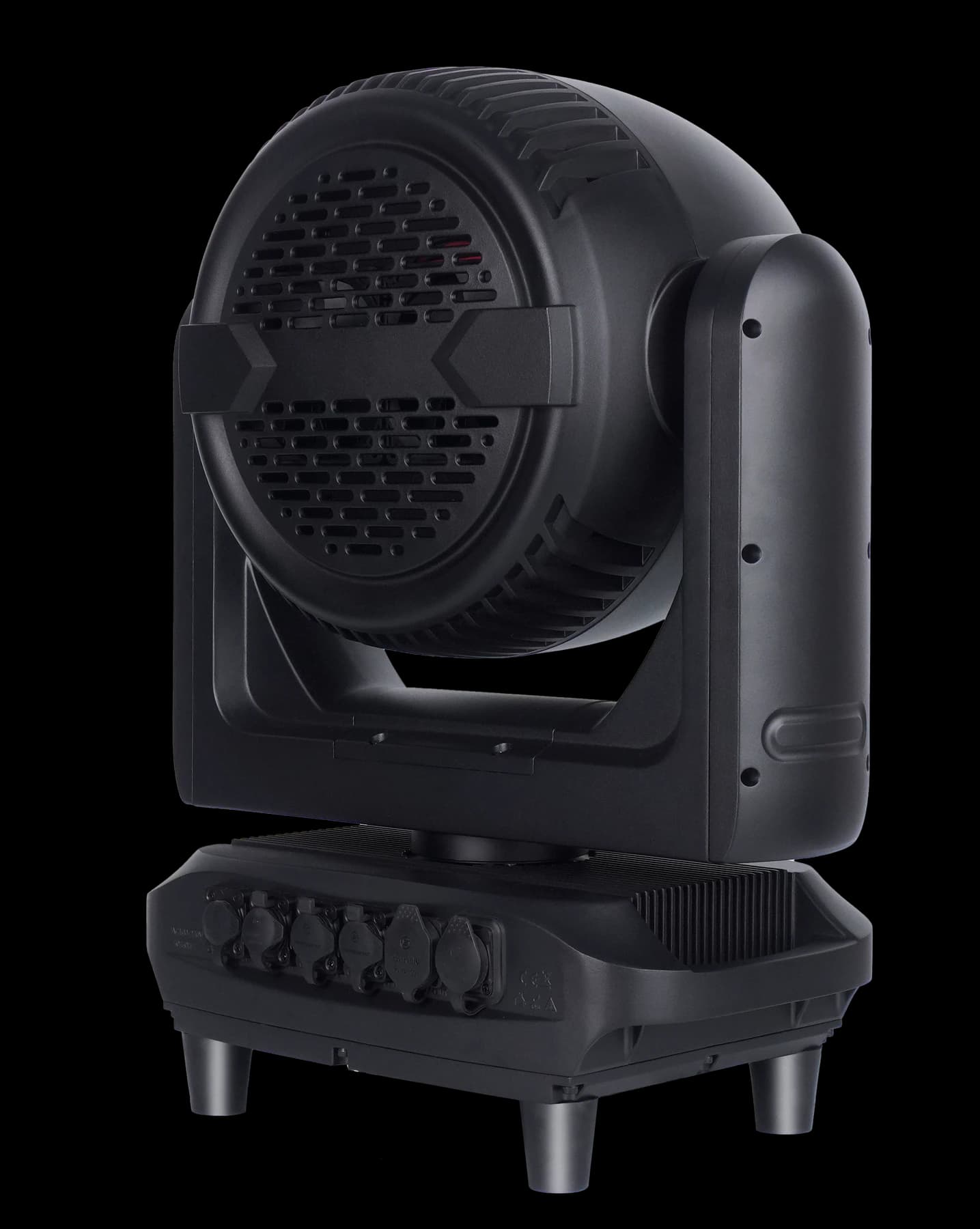

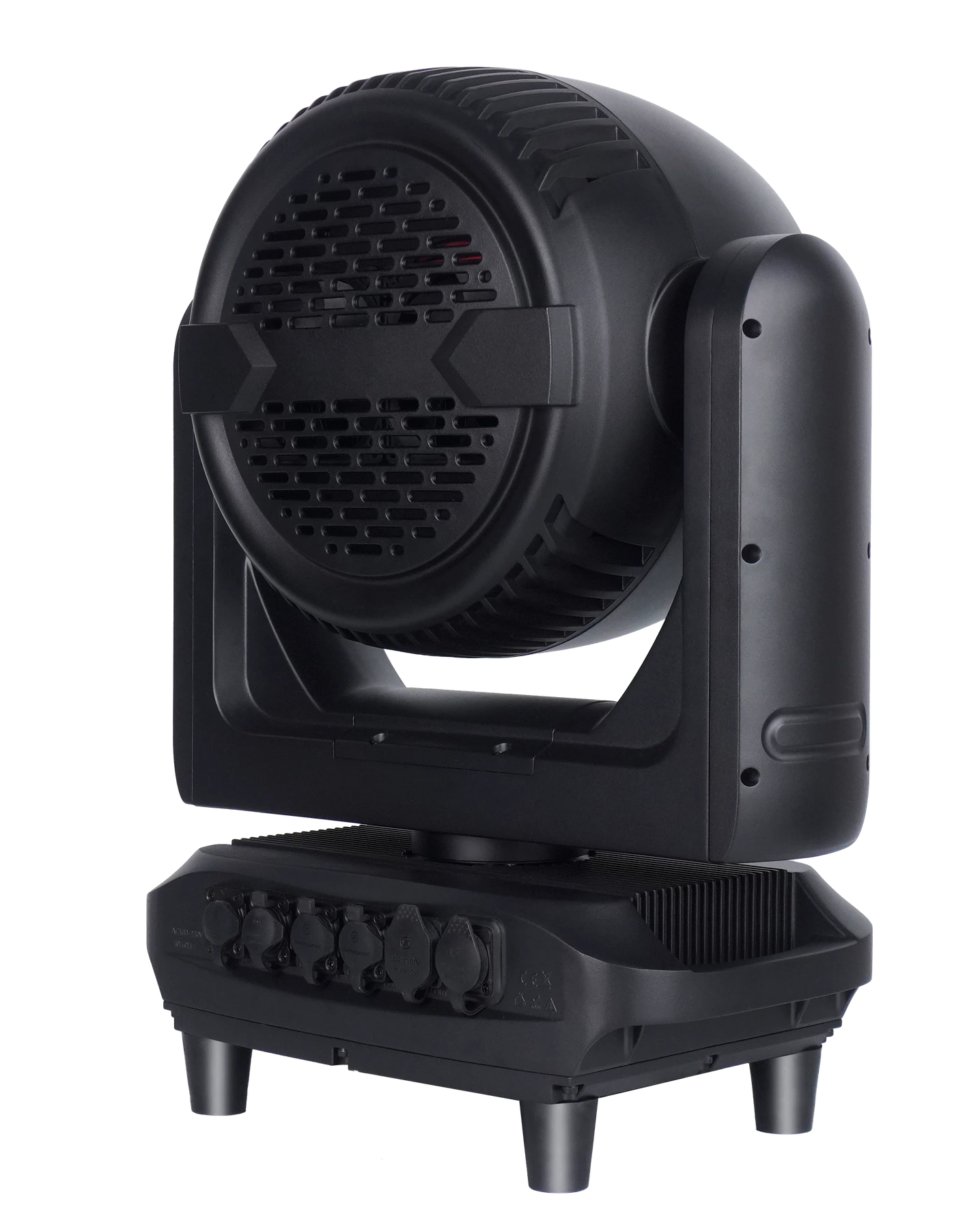

DMX512, RDM, Art-Net and sACN support flexible show-control workflows. The manual also documents liquid cooling, selectable fan modes, magnesium-aluminum structural plates, a die-cast composite-alloy base, two transport handles and 16-bit pan and tilt movement.
07 — OPTICAL, COLOR & CONTROL
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
Four-color 4-in-1 main LEDs
Coarse and fine DMX control
Available in the 127CH mapping
Manual-derived operating range
16-bit movement control
26CH, 50CH1, 50CH2, 127CH
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.
09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.

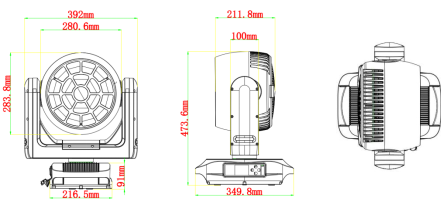

10 — PRODUCT DIMENSIONS
11 — DOWNLOADS & FIXTURE LIBRARIES
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
Public files currently supplied for AL1950WX.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
The current ZIP contains one Avolites D4 definition and two MA-format XML definitions. Exact console and software-version compatibility has not been import-tested, so the files should be validated before show deployment.
13 — RELATED KNOWLEDGE
Use these focused Aolait articles for product selection, control, operation and project preparation.
Plan color-system tests for theatre, camera, touring and installation work.
Read knowledge articleCompare optics, color, control, construction and project workflow.
Read knowledge articleCompare cell count and LED formats without treating nominal wattage as measured output.
Read knowledge article14 — RELATED PRODUCTS

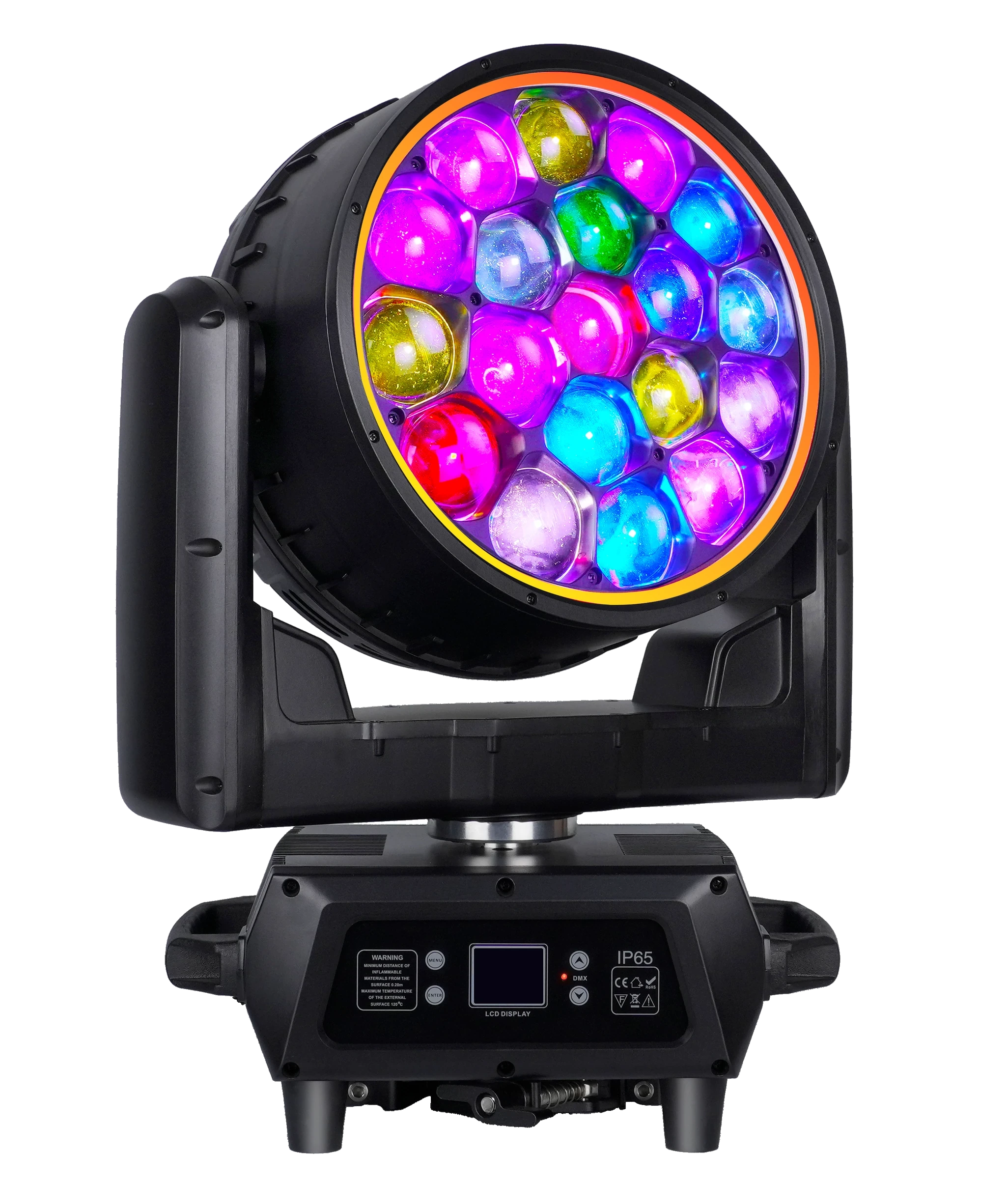

LED: 19×40W · Protection: IP-series catalogue designation · Zoom: request current datasheet
View Product
15 — WHY AOLAIT
Our Guangzhou team coordinates product development, assembly, powered testing and technical support for professional stage-lighting projects.

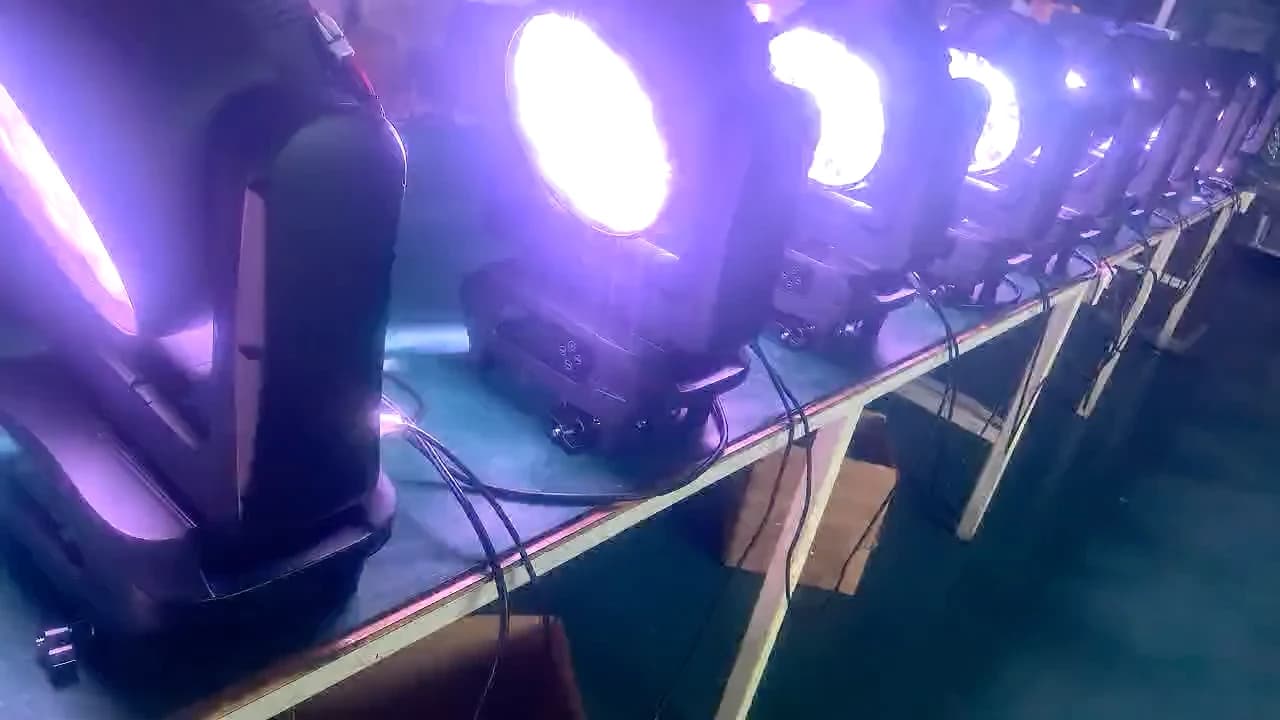

We coordinate production and powered fixture testing at our Guangzhou manufacturing base.
