RGBW LED engine
Thirty-seven 4-in-1 emitters
01

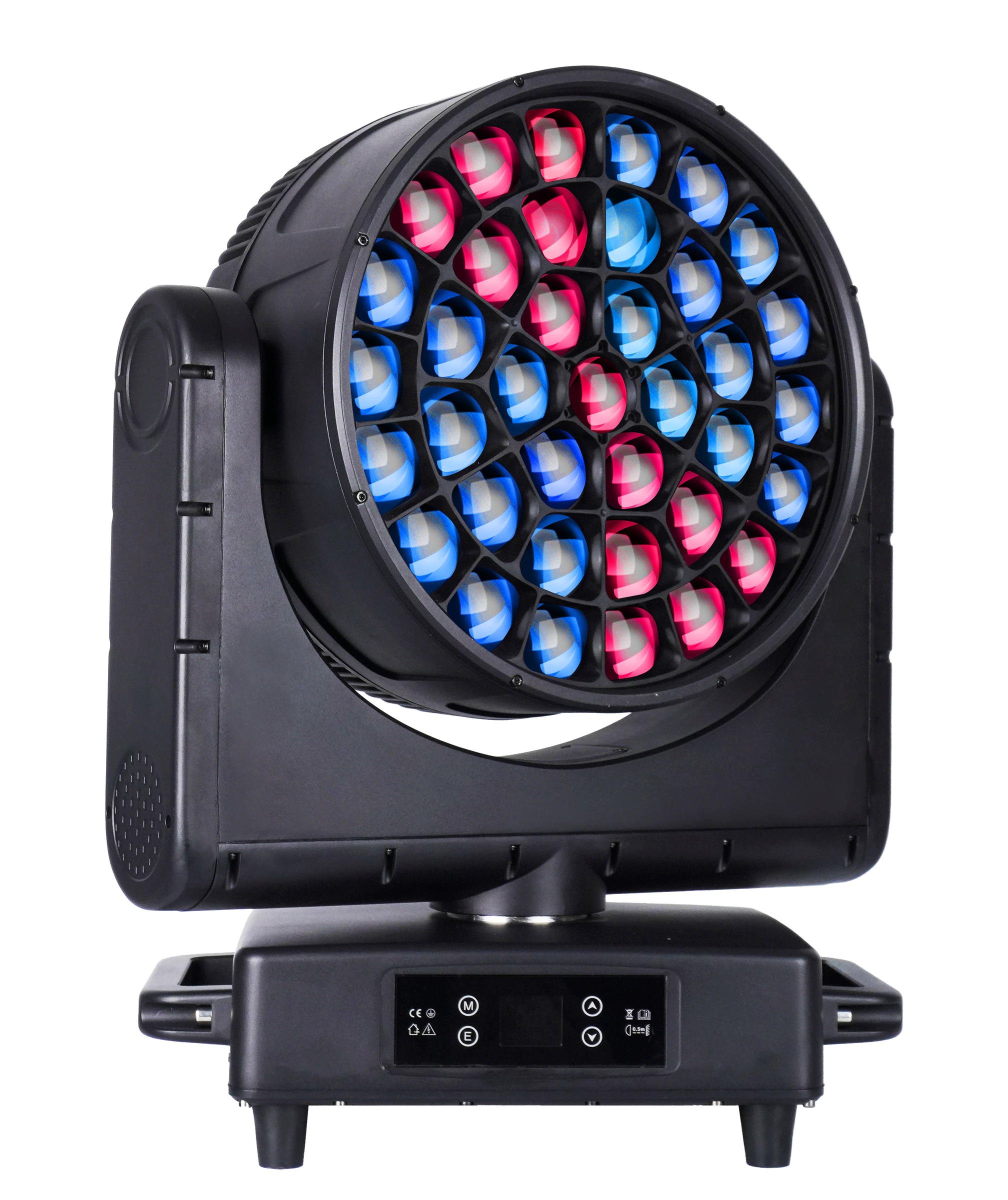

Multi-color outputTrue-alpha three-quarter product view showing a programmed red-and-blue optical-face state.
37-CELL IP65 BEE EYE MOVING HEAD
ALP3740WR37×40W LED Bee Eye Moving Head
AOLAIT ALP3740WR 37×40W LED Bee Eye Moving Head for professional stage-lighting systems.
ALP3740WR combines thirty-seven 40W RGBW emitters, 8°–48° motorized zoom, six DMX personalities and continuous rotating optics in a 32.2kg moving-head fixture.
- LED Source
- 37 × 40W RGBW
- Motorized Zoom
- 8°–48°
- DMX Modes
- 21 / 22 / 35 / 36 / 111 / 148 CH
- Movement
- 540° pan / 250° tilt
- Ingress
- IP65 — report on request
- Net Weight
- 32.2kg
- Applications
- Rental · Touring · Outdoor-project evaluation
- Sample
- Subject to stock confirmation
- Lead time
- Confirmed with quotation
02 — PRODUCT VIDEO
See ALP3740WR in motion.
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
Selected video
ALP3740WR Product & Effects Demonstration
07 — OPTICAL, COLOR & CONTROL
Model-specific performance.
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
DMX personalities
21CH through 148CH
Electronic strobe
Regular, pulse and random effects
Net weight
Fixture only
08 — APPLICATIONS
Built around professional show workflows.
We help production teams match optics, control, protection and fixture format to each professional lighting application.
01
Concert & Touring
Evaluate the 37-cell face, zoom, rotating optics and channel footprint for large programmed rigs.
Explore application 02Rental & Event Production
Lock the firmware, personality and inspection criteria before preparing a repeatable rental configuration.
Explore application 03TV & Studio Evaluation
Test PWM, dimming, saturated color and optical motion with the intended camera system.
Explore application09 — TECHNICAL SPECIFICATIONS
Engineering data by system.
We organize model-specific optical, electrical, control and mechanical data for clear project planning.
Light Source
- Main LEDs
- 37 × 40W RGBW 4-in-1
- Global color
- 16-bit red, green, blue and white in the basic engine
Optics & Effects
- Motorized zoom
- 8°–48°
- Front lens
- Continuous bidirectional rotation
- Strobe
- Electronic 0–25 Hz; regular, pulse and random effects
- Effect engine
- Pattern · speed · fade · RGBW · dimming · transition · offset · foreground/background strobe
Movement
- Pan
- 540° with 16-bit fine control
- Tilt
- 250° with 16-bit fine control
- Configuration
- Pan invert · tilt invert · zoom invert · position-sensor status
Control & Firmware
- DMX personalities
- 21CH · 22CH · 35CH · 36CH · 111CH · 148CH
- Control
- DMX512 · sound-active · master/slave
- PWM frequency
- Default · 1kHz · 10kHz · 15kHz · 20kHz · 25kHz
- Display
- LCD with four touch-sensitive keys; menu wording may vary by firmware
Electrical & Thermal
- Input voltage
- AC 100–240V, 50/60Hz
- Rated power
- 1,450W
- Cooling
- Temperature-controlled fan and overtemperature protection
Housing, Protection & Packing
- Fixture dimensions
- 530 × 279 × 663mm in the manual; drawing shows 279.5mm depth
- Net / gross weight
- 32.2kg / 37.8kg
- Carton
- 79.5 × 65 × 42cm; one fixture
- Two-unit flight case
- 104 × 58 × 88cm; source labels N.W. 41kg / G.W. 110kg
10 — PRODUCT DIMENSIONS
Plan the rig with the model drawing.
- Overall width
- 530mm
- Overall depth
- 279.5mm
- Overall height
- 663mm
- Base width
- 475mm
- Head depth
- 247mm
11 — DOWNLOADS & FIXTURE LIBRARIES
Model-specific technical files.
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
Product Documents
ALP3740WR User Manual
DOCX · 7.50 MBDownload Technical Drawings
Source-supplied model drawing for preliminary installation and transport planning.

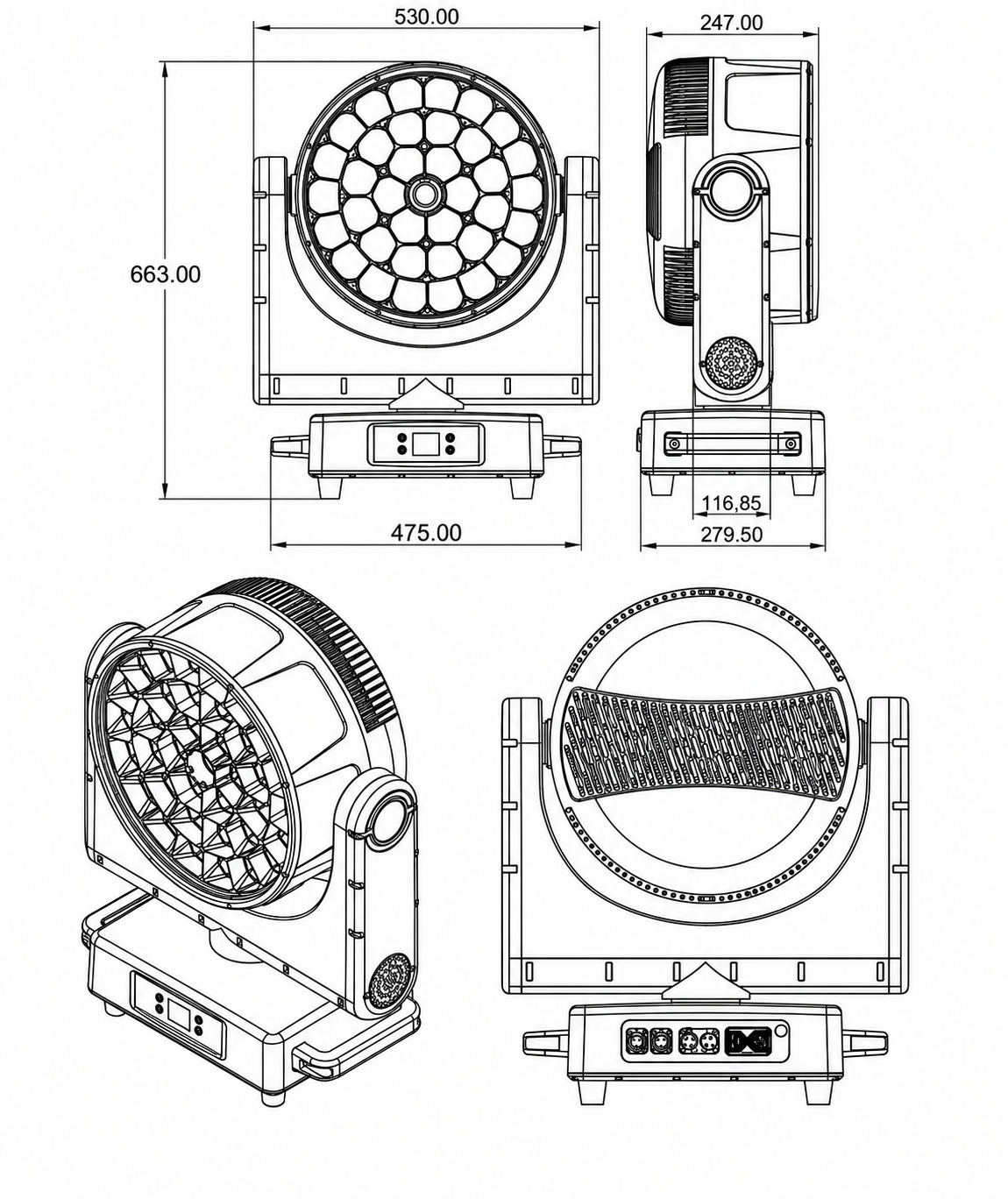

ALP3740WR Dimension DrawingFront, side, rear and three-quarter drawing labelled in millimetres.
PNG · 1.41 MBDownload Need a fixture file?Tell our technical team which console and software version you use.
