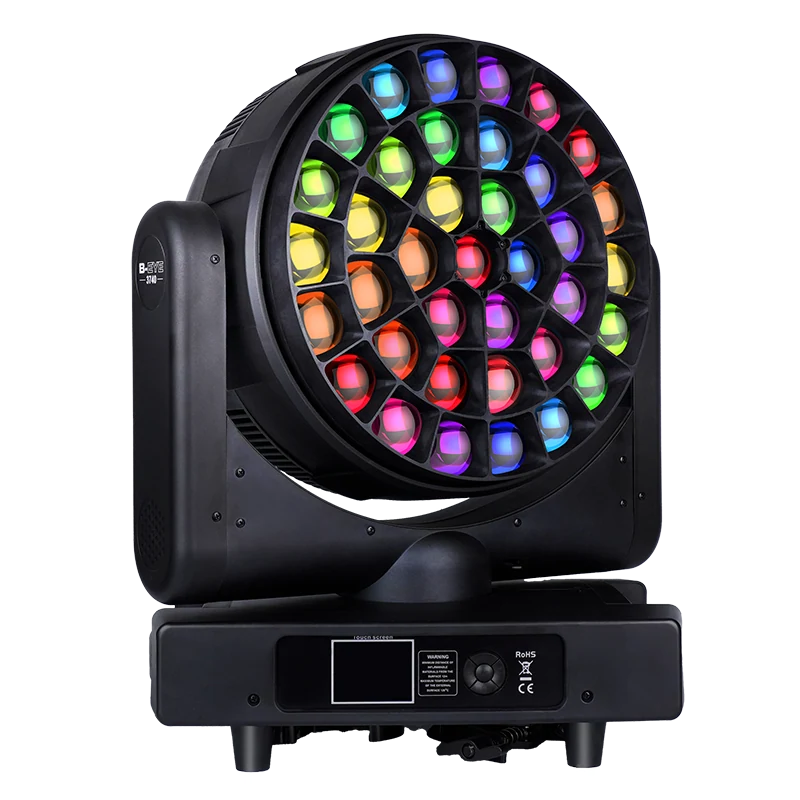

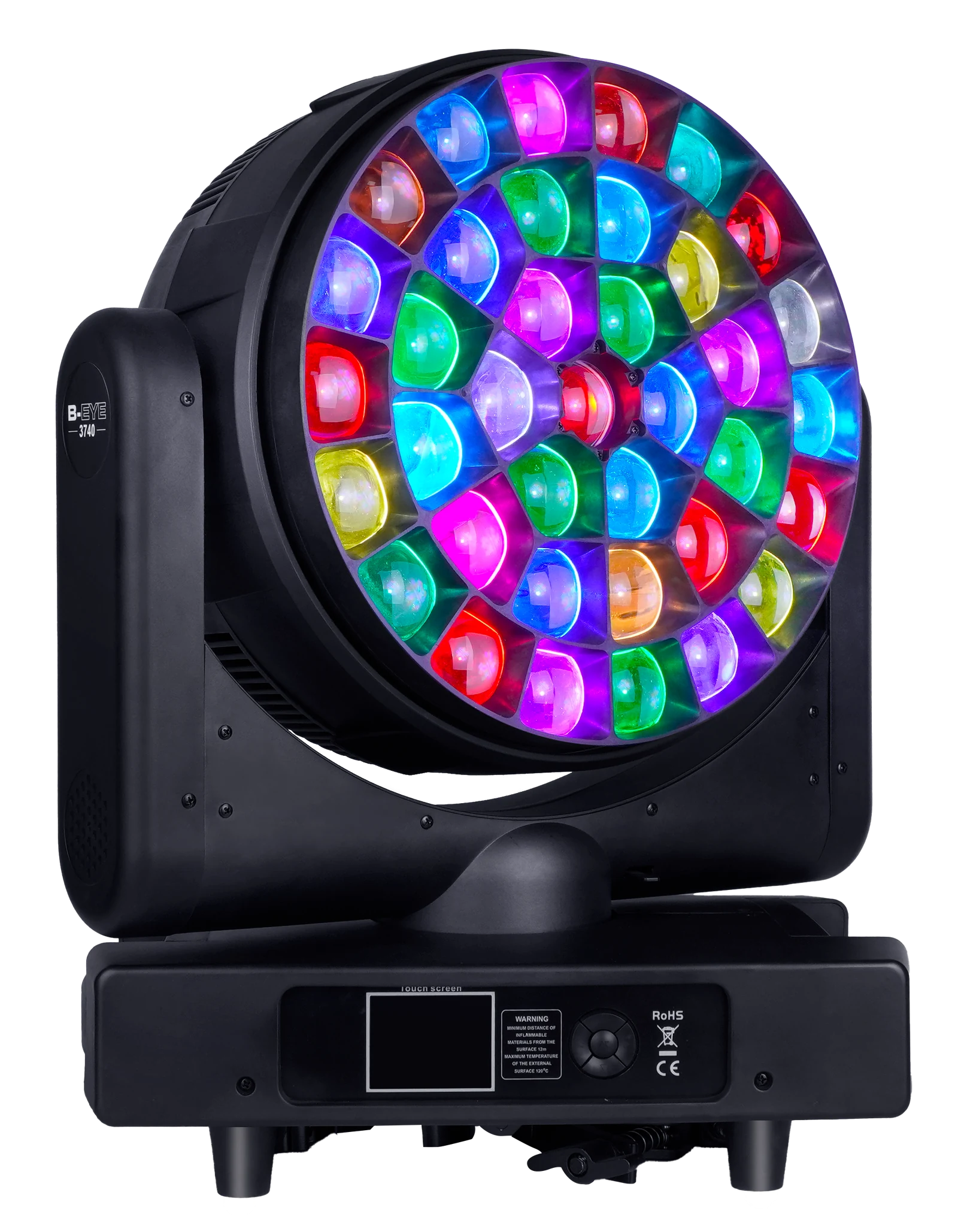

RGBW OnThree-quarter front view with the 37-cell RGBW optical face illuminated.

LED BEE EYE MOVING HEAD

AL3740WR37×40W LED Bee Eye Moving Head

A large-format 37-cell RGBW Bee Eye moving head for beam, wash, rotating-lens and pixel-effect programming.

AL3740WR combines 37 × 40W RGBW 4-in-1 LEDs, 7°–50° motorized zoom, continuous front-lens rotation and six DMX personalities in an IP20 moving-head platform.

LED Source: 37 × 40W RGBW
Motorized Zoom: 7°–50°
Optical Effect: Continuous lens rotation
DMX Modes: 22 / 35 / 36 / 132 / 146 / 169 CH
Control: DMX512 · Art-Net
Net Weight: 26 kg

Get a Quote Download User Manual Watch Video

Applications: Distributor · Rental · Projects
Sample: Subject to stock confirmation
Lead time: Confirmed with quotation

Get Quote

01 — PRODUCT OVERVIEW

Thirty-seven RGBW cells. Zoom, rotation and layered control.

The front optical assembly can rotate continuously in either direction. Six documented DMX personalities—22CH, 35CH, 36CH, 132CH, 146CH and 169CH—cover whole-fixture control, built-in shapes and extended cell data. The 169-channel mapping provides RGBW control for all 37 cells; lower extended modes provide RGB cell data or combine it with shape controls.

37 × 40WRGBW LED engine

7°–50°Motorized zoom

37 cellsExtended cell data

02 — PRODUCT VIDEO

See AL3740WR in motion.

Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.

Selected video

AL3740WR Product Effect Demonstration

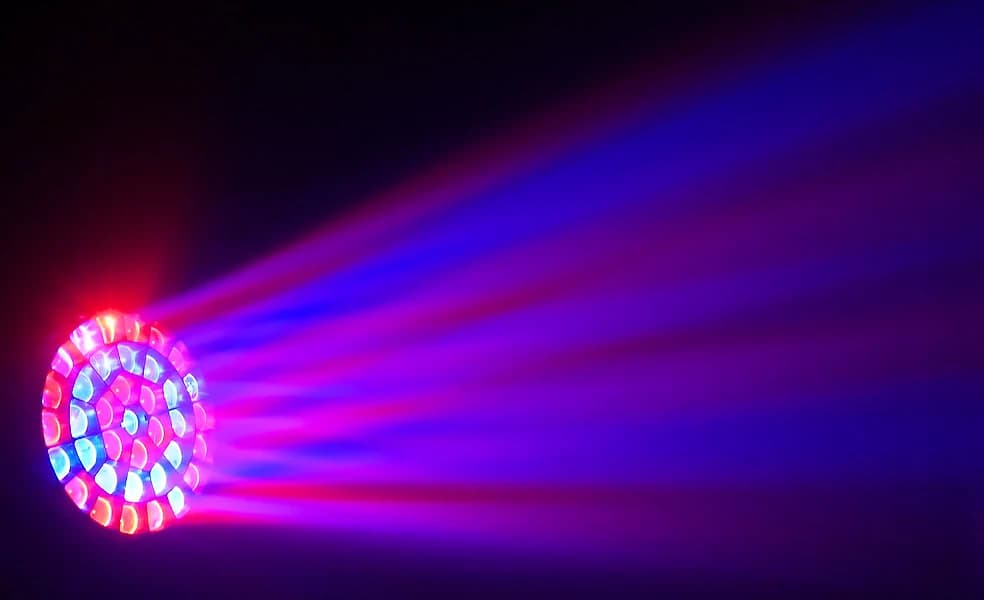

AL3740WR wide aerial output and rotating-lens effect

03 — HIGHLIGHT

7°–50° Zoom and Lens Rotation

The documented 7°–50° motorized zoom supports tighter beam-style output and wider wash coverage. A separate rotation channel drives the front optical assembly continuously clockwise or counterclockwise, with variable speed and a stop range for repeatable kaleidoscope-style looks.

7°–50° motorized zoomBidirectional rotationVariable rotation speed

AL3740WR thirty-seven-cell red and green programmed effect

04 — HIGHLIGHT

37-Cell Pixel and Shape Control

Extended DMX modes expose cell data for all 37 LEDs. The 169CH personality provides RGBW control per cell, while 132CH and 146CH modes add RGB cell data with different whole-fixture or shape-control footprints. Built-in shape selection, speed, fade, color, dimming, transition, offset and foreground/background strobe controls support layered effects.

37-cell dataSix DMX personalitiesBuilt-in shape engine

07 — OPTICAL, COLOR & CONTROL

Model-specific performance.

We publish model-specific optical, color, movement and control data for each selected fixture configuration.

37 × 40W

RGBW LED engine

Four-color 4-in-1 main LEDs

7°–50°

Motorized zoom

Manual and product-video value

37 cells

Extended cell data

RGBW control in the 169CH mapping

0–25 Hz

Electronic strobe

Manual technical summary and DMX chart

540° / 250°

Pan / tilt

16-bit fine movement control

6 modes

DMX personalities

22CH through 169CH

Professional concert stage lighting application

08 — APPLICATIONS

Built around professional show workflows.

We help production teams match optics, control, protection and fixture format to each professional lighting application.

Concert & Touring

Evaluate the large 37-cell face, zoom and rotating optical effects for programmed touring rigs.

Explore application 02

Rental & Event Production

Six DMX personalities provide different control footprints for event and rental workflows.

Explore application 03

Clubs & Entertainment Venues

Rotating-lens, shape and pixel controls support visible atmosphere and camera-facing looks.

Explore application 04

Theatre & Stage Performance

16-bit movement, zoom and dimmer curves can be evaluated for repeatable stage cues.

Explore application 05

TV & Studio Production

Test the selectable dimming frequency and intended camera system before production use.

Explore application

09 — TECHNICAL SPECIFICATIONS

Engineering data by system.

We organize model-specific optical, electrical, control and mechanical data for clear project planning.

Light Source

Main LEDs: 37 × 40W RGBW 4-in-1
Color system: RGBW four-color mixing
Cell control: Extended RGB or RGBW data for cells 1–37, depending on personality

Optical System

Motorized zoom: 7°–50°
Front optical rotation: Continuous clockwise / counterclockwise rotation with variable speed and stop
Optical roles: Beam · wash · kaleidoscope-style effects

Color & Effects

Master color: 16-bit red, green, blue and white control
Linear CTO: Dedicated DMX control
Color macros: Dedicated macro-color control
Dimmer: 0–100%, 16-bit
Dimmer curves: Four selectable curves
Strobe: 0–25 Hz with synchronized, split and random modes
Shape engine: Selection, speed, fade, RGBW, dimming, transition, offset and foreground / background strobe

Pan & Tilt

Pan: 540°, 16-bit
Tilt: 250°, 16-bit
Position correction: Encoder and Hall correction settings documented
Settings: Pan / tilt inversion, swap and speed mode

Control

DMX modes: 22CH · 35CH · 36CH · 132CH · 146CH · 169CH
Protocols: DMX512 · Art-Net
Operating modes: DMX · Art-Net · Art-Net + DMX · Auto 1 · Auto 2 · Sound
Linked operation: Master-Slave documented in the technical summary
Display: LCD interface with English / Chinese language selection

Electrical

Input voltage: AC 100–240 V, 50/60 Hz
Rated power: 1450 W

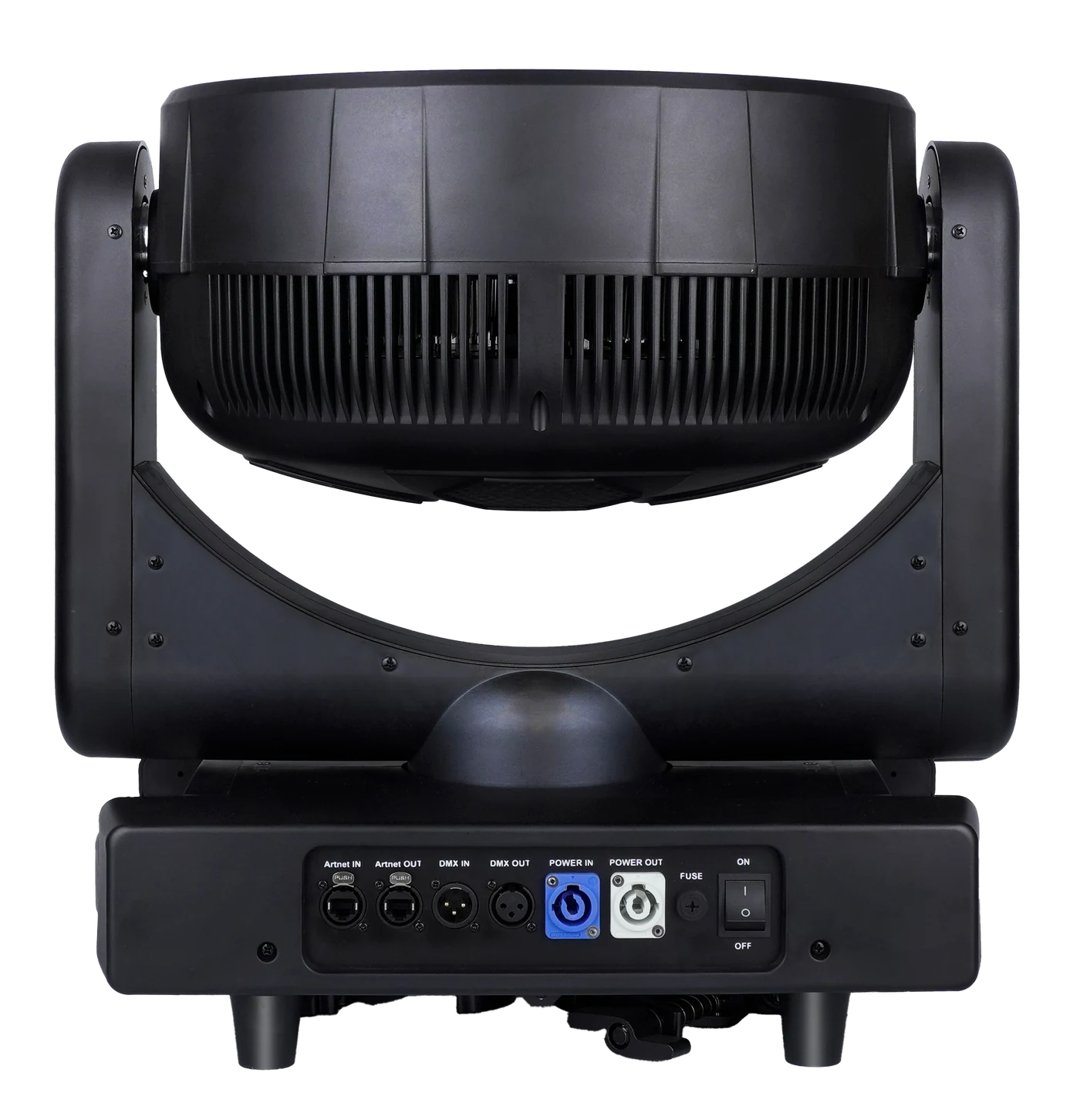

Connections

Network: Labeled Art-Net input / output
DMX: 3-pin XLR input / output
Power: Locking power input / output

Physical

Construction: Engineering-plastic and cast-aluminum casing stated in the manual
Ingress rating: IP20
Net weight: 26 kg
Gross weight: 30.8 kg
Package size: 61.5 × 61.5 × 54 cm, 1 fixture per carton
Temperature management: Automatic fan-speed adjustment and over-temperature protection

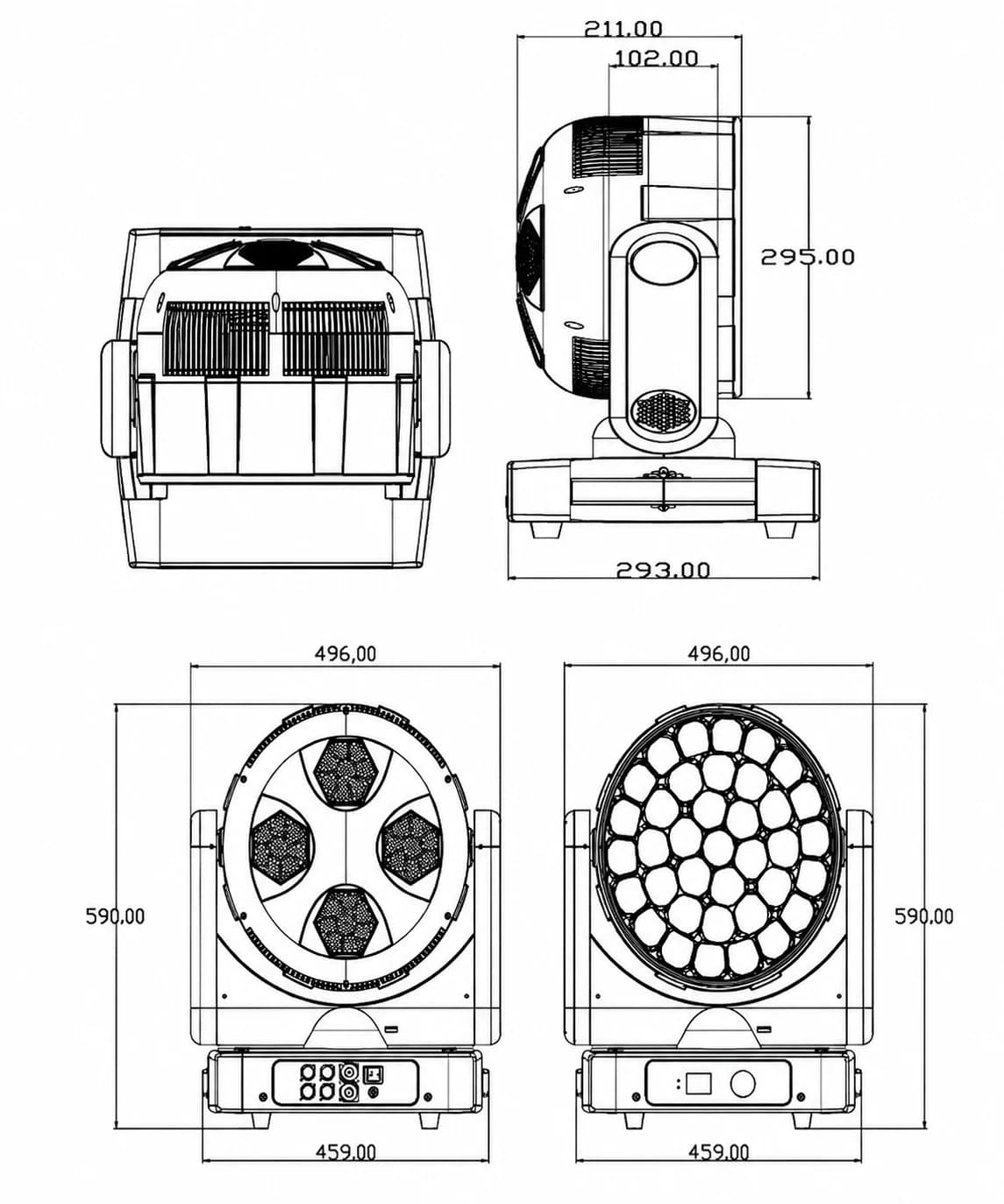

10 — PRODUCT DIMENSIONS

Plan the rig with the model drawing.

Download original drawing

Overall width: 496 mm
Overall height: 590 mm
Overall depth: 293 mm
Base width: 459 mm
Head depth: 211 mm

11 — DOWNLOADS & FIXTURE LIBRARIES

Model-specific technical files.

We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.

Product Documents

AL3740WR User ManualOriginal supplied 22-page manual. It describes a generic 37 × 40W fixture and does not print the AL3740WR model identifier.

PDF · 0.69 MBDownload

Technical Drawings

AL3740WR Dimension DrawingFront, rear and side drawing labelled in millimetres.

PNG · 1.19 MBDownload

Need a fixture file?Tell our technical team which console and software version you use.

Contact Technical Support

12 — FAQ

Product questions, answered by Aolait.

Our team provides clear model, control, application and technical-file guidance for professional projects.

Extended DMX personalities provide data for all 37 cells. The 169CH table lists red, green, blue and white control for each cell. The 132CH table lists RGB cell data, while the 146CH table combines shape controls with RGB cell data. Individual control is therefore personality-dependent; programmers should match the current manual or fixture profile to the selected mode before preparing a show file.
