A twelve-cell RGBW moving wash with 5°–60° motorized zoom, individual pixel control and two controller footprints.
AL1240WZ combines twelve 40W RGBW 4-in-1 LEDs, broad motorized zoom and independent control of every LED in its 67-channel personality.
01 — PRODUCT OVERVIEW

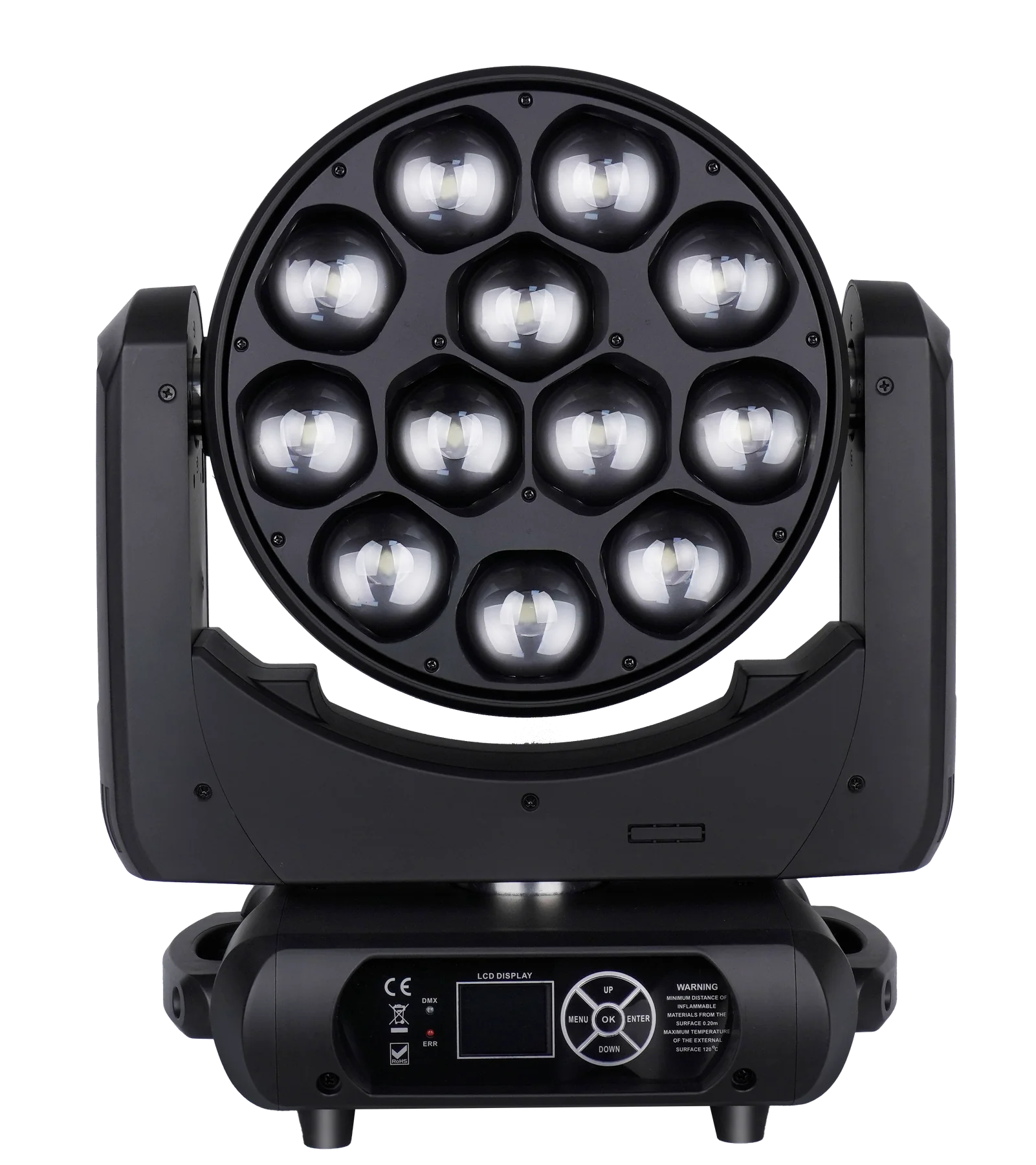

AL1240WZ is a professional zoom wash built around twelve 40W RGBW 4-in-1 LEDs. Its 5°–60° optical range moves from tighter aerial looks to broad wash coverage for stage, theatre, studio, club and live-event use.
The 19CH and 67CH personalities support different programming depths. Channels 1–19 cover movement, zoom, master dimming, strobe, grouped RGBW, CTO, macros and background effects; the 67CH profile adds separate RGBW control for all twelve LEDs.
02 — PRODUCT VIDEO
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
Aolait demonstration showing the fixture, RGBW output, strobe, pixel looks, movement and beam-to-wash effects.
03 — HIGHLIGHT

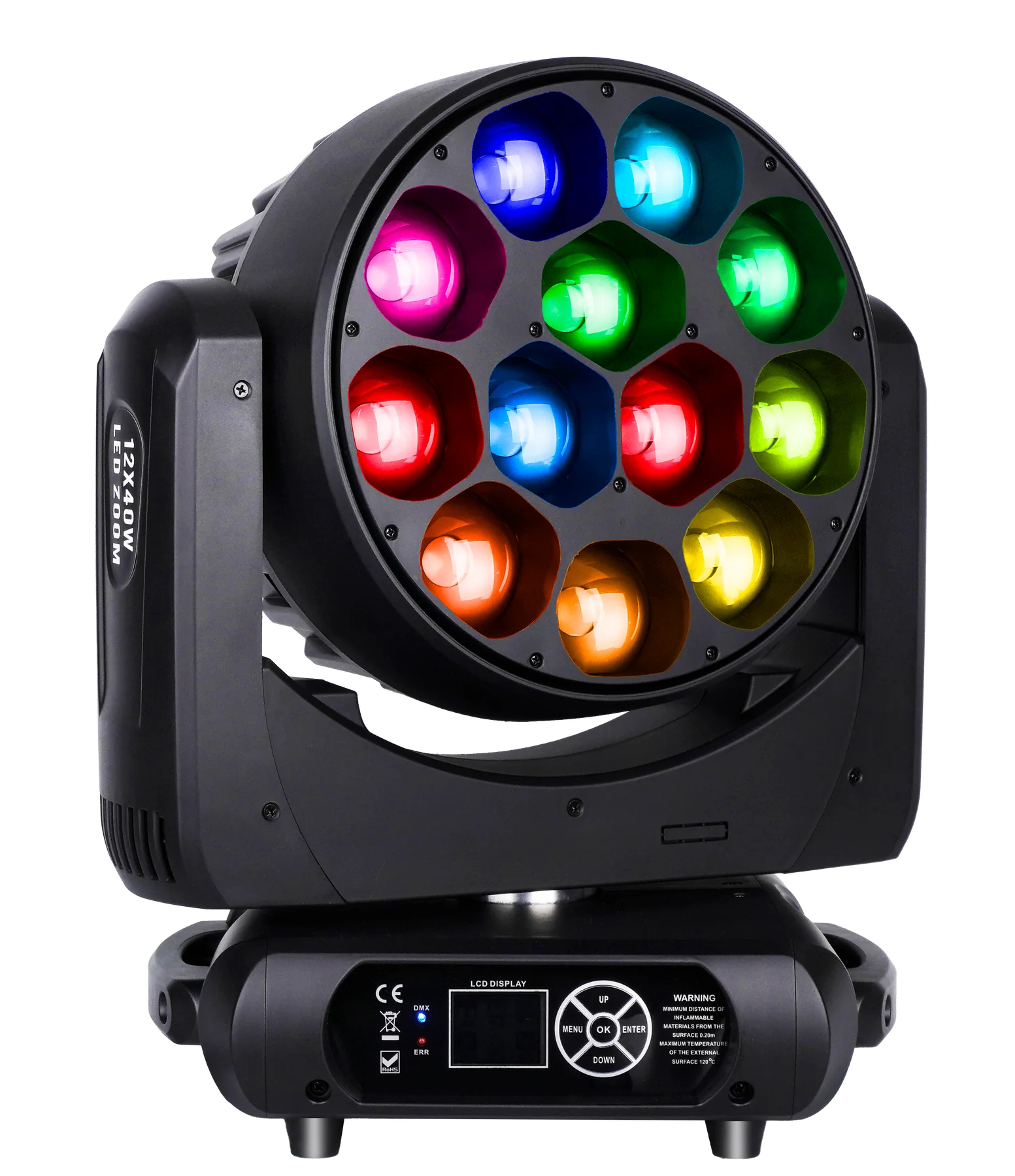

Twelve RGBW 4-in-1 LEDs form the main wash engine. The 67-channel personality exposes separate red, green, blue and white control for every cell, supporting individual pixel layouts as well as grouped wash operation.
04 — HIGHLIGHT
The 5°–60° zoom range shifts the fixture from tighter beam looks to wide wash coverage. For illuminance-critical projects, request current calibrated photometric data or test a production sample.
05 — HIGHLIGHT
The 19-channel mode provides grouped RGBW, CTO, color macros, dynamic effects and a separately dimmable background color. The 67-channel mode retains those functions and adds 48 channels for individual RGBW control of LEDs 1–12.
07 — OPTICAL, COLOR & CONTROL

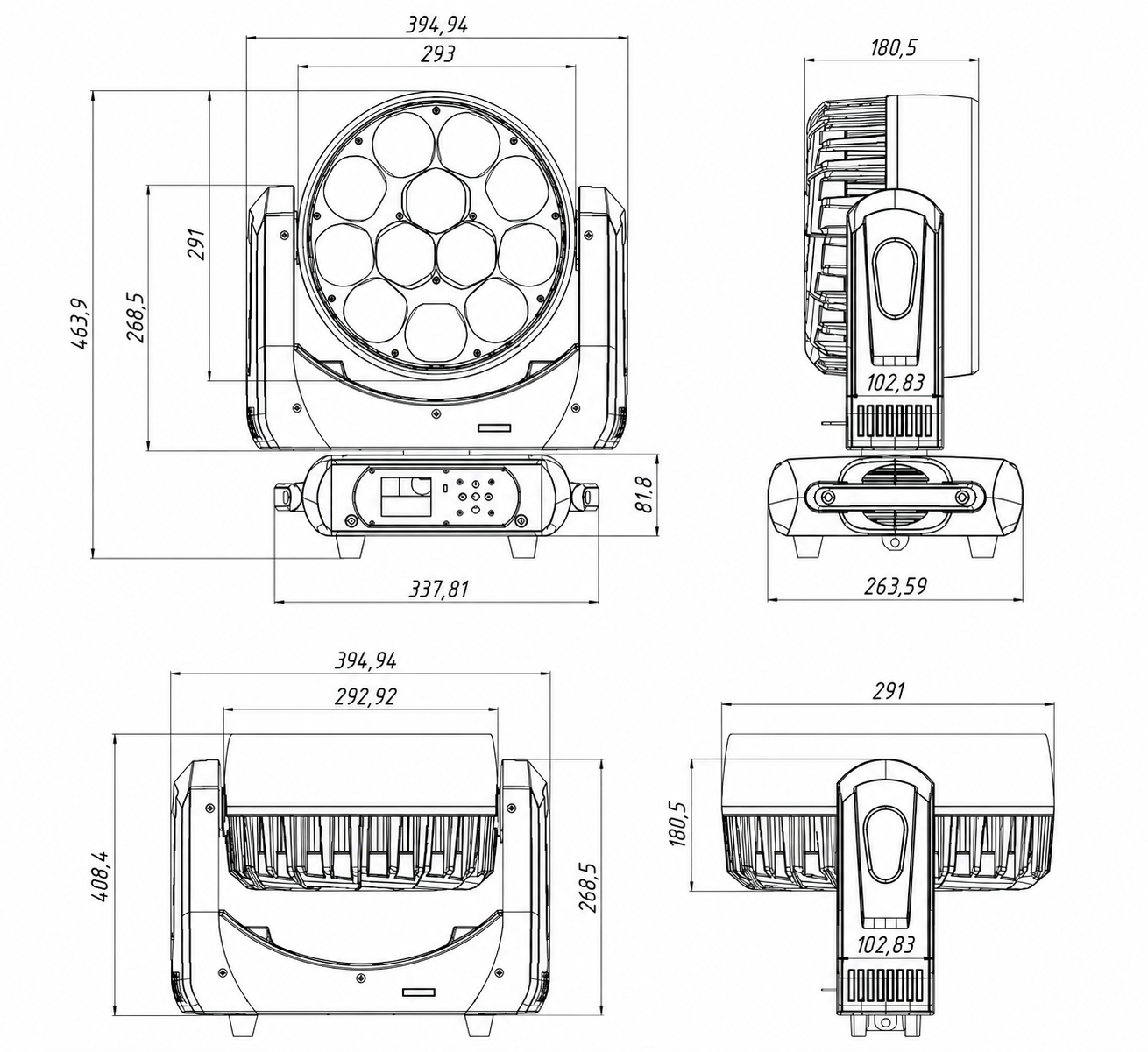

Published optical, color, movement, control, power and weight data for the AL1240WZ.
Twelve four-color main cells
Tight beam to broad wash
Available in 67CH mode
Published operating range
Both with 16-bit fine control
19CH and 67CH
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.
Use broad zoom, twelve pixels and RGBW color for layered indoor concert and touring looks.
Explore application 02Choose grouped 19CH control or detailed 67CH programming for rental and event workflows.
Explore application 03Program repeatable wash, color, zoom and movement cues in controlled indoor environments.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
AL1240WZ uses twelve 40W RGBW 4-in-1 LEDs.
Its 5°–60° motorized zoom covers tighter beam looks and broad wash output.
Yes. The 67-channel personality lists separate red, green, blue and white channels for LEDs 1–12. The 19-channel mode provides grouped control.
AL1240WZ provides 19CH and 67CH personalities for grouped or individual-cell programming.
AL1240WZ supports DMX512, master/slave, automatic and sound-active operation.
