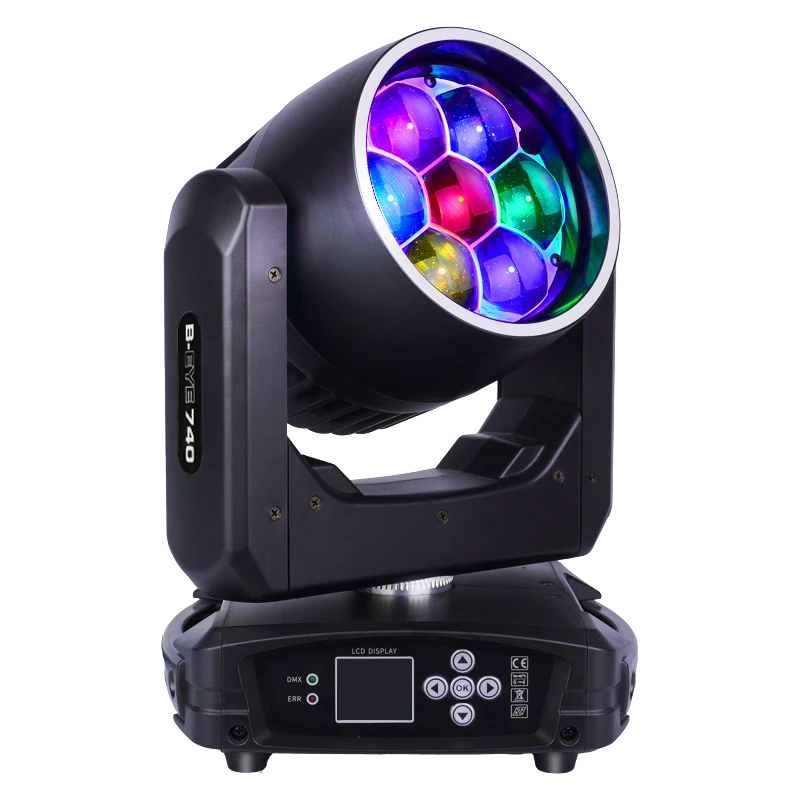

A compact seven-cell RGBW moving wash with wide motorized zoom, individual pixel control and a programmable RGB halo ring.
AL740WZ combines seven individually controllable 40W RGBW LEDs, 3°–60° motorized zoom, rotating-lens effects and an RGB halo ring in a compact moving-head format.
01 — PRODUCT OVERVIEW

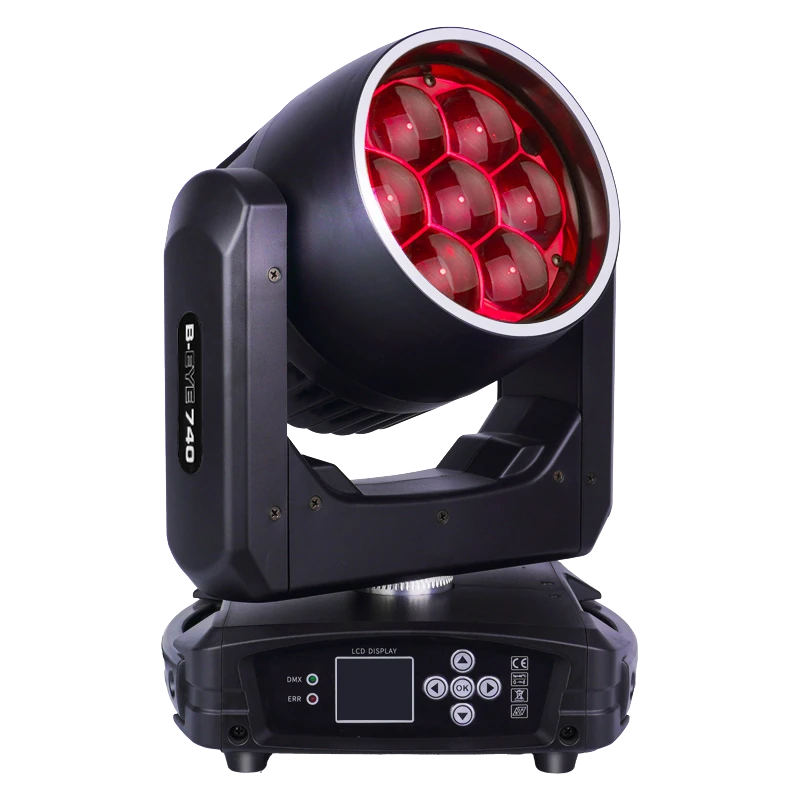

AL740WZ is a compact zoom wash built around seven 40W RGBW 4-in-1 emitters. Its 3°–60° motorized zoom moves from a tight aerial beam to broad wash coverage, while the rotating lens and built-in shape effects add movement within the optical face.
Four DMX personalities—18CH, 29CH, 41CH and 57CH—support different programming depths. The 57-channel mode exposes separate RGBW control for all seven cells, while the RGB halo ring has dedicated strobe, color, dynamic-effect and speed controls.
02 — PRODUCT VIDEO
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
Aolait overview showing RGBW colors, pixel and halo looks, movement, rotating-lens effects and the 3°–60° zoom range.
03 — HIGHLIGHT

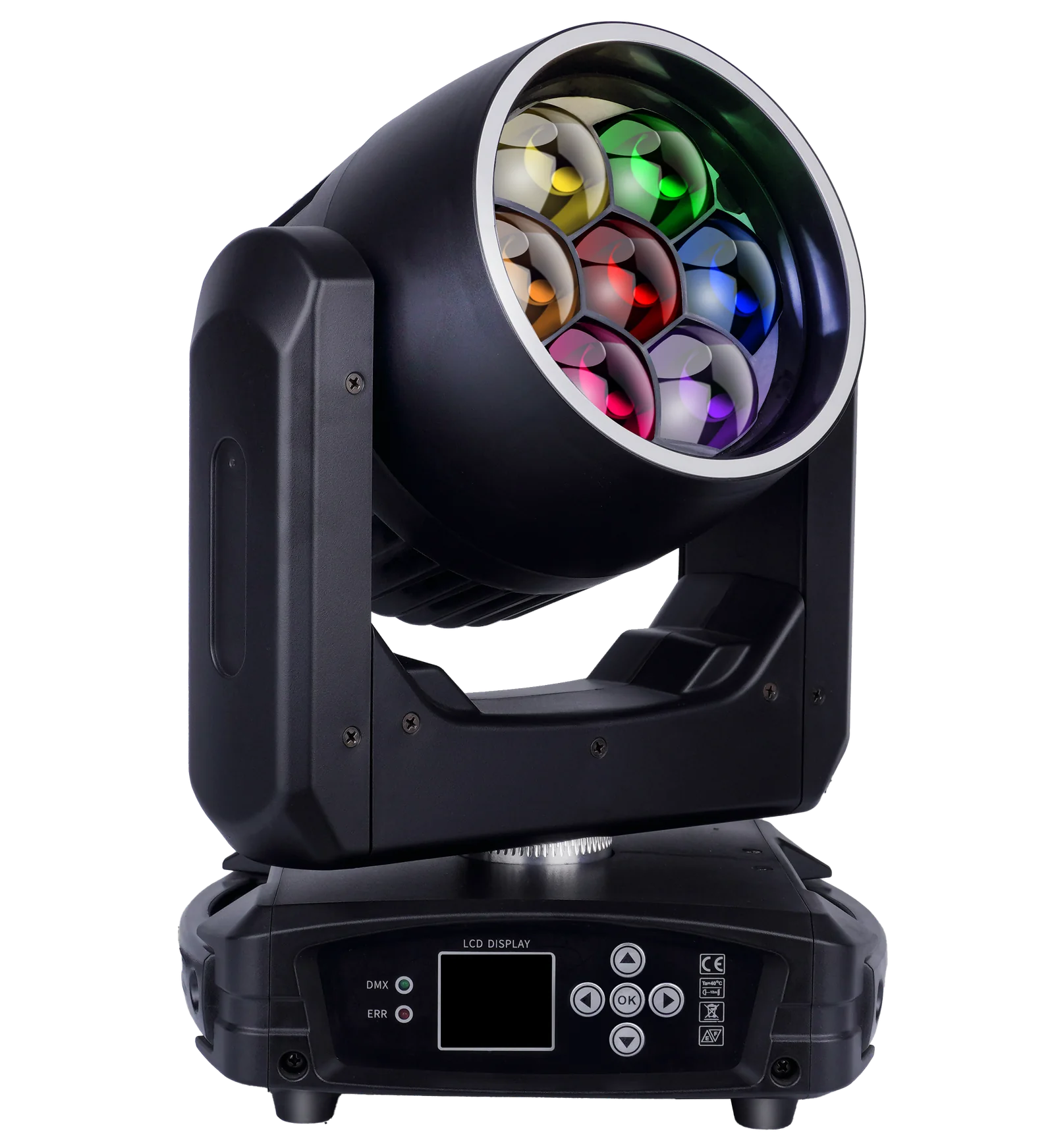

Seven RGBW 4-in-1 LEDs form the main wash engine. The 57-channel personality provides separate red, green, blue and white control for every cell, enabling pixel-level color layouts in addition to grouped wash operation.
04 — HIGHLIGHT

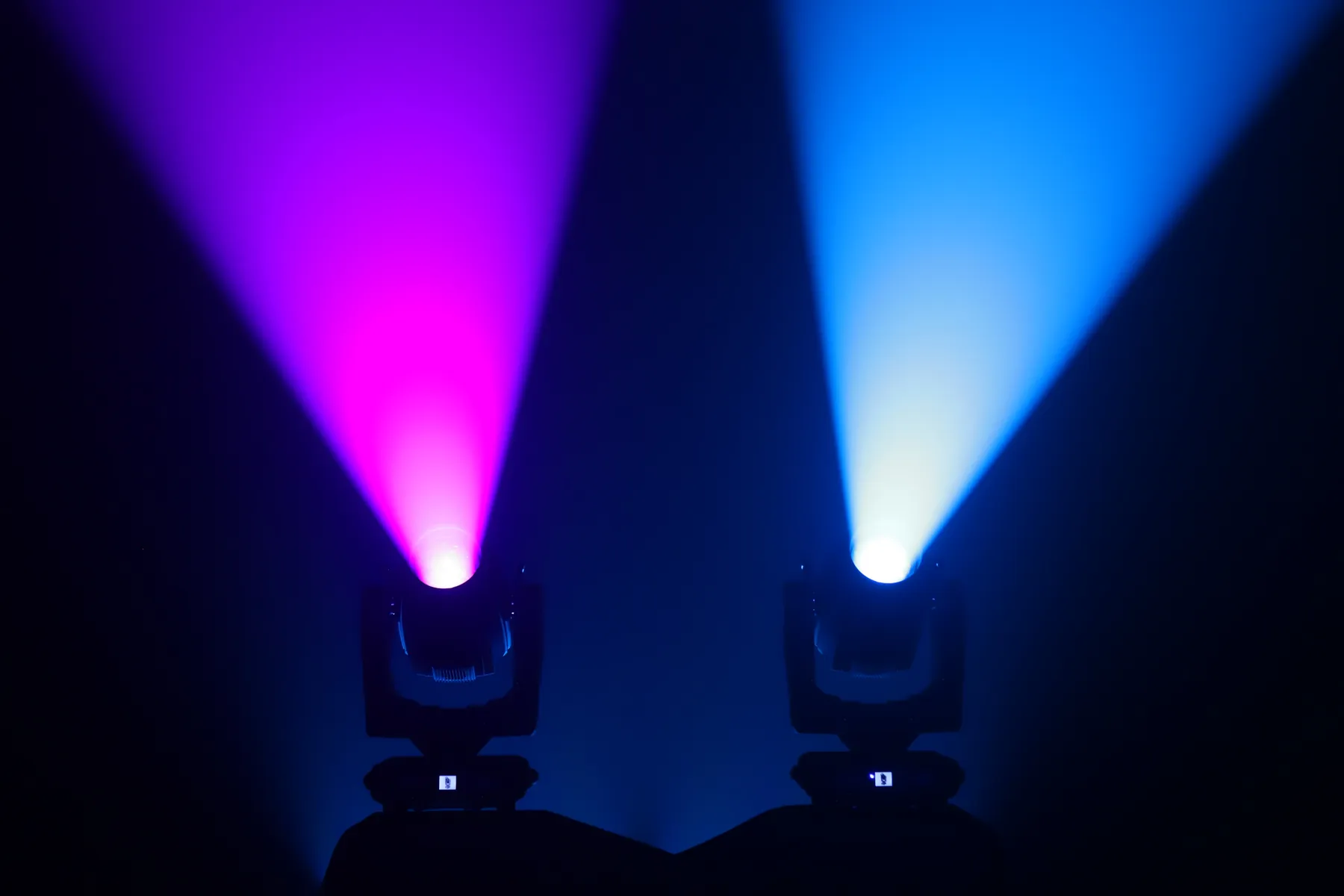

The 3°–60° range shifts the fixture from a tight aerial beam to wide wash coverage, supporting both defined mid-air looks and broader stage illumination.
05 — HIGHLIGHT

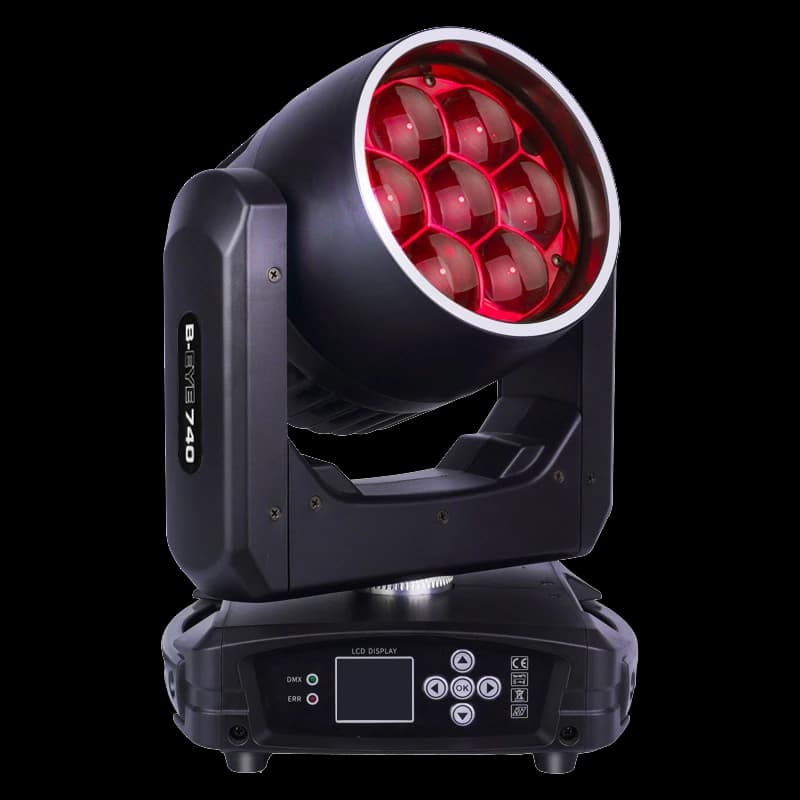

Dedicated halo channels cover strobe, red, green, blue, dynamic effect and effect speed. A rotating-lens channel plus static, dynamic, foreground and background effects add camera-facing motion beyond the main wash layer.
07 — OPTICAL, COLOR & CONTROL
Published optical, color, pan, control, power and weight data for the AL740WZ.
Seven four-color main cells
Narrow beam to wide wash
Available in 57CH mode
Published operating range
Fine control in extended modes
18CH, 29CH, 41CH and 57CH
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.
Use zoom, individual cells, halo effects and compact dimensions for layered touring and concert looks.
Explore application 02Four DMX footprints support different programming depths for rental and event workflows.
Explore application 03Program repeatable wash, color, zoom and movement cues after confirming the active firmware profile.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.

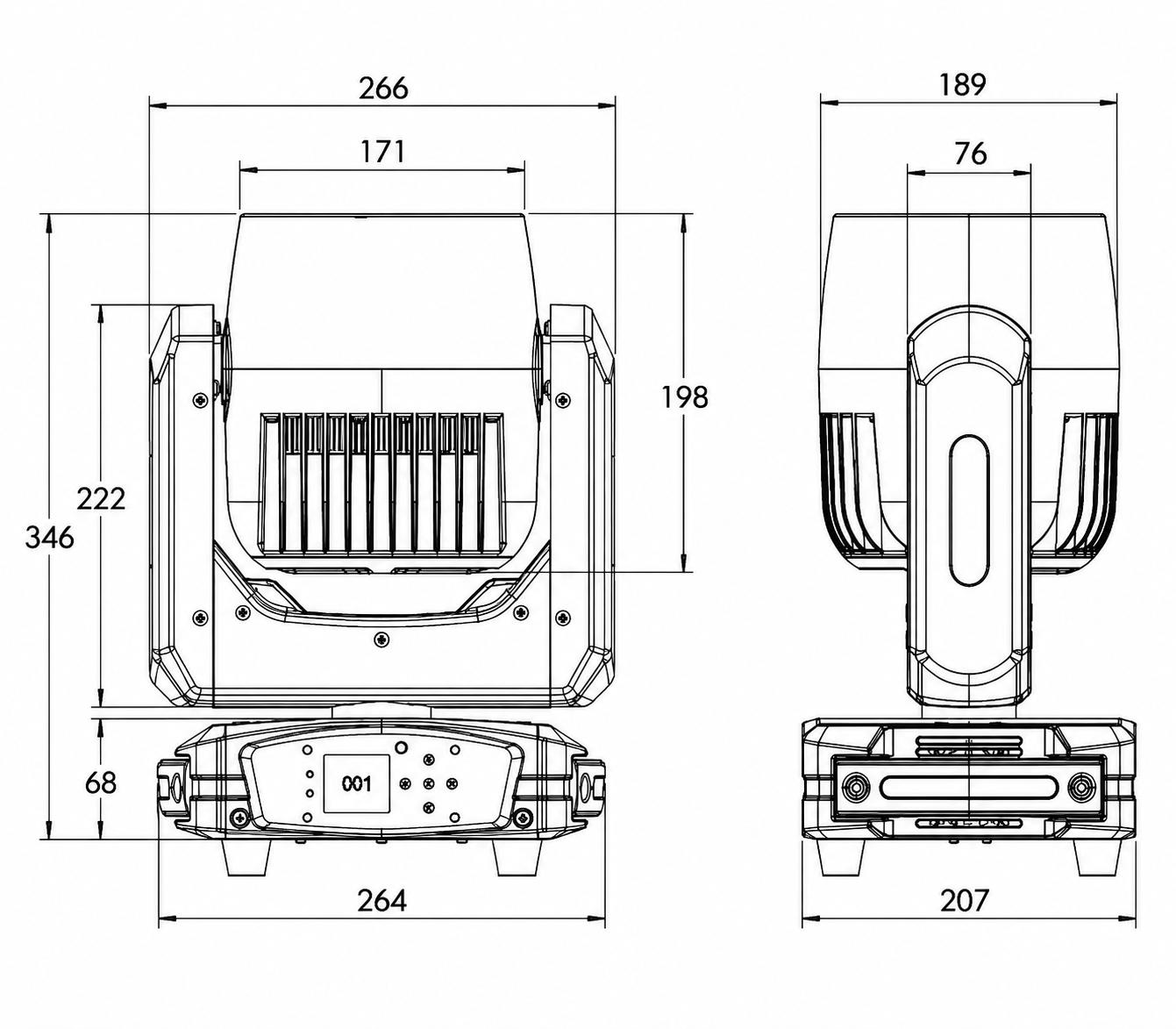

10 — PRODUCT DIMENSIONS
11 — DOWNLOADS & FIXTURE LIBRARIES
Download the available AL740WZ technical drawing.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
AL740WZ uses seven 40W RGBW 4-in-1 LEDs. Its 57-channel personality provides separate RGBW controls for each cell.
Its 3°–60° motorized zoom moves from a tight beam to broad wash coverage.
Yes. The 57-channel table lists individual red, green, blue and white channels for pixels 1–7. Lower-channel modes provide grouped workflows.
The RGB halo has dedicated strobe, red, green, blue, dynamic-effect and effect-speed channels.
AL740WZ provides 18CH, 29CH, 41CH and 57CH personalities for grouped and pixel-level programming.
