COMPACT RGBW ZOOM WASH MOVING HEAD
A compact indoor RGBW moving head combining 8°–50° motorized zoom, two DMX personalities and three-zone color control.
C08 uses nineteen 15W RGBW 4-in-1 LEDs for beam, wash, color-mixing, macro and three-zone effects in a compact IP20 platform.
01 — PRODUCT OVERVIEW
C08 is built around nineteen 15W RGBW 4-in-1 LEDs. Its continuously variable 8°–50° motorized zoom supports tighter aerial looks and broader wash coverage.
Two DMX personalities are available. The 16-channel mode provides whole-fixture RGBW control, while the 24-channel mode divides the optical face into three independently controlled RGBW zones.
02 — PRODUCT VIDEO
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.

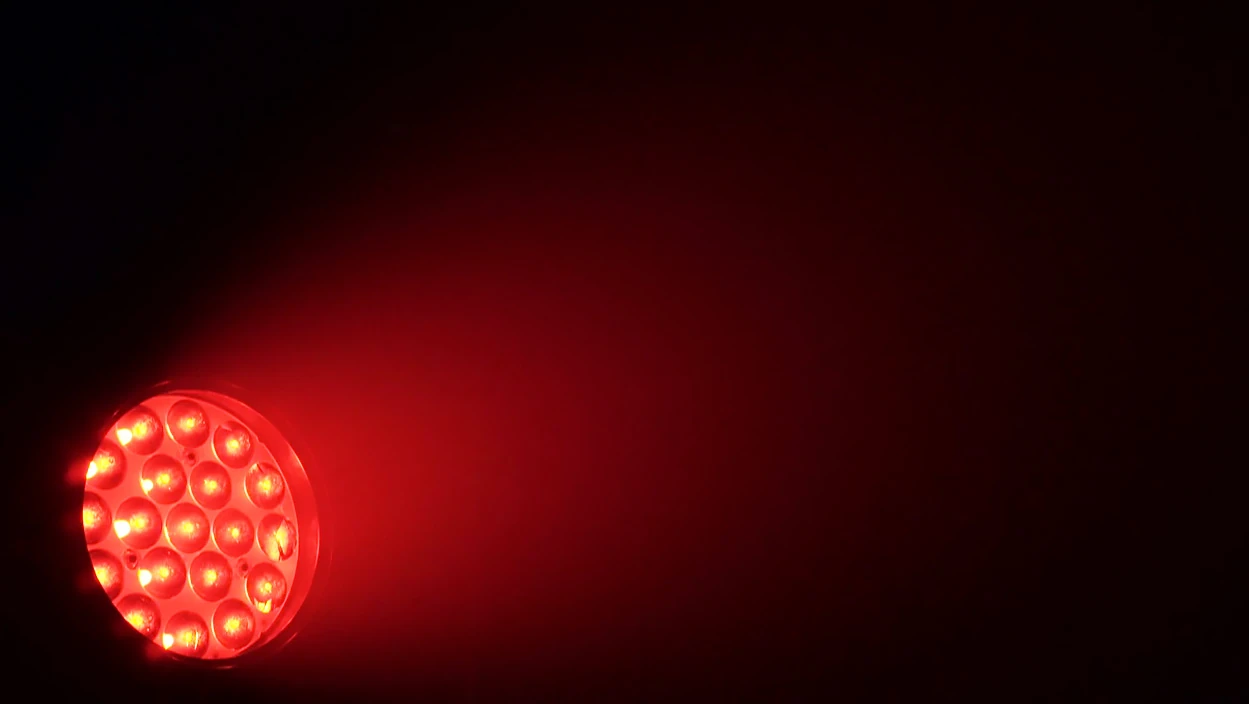

Product video showing the fixture and programmed RGBW output. Final results depend on fixture settings, optics, environment and show programming.
03 — HIGHLIGHT

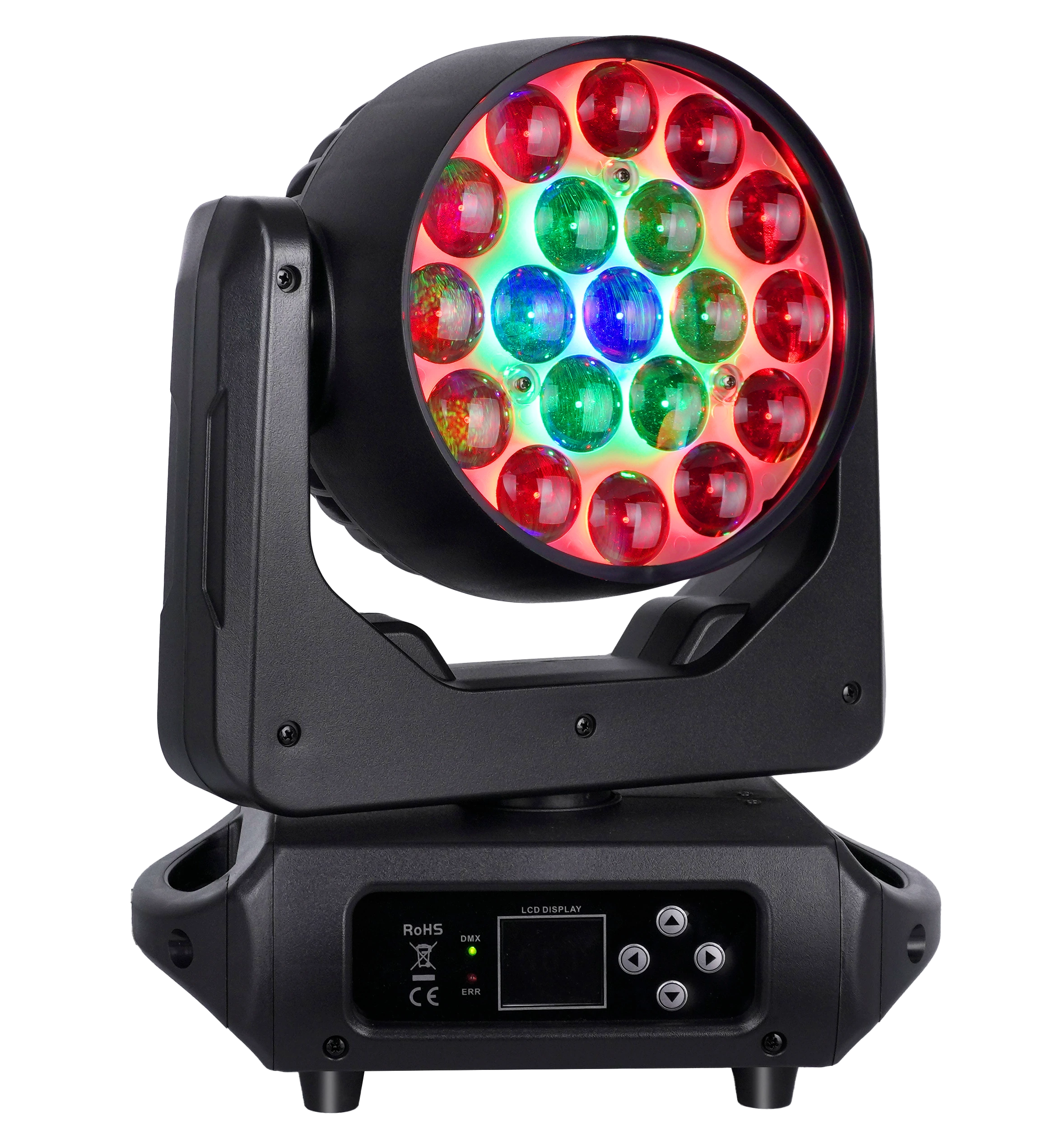

Nineteen RGBW 4-in-1 LEDs form the main optical engine. The 16CH personality provides grouped RGBW control, and the 24CH personality exposes three independently controlled RGBW zones.
04 — HIGHLIGHT
The motorized zoom moves from an 8° beam to a 50° wash. RGBW illuminance values cover 2 m, 4 m, 6 m and 8 m at both zoom endpoints.
05 — HIGHLIGHT
The compact 16CH footprint covers movement, dimmer, strobe, RGBW, zoom, macros, color-temperature adjustment and reset. The 24CH mode adds twelve RGBW channels for three optical zones.
07 — OPTICAL, COLOR & CONTROL
Published optical, color, movement, control, power and weight data for the C08.
Nineteen RGBW 4-in-1 emitters
Beam-to-wash optical range
Published photometric value
Published photometric value
Grouped or three-zone RGBW control
Published maximum
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.
Use the compact 8°–50° zoom range for dry indoor stage wash and tighter aerial looks.
Explore application 02Choose 16CH grouped control or 24CH three-zone operation to match the programming brief.
Explore application 03Evaluate the RGBW engine, zoom, linear dimming and movement against the venue and cue requirements.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
C08 uses nineteen 15W RGBW 4-in-1 LEDs.
C08 provides continuously variable 8°–50° motorized zoom, moving from a tighter beam to broad wash coverage.
C08 provides 16CH and 24CH personalities. The 16CH mode controls the RGBW engine as one fixture, while 24CH provides three RGBW zones.

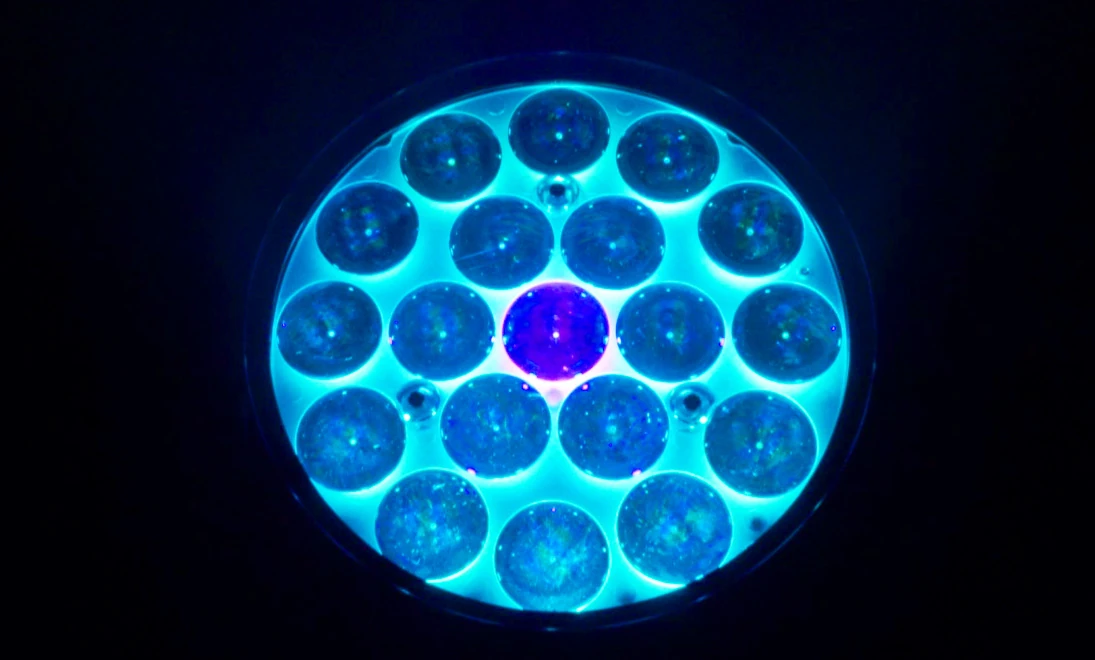

Yes. The 24CH personality divides the nineteen-cell face into three independently controlled RGBW zones.
No. C08 is an IP20 fixture for dry indoor environments and must be protected from moisture and excessive dust.
