MINI IP65 ZOOM WASH / HALO / BACKGROUND LIGHT

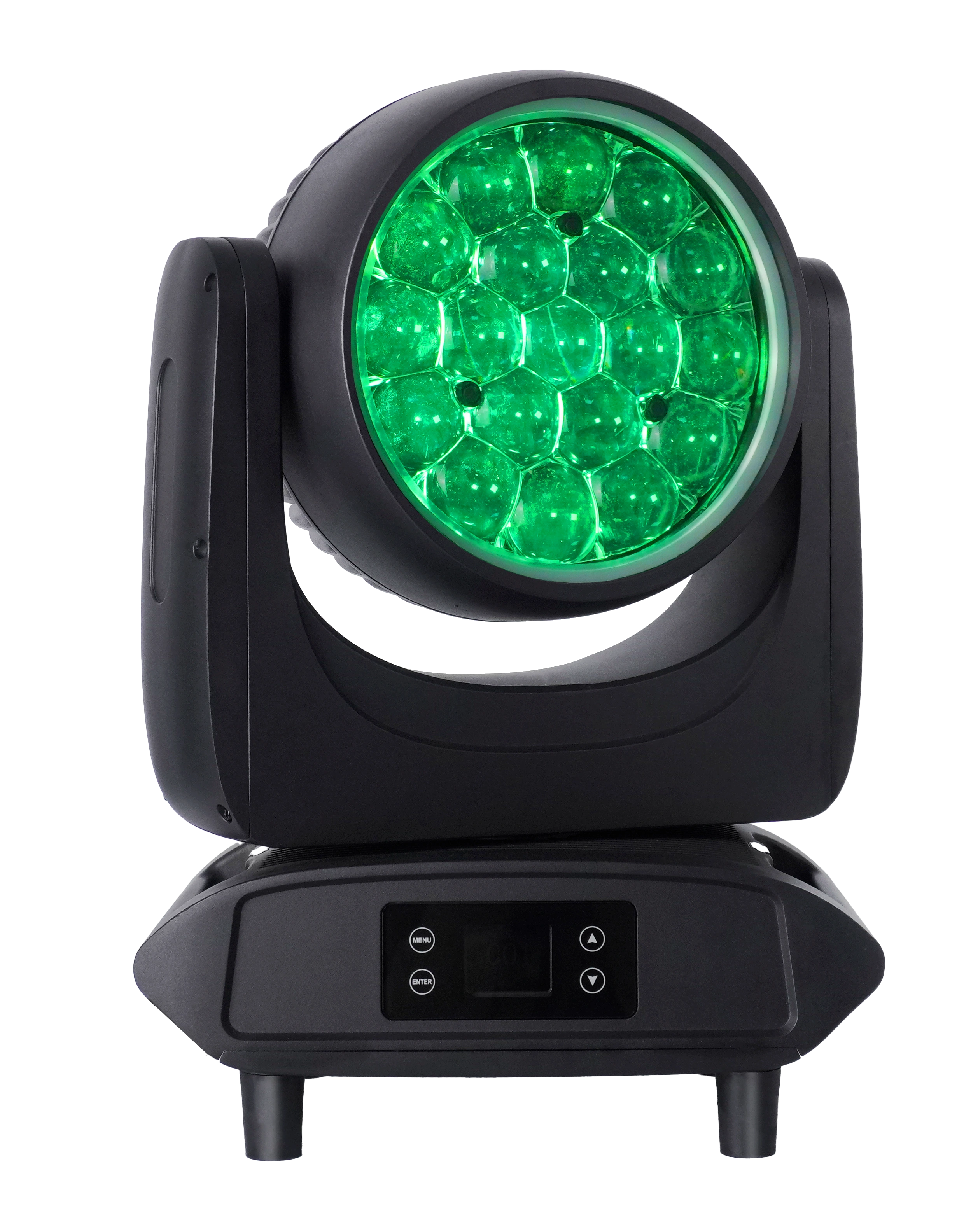

A compact IP65 moving head with nineteen 40W RGBW LEDs, 4°–60° zoom, an RGB halo ring and layered background-light control.
Aolait ALP1940WZ combines a 19×40W RGBW optical engine, three-zone effects and four DMX personalities in a 14kg full die-cast aluminum housing designed for mobile indoor and outdoor production workflows.
01 — PRODUCT OVERVIEW
We developed ALP1940WZ for rental companies, touring teams and outdoor productions that need a compact IP65 moving head without stepping down from a nineteen-cell 40W RGBW platform. The 328 × 252 × 419mm fixture weighs 14kg, helping teams reduce handling effort and packing volume across mobile rigs.
The motorized 4°–60° zoom moves from a concentrated output to a broad wash. The 53CH and 57CH personalities organize the nineteen RGBW cells into three control zones, while the independent RGB halo ring adds dimming, strobe, macros and speed control around the optical face.
02 — PRODUCT VIDEO
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
Factory-floor demonstration of ALP1940WZ movement, RGBW output, zoom, color and halo effects across multiple fixtures.
03 — HIGHLIGHT
The 328 × 252 × 419mm body packages a nineteen-cell 40W RGBW system into a 14kg fixture. Its compact footprint supports faster rig preparation, denser transport planning and easier day-to-day handling across rental and touring work.
04 — HIGHLIGHT

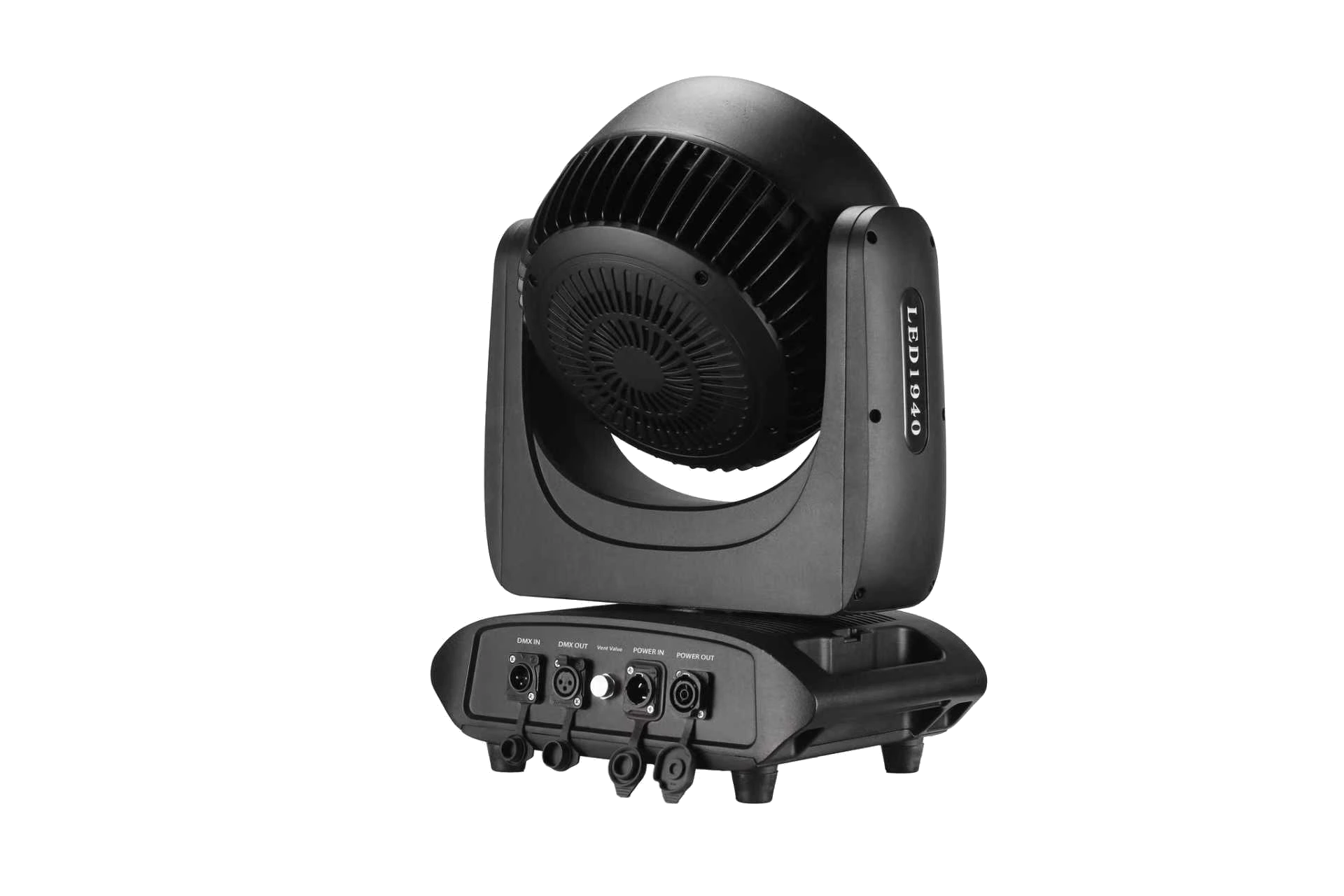

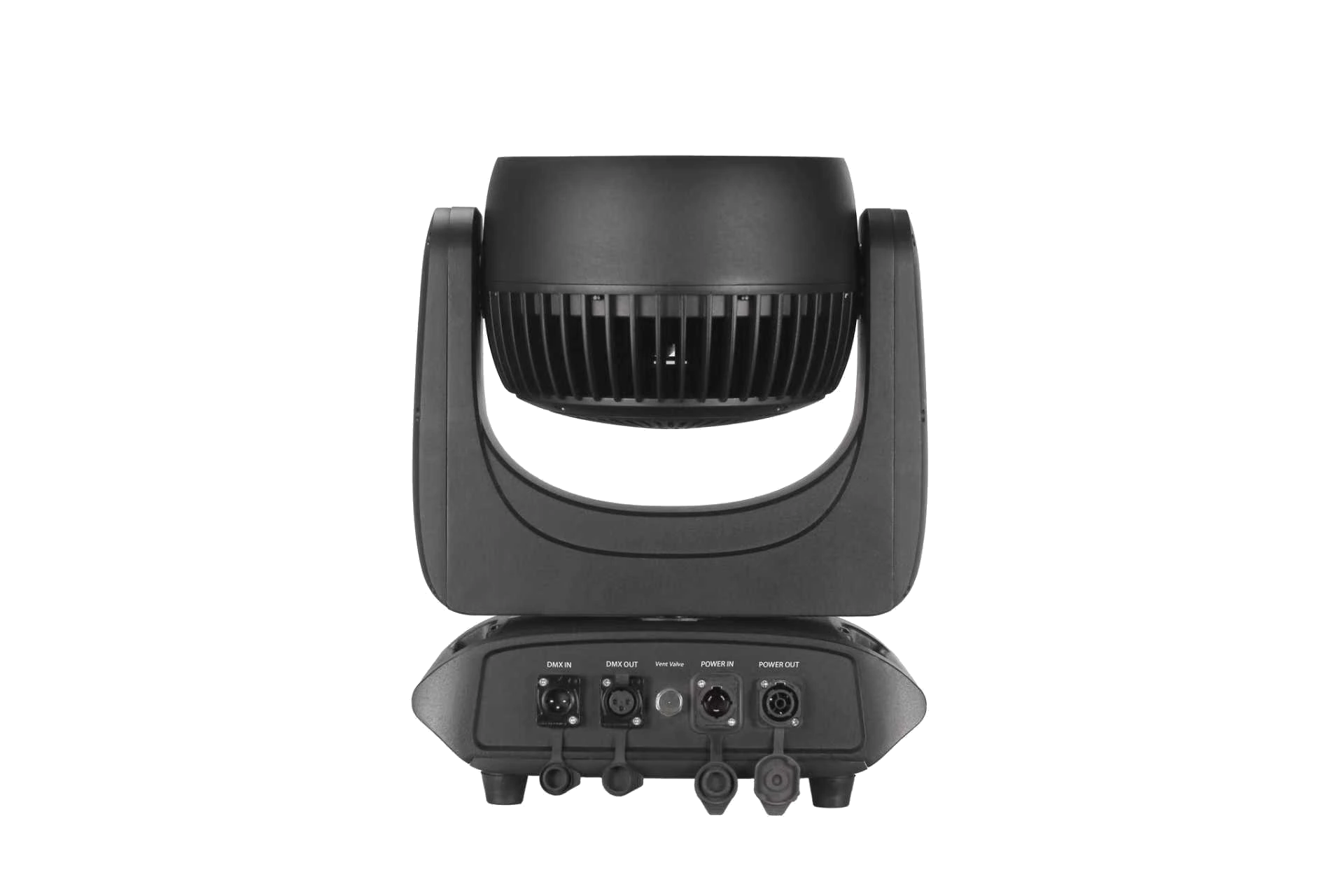

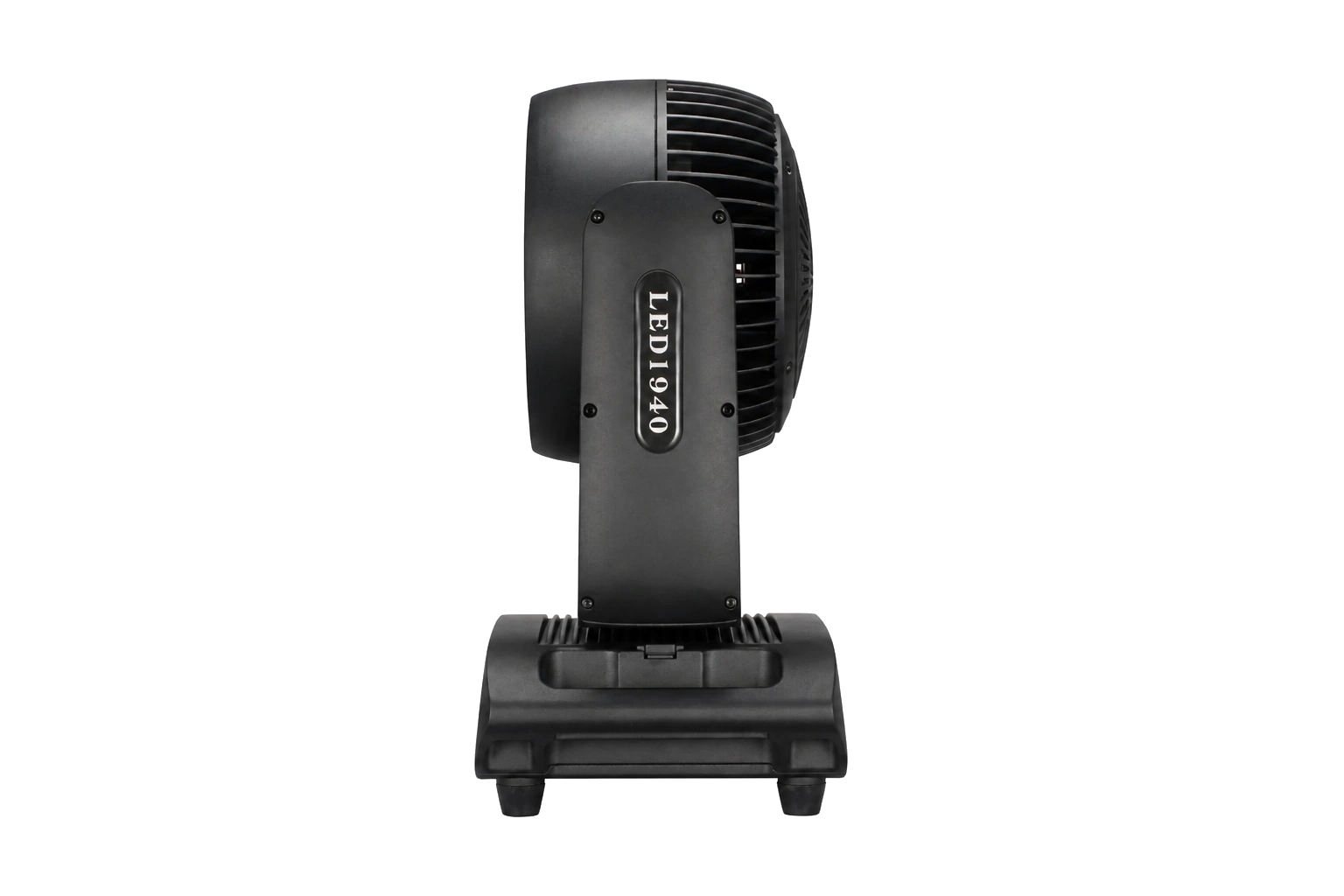

The integrated die-cast aluminum enclosure combines structural rigidity, heat dissipation and a smooth continuous silhouette. Protected power and DMX connections support outdoor production when covers, seals and compatible connections are correctly fitted.
05 — HIGHLIGHT

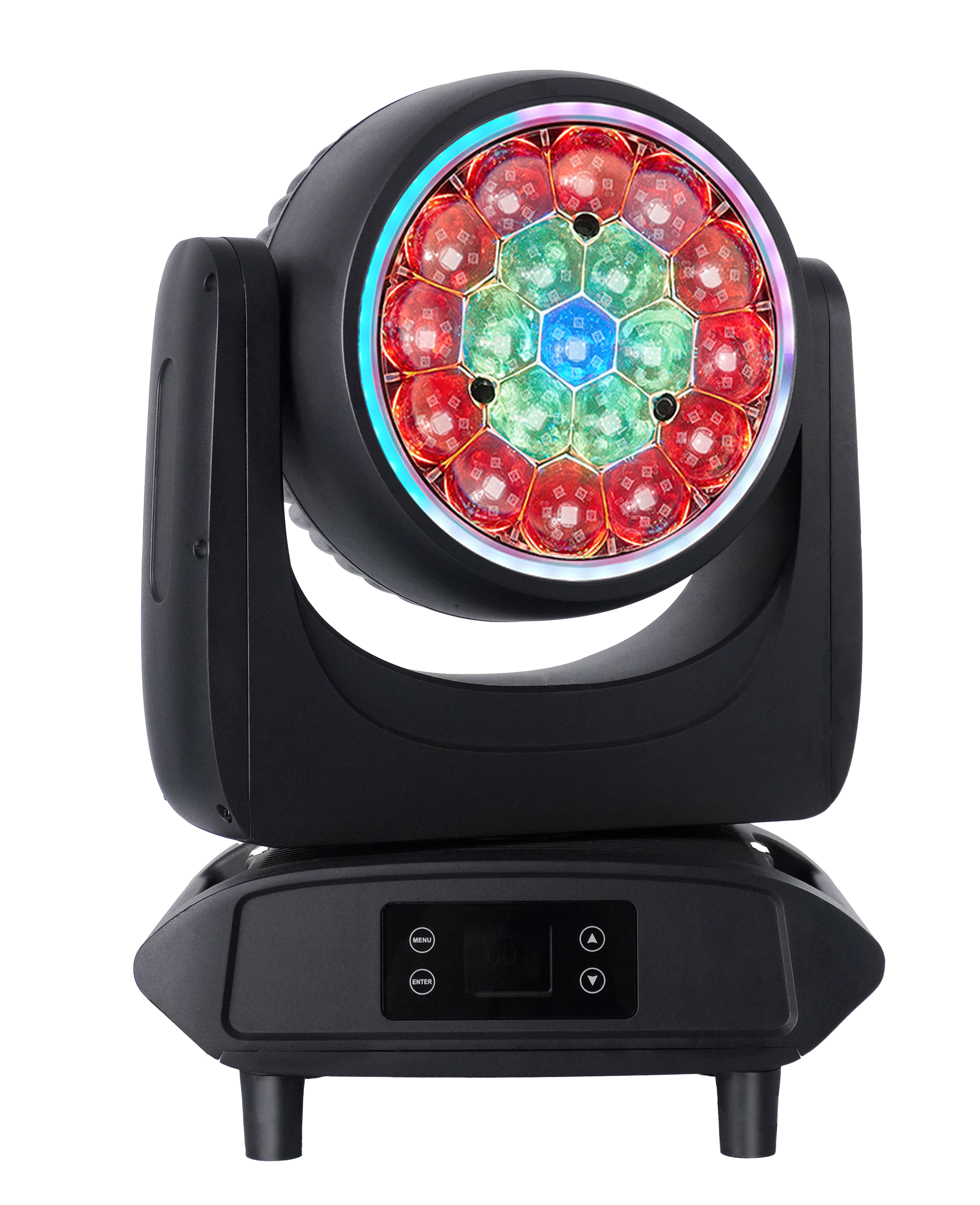

Motorized zoom changes the optical field from a concentrated 4° output to a broad 60° wash. The 53CH and 57CH personalities divide the nineteen RGBW cells into three zones for layered color and effect programming.
07 — OPTICAL, COLOR & CONTROL
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
Nineteen four-in-one cells
Concentrated output to broad wash
Available in 53CH and 57CH
21CH / 29CH / 53CH / 57CH
AC 90–240 V, 50/60 Hz
Compact mobile-production format
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.
Use the compact IP65 housing, protected connections, zoom and layered color effects within the event weather and rigging plan.
Explore application 02Combine a broad zoom range, three RGBW zones, halo effects and a 14kg handling weight across repeatable touring cues.
Explore application 03Four DMX footprints let rental teams choose compact global control or expanded zone, halo and background-light programming.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
ALP1940WZ packages nineteen 40W RGBW LEDs, motorized zoom and layered effects into a 328 × 252 × 419mm body with a 14kg net weight. IP65 protection supports indoor and outdoor production when all seals, caps and compatible connections are correctly fitted.
ALP1940WZ has an IP65 enclosure and protected power and data connections. It is designed for outdoor production when covers, gaskets and connections are correctly closed; it must not be immersed or cleaned with high-pressure water.
The motorized zoom ranges from 4° to 60°, moving from a concentrated output to broad wash coverage.
The 21CH and 29CH personalities provide global RGBW control. The 53CH and 57CH personalities add 16-bit RGBW data for three optical zones across the nineteen-cell face.

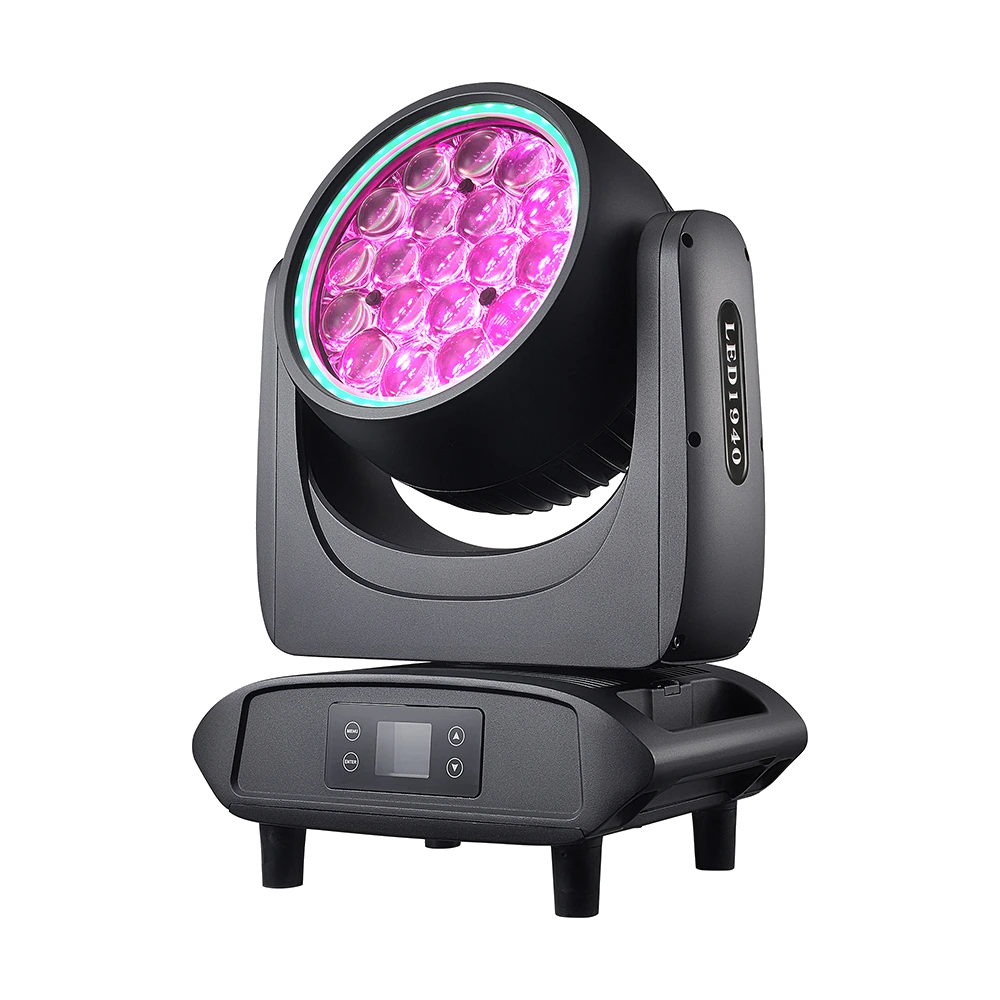

The independent RGB halo provides dimming, strobe, color macros and effect-speed control. It can be layered with the main RGBW output, and 57CH adds a separate RGBW background-light layer.
