RGBW LED source
Four-in-one red, green, blue and white emitters
01

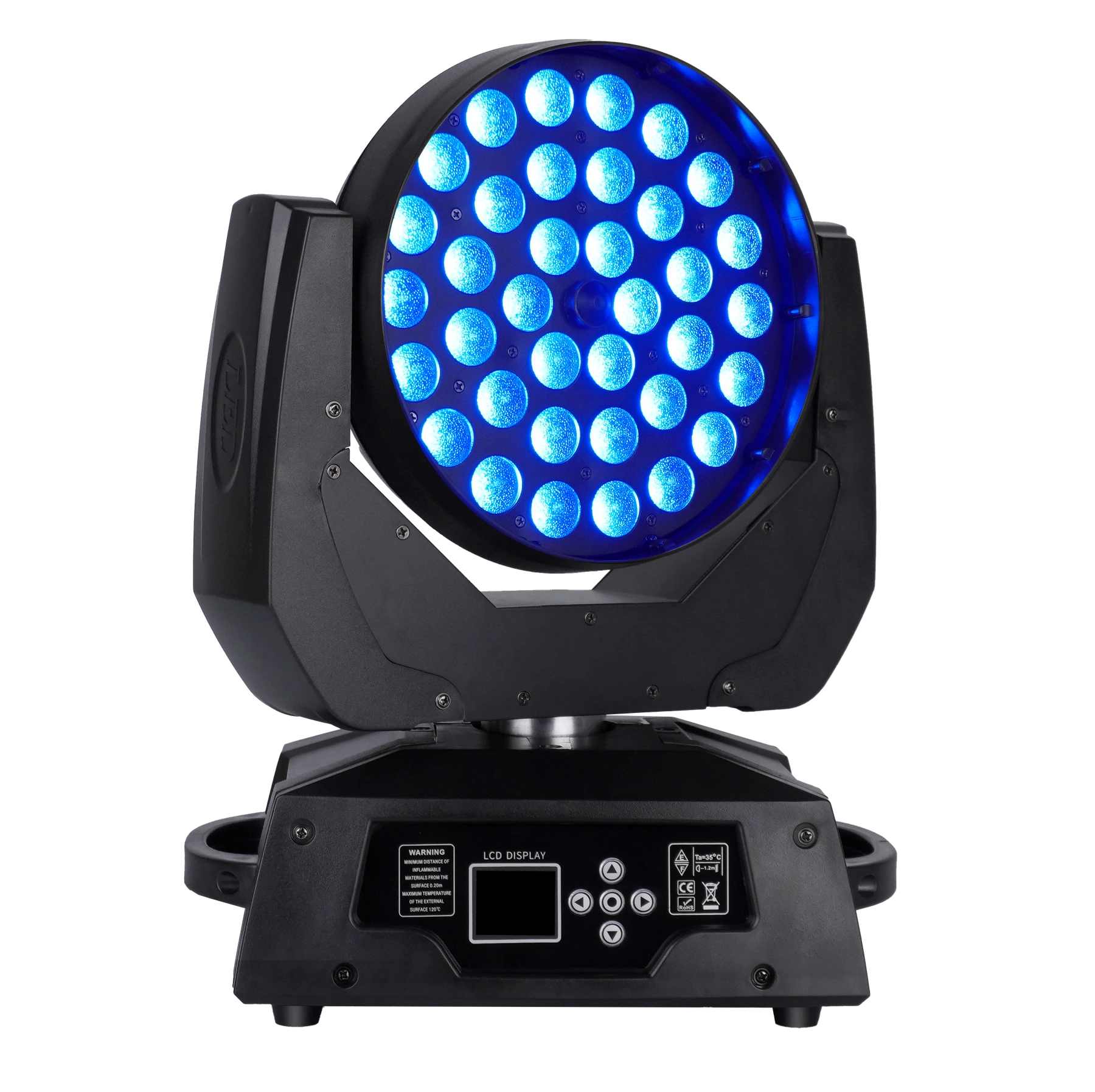

Blue RGBW outputTrue-alpha front product view showing the thirty-six-cell optical face in a blue programmed state.
36-CELL RGBW WASH WITH MOTORIZED ZOOM
AL1036WZ36×12W LED Wash Moving Head
An indoor 36-cell RGBW wash with DMX-controlled motorized zoom, 540°/270° movement and two source-documented firmware profiles.
AL1036WZ combines thirty-six 12W RGBW 4-in-1 LEDs, smooth dimming, motorized zoom and DMX512, automatic, sound-active and master/slave operation.
- LED Source
- 36 × 12W RGBW
- Zoom
- Motorized, DMX controlled
- DMX Profiles
- 14CH / 15CH
- Pan / Tilt
- 540° / 270°
- Environment
- Indoor / IP20
- Control
- DMX512 / Master-Slave / Auto / Sound
- Applications
- Rental · Stage · Theatre · Studio evaluation
- Environment
- Indoor dry locations
- Sample
- Subject to stock confirmation
02 — PRODUCT VIDEO
See AL1036WZ in motion.
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
Selected video

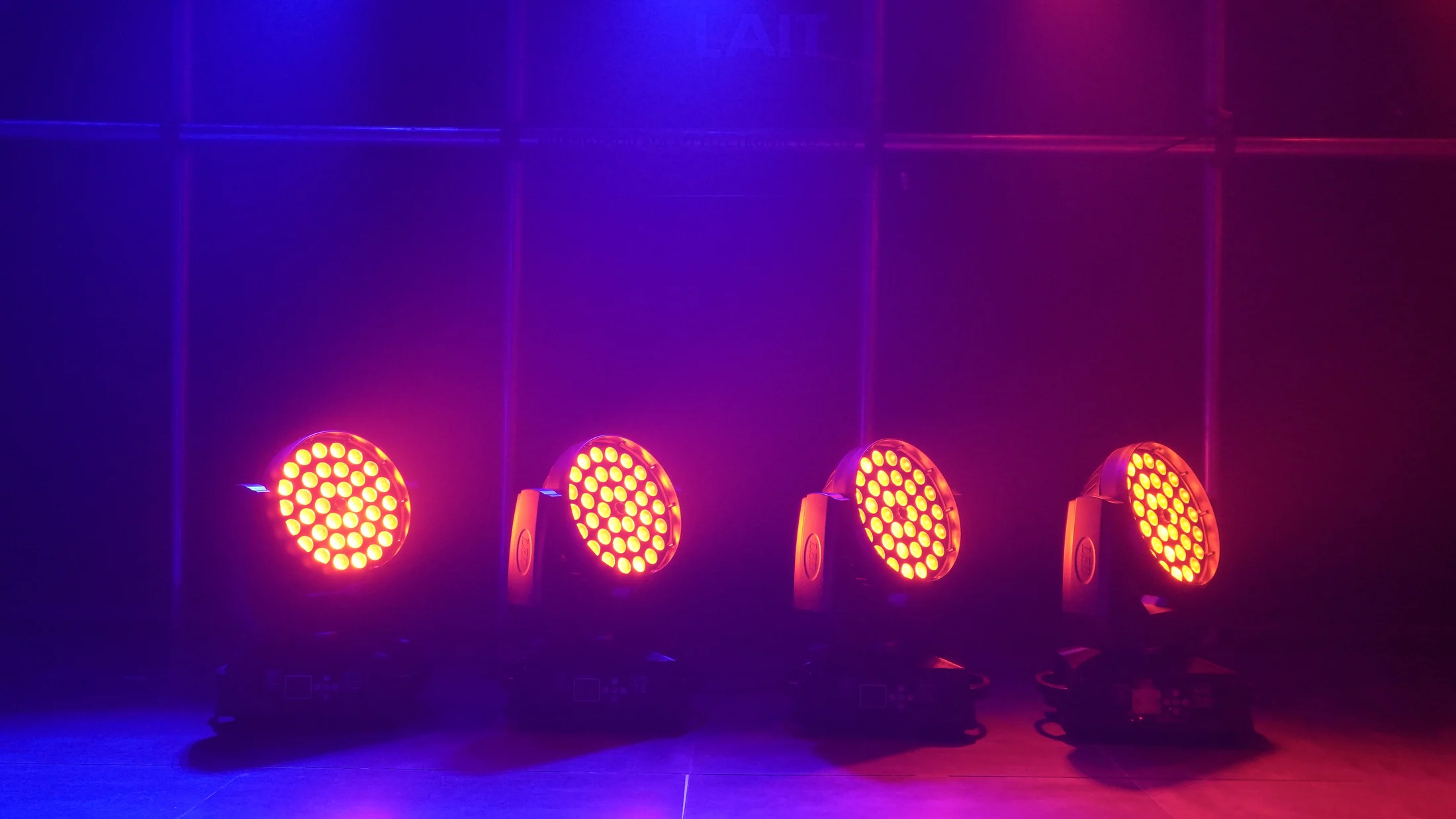

AL1036WZ Product & RGBW Effects Demo
07 — OPTICAL, COLOR & CONTROL
Model-specific performance.
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
Pan / tilt
Fine-position channels documented in both profiles
Master dimming
Continuous linear dimming in both documented charts
Indoor protection
Use only in dry indoor locations
08 — APPLICATIONS
Built around professional show workflows.
We help production teams match optics, control, protection and fixture format to each professional lighting application.
01
Concert & Touring
Evaluate the thirty-six-cell RGBW engine, zoom behavior and movement repeatability for indoor concert and touring systems.
Explore application 02Rental & Event Production
Match the documented 14CH or 15CH layout to the installed firmware before building a rental console profile.
Explore application 03Theatre & Stage Performance
Use smooth RGBW mixing, dimming, motorized zoom and fine movement for repeatable indoor performance cues.
Explore application 04TV & Studio Evaluation
Test color response, dimmer behavior, flicker interaction and field quality with the intended camera system before production use.
Explore application09 — TECHNICAL SPECIFICATIONS
Engineering data by system.
We organize model-specific optical, electrical, control and mechanical data for clear project planning.
Light Source & Color
- LED source
- 36 × 12W high-brightness RGBW 4-in-1 LEDs
- Color system
- RGBW additive color mixing
- Color channels
- Independent red, green, blue and white control in both documented profiles
Optics & Effects
- Zoom / focus
- Motorized and DMX controlled
- Dimmer
- 0–100% continuous linear master dimming
- Strobe
- Approximately 1–25Hz in the archived 14CH profile; firmware may vary
- Built-in operation
- Automatic and sound-active programs
Movement
- Pan
- 540° with fine-position channel
- Tilt
- 270° with fine-position channel
- Movement speed
- Dedicated pan/tilt speed control
- Configuration
- Pan inversion · tilt inversion · pan/tilt home-position adjustment
Control & Firmware
- Control modes
- DMX512 · Master-Slave · Auto · Sound
- Display
- LCD control display
- Menu functions
- Address · profile · movement inversion · position adjustment · RGBW balance · sound sensitivity · reset
- Firmware qualification
- Match the channel order to the profile shown on the installed fixture

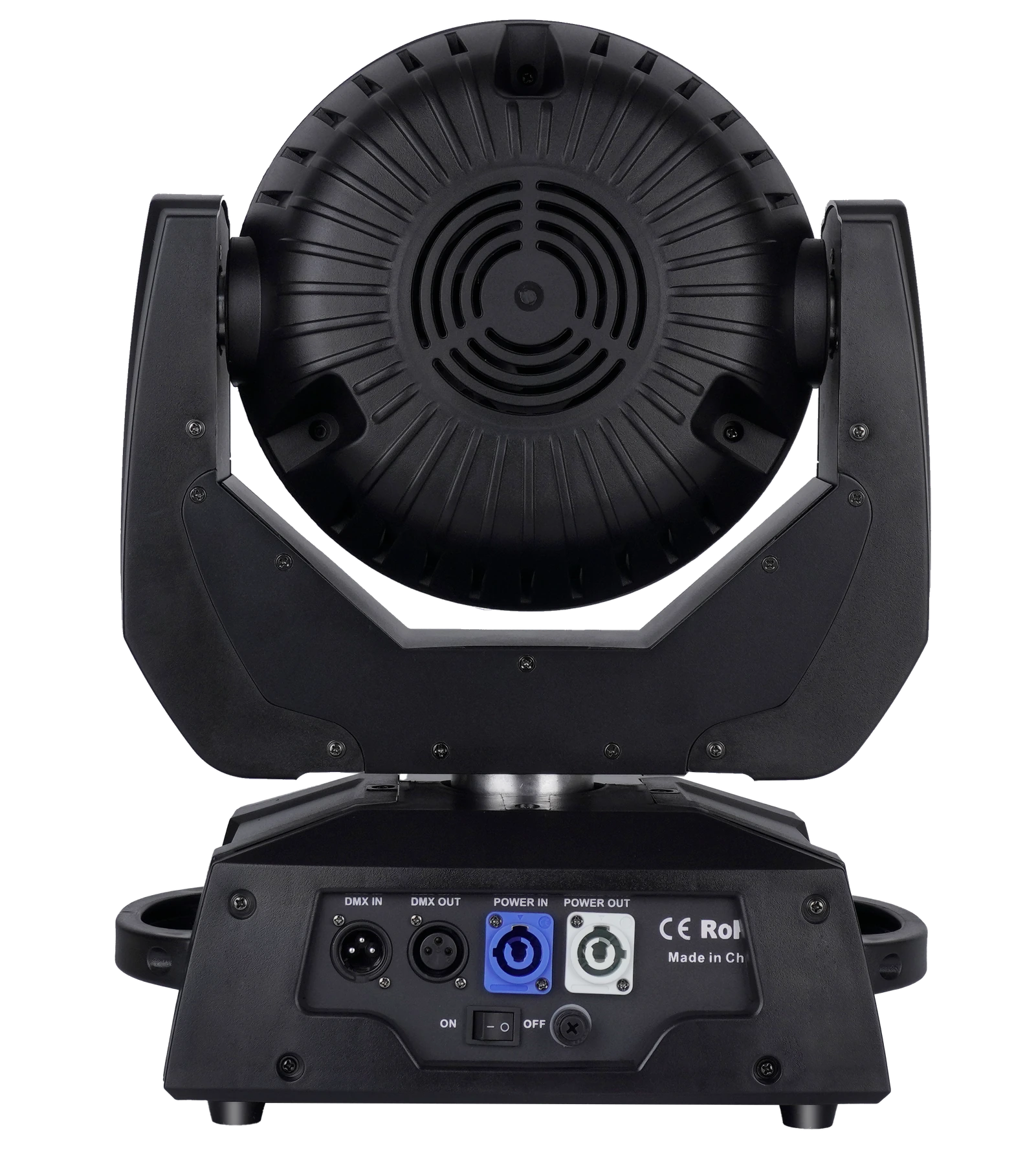

Electrical & Connections
- DMX
- 3-pin XLR input/output
- Supply protection
- Protection Class I grounded circuit required
Housing & Physical
- Environment
- Indoor use in dry locations
- Cooling
- Fan-assisted cooling with thermal protection
