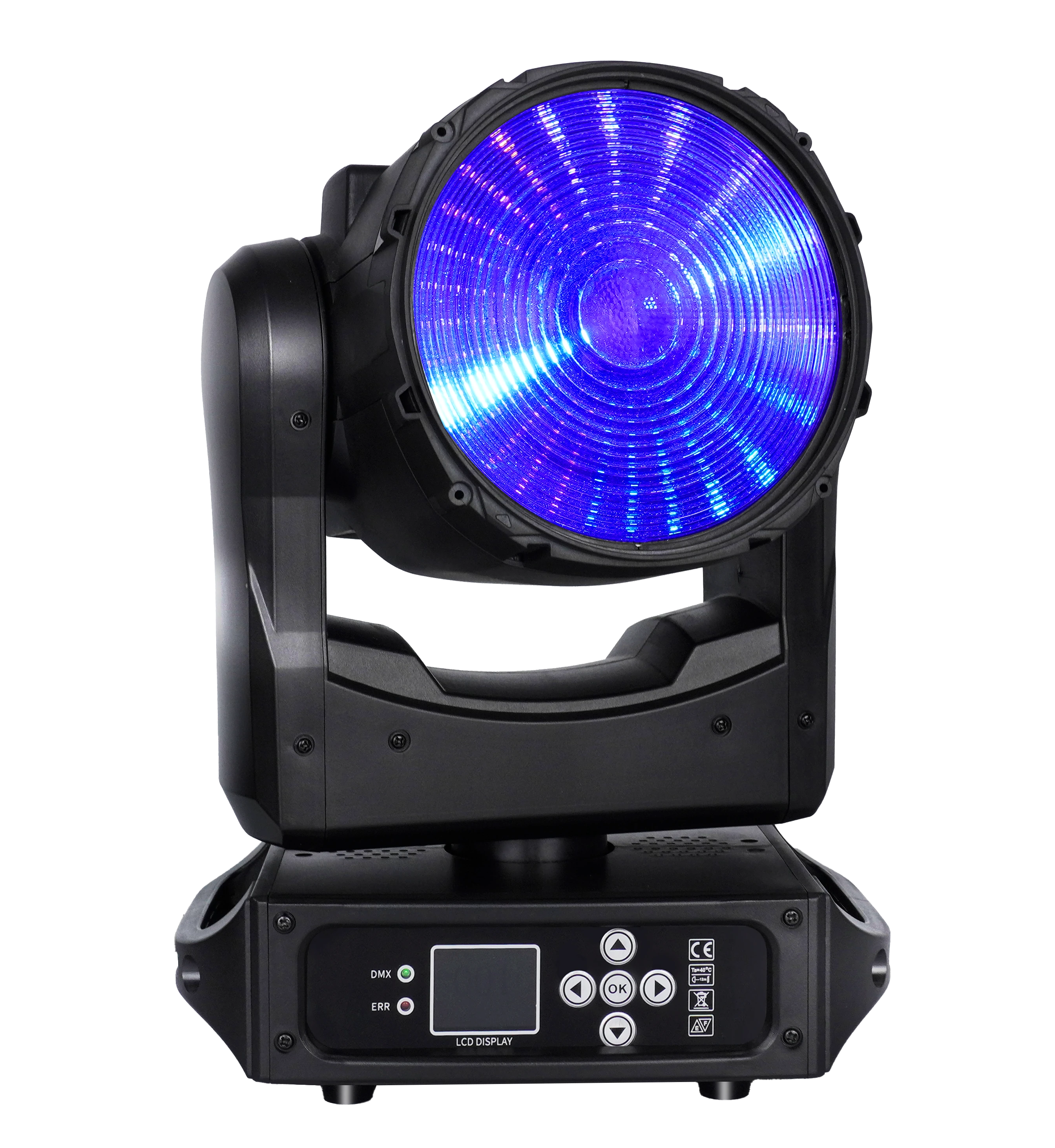

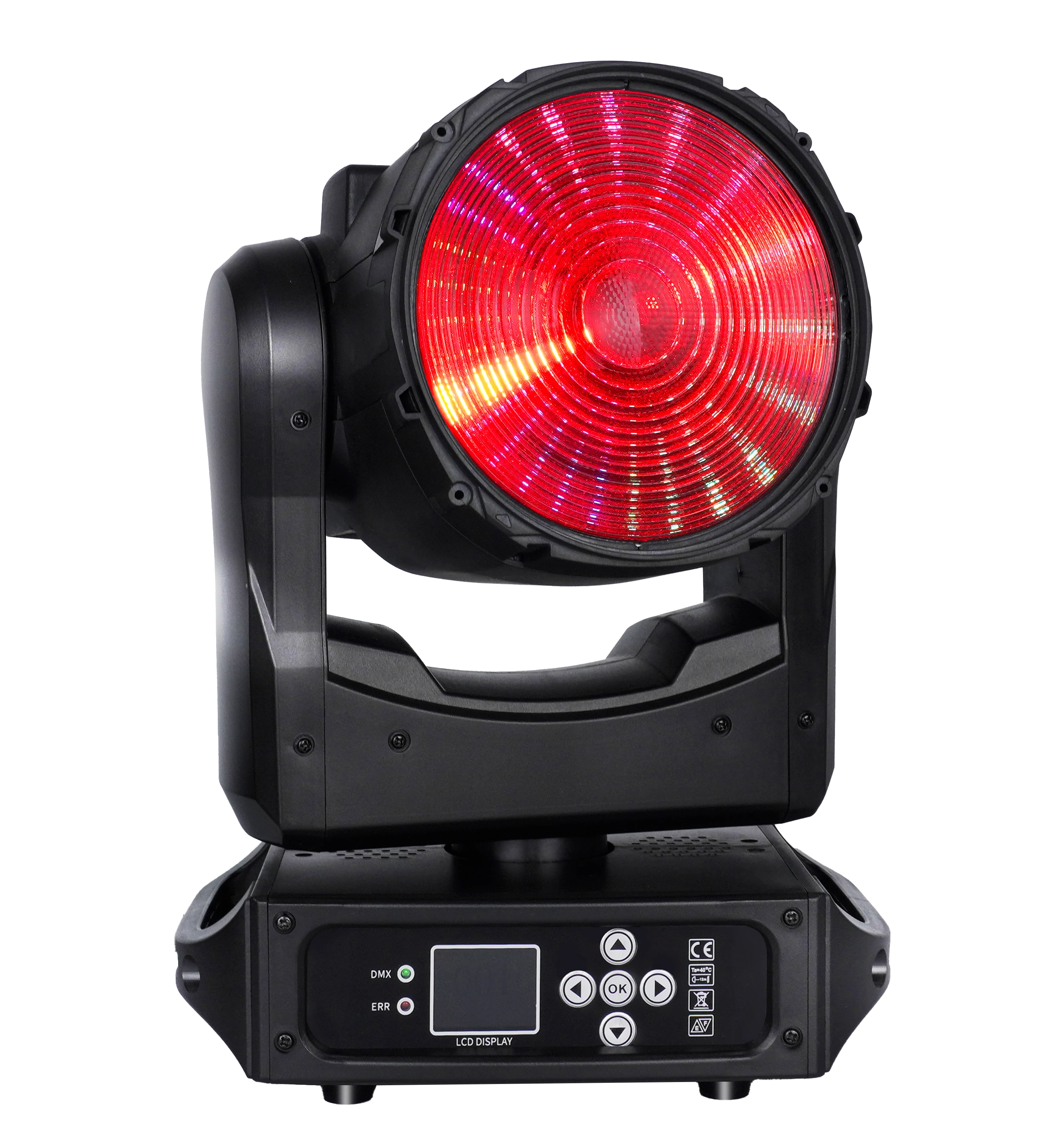

ONE-effect outputTrue-alpha front product view showing the RGBL optic and illuminated auxiliary effect array.

SINGLE-SOURCE RGBL WASH WITH 24-PIXEL EFFECT ARRAY

AL150WX150W LED Wash ONE-effect Moving Head

A compact indoor wash combining a 150W RGBL main source, 19°–27° motorized zoom and twenty-four individually controlled RGB auxiliary pixels.

AL150WX combines a 150W RGBL wash source with a 24-pixel RGB ONE-effect array, dynamic zoom-pulse effects and five DMX personalities.

Main LED Source: 1 × 150W RGBL
Auxiliary Array: 24-pixel RGB
Motorized Zoom: 19°–27°
DMX Modes: 20 / 36 / 108 / 20a / 24 CH
Rated Power: 200W
Net Weight: 4.4kg

Get a Quote Download User Manual Watch Video

Applications: Rental · Stage · Theatre · Studio evaluation
Environment: Indoor dry locations
Sample: Subject to stock confirmation

Get Quote

01 — PRODUCT OVERVIEW

One RGBL source. Twenty-four effect pixels. Compact dynamic zoom.

Twenty-four RGB auxiliary pixels surround the main optic. The 108-channel personality provides individual RGB control for all twenty-four positions, while compact personalities provide grouped dimmer, strobe, macro and speed control.

The manual also documents DMX512, RDM, automatic, sound-active and master/slave operation, 200W total power, 540° pan, 200° tilt, 4.4kg net weight and indoor dry-location use.

150WRGBL main source

24 pixelsRGB auxiliary array

19°–27°Motorized zoom

02 — PRODUCT VIDEO

See AL150WX in motion.

Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.

Selected video

AL150WX Product & ONE-effect Demo

03 — HIGHLIGHT

150W RGBL Main Wash

The single 150W four-in-one source combines red, green, blue and lemon emitters. Compact modes document 16-bit master dimming and 16-bit RGB color control, with supported color-temperature, tint and virtual LEE-filter functions.

150W RGBL16-bit dimmingColor tools

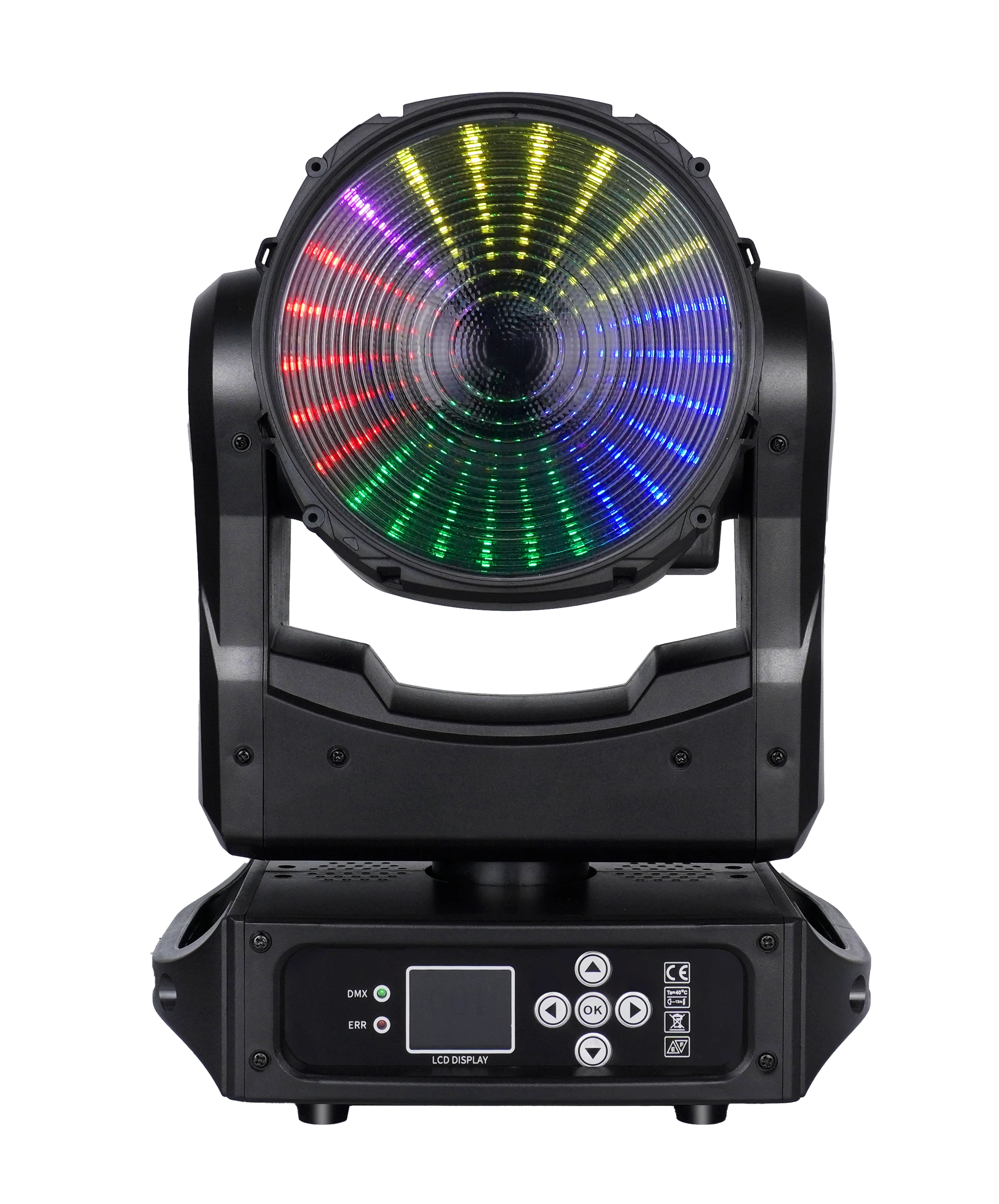

AL150WX twenty-four-pixel RGB auxiliary array

04 — HIGHLIGHT

Twenty-Four RGB Effect Pixels

Twenty-four auxiliary RGB positions form the ONE-effect array around the main optic. The 108-channel personality maps separate red, green and blue channels for every position; compact modes use grouped effect controls.

24 RGB positionsIndividual control in 108CHMacros and speed

07 — OPTICAL, COLOR & CONTROL

Model-specific performance.

We publish model-specific optical, color, movement and control data for each selected fixture configuration.

150W

RGBL main source

Red, green, blue and lemon four-in-one LED

24 pixels

RGB auxiliary array

Individual RGB control in 108CH mode

19°–27°

Motorized zoom

Includes forward and reverse pulse effects

5 modes

DMX personalities

20CH, 36CH, 108CH, 20aCH and 24CH

540° / 200°

Pan / tilt

Pan and tilt fine channels are mode-dependent

Professional concert stage lighting application

08 — APPLICATIONS

Built around professional show workflows.

We help production teams match optics, control, protection and fixture format to each professional lighting application.

Rental & Event Production

Select compact or expanded personalities according to the programming depth and available DMX universe capacity.

Explore application 02

Theatre & Stage Performance

Use smooth dimming, color tools, zoom and repeatable movement for indoor performance cues.

Explore application 03

TV & Studio Evaluation

Evaluate dimmer behavior, color response and camera interaction with the intended production system before use.

Explore application

09 — TECHNICAL SPECIFICATIONS

Engineering data by system.

We organize model-specific optical, electrical, control and mechanical data for clear project planning.

Light Source

Main LED: 1 × 150W RGBL 4-in-1: red, green, blue and lemon
Auxiliary source: 24 high-brightness RGB LEDs
Auxiliary pixel control: Twenty-four individually controllable RGB positions in 108CH mode

Optics & Effects

Motorized zoom: 19°–27°
Zoom effects: Continuous forward and reverse zoom-pulse ranges
Dimmer: 16-bit, 0–100% smooth linear dimming
Color tools: RGBL mixing · color temperature · green/magenta tint · virtual LEE filters in supported modes
Auxiliary effects: Pixel dimmer · strobe · macros · speed controls

Movement

Pan: 540°
Tilt: 200°
Configuration: Pan reverse · tilt reverse · XY swap · position correction

Control & Protocols

DMX personalities: 20CH · 36CH · 108CH · 20aCH · 24CH
Control: DMX512 · RDM · automatic · sound-active · master/slave
Menu: DMX address · channel mode · movement settings · dimmer curves · manual test · reset · diagnostics

Electrical & Connections

Input voltage: AC 100–240V, 50/60Hz
Total power: 200W

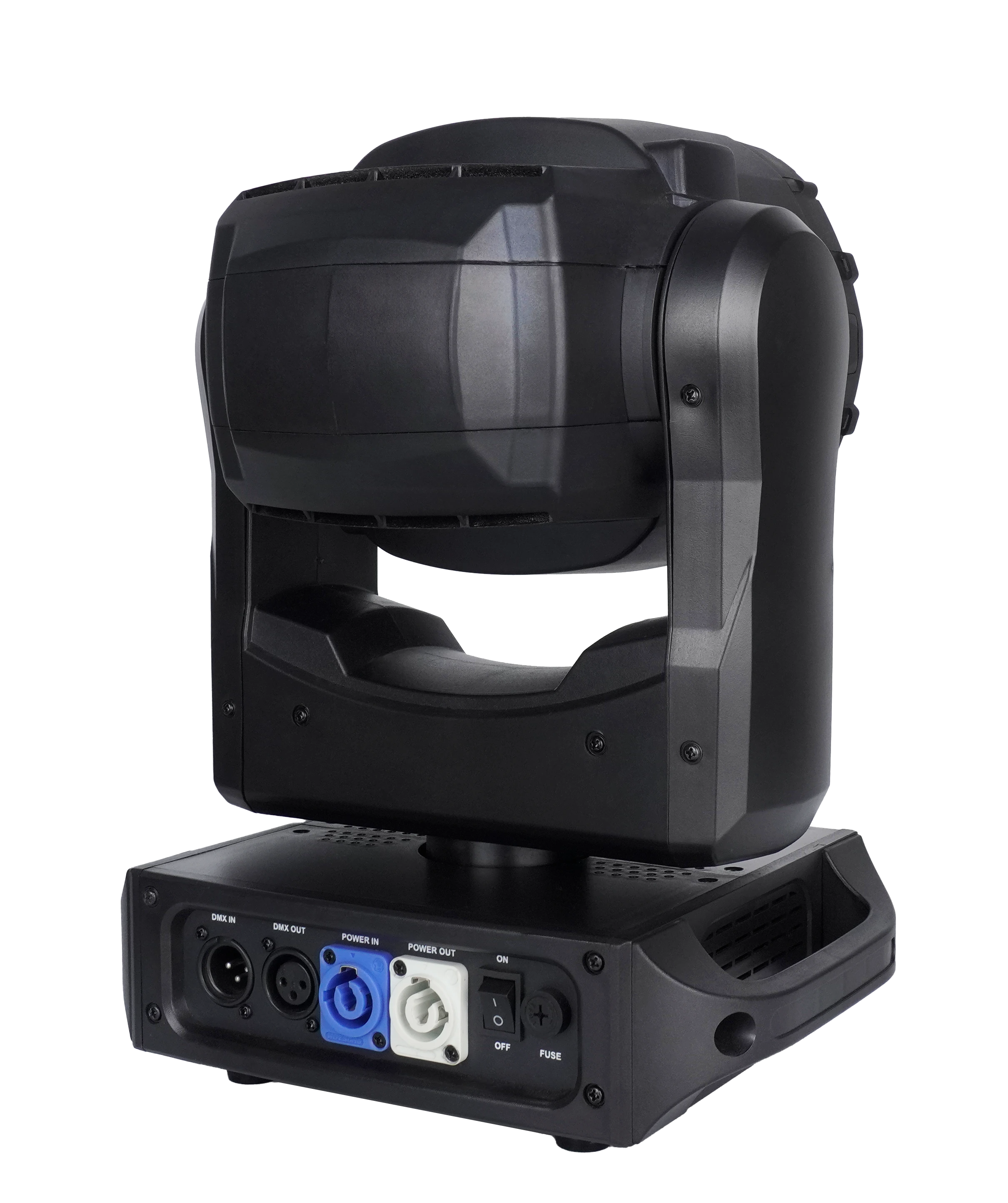

DMX: 3-pin XLR input/output
Power: Locking power input/output

Housing & Physical

Environment: Indoor use; dry location
Maximum ambient: 40°C
Fixture dimensions: 252.85 × 188.1 × 358.4mm
Net weight: 4.4kg
Ventilation clearance: Minimum 0.5m around the fixture

10 — PRODUCT DIMENSIONS

Plan the rig with the model drawing.

Download original drawing

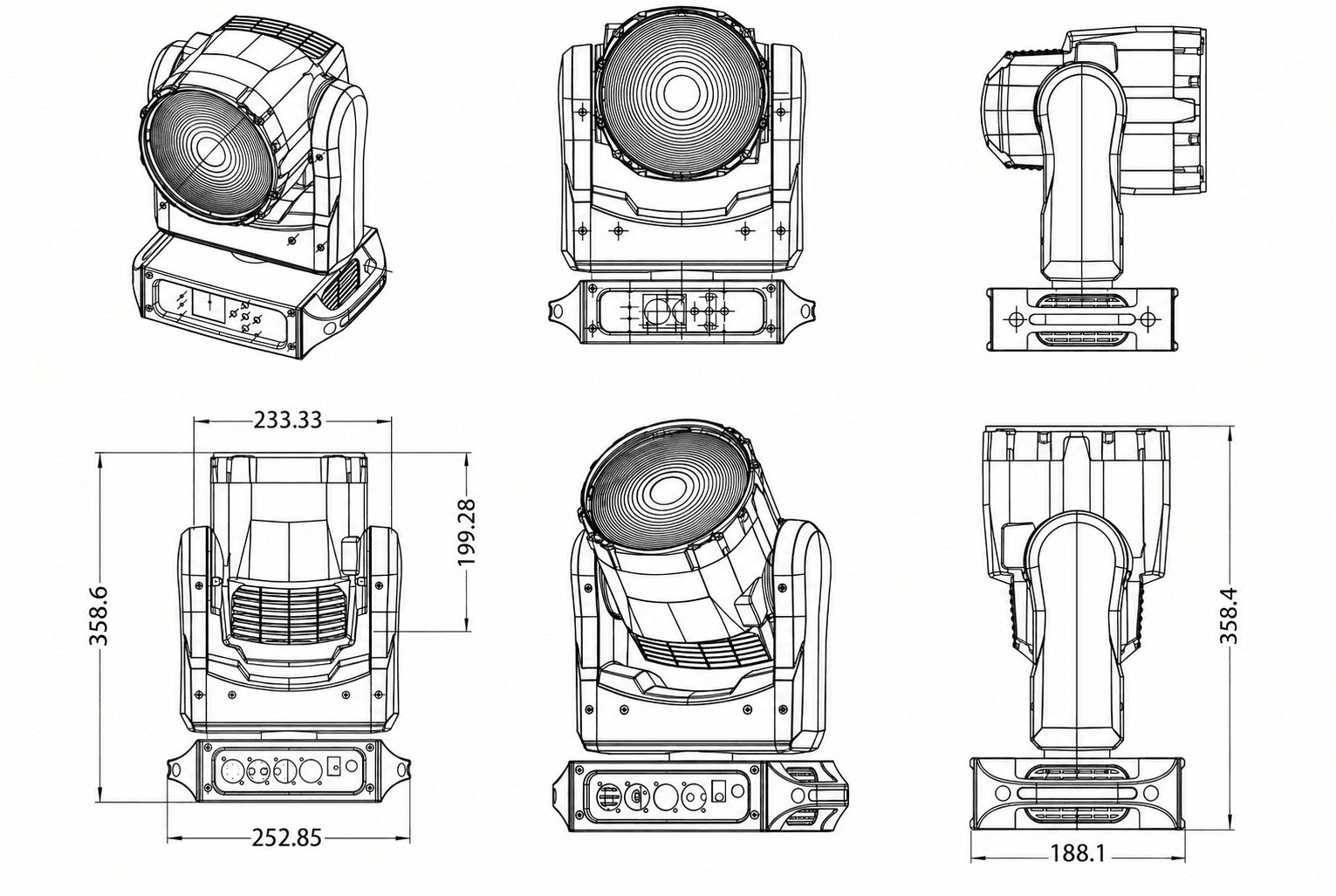

AL150WX technical drawing with front, side and three-quarter views

Width: 252.85mm
Depth: 188.1mm
Height: 358.4mm
Net Weight: 4.4kg

11 — DOWNLOADS & FIXTURE LIBRARIES

Model-specific technical files.

We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.

Product Documents

Model-labelled AL150WX material supplied for technical evaluation.

AL150WX User ManualRendered web copy covering safety, specifications, menus and five DMX personalities.

PDF · 740 KBDownload

AL150WX User Manual

DOCX · 1.5 MBDownload

AL150WX Dimension Drawing

PNG · 1.3 MBDownload

Need a fixture file?Tell our technical team which console and software version you use.

Contact Technical Support

12 — FAQ

Product questions, answered by Aolait.

Our team provides clear model, control, application and technical-file guidance for professional projects.

It has twenty-four RGB auxiliary positions around the main optic. The 108-channel personality provides separate red, green and blue channels for each position.
