SINGLE-HEAD RGBL TORNADO EFFECT LIGHT
A compact indoor moving head combining a 120W RGBL main source, motorized zoom and a 24-zone RGB halo.
AL120T combines one 120W RGBL main LED with twenty-four individually addressed RGB halo zones for beam, wash and circular effect programming.
01 — PRODUCT OVERVIEW

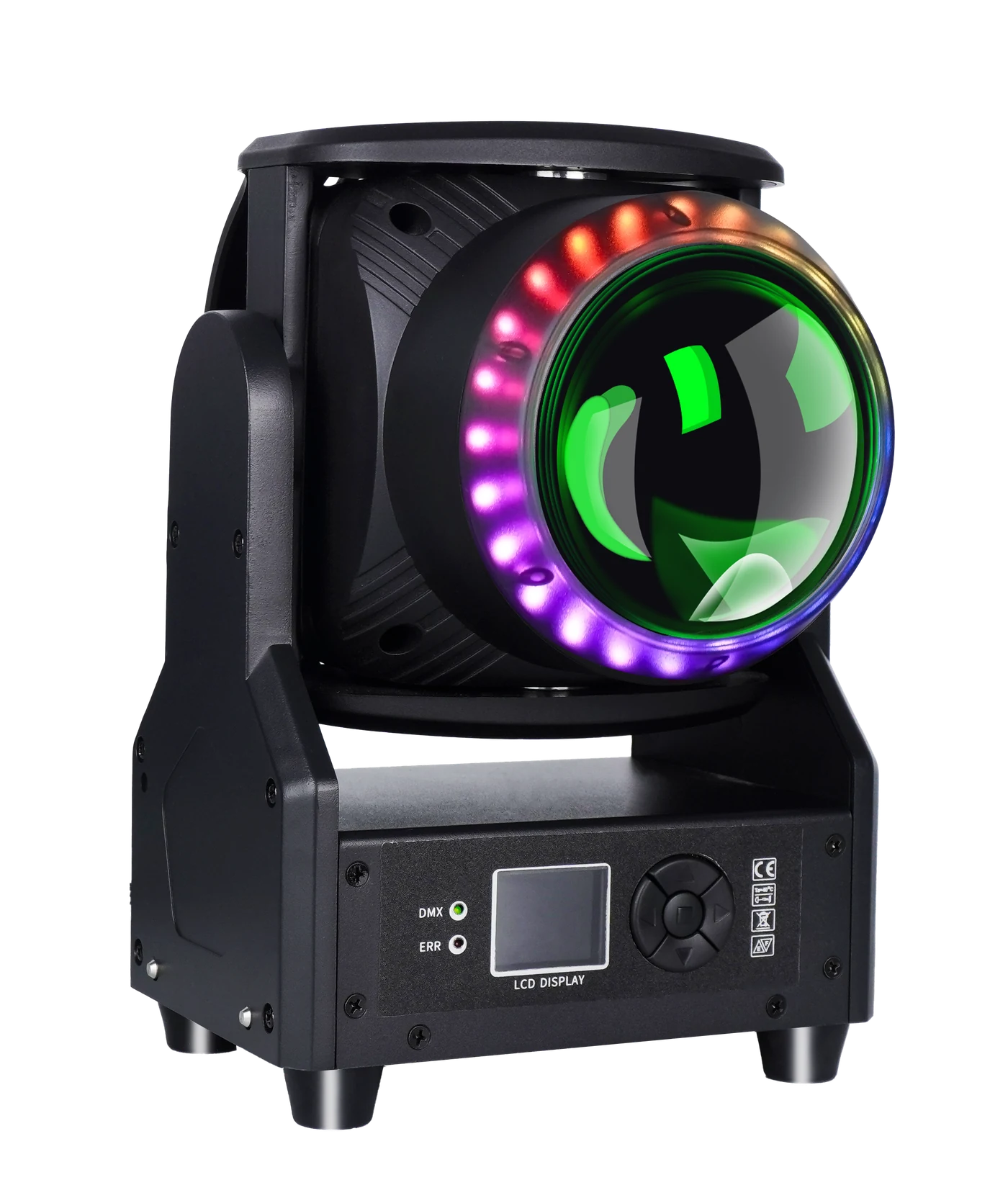

A separate ring of twenty-four RGB 5050 auxiliary LEDs forms the halo. The compact 22CH and 24CH personalities provide grouped halo control, while the 94CH personality expands the ring into twenty-four RGB zones.
02 — PRODUCT VIDEO
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
03 — HIGHLIGHT

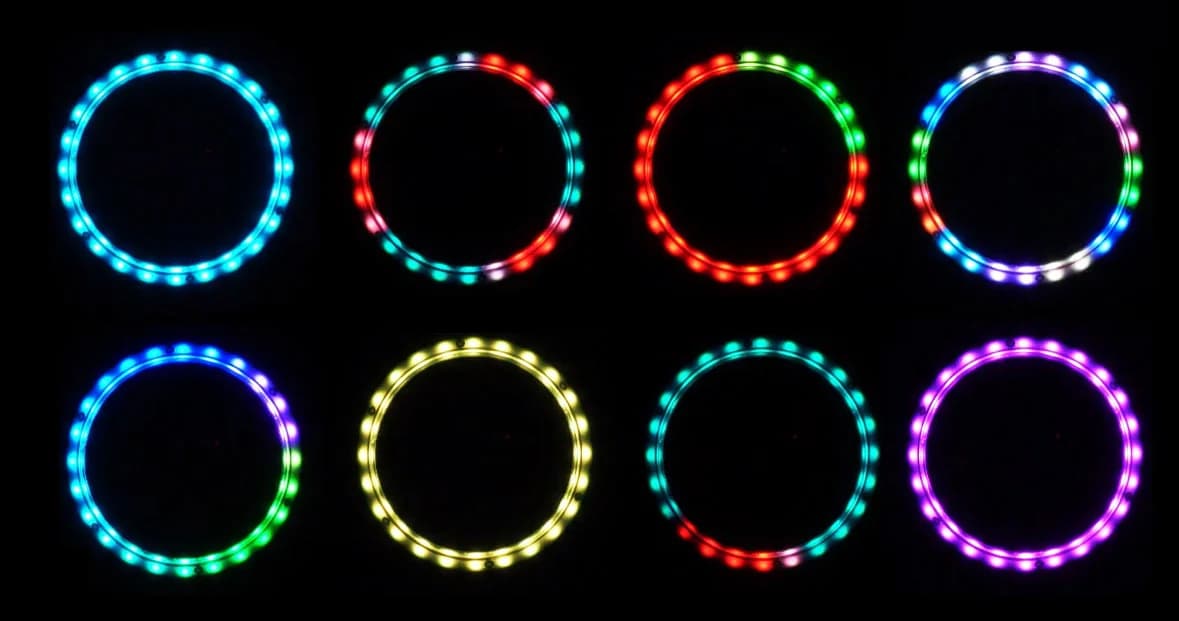

Twenty-four RGB 5050 auxiliary LEDs form the circular halo. The 94CH personality assigns separate RGB channels to every zone; the compact personalities provide grouped color, mode, speed and strobe controls.
07 — OPTICAL, COLOR & CONTROL
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
Single 1212 LED package
Separate RGB control in 94CH
Compact or expanded programming
0–100% linear dimming
Manual specification
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.
Evaluate the RGBL main source, zoom and circular halo effects for dry indoor stage programming.
Explore application 02Choose compact grouped control or the expanded 94CH halo personality to match the programming brief.
Explore application 03Combine moving beam, wash and circular pixel effects in controlled indoor installations.
Explore application 04Test PWM, dimming, strobe and color behavior with the intended camera system before specification.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.

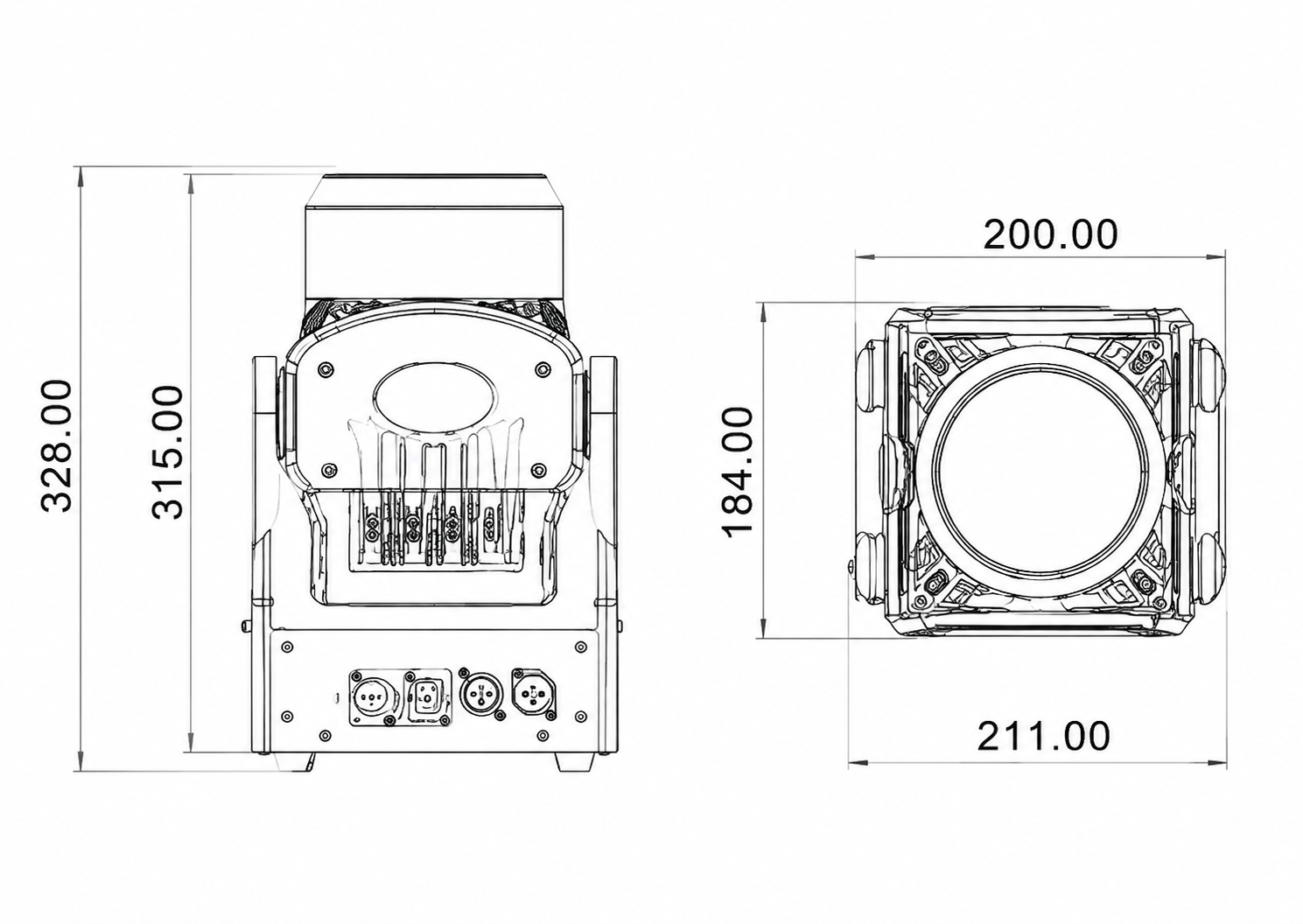

10 — PRODUCT DIMENSIONS
11 — DOWNLOADS & FIXTURE LIBRARIES
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
Yes, in the documented 94CH personality each of the twenty-four halo zones receives separate red, green and blue channels. The 22CH and 24CH personalities use grouped halo controls.
13 — RELATED KNOWLEDGE
Use these focused Aolait articles for product selection, control, operation and project preparation.
Plan color-system tests for theatre, camera, touring and installation work.
Read knowledge articleCompare optics, color, control, construction and project workflow.
Read knowledge articleCompare cell count and LED formats without treating nominal wattage as measured output.
Read knowledge article14 — RELATED PRODUCTS
15 — WHY AOLAIT
Our Guangzhou team coordinates product development, assembly, powered testing and technical support for professional stage-lighting projects.
We coordinate production and powered fixture testing at our Guangzhou manufacturing base.
Assembly, function and release checks are defined against the approved model and order.
We coordinate specifications, branding, prototypes and project development before production approval.
Packing, accessories, documents and shipping instructions are confirmed by order.
