IP65 DOUBLE-SIDED WASH / PIXEL / STROBE PLATFORM
An IP65 double-sided moving head combining nine 60W RGBW wash cells with a reverse RGB pixel and warm-white strobe matrix.
ALP0960WX combines 9×60W RGBW wash LEDs, 324×0.3W RGB pixels and 288×2W warm-white LEDs with 4°–32° zoom, continuous-rotation effects and five DMX personalities.
01 — PRODUCT OVERVIEW

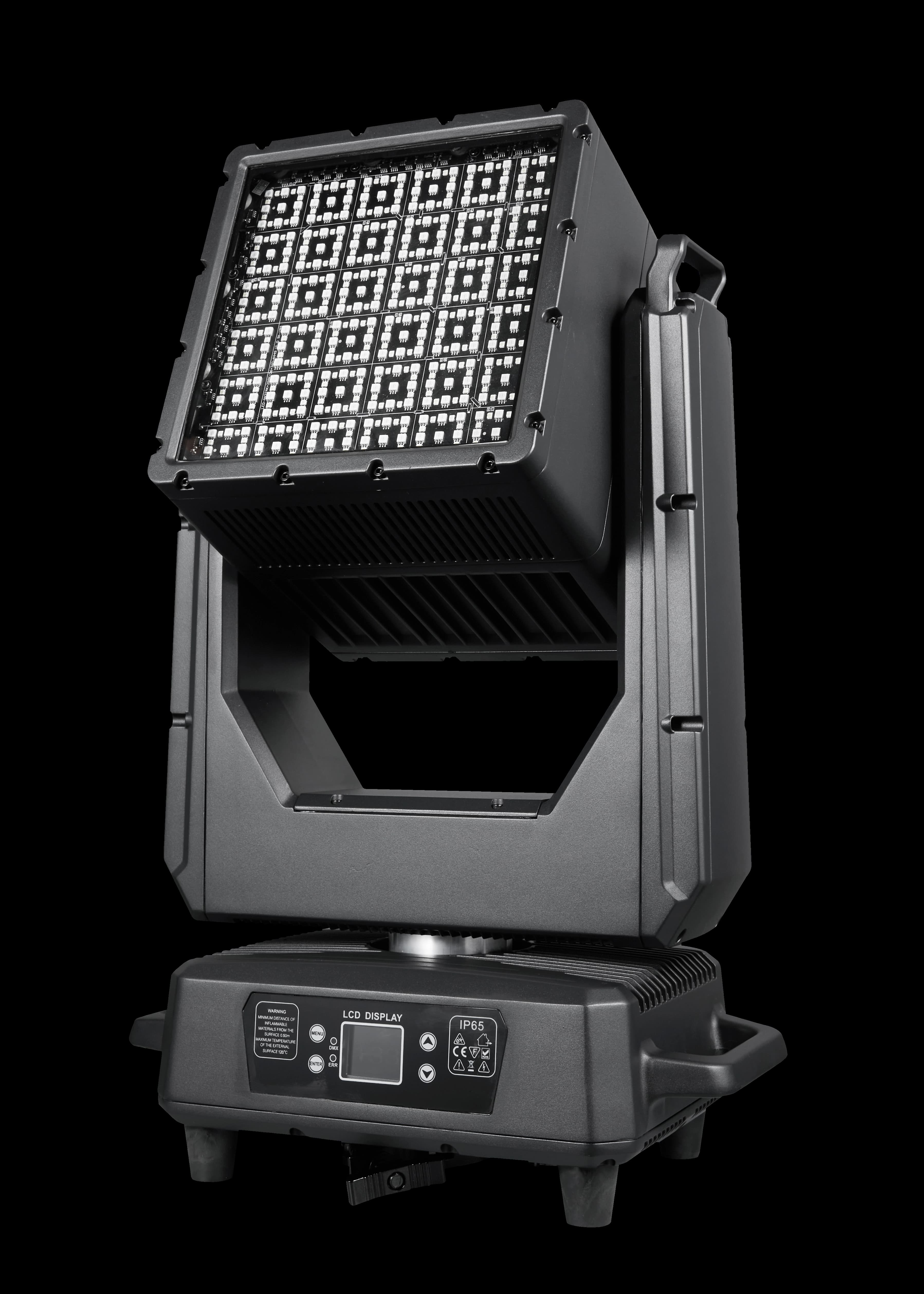

ALP0960WX places two distinct optical systems on one moving head. The wash face uses nine 60W RGBW LEDs with motorized 4°–32° zoom, while the reverse face combines an RGB pixel field with a warm-white strobe matrix for graphics, chases, color layers and high-impact audience-facing effects.
The fixture supports indexed pan and tilt positioning, 16-bit movement control and continuous tilt rotation. Programmers can move between the wash face and the reverse effect face while controlling dimming, strobe, color, background and direction functions.
Five DMX personalities provide compact grouped control, individual wash-cell intensity, expanded reverse-face segment intensity and individual RGBW control for all nine wash cells. DMX512, RDM, Auto, Sound-active and Master/Slave operation are included.
03 — HIGHLIGHT

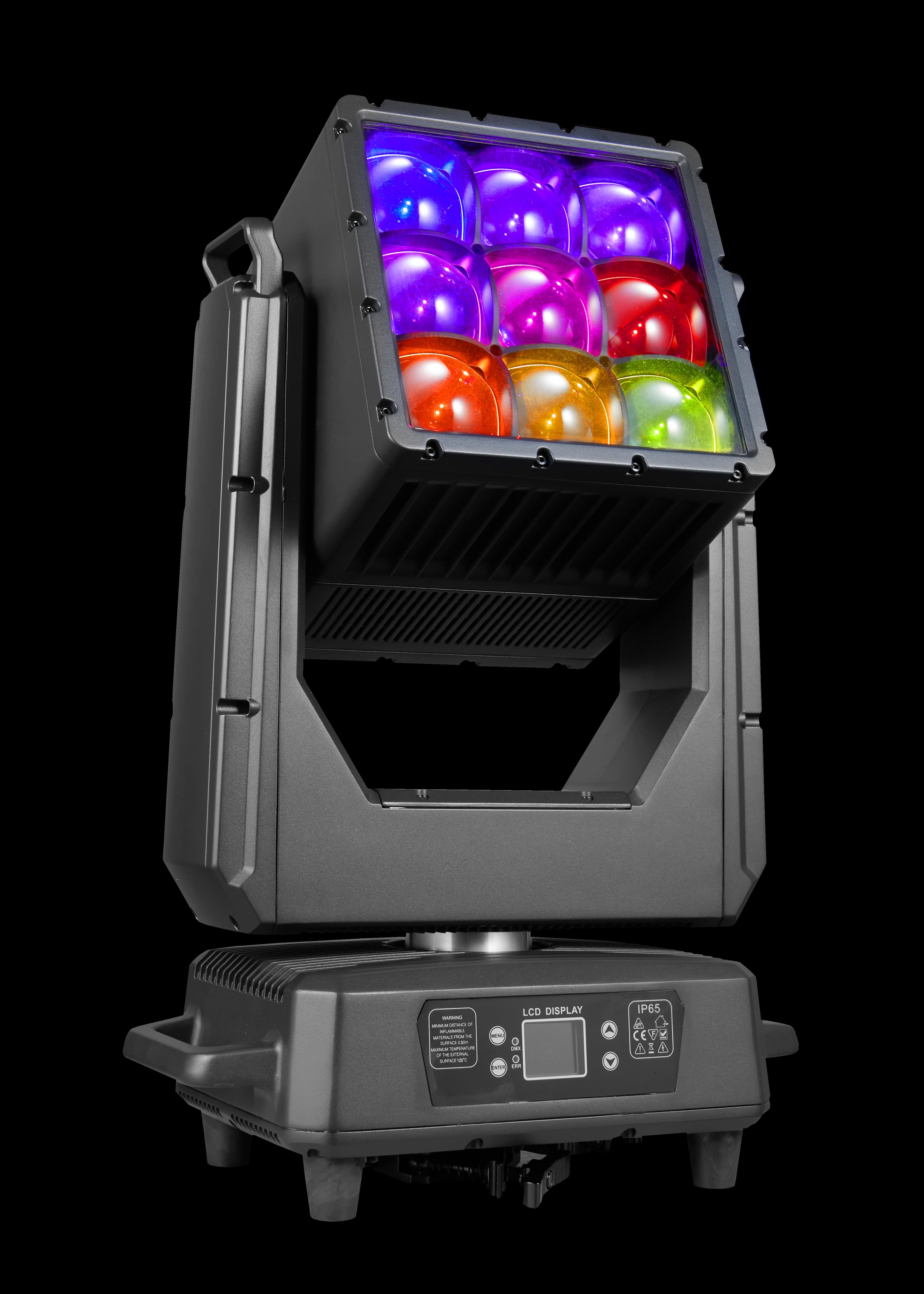

Nine RGBW LEDs form a 3×3 wash face with grouped color control in the compact personalities and individual cell intensity or RGBW data in the expanded personalities.
04 — HIGHLIGHT

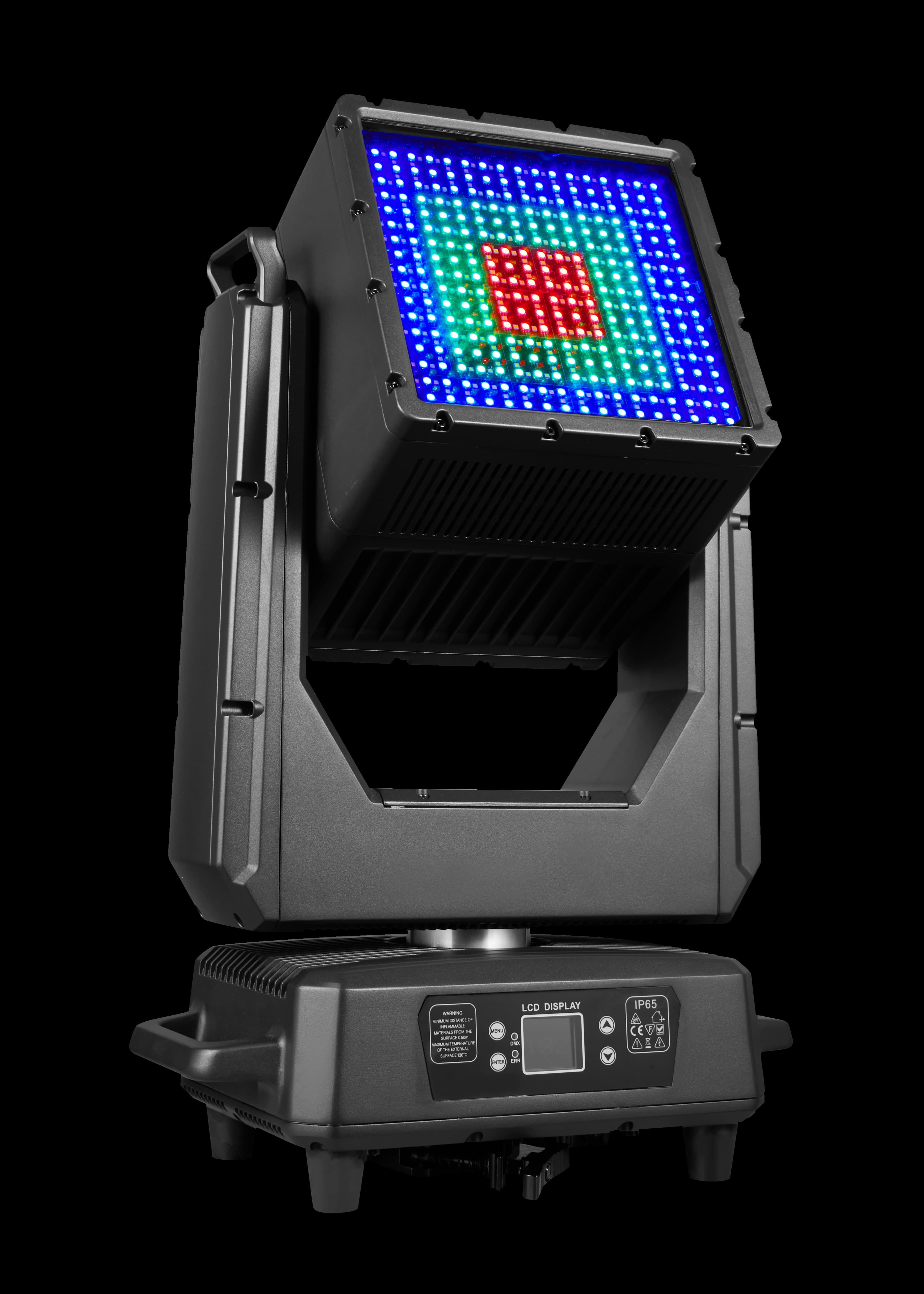

The reverse face combines 324 RGB LEDs with 288 warm-white LEDs. Independent master, strobe, effect, speed, pattern, background and direction controls support layered matrix programming.
05 — HIGHLIGHT
The RGBW wash face changes from a tighter 4° beam to a wider 32° wash, giving programmers a flexible optical range for aerial looks, scenic coverage and layered stage cues.
06 — HIGHLIGHT
Indexed movement, 16-bit pan and tilt adjustment and continuous tilt rotation let the fixture present either optical face during a cue while retaining dedicated movement-speed control.
07 — OPTICAL, COLOR & CONTROL
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
Nine-cell main wash face
324 RGB pixels plus 288 warm-white LEDs
Narrow beam to wide wash
Synchronous, random and pulse effects
16CH through two distinct 69-channel modes
AC 90–240V, 50/60Hz
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.
Combine RGBW wash coverage, reverse-face pixel graphics, warm-white strobe and double-sided movement in repeatable show cues.
Explore application 02Use the IP65 construction, sealed connections and two optical faces within the event rigging and weather-management plan.
Explore application 03Five DMX footprints support compact grouped programming and expanded individual control across rental workflows.
Explore application 04Program indexed movement, zoom, color layers and reverse-face effects for repeatable scenic transitions.
Explore application 05Double-sided movement, pixel patterns and strobe effects support high-visibility entertainment programming.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.
11 — DOWNLOADS & FIXTURE LIBRARIES
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
English product documentation covering safety, operation, specifications, menu functions and five DMX personalities.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
One side uses nine 60W RGBW LEDs with 4°–32° motorized zoom for beam and wash output. The reverse side combines 324 RGB pixels with 288 warm-white LEDs for matrix, pattern and strobe effects.
Yes. The 42CH personality adds individual intensity for wash cells 1–9, while the 69 AH personality adds individual red, green, blue and white control for every wash cell.
The 33CH base includes reverse-face master, RGB strobe, RGB color, effect, speed, warm-white strobe, warm-white dimmer, pattern, background and direction controls. The 69CH personality adds 36 segment-intensity channels.
ALP0960WX provides 16CH, 33CH, 42CH, 69CH and 69 AH personalities. The 69CH mode expands reverse-face segments, while 69 AH expands individual RGBW control for the nine wash cells.
The movement system provides indexed pan and tilt positioning with 16-bit adjustment, plus a dedicated continuous tilt-rotation channel. Pan travel is 540°.
The fixture supports DMX512 and RDM, together with Auto, Sound-active and Master/Slave operation.
ALP0960WX has an IP65 housing and locking waterproof power and signal connections. Covers, gaskets and connectors must remain correctly fitted, and the fixture must not be immersed or exposed to high-pressure water.
The fixture dimensions are 415 × 240 × 613 mm (W × D × H), and the net weight is 22.5 kg.
Yes. We coordinate branding, packaging, documentation localization, samples and selected product-development requirements for distributor, rental and project applications.
