03 — HIGHLIGHT
Twelve Independent 60W RGBW Heads
Twelve RGBW 4-in-1 LED heads provide individual tilt and motorized zoom control for coordinated wave, beam and wash programming across the linear fixture.
12 × 60W RGBWIndependent tiltMotorized zoom
01

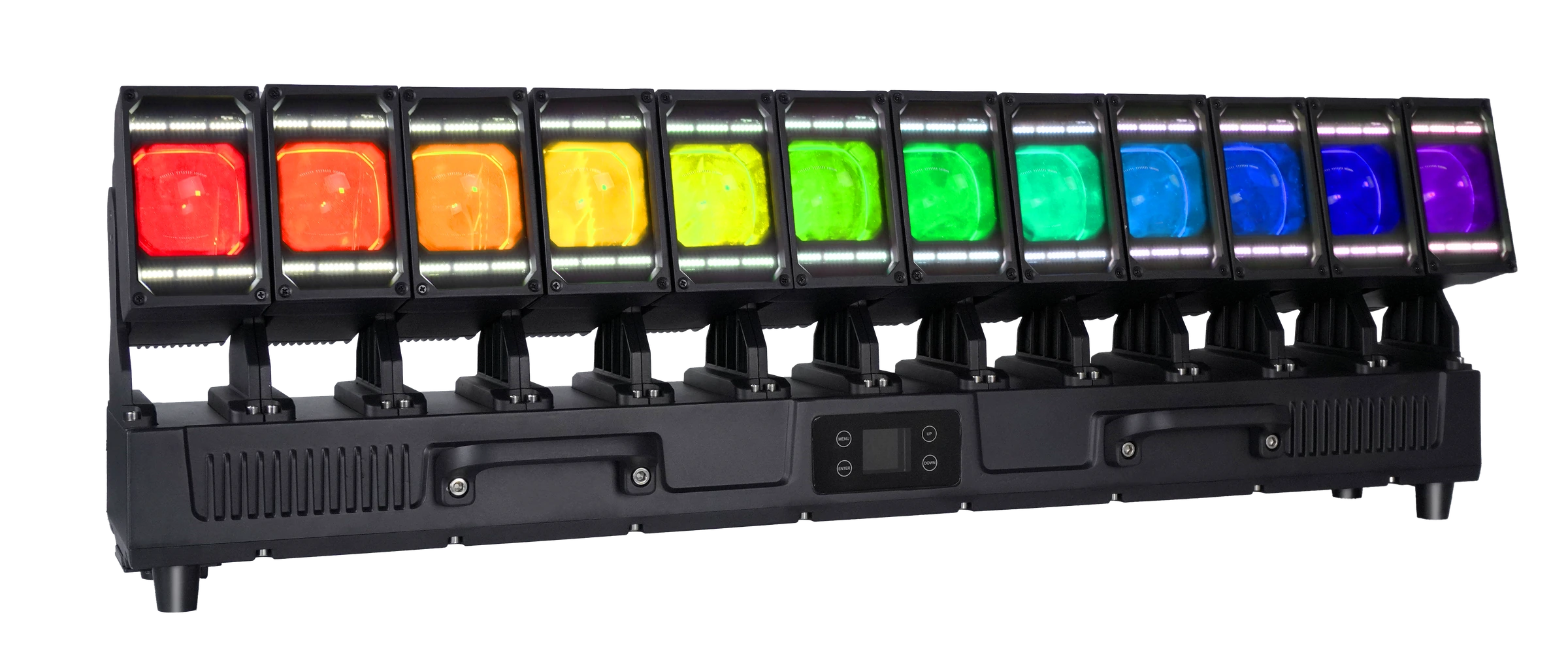

Rainbow FrontTrue-alpha front product view with all twelve RGBW heads illuminated across a rainbow sequence.
12-HEAD IP65 RGBW WAVE / WASH PLATFORM
ALP1260WV12×60W LED Waver Moving Head IP65
A weather-protected twelve-head RGBW Waver with independent tilt, motorized zoom and a separate white / golden-amber auxiliary system for synchronized wave, beam and wash effects.
ALP1260WV combines twelve 60W RGBW 4-in-1 heads, 432 × 1W white and golden-amber auxiliary LEDs, seven DMX personalities and an 850W rated IP65 platform for touring and outdoor-event lighting.
- Main LED Source
- 12 × 60W RGBW 4-in-1
- Auxiliary Light Source
- 432 × 1W white + golden amber LEDs
- Head Control
- 12 independent tilt + motorized zoom heads
- DMX Personalities
- 26 / 59 / 128 / 152 / 182 / 314 / 329 CH
- Ingress Rating
- IP65 · connector and seal conditions apply
- Applications
- Touring · Festival · Concert · Outdoor Event
- Environment
- IP65 weather-protected use · seals must remain intact
- Lead time
- Confirmed with quotation
01 — PRODUCT OVERVIEW
Twelve motorized heads. One IP65 wave platform.
Twelve independently controlled 60W RGBW heads form a long-format IP65 moving platform for synchronized waves, narrow beams, broader washes, patterns and color effects. Each head provides individual tilt and motorized zoom control.
A 432-pixel white and golden-amber auxiliary-light system adds independent dimming, CTO, strobe and built-in effects. IP65 applies only when all connector caps, cable glands, covers and seals are correctly fitted and undamaged.
12 × 60WRGBW main engine
432 × 1WAuxiliary array
7 modesDMX personalities
02 — PRODUCT VIDEO
See ALP1260WV in motion.
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
Selected video

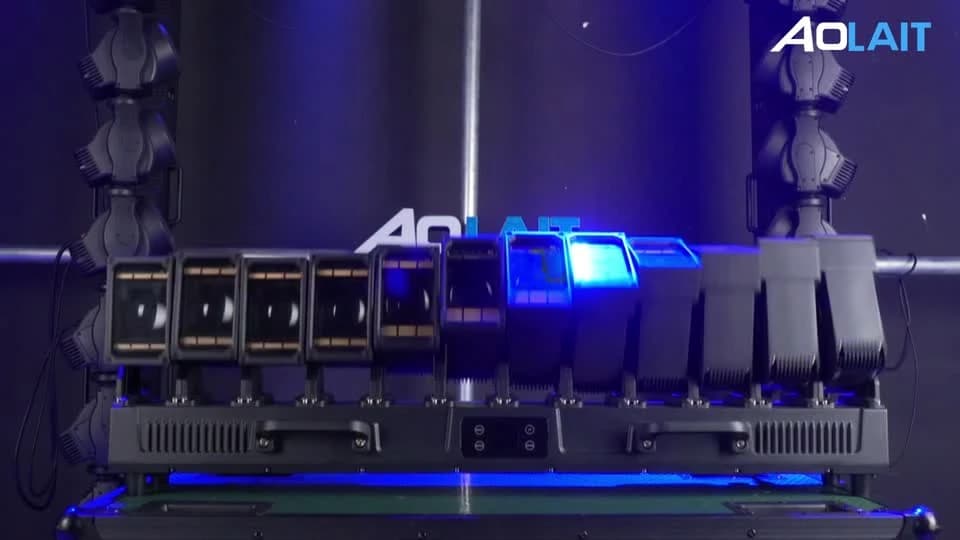

ALP1260WV Production Test Footage
04 — HIGHLIGHT
IP65 Housing for Weather-Protected Rigs
The ALP model is documented as IP65 for touring and outdoor-event use. Protection depends on correctly fitted, undamaged connector caps, cable glands, covers and seals; it is not an immersion rating.
IP65Waterproof power and DMXSeal inspection required
07 — OPTICAL, COLOR & CONTROL
Model-specific performance.
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
RGBW main engine
Twelve RGBW 4-in-1 LED heads
Auxiliary array
White and golden-amber LEDs
DMX personalities
26CH through 329CH
Ingress protection
Connector and seal conditions apply
Strobe
Main and auxiliary strobe ranges listed
08 — APPLICATIONS
Built around professional show workflows.
We help production teams match optics, control, protection and fixture format to each professional lighting application.
01
Outdoor Festivals & Events
Evaluate IP65 sealing, synchronized movement and auxiliary-light effects within the approved weather and rigging plan.
Explore application 02Concert & Touring
Twelve independently controlled heads support repeatable waves, fans, beams and washes for touring systems.
Explore application 03Rental & Event Production
Seven DMX footprints support shared operation and detailed per-head programming across rental workflows.
Explore application 04Theatre & Live Performance
Independent tilt, zoom and auxiliary color layers can support scenic movement and repeatable cues in protected venues.
Explore application 05Clubs & Entertainment Venues
Built-in patterns, sound-active operation and synchronized movement can be evaluated for fixed entertainment installations.
Explore application09 — TECHNICAL SPECIFICATIONS
Engineering data by system.
We organize model-specific optical, electrical, control and mechanical data for clear project planning.
Light Source
- Main LEDs
- 12 × 60W RGBW 4-in-1
- Auxiliary LEDs
- 432 × 1W bi-color LEDs: white + golden amber
- Dimming
- 32-bit, 0–100% linear dimming — selectable response and curves
Optical & Effects
- Primary effects
- Independent wave movement · beam · wash · patterns · color macros
- Auxiliary effects
- White / golden amber dimming · CTO · strobe · built-in effects
- Strobe
- 1–30 Hz with main and auxiliary strobe references
Movement
- Tilt
- Twelve independently controlled heads
- Movement functions
- 16-bit tilt in expanded modes · tilt speed · tilt macros · tilt reverse
Control & Protocols
- DMX personalities
- 26CH · 59CH · 128CH · 152CH · 182CH · 314CH · 329CH
- Operating modes
- DMX512 · Auto 1 · Auto 2 · Master-Slave · Sound-active · RDM
- Firmware update
- Via DMX connection
- Display language
- Chinese / English
Electrical
- Input voltage
- AC 100–240 V, 50/60 Hz
- Connections
- DMX512 input/output · waterproof power input/output
Housing & Environment
- Construction / finish
- Metal · black
- Ingress protection
- IP65 · all caps, glands, covers and seals must be fitted and undamaged

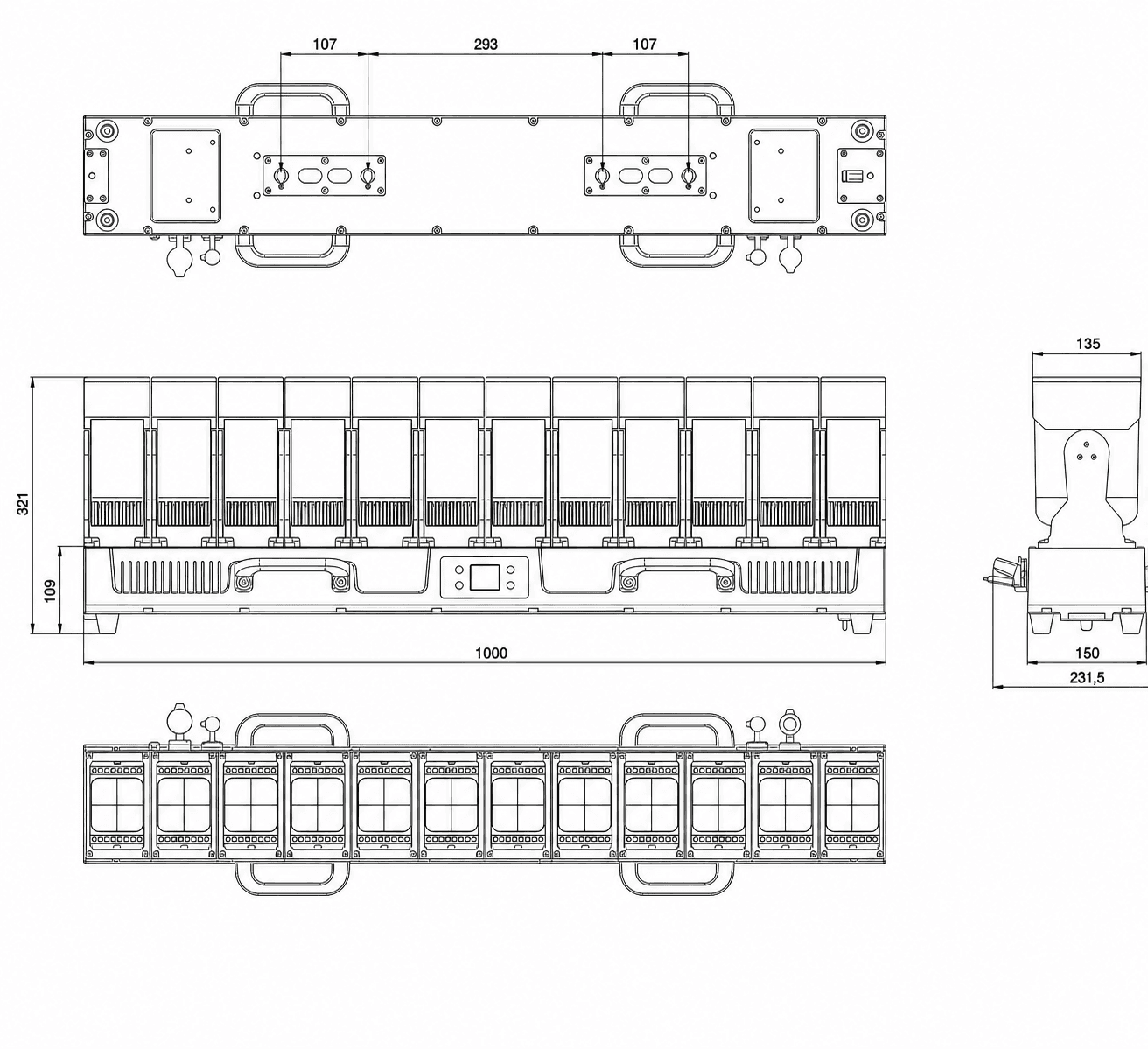

10 — PRODUCT DIMENSIONS
Plan the rig with the model drawing.
- Length
- 1000 mm
- Height
- 321 mm
- Depth
- 231.5 mm
- Head width
- 135 mm
11 — DOWNLOADS & FIXTURE LIBRARIES
Model-specific technical files.
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
Product Documents
Need a fixture file?Tell our technical team which console and software version you use.
Contact Technical Support12 — FAQ
Product questions, answered by Aolait.
Our team provides clear model, control, application and technical-file guidance for professional projects.
ALP1260WV is a weather-protected 12×60W RGBW LED Moving Head Waver with twelve independently controlled tilt and motorized zoom heads, a 432-pixel white / golden-amber auxiliary system, seven DMX personalities and IP65 protection conditions.
