03 — HIGHLIGHT
Twelve Independent 60W RGBW Heads
Twelve RGBW 4-in-1 LED heads provide individual tilt and motorized zoom control for coordinated wave, beam and wash programming across the linear fixture.
12 × 60W RGBWIndependent tiltMotorized zoom
01

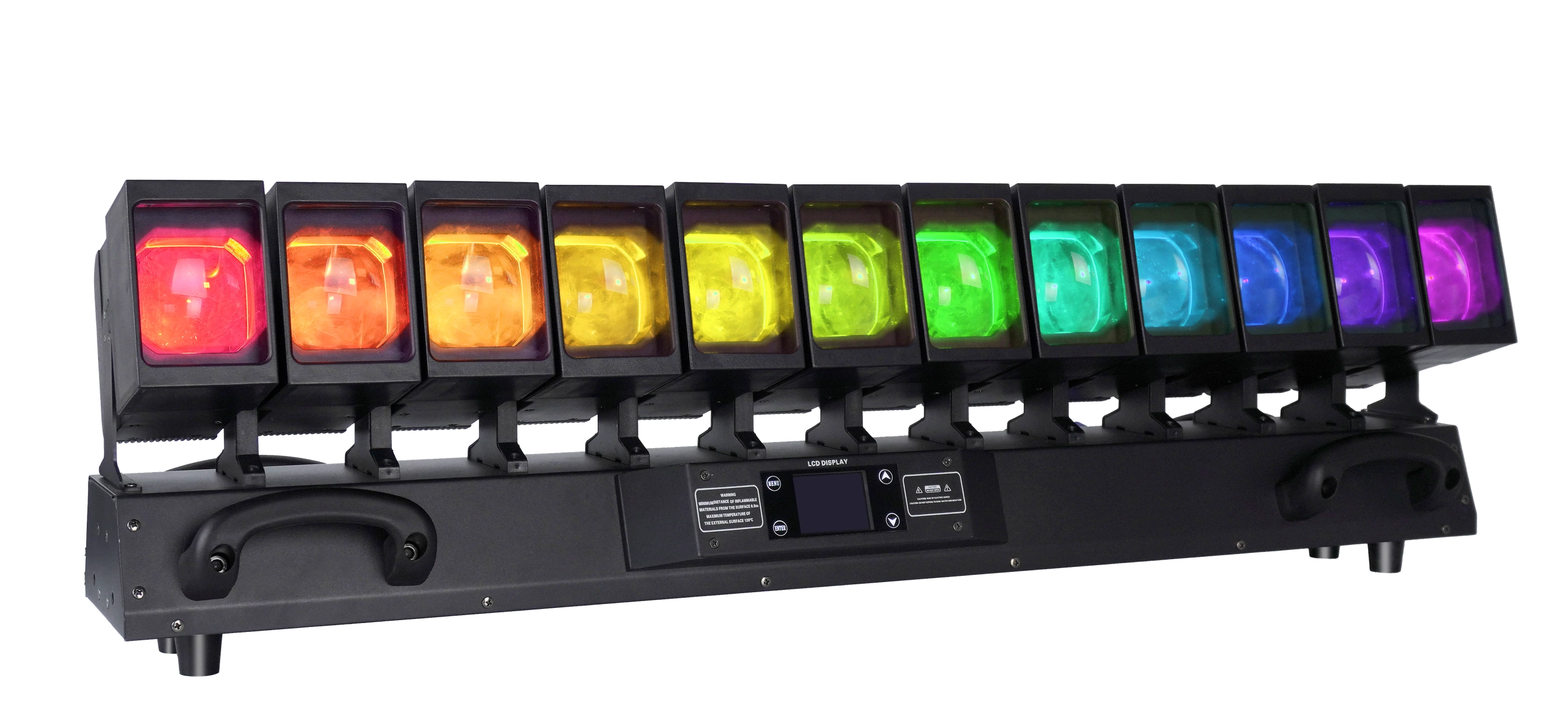

Rainbow FrontTrue-alpha front product view with all twelve RGBW heads illuminated across a rainbow sequence.
12-HEAD MOTORIZED RGBW WAVE / WASH PLATFORM
AL1260WV12×60W LED Moving Head Waver
A twelve-head indoor RGBW Waver with independently controlled tilt and motorized zoom for synchronized wave, beam, wash and pattern programming.
AL1260WV combines twelve 60W RGBW 4-in-1 heads, six DMX personalities, RDM and an 800W rated platform for professional indoor stage-lighting systems.
- Main LED Source
- 12 × 60W RGBW 4-in-1
- Head Control
- 12 independent tilt + zoom heads
- DMX Modes
- 20 / 53 / 101 / 155 / 169 / 179 CH
- Control
- DMX512 · RDM · Auto · Sound
- Rated Power
- 800 W
- Ingress Rating
- IP20 · indoor dry use
- Applications
- Rental · Concert · Theatre · Studio
- Environment
- Indoor dry locations · IP20
- Lead time
- Confirmed with quotation
01 — PRODUCT OVERVIEW
Twelve motorized heads. One indoor wave platform.
Twelve independently controlled RGBW heads form a long-format moving platform for synchronized waves, narrow beams, broader washes, patterns and color effects. Each head provides individual tilt and motorized zoom control.
12 × 60WRGBW main engine
6 modesDMX personalities
1–30 HzStrobe
02 — PRODUCT VIDEO
See AL1260WV in motion.
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
Selected video
AL1260WV Indoor Aging-Test Footage
04 — HIGHLIGHT

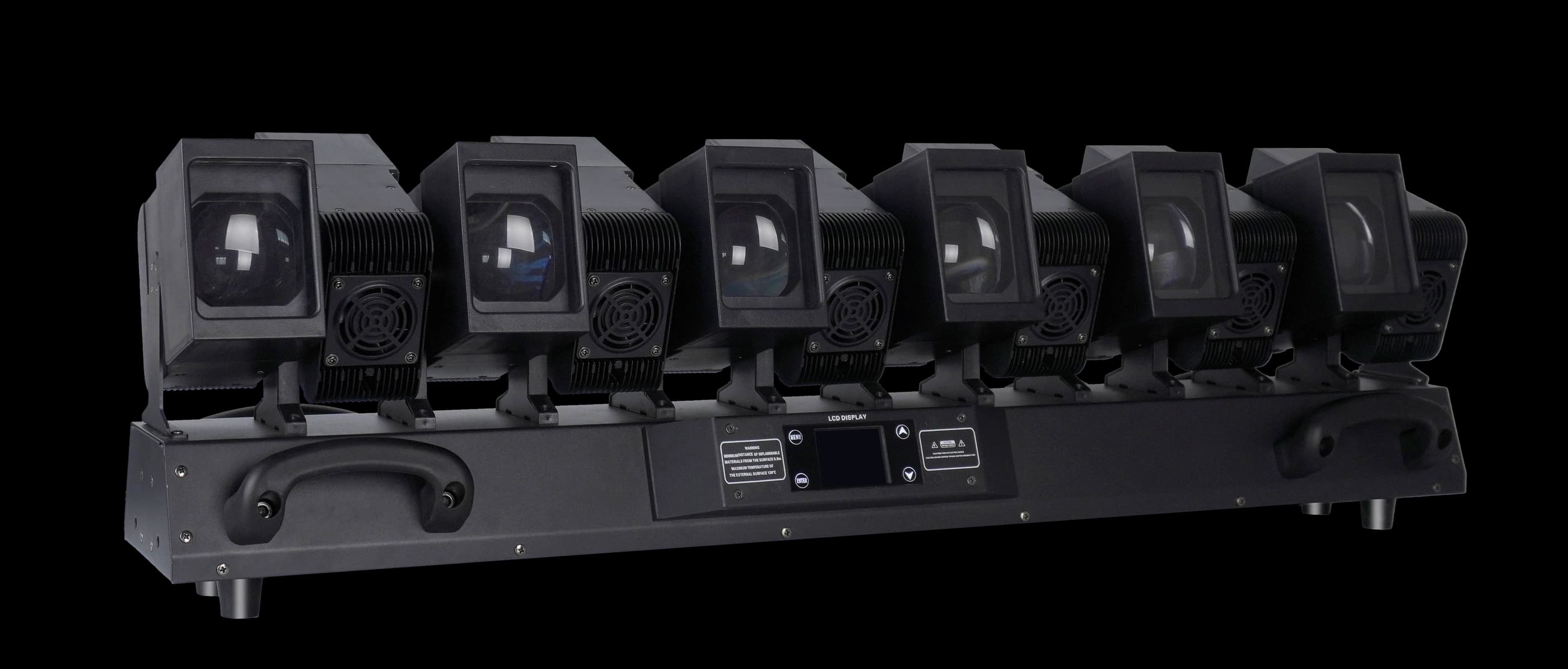

Synchronized Wave and Pattern Movement
Independent head movement supports aligned, alternating and sequential tilt looks. Built-in tilt macros, patterns, color macros and background-color effects are documented in the manual.
Twelve moving headsTilt macrosPattern effects
07 — OPTICAL, COLOR & CONTROL
Model-specific performance.
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
RGBW main engine
Twelve RGBW 4-in-1 LED heads
DMX personalities
20CH through 179CH
Strobe
Synchronized, random and pulse effects listed
Environment
Indoor dry-location use
08 — APPLICATIONS
Built around professional show workflows.
We help production teams match optics, control, protection and fixture format to each professional lighting application.
01
Concert & Touring
Evaluate twelve-head waves, fans, RGBW looks and motorized zoom for indoor concert and touring systems.
Explore application 02Rental & Event Production
Six DMX footprints support shared operation and detailed per-head programming in indoor rental workflows.
Explore application 03Theatre & Live Performance
Independent tilt and zoom can support repeatable scenic movement, beam and wash cues in dry indoor venues.
Explore application 04TV & Studio
Test dimming, strobe, color response and movement against the intended camera and control system before production use.
Explore application 05Clubs & Entertainment Venues
Built-in patterns, sound-active operation and synchronized movement can be evaluated for fixed indoor entertainment installations.
Explore application09 — TECHNICAL SPECIFICATIONS
Engineering data by system.
We organize model-specific optical, electrical, control and mechanical data for clear project planning.
Light Source
- Main LEDs
- 12 × 60W RGBW 4-in-1
- Color system
- RGBW color mixing with optional RGBW / CMY-style channel interpretation
Optical & Effects
- Primary effects
- Individual wave movement · beam · wash · patterns · color macros · background-color effects
- Strobe
- 1–30 Hz with synchronized, random and pulse effects
Movement
- Tilt
- Twelve independently controlled heads
- Movement functions
- 16-bit tilt in expanded modes · tilt speed · tilt macros · tilt reverse
Control & Protocols
- DMX personalities
- 20CH · 53CH · 101CH · 155CH · 169CH · 179CH
- Operating modes
- DMX512 · Auto 1 · Auto 2 · Master-Slave · Sound-active · RDM
- Firmware update
- Via DMX connection
- Display language
- Chinese / English
Electrical
- Input voltage
- AC 100–240 V, 50/60 Hz
- Rated power
- 800 W

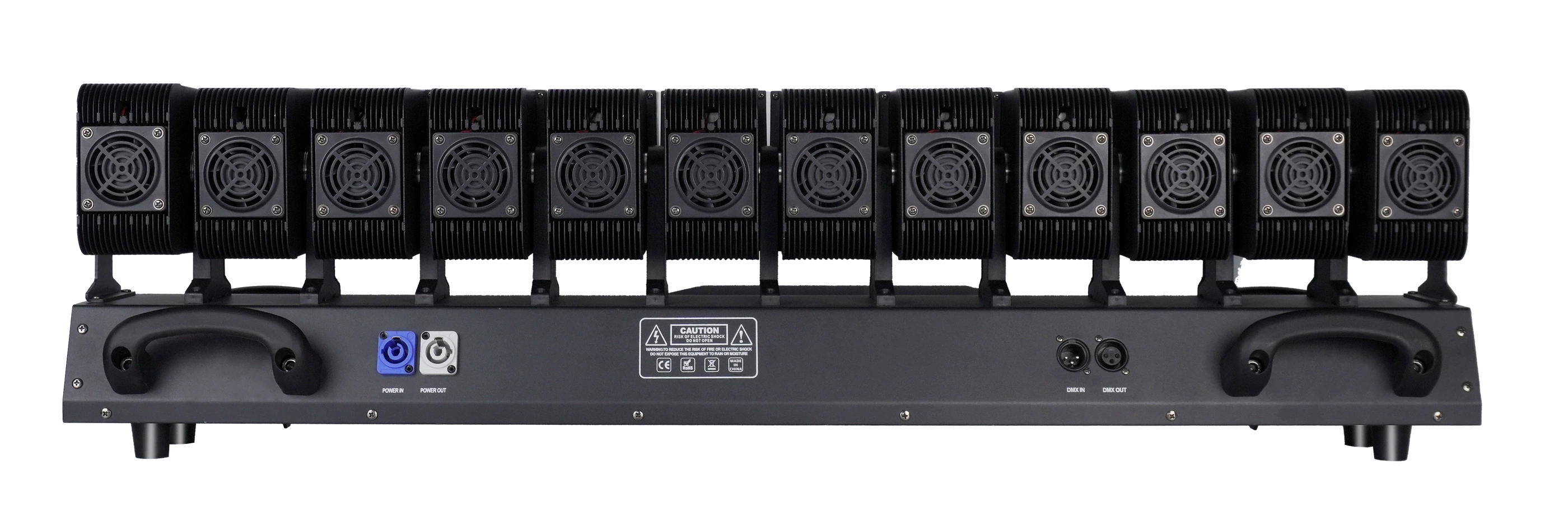

- Connections
- DMX512 input/output · power input/output
Housing & Environment
- Construction / finish
- Metal · black
- Ingress protection
- IP20 · indoor dry locations only
11 — DOWNLOADS & FIXTURE LIBRARIES
Model-specific technical files.
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
Product Documents
Technical files
AL1260WV Supplied Fixture-Library Archive
RAR archive · 7 KBDownload Need a fixture file?Tell our technical team which console and software version you use.
Contact Technical Support12 — FAQ
Product questions, answered by Aolait.
Our team provides clear model, control, application and technical-file guidance for professional projects.
AL1260WV is an indoor 12×60W RGBW LED Moving Head Waver with twelve independently controlled tilt and motorized zoom heads, six documented DMX personalities and RDM support.
