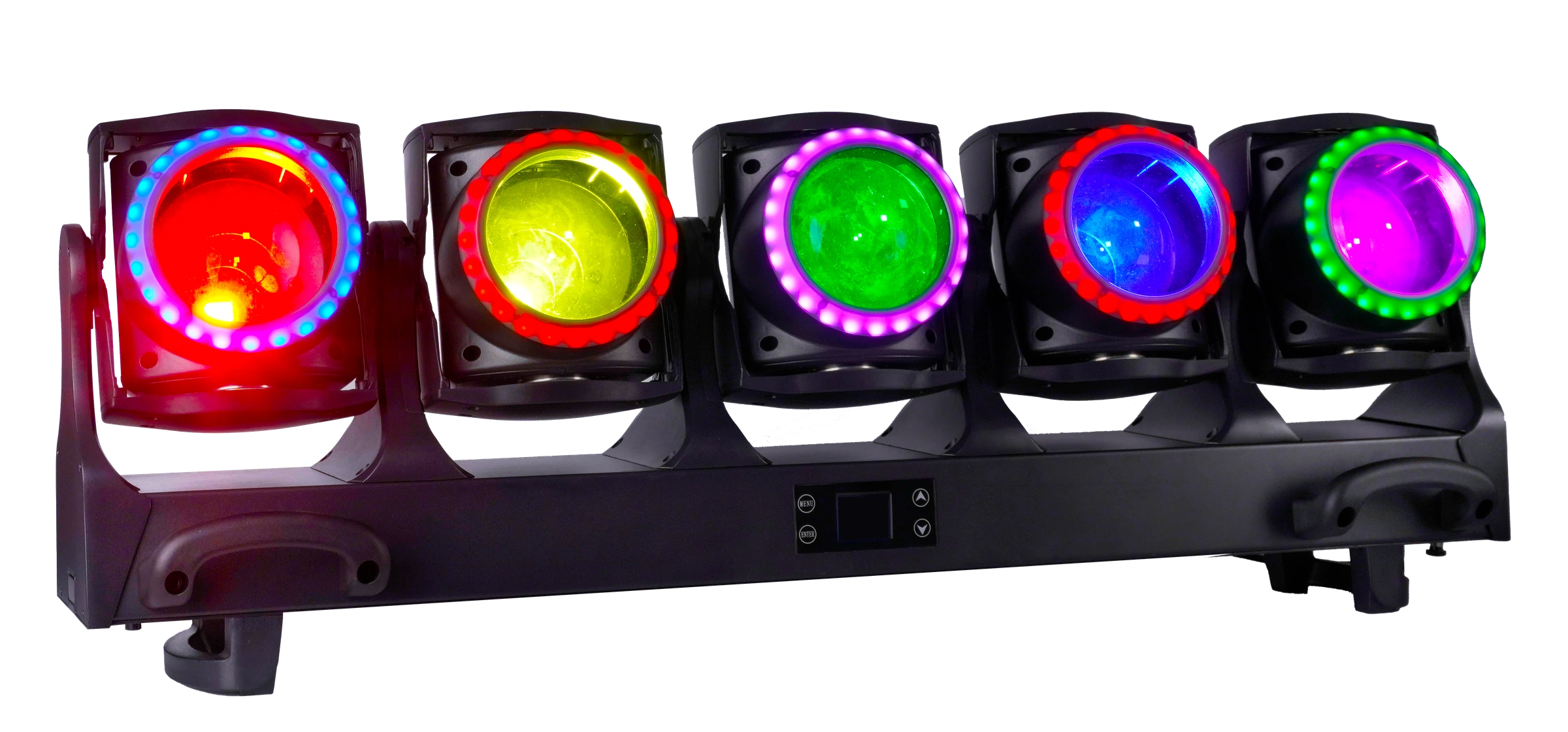

Multi-color effectFront three-quarter product view showing independent RGBL color states and halo colors across the five heads.

AL5120T5×120W LED Tornado Moving Head

A five-head indoor wash-and-effect fixture developed for coordinated movement, RGBL color, zoom transitions and front-facing halo effects.

AL5120T combines five independently moving 120W RGBL heads, motorized zoom, five RGB pixel halos and six DMX personalities in one 1002 mm linear fixture.

LED Source
5 × 120W RGBL
Head Control
5 independent heads
Beam / Divergence
3°–30° / 4°–35°
DMX Modes
21 / 41 / 71 / 75 / 85 / 170 CH
Halo LEDs
120 × 0.5W RGB
Ingress
IP20 · indoor use
Get a Quote Download User Manual Watch Video
Applications
Rental · Touring · Venues
Sample
Subject to stock confirmation
Lead time
Confirmed with quotation
Support
Manual · DMX chart · remote support
Get Quote

01 — PRODUCT OVERVIEW

Five moving heads. One indoor Tornado effect platform.

AL5120T places five independently moving heads across one linear base. Each head uses a 120W RGBL source and a ring of 24 RGB halo LEDs, allowing programmers to combine coordinated movement, individual color, narrow-to-wide optical changes and visible pixel-ring effects from one fixture.

5 × 120WRGBL main sources
120RGB halo LEDs
3°–30°Beam angle

02 — PRODUCT VIDEO

See AL5120T in motion.

Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.

Selected video

AL5120T Product & Effects Demo

AL5120T five independently moving RGBL heads

03 — HIGHLIGHT

Five Independently Moving RGBL Heads

Five 120W RGBL LED heads share one linear platform while retaining head-specific movement, color and zoom data in the extended DMX personalities. This supports synchronized waves, mirrored positions and multi-directional effects without spacing five separate fixtures.

5 × 120W RGBLIndependent head dataLinear five-head platform

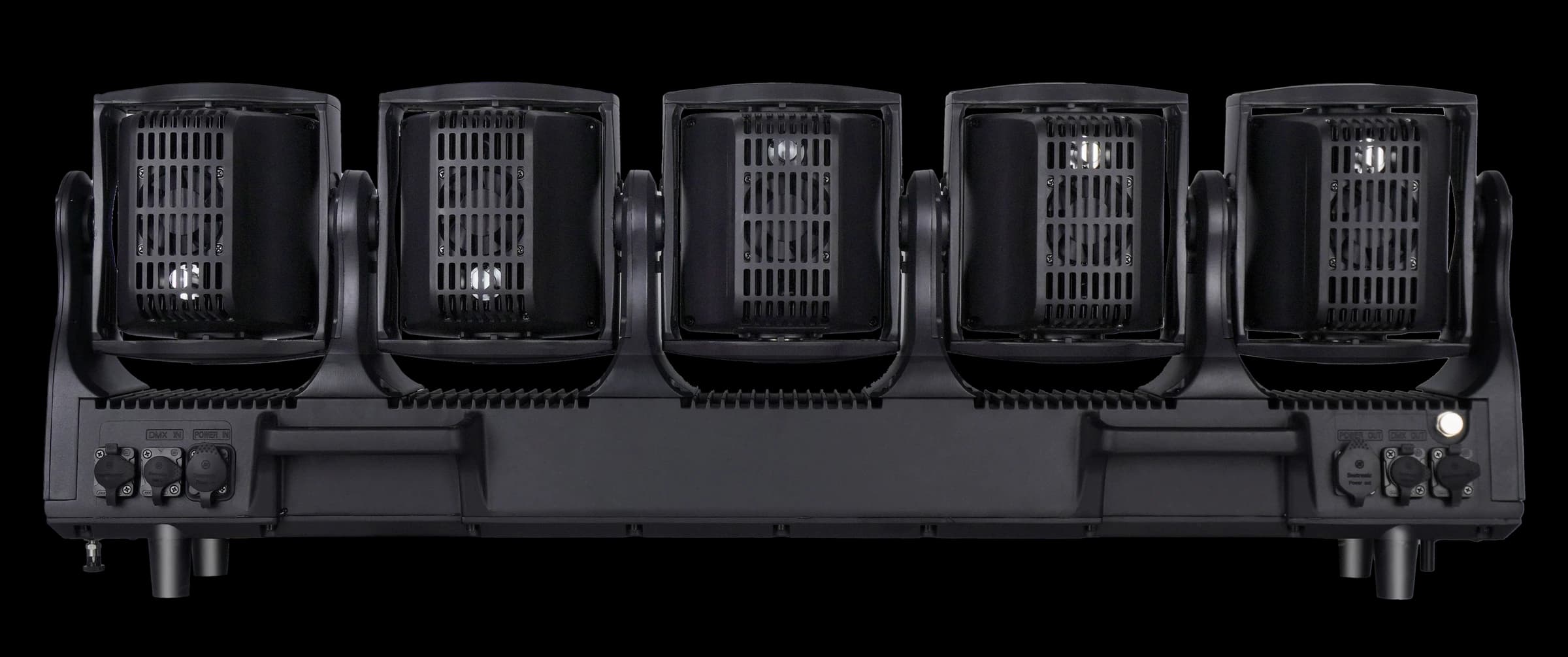

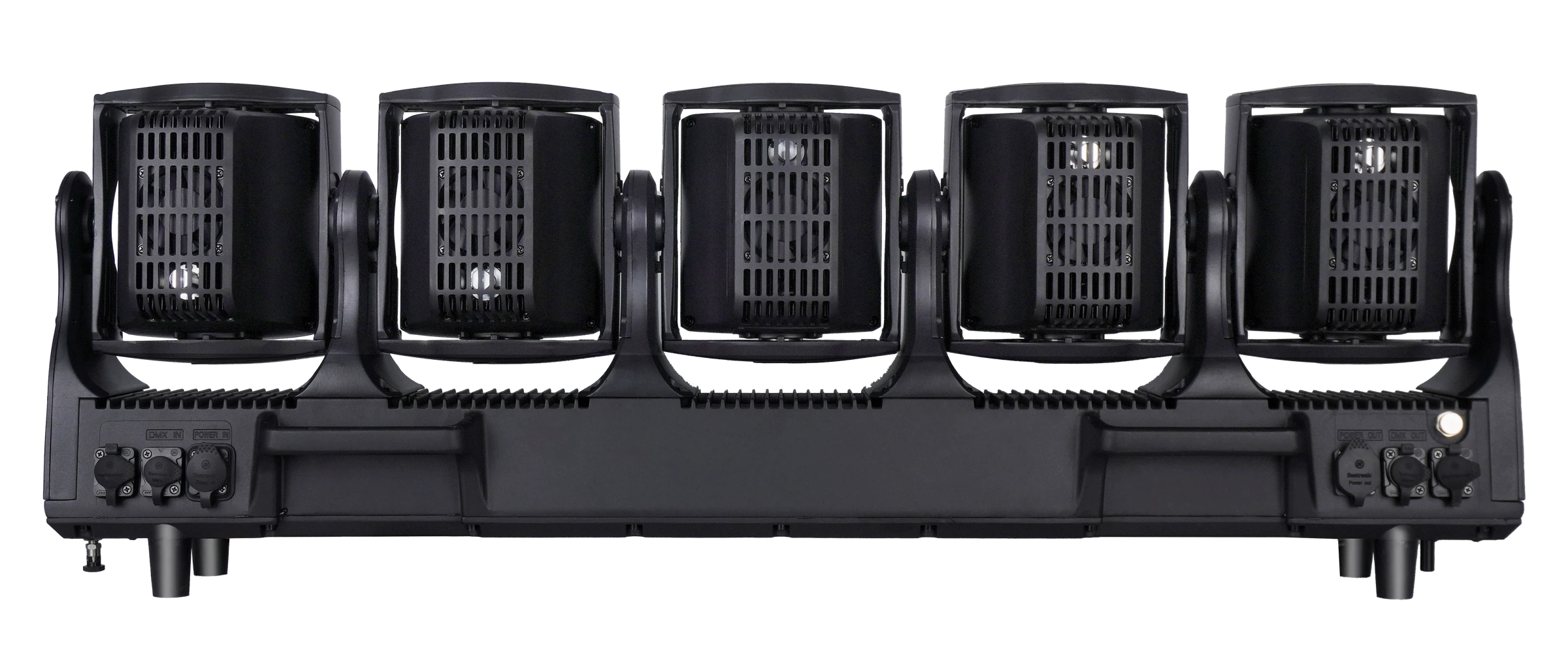

AL5120T rear construction and professional power and DMX connections

04 — HIGHLIGHT

Six DMX Personalities

Six documented control footprints—21CH, 41CH, 71CH, 75CH, 85CH and 170CH—support grouped operation through to detailed head-specific programming. Selectable dimmer curves, response settings, PWM frequencies and DMX-loss behavior support integration into different show-control workflows.

21–170 channelsDMX512Selectable dimmer + PWM

07 — OPTICAL, COLOR & CONTROL

Model-specific performance.

We publish model-specific optical, color, movement and control data for each selected fixture configuration.

5 × 120W

RGBL main sources

One source per independently moving head

120

RGB halo LEDs

24 × 0.5W auxiliary LEDs per head

3°–30°

Beam angle

Manual-labelled motorized range

60° / 220°

Pan / tilt

Manual-labelled movement travel

1–25 Hz

Electronic strobe

Source-stated frequency range

6 modes

DMX personalities

21CH through 170CH

Professional concert stage lighting application

08 — APPLICATIONS

Built around professional show workflows.

We help production teams match optics, control, protection and fixture format to each professional lighting application.

01

Concert & Touring

Program coordinated five-head movement, RGBL color and halo layers for indoor concert and touring rigs.

Explore application 02

Rental & Event Production

Six DMX footprints provide different control depths for rental inventory and production workflows.

Explore application 03

Theatre & Stage Performance

Use head-specific positioning, zoom and selectable dimmer response for repeatable indoor stage cues after project testing.

Explore application 04

Clubs & Entertainment Venues

Five moving optics and visible halo rings create layered effects for controlled indoor installations.

Explore application 05

TV & Studio Evaluation

Test PWM, dimming, strobe and color behavior with the intended camera system before production use.

Explore application

09 — TECHNICAL SPECIFICATIONS

Engineering data by system.

We organize model-specific optical, electrical, control and mechanical data for clear project planning.

Light Source

Main LEDs
5 × 120W RGBL (red, green, blue, lime)
Main-head layout
Five independently moving heads
Halo LEDs
120 × 0.5W RGB; 24 LEDs per head
Rated LED life
Average 20,000 hours (manual-stated)

Optical System

Beam angle
3°–30°
Beam divergence
4°–35°
Zoom
Motorized, head-specific control in extended personalities

Color & Effects

Main color system
RGBL mixing
Additional color functions
Continuous CTO adjustment · LEE-referenced color macros
Halo color system
RGB
Dimmer
0–100% continuous
Dimmer curves
Linear · Square · Inverse Square · S-Curve
Strobe
1–25 Hz
Operation
DMX512 · auto programs · sound-active · standalone

Movement

Pan
60° with fine control documented in DMX charts
Tilt
220° with fine control documented in DMX charts
Head control
Five independent X/Y movement sets in extended personalities
Inversion
Selectable pan and tilt inversion

Control & Firmware

DMX modes
21CH · 41CH · 71CH · 75CH · 85CH · 170CH
Control protocol
DMX512
DMX address
001–512
DMX loss
Selectable blackout or hold last value
PWM frequencies
900 Hz–25 kHz across documented presets
Display
Chinese/English menus with selectable display orientation

Connections

DMX
3-pin DMX input/output
Power
Power input/output

Electrical

Input voltage
AC 110–240 V, 50/60 Hz
Rated power
750 W
Electrical class
Class I protective-earth connection required

Housing, Environment & Rigging

Ingress protection
IP20 — indoor use only
Ventilation clearance
At least 0.5 m (manual safety instruction)
Rigging
Two omega brackets, rated clamps and independent safety cable
Net / gross weight
27.6 kg / 30.6 kg
Carton, 1 fixture
1170 × 395 × 305 mm
Flight case, 2 fixtures
1070 × 670 × 580 mm; 96 kg loaded gross

10 — PRODUCT DIMENSIONS

Plan the rig with the model drawing.

Download original drawing

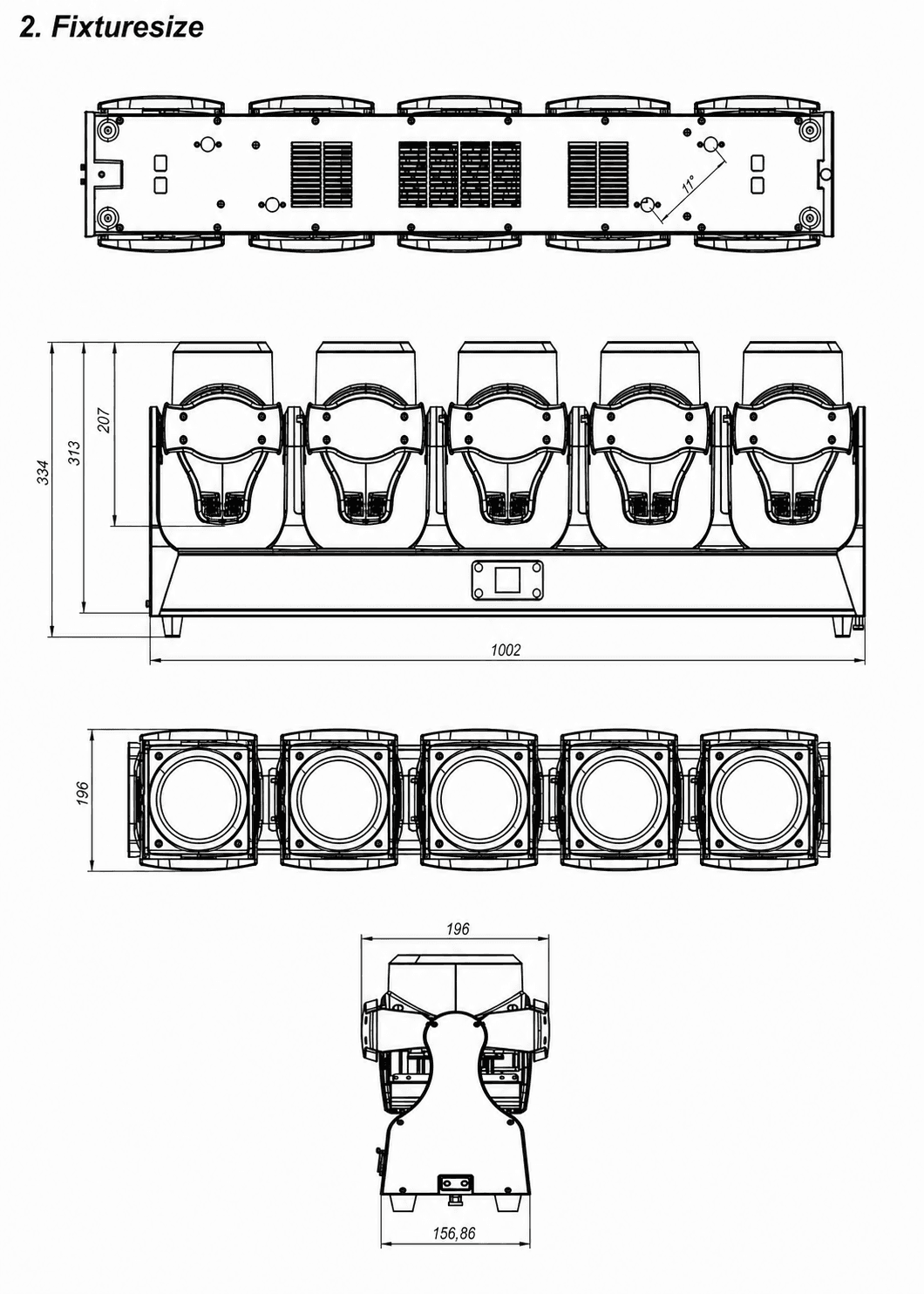

AL5120T five-head LED Tornado monochrome dimension drawing
Overall width
1002 mm
Overall depth
196 mm
Overall height
334 mm
Body height reference
313 mm
Head height reference
207 mm
