SIX-HEAD RGBW WAVE / WASH EFFECT
A six-head RGBW moving-effect platform with independent tilt and motorized zoom, continuous base pan rotation and synchronized wave, fan, beam and wash programming.
AL0660WV combines six 60W RGBW heads, five DMX personalities and per-head movement, zoom and color tools in a compact linear Waver format for professional stages and rental workflows.
01 — PRODUCT OVERVIEW

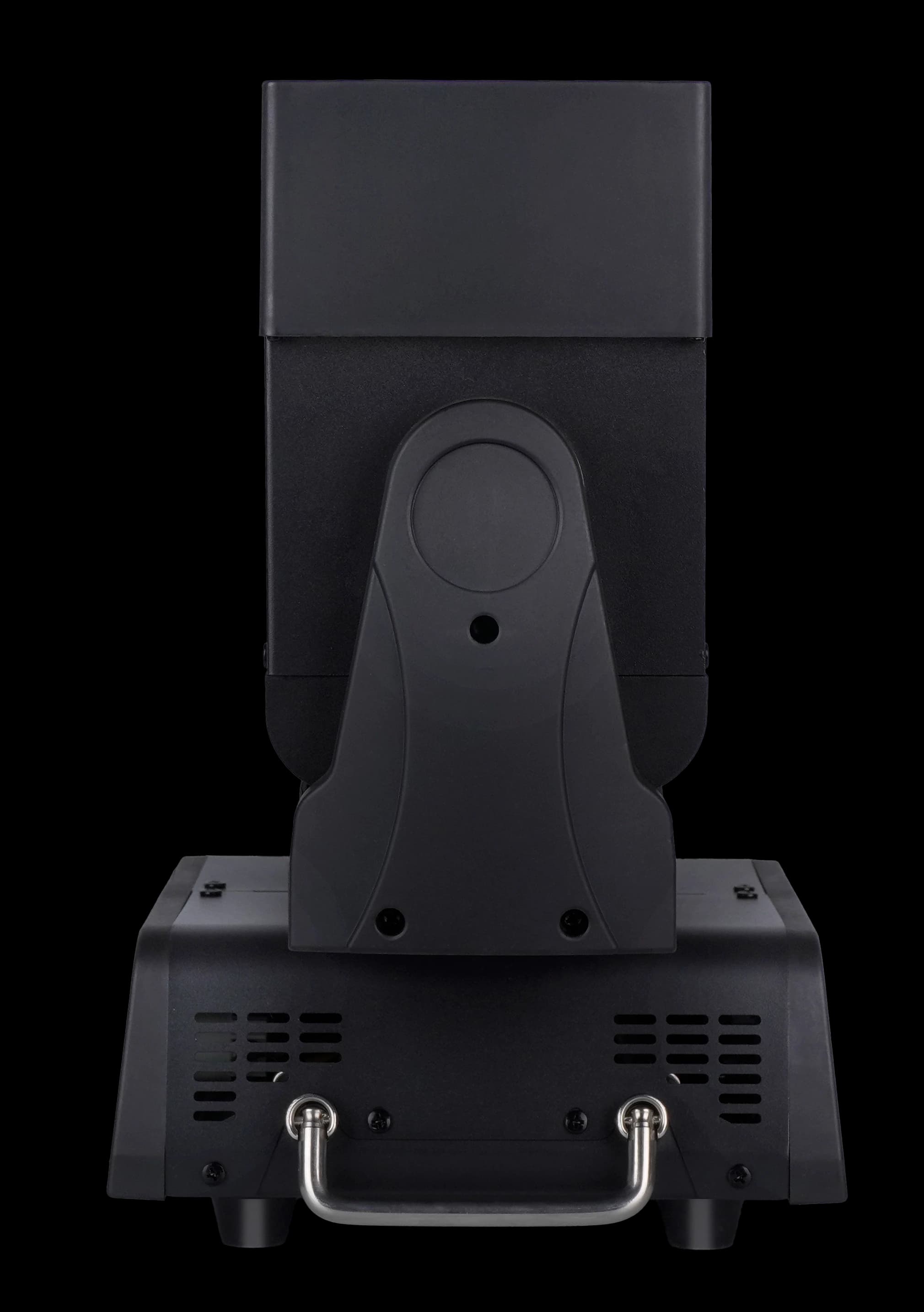

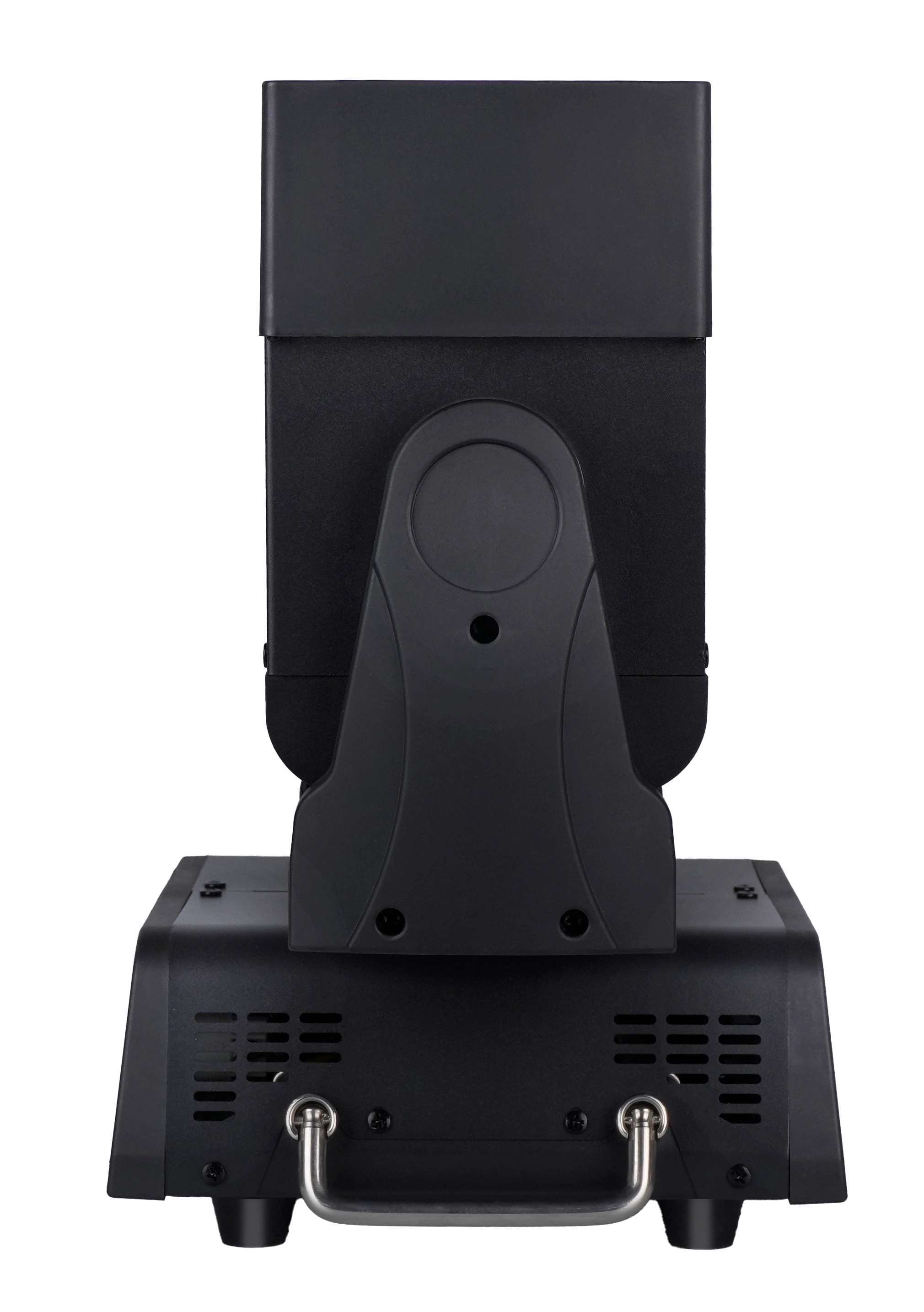

The base provides pan, pan fine and continuous bidirectional pan rotation. Built-in tilt macros, color macros, patterns, LED effects and background colors support both compact show programming and expanded per-head control.
02 — PRODUCT VIDEO
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
03 — HIGHLIGHT

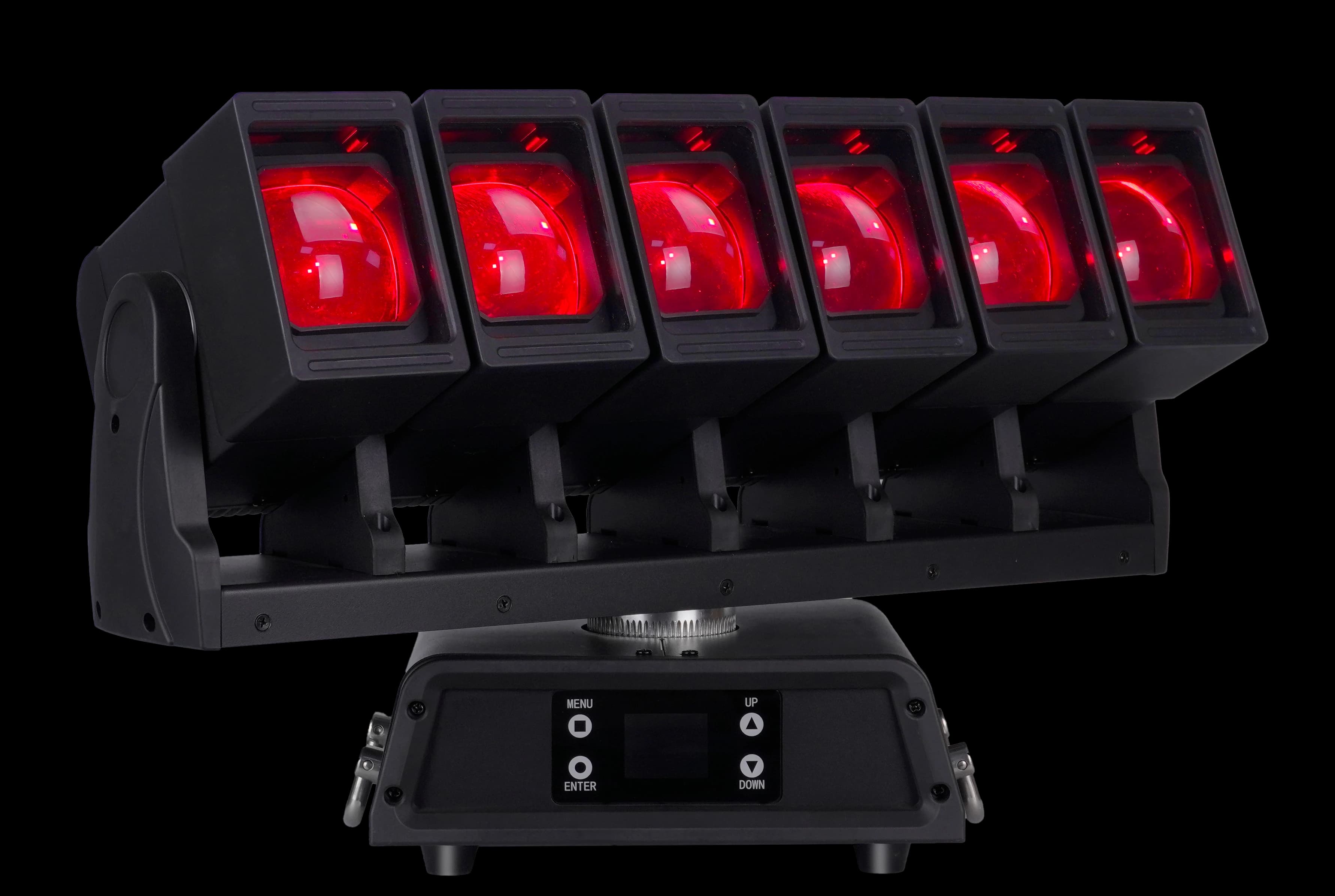

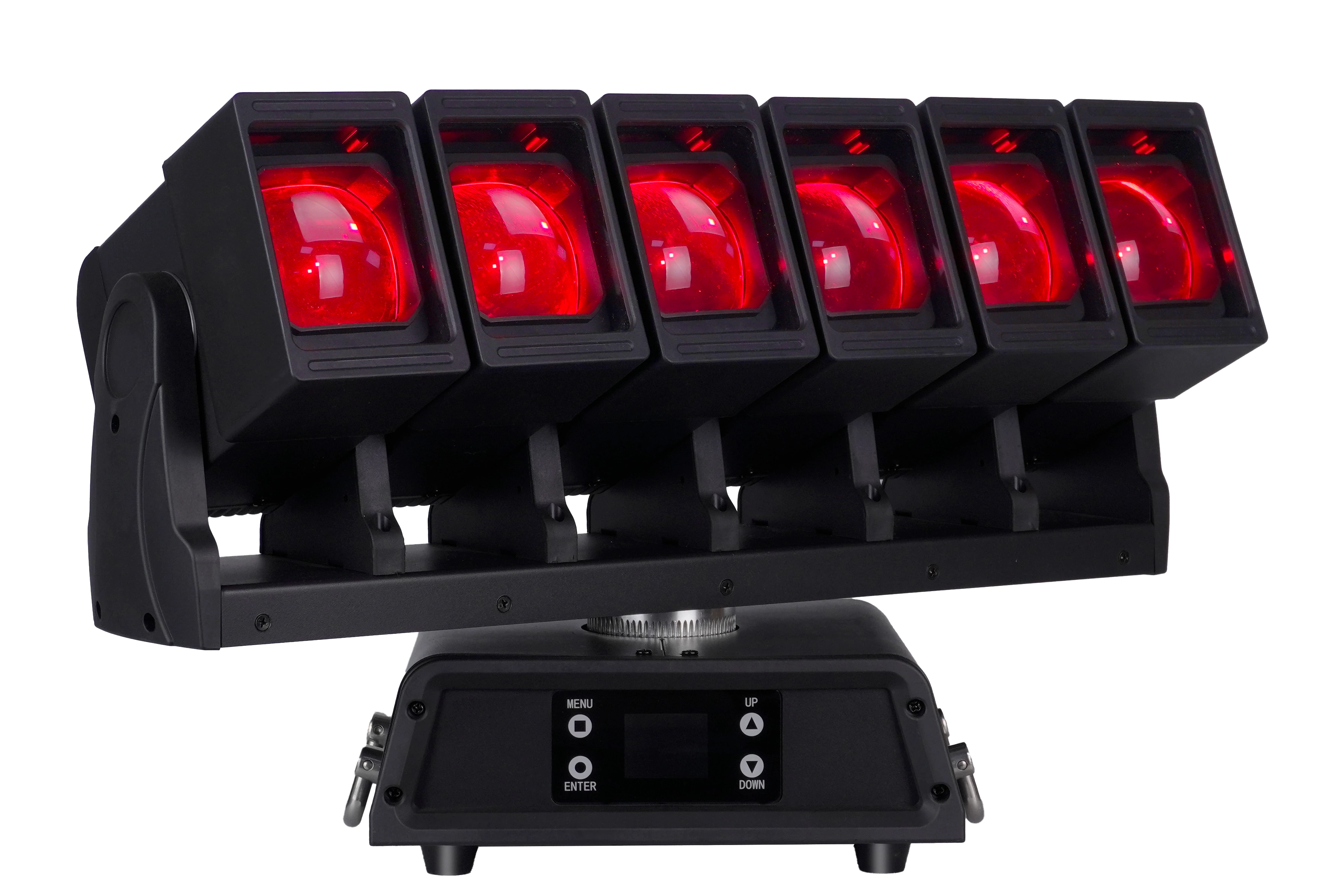

Six RGBW 4-in-1 LED heads form the optical engine. The extended personalities expose individual head movement, zoom and RGBW data for detailed programming across the linear array.
04 — HIGHLIGHT

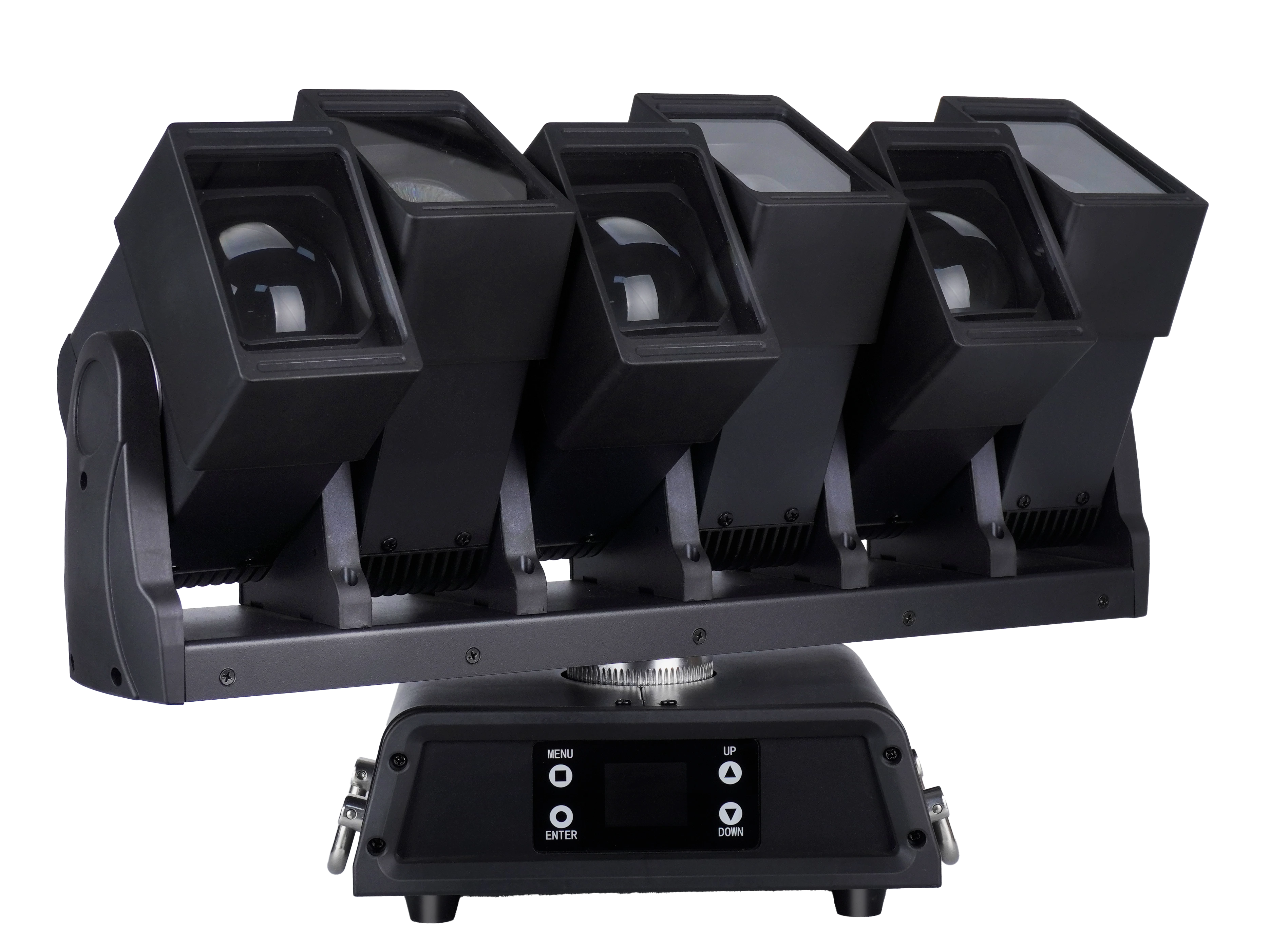

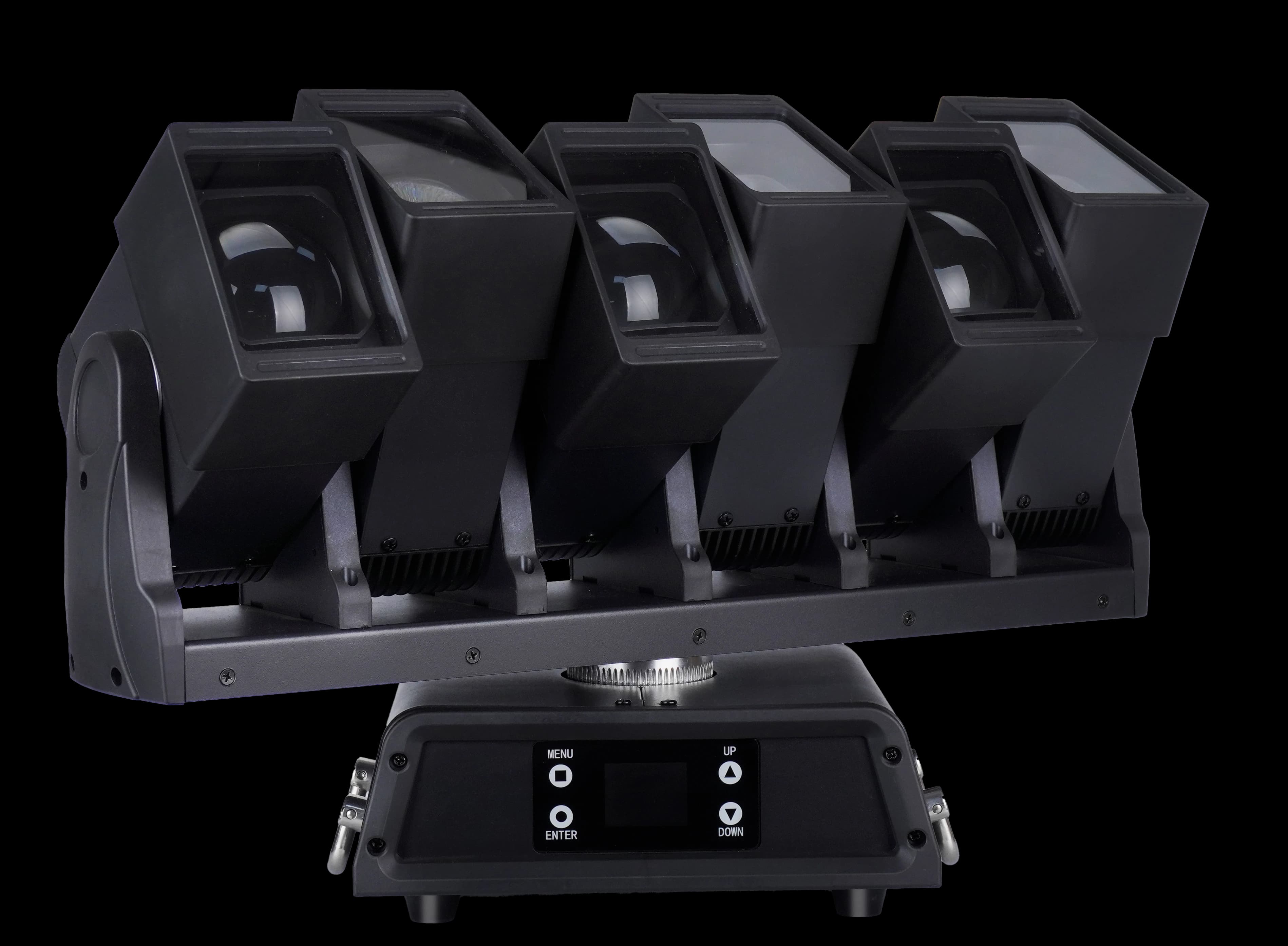

Each of the six heads provides independent tilt control, with 16-bit fine positioning in the expanded personalities. Coordinated tilt macros and sequence tools support wave, fan and synchronized multi-head movement looks.
05 — HIGHLIGHT

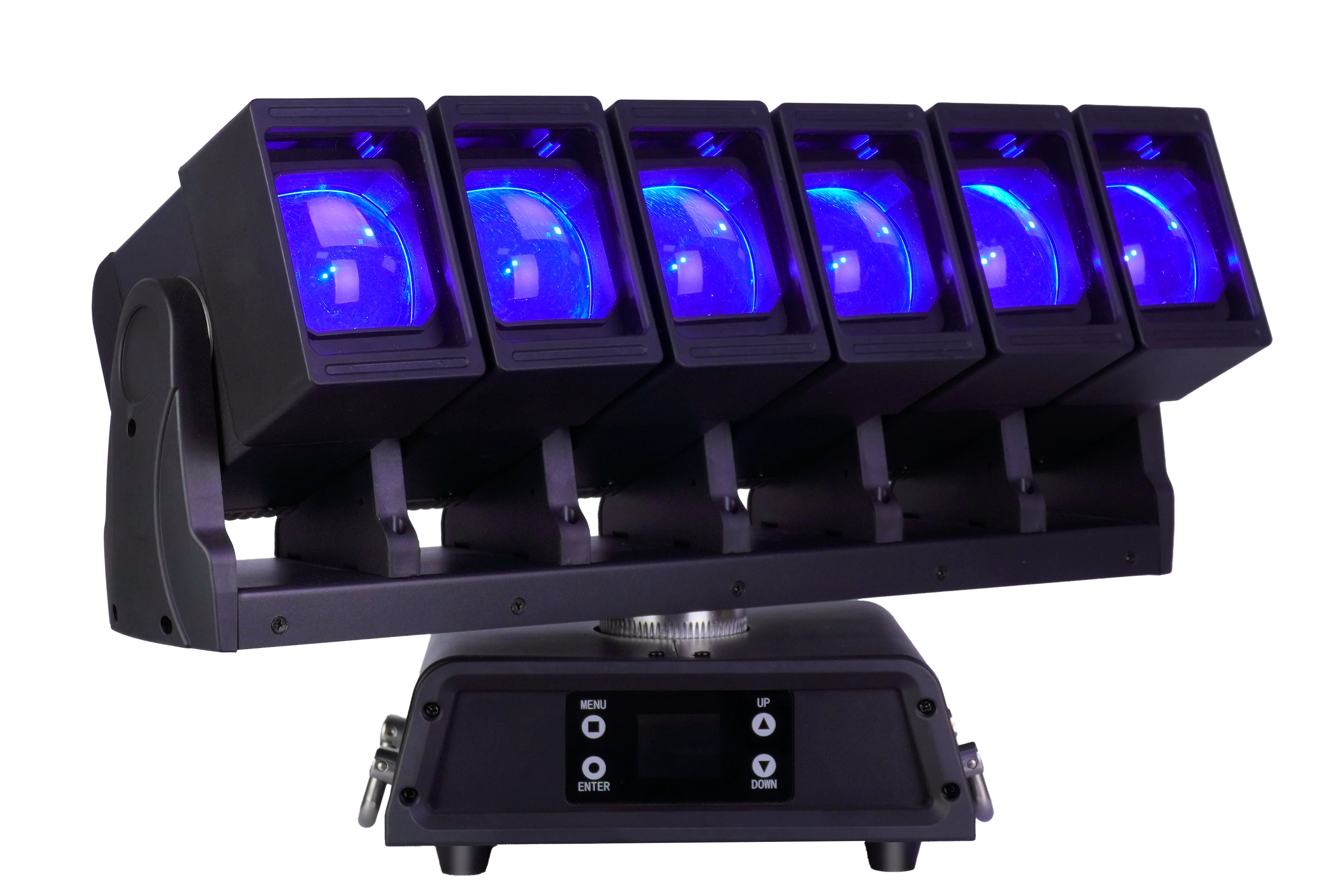

The 38CH mode exposes independent zoom for all six heads, while 62CH, 92CH and 94CH add progressively deeper per-head color data. The manual also documents RGBW or CMY operating modes, color macros and background-color effects.
06 — HIGHLIGHT
Five documented footprints range from compact 23-channel shared control to a 94-channel personality for maximum independent movement, zoom and color access. DMX512, Auto, Master-Slave and RDM support are listed in the corrected manual.
07 — OPTICAL, COLOR & CONTROL
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
Six RGBW 4-in-1 LED heads
23CH through 94CH
0–100% linear dimming stated in the manual
Corrected model manual
Corrected model manual
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.
Evaluate synchronized six-head waves, fans, color looks and continuous base rotation for dry indoor show environments.
Explore application 02Five DMX footprints support compact operation and expanded per-head programming for professional rental workflows.
Explore application 03Use the visible six-head line, built-in macros and continuous pan for dynamic indoor entertainment programming.
Explore application 04Independent tilt and zoom can be evaluated for repeatable scenic movement, color and wash cues.
Explore application 05Test the 16 kHz PWM setting, dimmer curves and RGBW engine against the intended camera and control system.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.

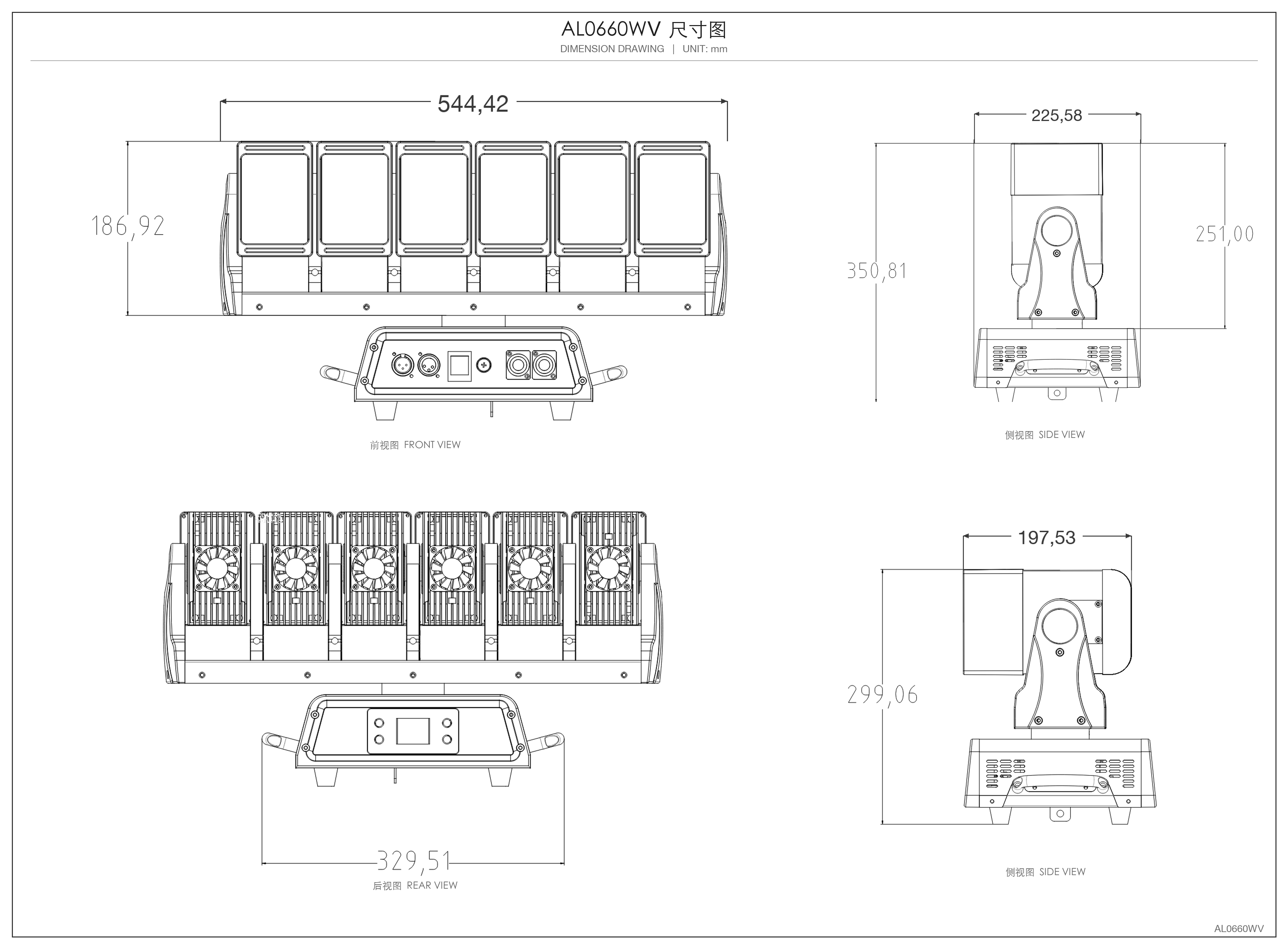

10 — PRODUCT DIMENSIONS
11 — DOWNLOADS & FIXTURE LIBRARIES
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
The supplied English manual has been corrected from the erroneous AL0660WB code to the owner-confirmed AL0660WV model throughout the title and body.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
Yes. The documented pan system includes pan, pan fine and a separate channel for variable-speed forward and reverse continuous pan rotation.
