12-PIXEL RGBW MOVING BAR / DUAL-ZOOM WASH FX
An indoor 12-pixel RGBW moving bar with dual motorized zoom, 270° tilt, separate white and RGB effect strips, and two DMX programming depths.
AL1240WB combines twelve 40W RGBW main pixels, dual zoom control and two auxiliary effect-strip layers in a 1000 mm linear Wash FX format.
01 — PRODUCT OVERVIEW
The 29-channel personality provides grouped RGBW, CTO, color macros, effect macros, dual zoom, strip control and reset. The 68-channel personality adds separate RGBW intensity for all twelve main pixels while retaining shared white-strip and RGB-strip tools.
02 — PRODUCT VIDEO
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
03 — HIGHLIGHT

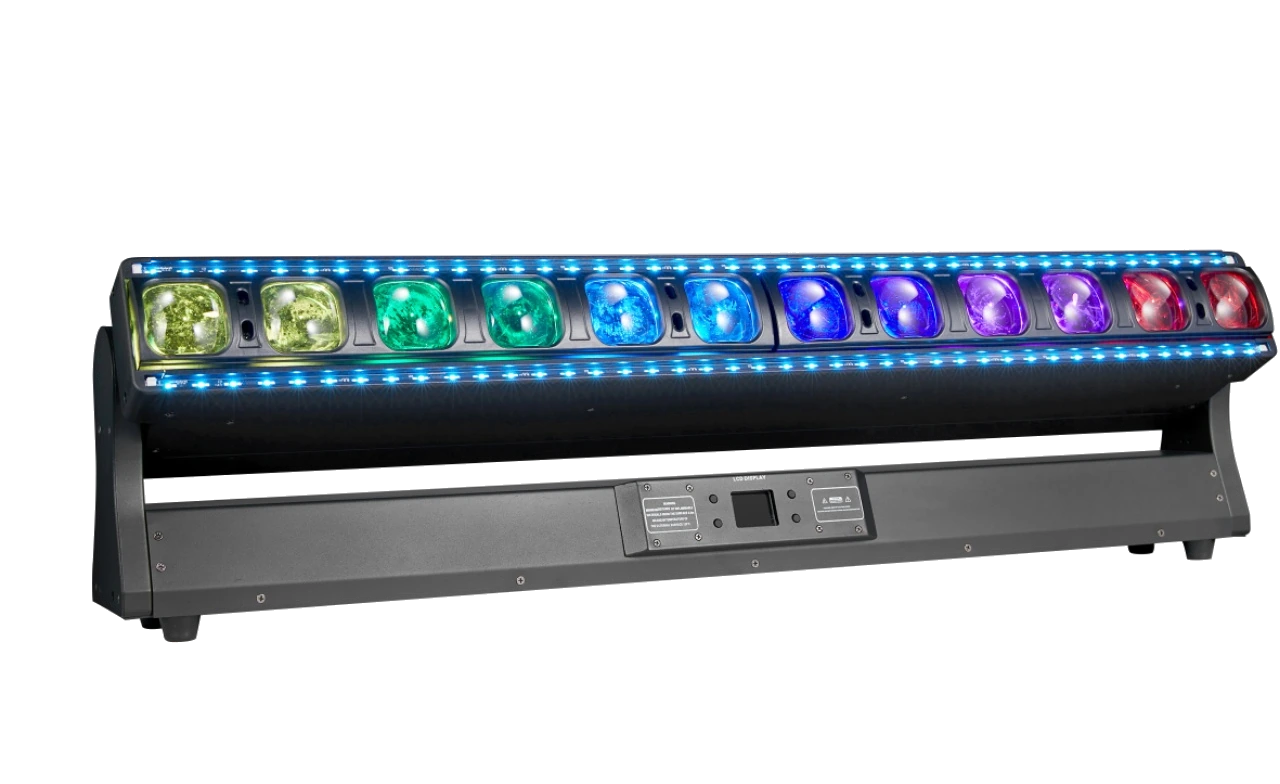

Twelve RGBW main LEDs form the primary wash and pixel layer. In the 68-channel personality, channels 10–57 provide separate red, green, blue and white intensity for pixels 1–12.
04 — HIGHLIGHT

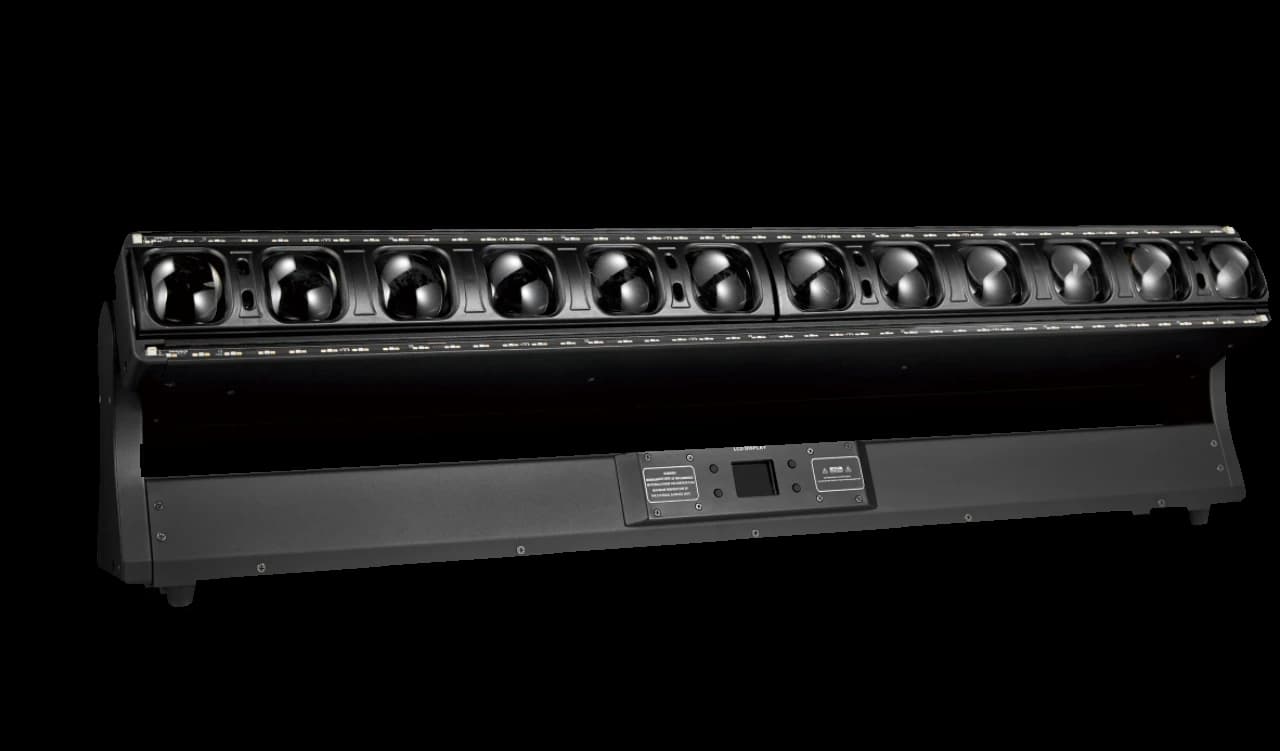

The manual exposes separate Zoom 1 and Zoom 2 position channels in both DMX personalities, together with 0–270° tilt, 16-bit fine positioning and adjustable tilt speed. A numeric zoom-angle range and pan movement are not documented.
05 — HIGHLIGHT

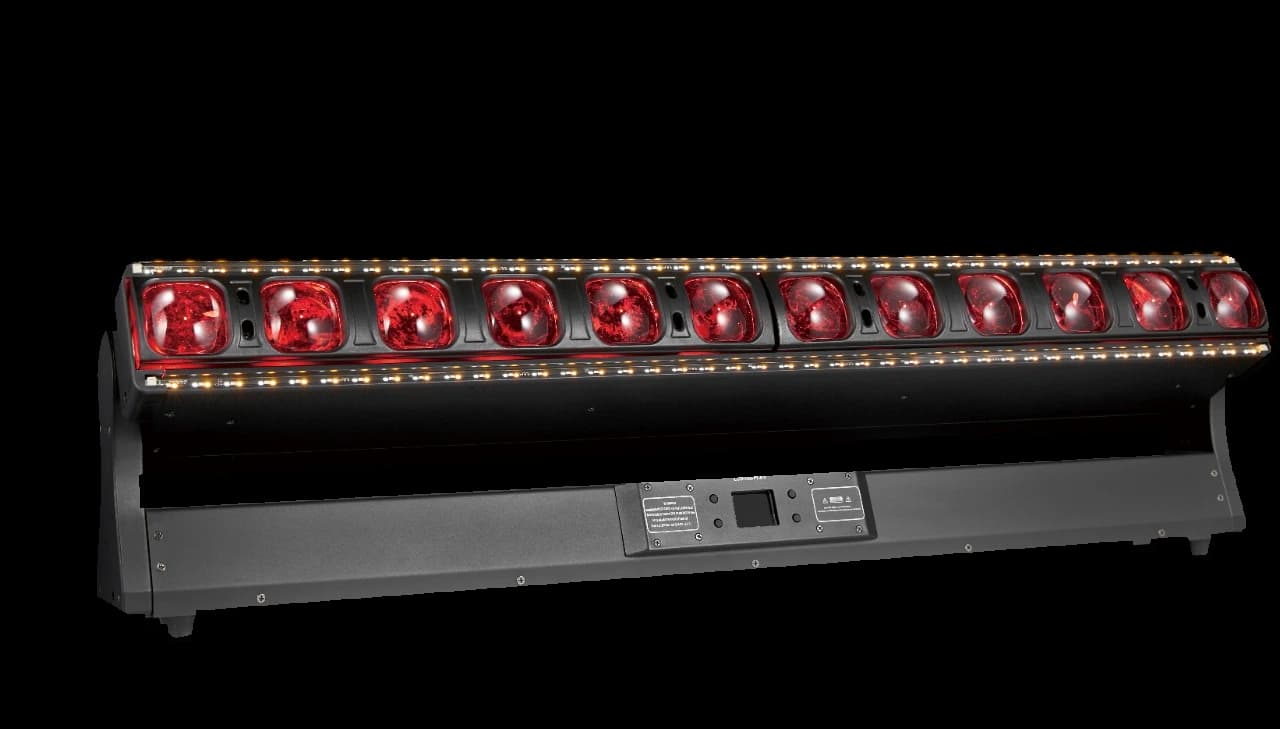

The auxiliary system combines a cool-white/warm-white strip with a separate RGB strip. Dedicated dimming, strobe, CTO, color, macro, direction, speed and fade channels support layered looks around the twelve main RGBW pixels.
06 — HIGHLIGHT
The compact 29-channel mode groups the main RGBW source and includes reset. The 68-channel mode adds twelve-pixel RGBW mapping and ends at the RGB-strip effect-speed channel. DMX512/RDM, automatic programs and sound-active operation are documented.
07 — OPTICAL, COLOR & CONTROL
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
Twelve four-color main pixels
Available in 68CH mode
16-bit fine positioning
Separate Zoom 1 and Zoom 2
Grouped or pixel-level operation
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.
Evaluate the linear twelve-pixel face, tilt movement, zoom control and auxiliary strips for indoor concert and touring programming.
Explore application 02The 29CH and 68CH personalities support grouped operation or detailed pixel programming for professional rental workflows.
Explore application 03Use 16-bit tilt, dual zoom and independent pixel control when evaluating repeatable scenic movement and layered color cues.
Explore application 04Combine the visible linear pixel array with white and RGB effect strips for indoor entertainment-venue programming.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.

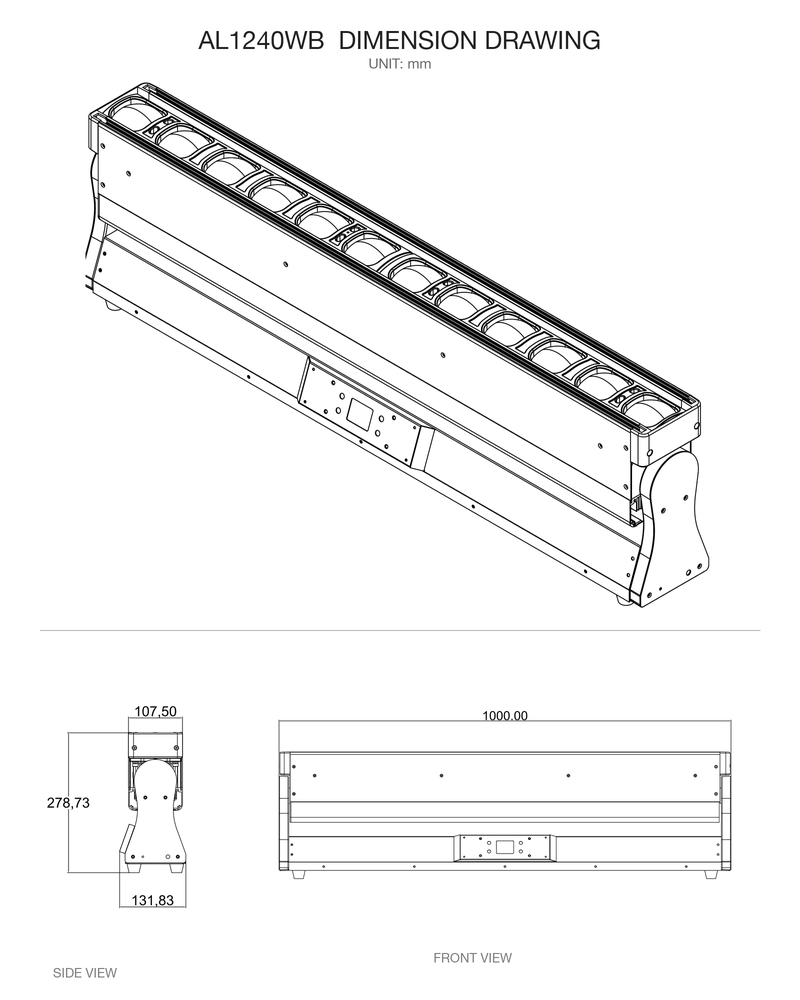

10 — PRODUCT DIMENSIONS
11 — DOWNLOADS & FIXTURE LIBRARIES
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
AL1240WB is an indoor linear Wash FX fixture with twelve 40W RGBW main pixels, dual motorized zoom control, 270° tilt and separate cool-white/warm-white and RGB effect strips.
Yes. The 68-channel personality assigns individual red, green, blue and white channels to pixels 1–12. The 29-channel personality uses grouped main RGBW control.

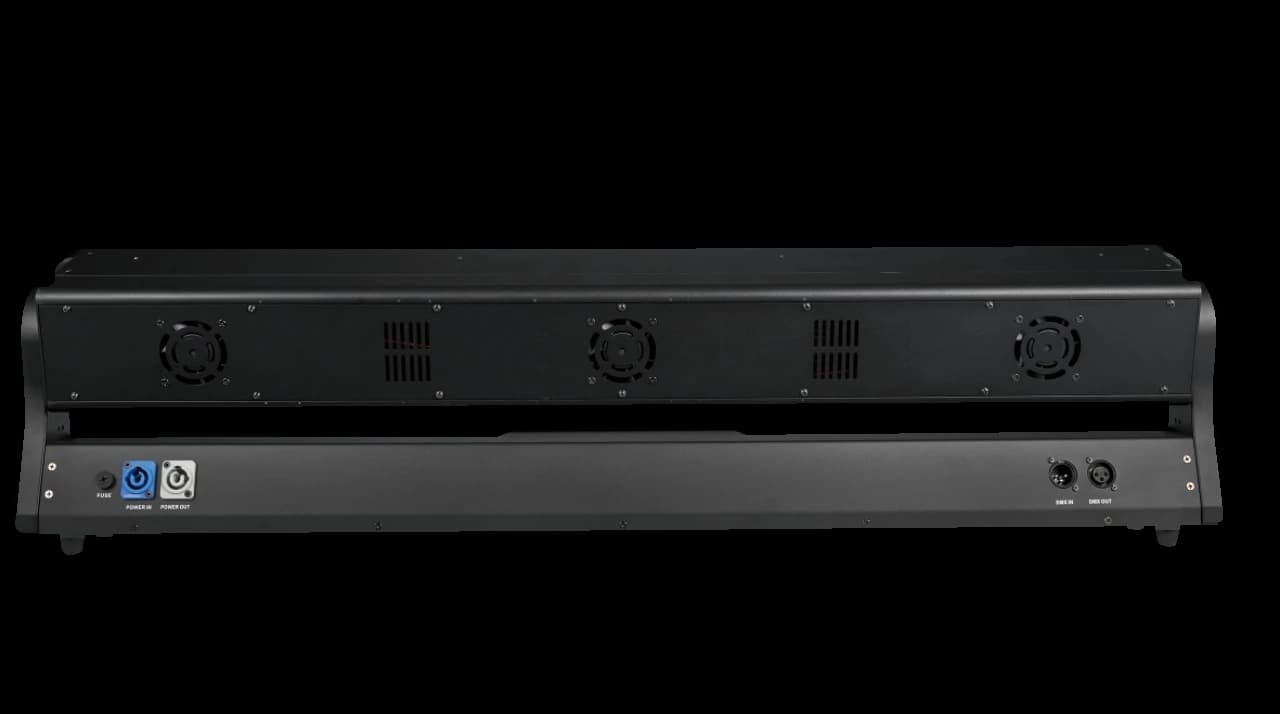

DMX512/RDM, Auto 1, Auto 2 and Sound Active are documented. The fixture uses 3-pin DMX input/output with Pin 1 ground, Pin 2 data− and Pin 3 data+.
