Can the five heads be controlled independently?

Yes. The 85CH and 88CH personalities provide separate pan, tilt, focus, RGBW and aura data for each head. The 88CH mode also adds a separate dimmer to every head.

What do the RGB aura rings control?

The rings support RGB color mixing, strobe and macro effects. Compact modes group the aura controls, while 85CH and 88CH provide head-specific ring color and macro data.

Which DMX modes are available?

The AL0580T manual defines 28CH, 32CH, 85CH and 88CH personalities for grouped through head-specific programming.

Is focus shared or independent?

The 28CH personality uses shared focus. The 32CH mode provides five separate focus channels, and the 85CH and 88CH modes include focus inside every head-control block.

Where is AL0580T intended to operate?

AL0580T is designed for professional indoor use in dry locations.

What are the AL0580T dimensions?

The technical drawing shows a 1200.00mm overall width, 224.58mm maximum plan depth and 382.80mm overall height.

Which product media and technical files are available?

The page includes transparent product views, a dimension drawing, English PDF and DOCX manuals, a product-effects demonstration and production batch-test footage.

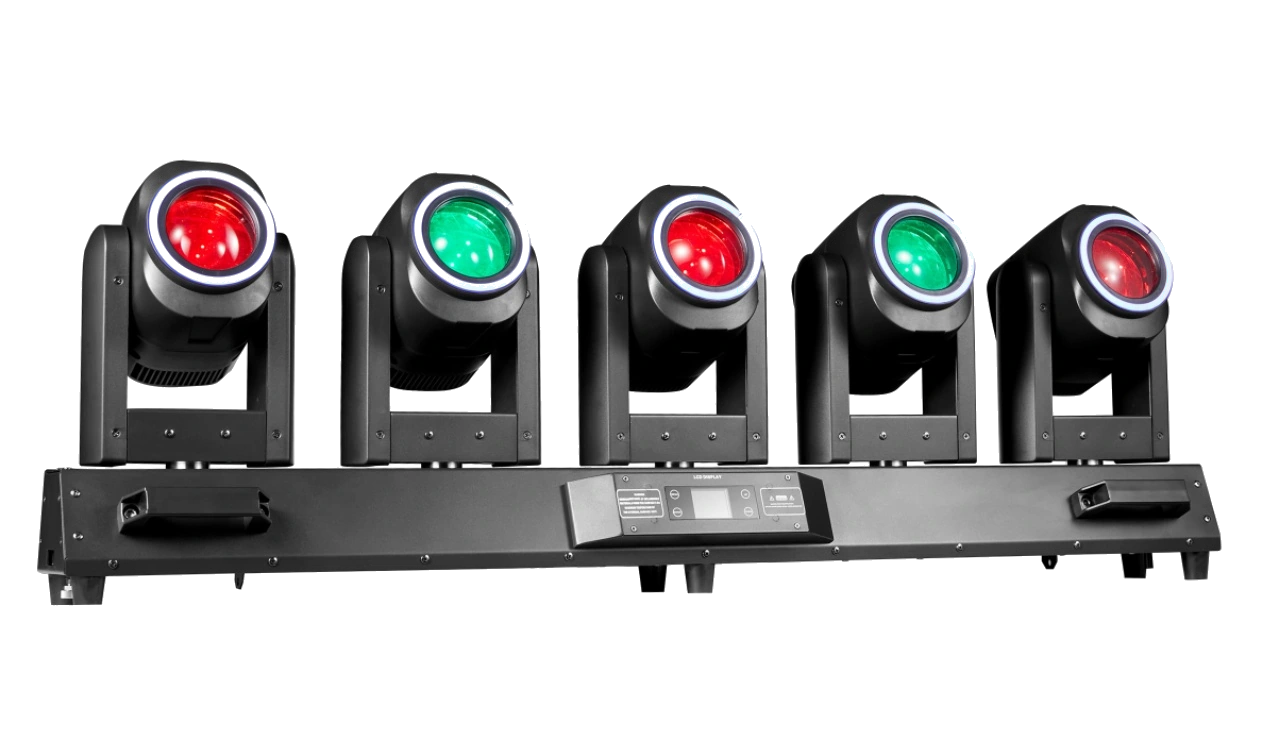

Multicolor outputTrue-alpha front three-quarter view showing five RGBW heads and illuminated aura rings in independent color states.

FIVE-HEAD RGBW TORNADO EFFECT LIGHT

AL0580T5×80W LED Tornado Moving Head

Aolait AL0580T is a five-head indoor Tornado fixture developed for synchronized or head-specific movement, RGBW color and aura-ring effects.

We combine five independently moving 80W RGBW heads, five RGB aura rings, motorized focus and four DMX personalities on one 1200mm linear platform.

LED Source: 5 × 80W RGBW
Head Format: 5 independent heads
Aura: 5 × RGB rings
Movement: 0–540° pan / tilt + continuous
DMX Modes: 28 / 32 / 85 / 88 CH
Environment: Indoor dry locations

Get a Quote Download User Manual Watch Video

Applications: Rental · Touring · Venues · Stage
Control: DMX512 · Auto · Sound · Manual
Sample: Subject to stock confirmation
Support: Manual · DMX charts · remote support

Get Quote

01 — PRODUCT OVERVIEW

Five RGBW heads. Five aura rings. Four control depths.

Aolait AL0580T places five independently moving RGBW heads across one linear base. Each head combines an 80W main source, an RGB aura ring and motorized focus for layered wash, beam and face effects.

Compact 28CH and 32CH personalities provide shared movement and color control, while 85CH and 88CH personalities expand programming to head-specific pan, tilt, focus, RGBW and aura data. The 88CH mode also adds an individual dimmer for every head.

The fixture supports DMX512, two automatic programs, sound-active operation and manual control. Pan and tilt each cover 0–540° with 16-bit fine adjustment and continuous-rotation effects.

5 × 80WRGBW main sources

5RGB aura rings

4 modesDMX personalities

02 — PRODUCT VIDEO

See AL0580T in motion.

Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.

Selected video

AL0580T Product & Effects Demo

Demonstration showing five-head movement, RGBW output, aura-ring color, beam patterns and programmed effects.

AL0580T five independently moving RGBW heads with aura rings

03 — HIGHLIGHT

Five Independent 80W RGBW Heads

Five moving heads share one 1200mm linear base while extended personalities provide separate movement, focus, RGBW and aura data for each position. Programmers can build synchronized waves, mirrored looks and multi-directional color effects from one fixture.

5 × 80W RGBWIndependent head dataLinear five-head platform

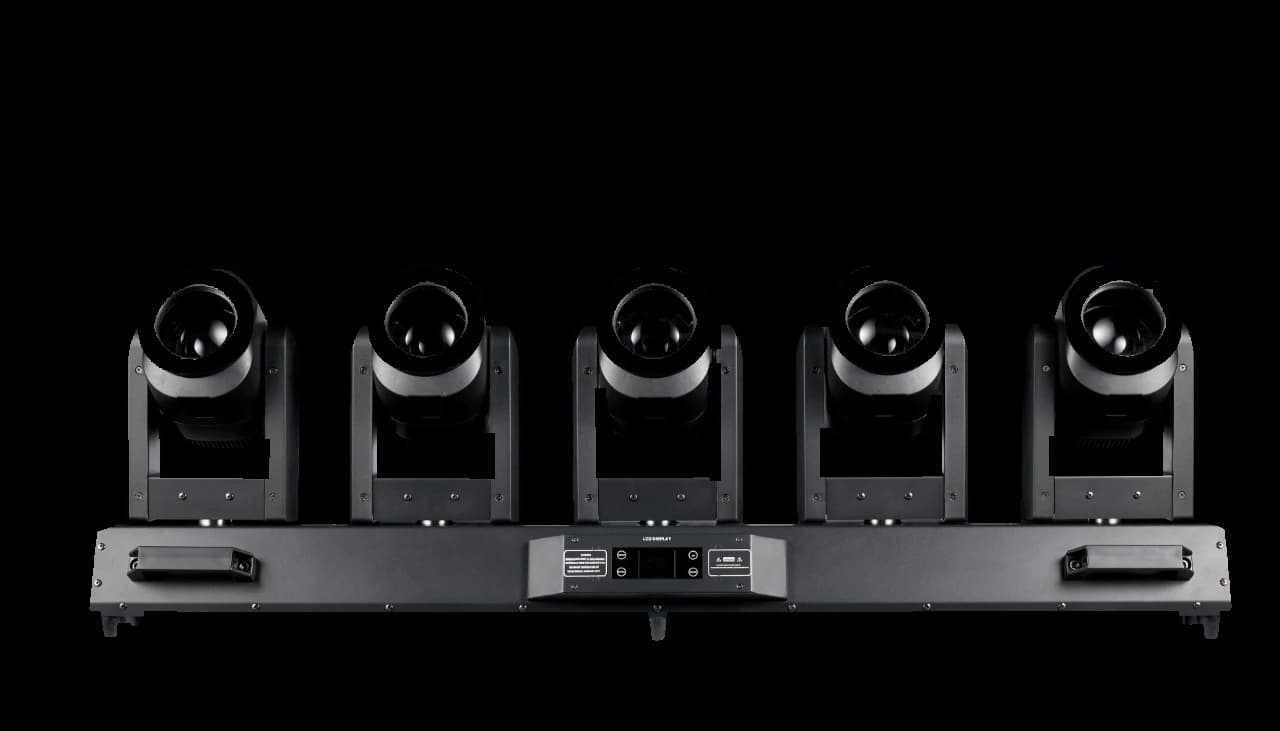

AL0580T five-head movement and motorized focus platform

04 — HIGHLIGHT

Continuous Pan/Tilt Effects with Motorized Focus

Each axis supports 0–540° positioning, 16-bit fine adjustment and continuous-rotation effects. Motorized focus is shared in 28CH, separated across heads 1–5 in 32CH and available per head in both expanded personalities.

0–540° pan and tiltContinuous rotationFive focus channels

05 — HIGHLIGHT

Five RGB Aura Rings

An RGB aura ring surrounds every main optic. Compact personalities provide shared aura color, strobe and macro controls, while the 85CH and 88CH personalities expose head-specific RGB and aura-macro data.

Five RGB ringsAura macrosHead-specific color

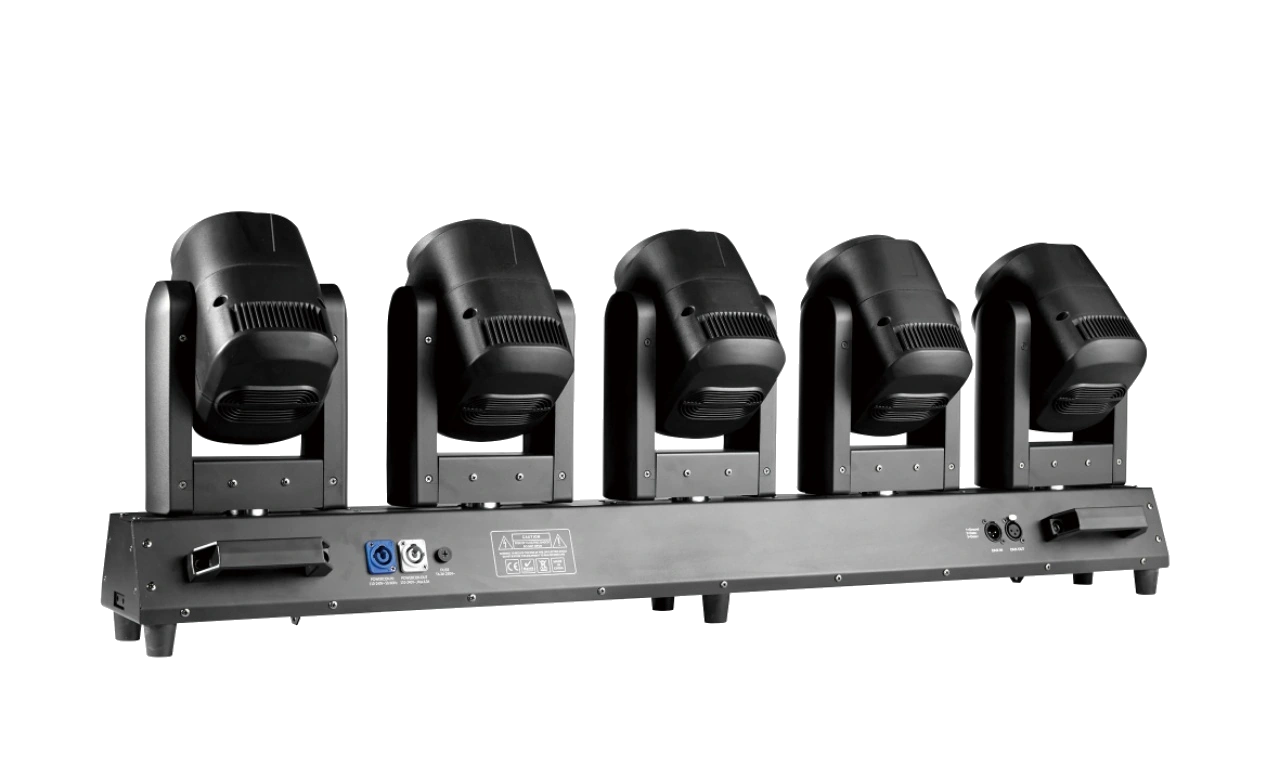

AL0580T rear power and DMX connection panel

06 — HIGHLIGHT

Four DMX Control Depths

The 28CH and 32CH modes suit grouped operation, while 85CH and 88CH expand control across all five heads. DMX512, Auto 1, Auto 2, sound-active and display-based manual operation support programming, demonstration and service workflows.

28 / 32 / 85 / 88 CHDMX512Auto and sound modes

07 — OPTICAL, COLOR & CONTROL

Model-specific performance.

We publish model-specific optical, color, movement and control data for each selected fixture configuration.

5 × 80W

RGBW main sources

One source per moving head

RGB aura rings

One ring around every main optic

4 modes

DMX personalities

28CH, 32CH, 85CH and 88CH

540° / 540°

Pan / tilt positioning

16-bit fine adjustment plus continuous rotation

5 channels

Independent focus

Available in 32CH, 85CH and 88CH

1200mm

Overall width

Technical-drawing dimension

Professional concert stage lighting application

08 — APPLICATIONS

Built around professional show workflows.

We help production teams match optics, control, protection and fixture format to each professional lighting application.

Concert & Touring

Program five-head waves, fans, RGBW color changes and aura-ring layers for indoor concert and touring systems.

Explore application 02

Rental & Event Production

Choose grouped or expanded DMX personalities according to the required control depth and available universe capacity.

Explore application 03

Theatre & Stage Performance

Use head-specific positioning, focus, dimming and color data for repeatable indoor performance cues.

Explore application 04

Clubs & Entertainment Venues

Combine continuous-rotation effects, five moving optics and RGB aura rings in controlled indoor installations.

Explore application

09 — TECHNICAL SPECIFICATIONS

Engineering data by system.

We organize model-specific optical, electrical, control and mechanical data for clear project planning.

Light Source

Main LEDs: 5 × 80W RGBW: red, green, blue and white
Main-head layout: Five independently moving heads
Aura source: Five RGB LED aura rings

Optics, Color & Effects

Focus: Motorized; separate head 1–5 channels in 32CH, 85CH and 88CH
Main color system: RGBW mixing
Additional color control: Cool-to-warm color-temperature adjustment · color macros
Aura color system: RGB
Dimmer: 0–100% electronic dimming
Strobe effects: Synchronous · pulse · random · open
Effect programs: Main LED macros · aura macros · forward/reverse aura direction

Movement

Pan: 0–540° · 16-bit fine adjustment · continuous rotation effect
Tilt: 0–540° · 16-bit fine adjustment · continuous rotation effect
Head control: Five separate pan, tilt and rotation data sets in 85CH and 88CH
Configuration: Pan reverse · tilt reverse · position correction

Control

DMX personalities: 28CH · 32CH · 85CH · 88CH
Control protocol: DMX512
Other modes: Auto 1 · Auto 2 · sound-active · display-based manual control
28CH: Shared movement, focus, RGBW, aura, strobe, macro and dimmer control
32CH: Shared movement and color with separate focus for heads 1–5
85CH: Head-specific movement, focus, RGBW and aura with global dimmer and strobe
88CH: Head-specific movement, focus, dimmer, RGBW and aura control

Electrical & Connections

Input voltage: AC 100–240V
Electrical class: Protection Class I; protective-earth connection required
DMX: 3-pin XLR input/output
Power: Locking power input/output

Housing, Environment & Rigging

Operating environment: Indoor professional use · dry locations
Overall drawing envelope: 1200.00 × 224.58 × 382.80mm
Mounting hardware: M10 mounting points with rated clamps
Secondary attachment: Independent rated safety cable

10 — PRODUCT DIMENSIONS

Plan the rig with the model drawing.

Download original drawing

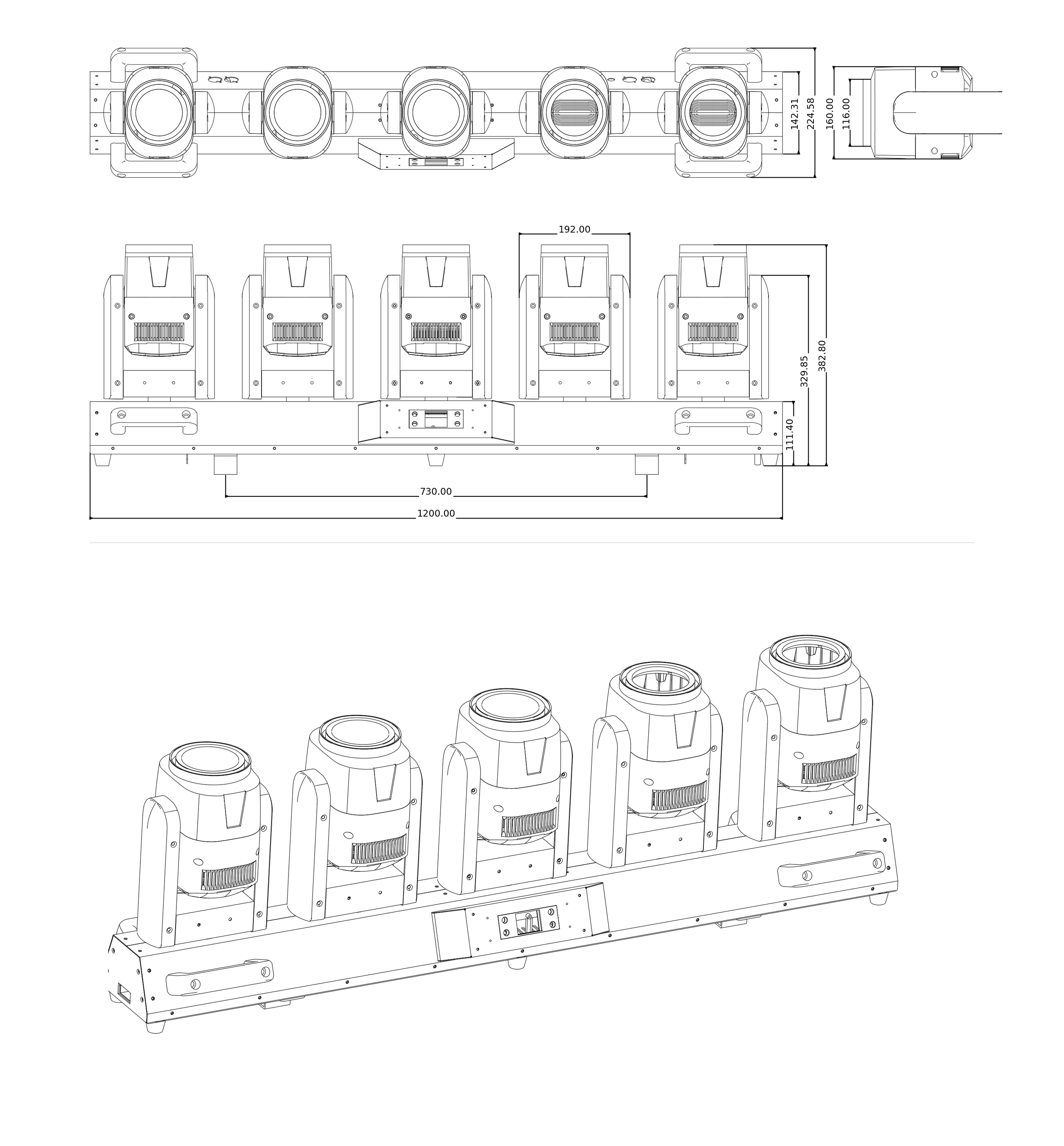

AL0580T five-head LED Tornado Moving Head technical dimension drawing

Overall width: 1200.00 mm
Maximum plan depth: 224.58 mm
Overall height: 382.80 mm
Head width reference: 192.00 mm
Base height reference: 111.40 mm
Mounting-center reference: 730.00 mm

11 — DOWNLOADS & FIXTURE LIBRARIES

Model-specific technical files.

We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.

Product Documents

English operating and programming documentation for AL0580T.

AL0580T User Manual — English PDFThirteen-page manual covering safety, installation, display operation and 28CH, 32CH, 85CH and 88CH channel charts.

PDF · 669 KBDownload

AL0580T User Manual — English DOCXEditable English manual with the same operating and channel information.

DOCX · 211 KBDownload

Technical Drawing

Dimension drawing with front, top, side and three-quarter fixture views.

AL0580T Dimension Drawing2600 × 2800 technical drawing with dimensions in millimetres.

PNG · 1.0 MBDownload

Need a fixture file?Tell our technical team which console and software version you use.

Contact Technical Support

12 — FAQ

Product questions, answered by Aolait.

Our team provides clear model, control, application and technical-file guidance for professional projects.

AL0580T uses five 80W RGBW main LEDs, one in each moving head, plus five RGB aura rings around the main optics.

13 — RELATED KNOWLEDGE

Plan the product in its real workflow.

Use these focused Aolait articles for product selection, control, operation and project preparation.

LED Moving Head Burn-In and Aging Tests

Define powered screening, function cycles and production records.

Read knowledge article

Stage Lighting Quality Control Checklist

Connect the approved product configuration to batch and release checks.

Read knowledge article

Wash vs Beam Moving Heads

Separate broad coverage, aerial definition and effect-architecture requirements.

Read knowledge article

14 — RELATED PRODUCTS

Compare adjacent Tornado and Waver platforms.

AL5120T

5×120W LED Tornado Moving Head

Five 120W RGBL heads · Motorized zoom · RGB pixel halos

View Product

AL5120TIP

5×120W LED Tornado Waterproof

Five-head IP-series format · RGBL zoom optics · Expanded control

View Product

AL0660WV

6×60W LED Moving Head Waver

Six independent RGBW heads · Motorized zoom · Five DMX personalities

View Product

15 — WHY AOLAIT

Manufacturing support behind the fixture.

Our Guangzhou team coordinates product development, assembly, powered testing and technical support for professional stage-lighting projects.

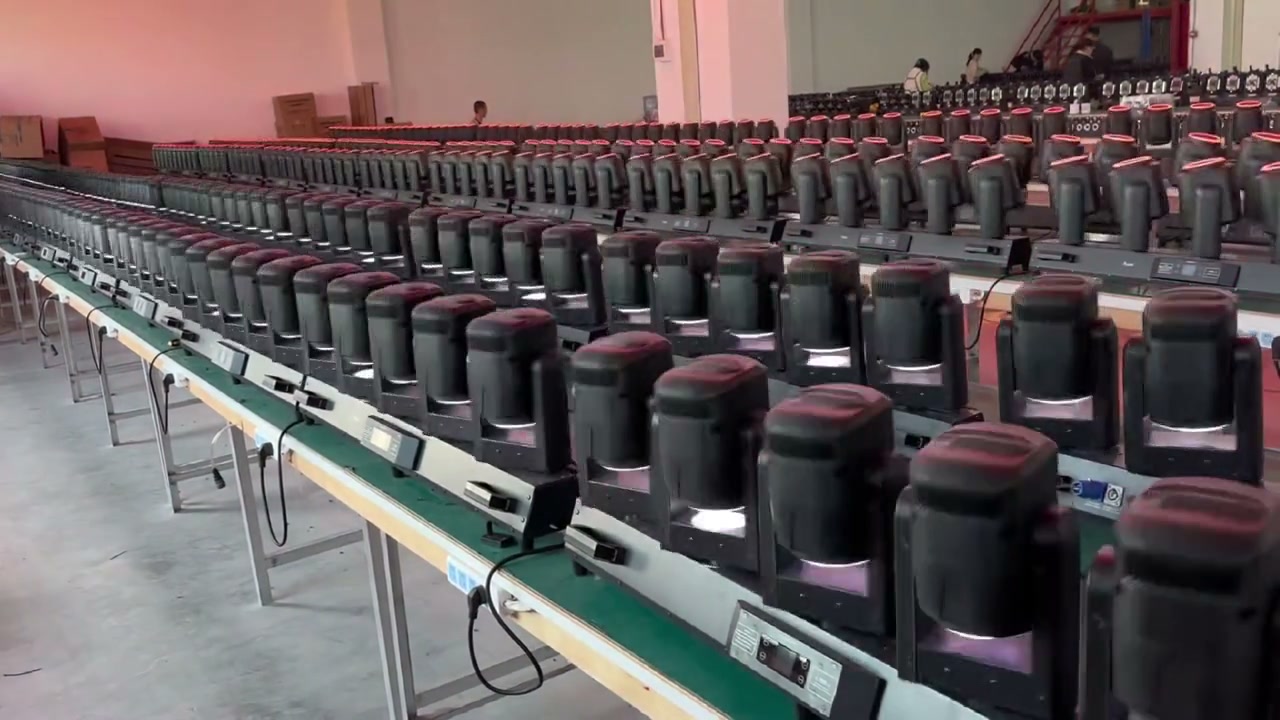

AOLAIT LED wash moving head fixtures illuminated during batch inspection — Powered batch inspection
