HIGH-OUTPUT 19-PIXEL SUPER BEE EYE MOVING HEAD
A high-output nineteen-cell RGBW Bee Eye moving head combining motorized zoom, continuous honeycomb-lens rotation, individual pixel control and a layered shape engine.
AL1960WR combines 19 × 60W RGBW 4-in-1 LEDs, five DMX personalities, 1,350W rated power and a 21.4 kg IP20 moving-head platform for protected indoor production.
01 — PRODUCT OVERVIEW
Five documented DMX personalities cover core whole-fixture control, a foreground/background shape engine and direct pixel data: 21CH, 35CH, 78CH, 92CH and 97CH. The 78CH and 92CH modes expose RGB data for all nineteen cells, while 97CH provides direct RGBW data for every cell.
03 — HIGHLIGHT
Nineteen RGBW 4-in-1 LEDs form the optical engine. The extended personalities provide direct RGB or RGBW data for every cell, while the core modes retain whole-fixture color, dimming, strobe, movement, zoom and lens-rotation control.
07 — OPTICAL, COLOR & CONTROL
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
Nineteen individually controlled 4-in-1 emitters
21CH through 97CH
Multiple strobe effects documented
16-bit fine control and position memory
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.
Evaluate the high-output RGBW engine, moving optics and extended pixel modes for protected indoor touring and stage rigs.
Explore application 02Select from five controller footprints to balance core operation, shape tools and direct nineteen-pixel programming.
Explore application 03Test color, dimming, movement and optical behavior against the venue, cueing and camera requirements.
Explore application 04Use the visible nineteen-cell face, layered shapes and rotating optics for protected indoor installations.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.

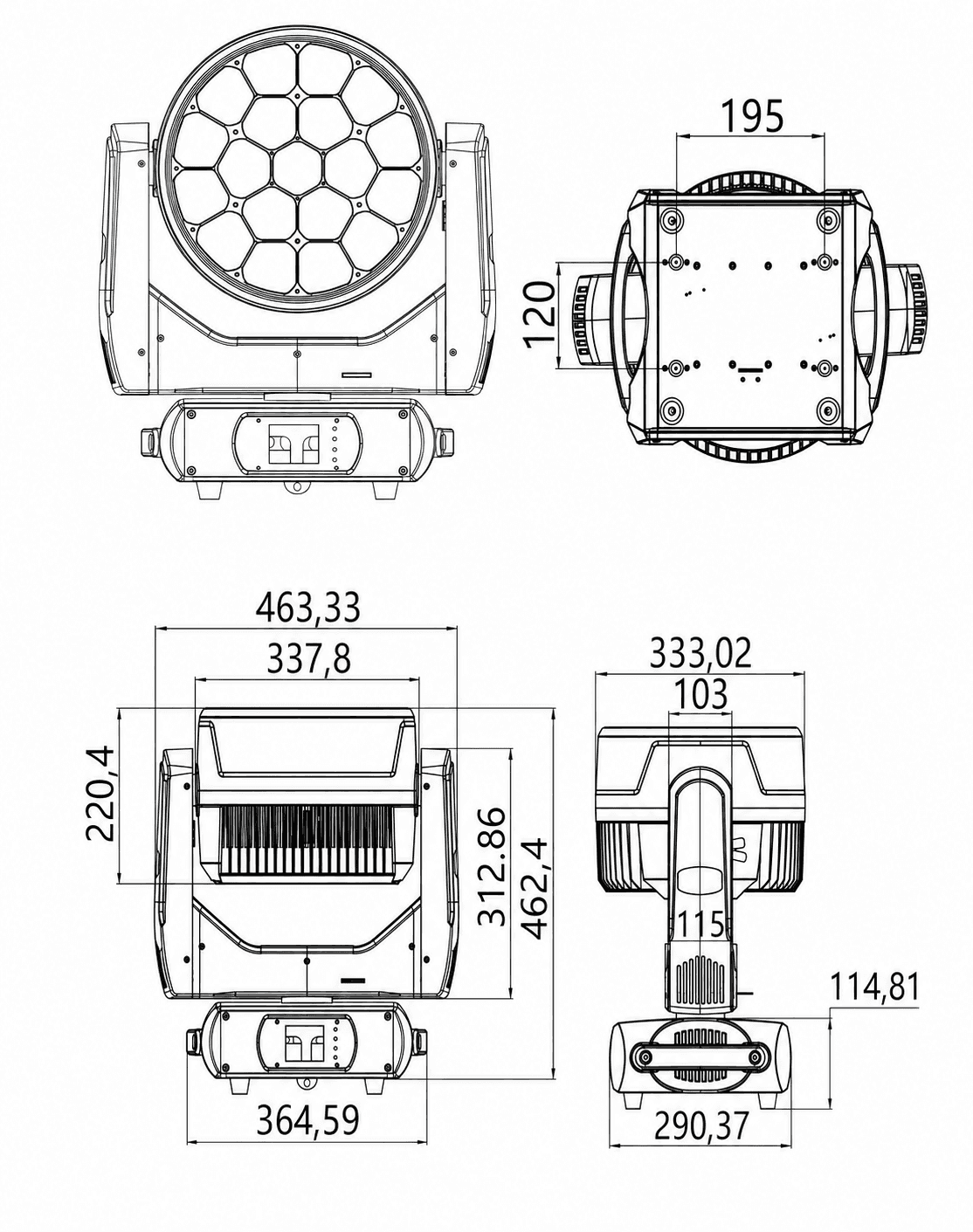

10 — PRODUCT DIMENSIONS
11 — DOWNLOADS & FIXTURE LIBRARIES
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
Yes. The 78CH and 92CH personalities provide RGB data for all nineteen cells, while the 97CH personality provides RGBW data for every cell.
The 35CH and 92CH personalities divide the optical face into a foreground shape and background layer. The center cell is Ring 1, the next six cells form Ring 2 and the outer twelve cells form Ring 3.
13 — RELATED KNOWLEDGE
Use these focused Aolait articles for product selection, control, operation and project preparation.
Understand cells, zones, rotating optics, modes and programming footprint.
Read knowledge articlePlan personalities, universes, fixture profiles and network control.
Read knowledge articleCompare cell count and LED formats without treating nominal wattage as measured output.
Read knowledge article14 — RELATED PRODUCTS

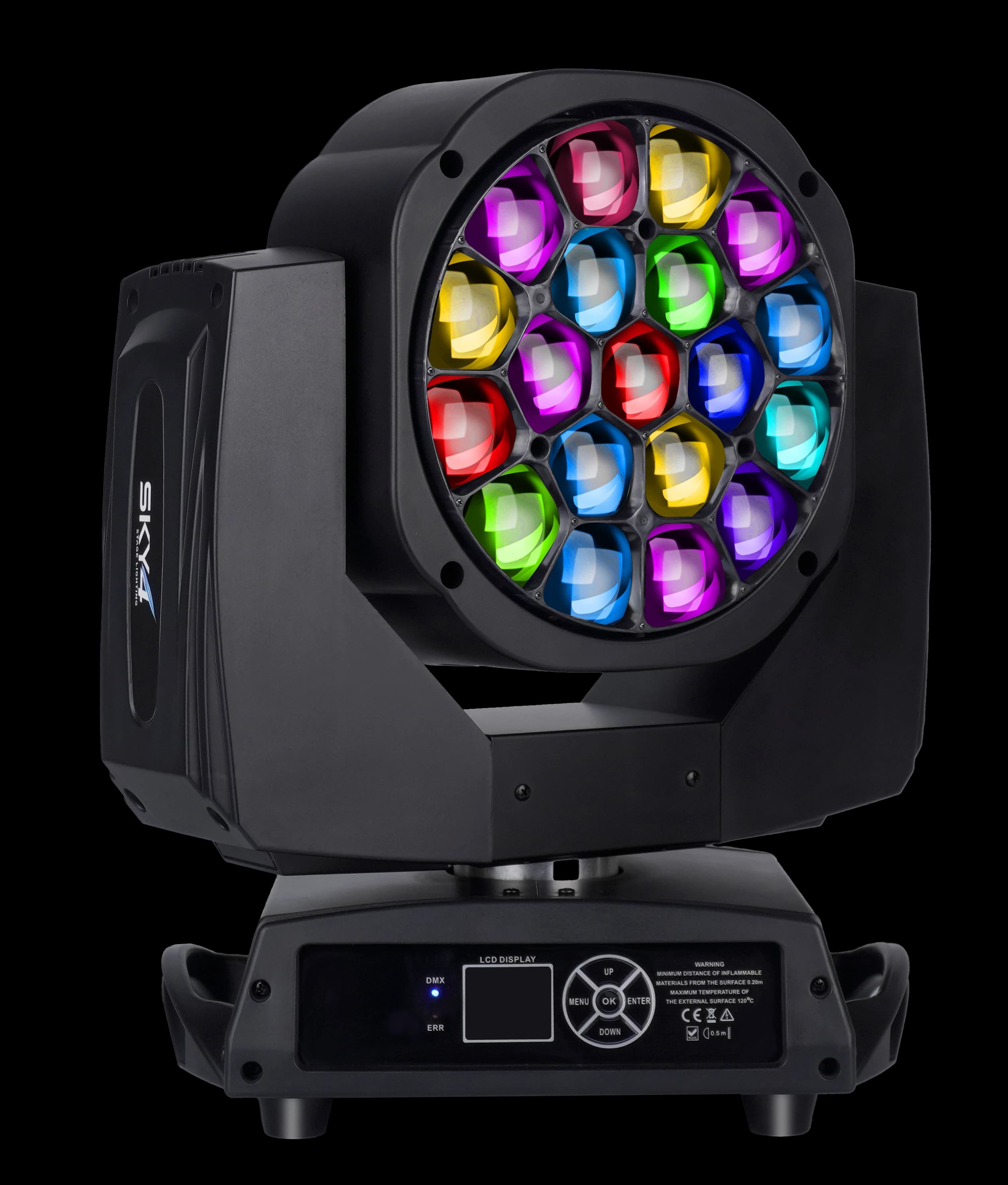

19-cell RGBW engine · 4°–60° zoom · Extended pixel control
