INDOOR 19-PIXEL BEE EYE MOVING HEAD
A 19-cell RGBW Bee Eye fixture combining wash, beam, rotating-lens and pixel effects in an indoor moving-head platform.
W09 combines nineteen 40W RGBW LEDs, 3.5°–50° motorized zoom, continuous bidirectional lens rotation and seven DMX personalities with footprints from 21 to 99 channels.
01 — PRODUCT OVERVIEW
The optical system combines 3.5°–50° motorized zoom with a continuously rotating front lens. Movement is documented at 540° pan and 205° tilt, with 16-bit fine channels available in the common DMX cores.
02 — PRODUCT VIDEO
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
03 — HIGHLIGHT

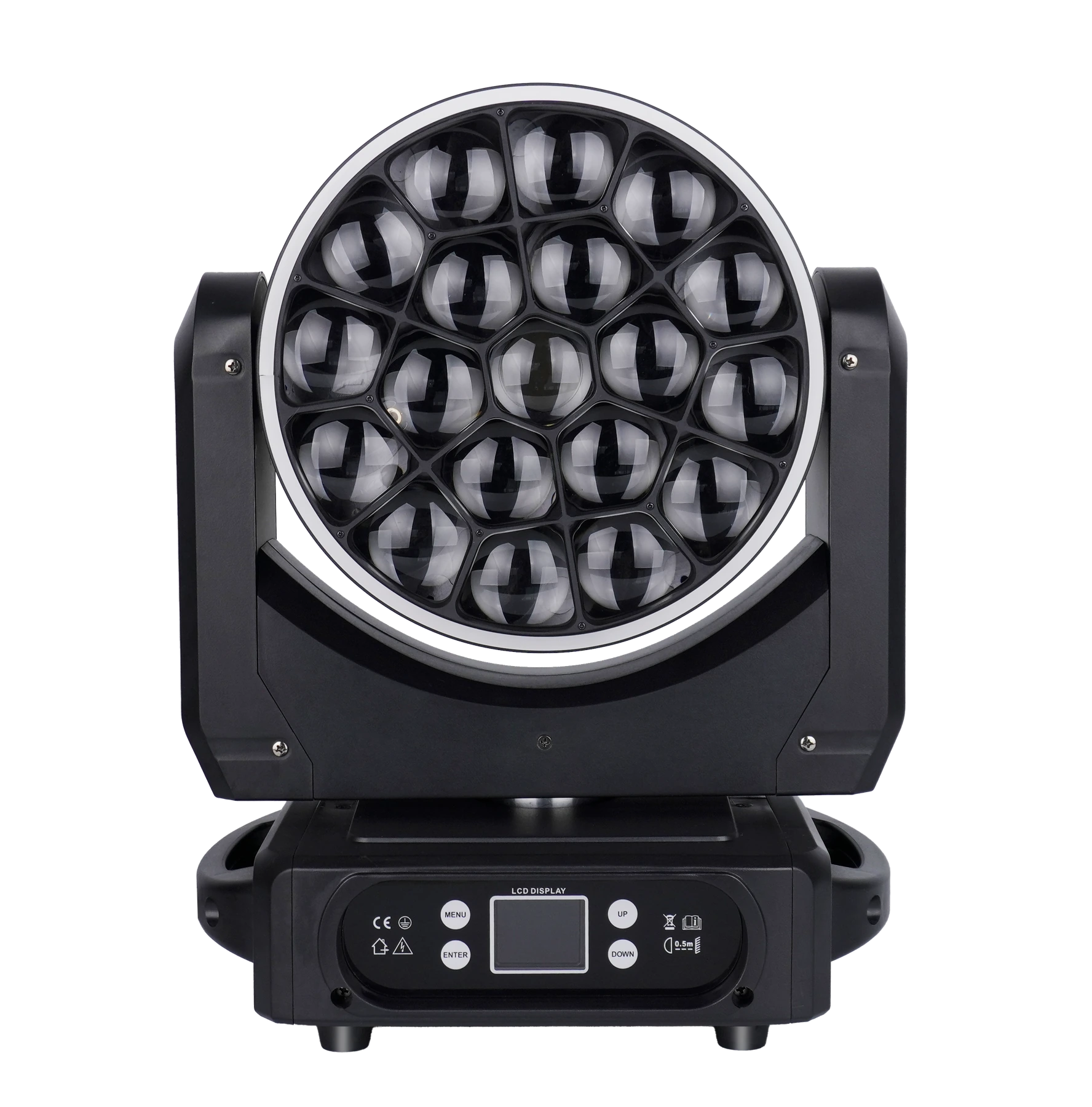

Nineteen RGBW 4-in-1 emitters form the main optical engine. The 78CH and 92CH personalities expose RGB data for all nineteen pixels, while 97CH and 99CH extend the pixel layer to RGBW control.
04 — HIGHLIGHT
The documented motorized zoom moves from a narrow 3.5° beam to a 50° wash. A separate front-lens channel provides indexed positioning from 0° to 60° plus variable-speed clockwise and counterclockwise continuous rotation.
05 — HIGHLIGHT
Seven documented footprints range from 21CH whole-fixture control to 99CH RGBW pixel access. Dedicated effect extensions cover built-in patterns, foreground and background color layers, dimming, strobe and animation speed.
07 — OPTICAL, COLOR & CONTROL
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
Nineteen RGBW 4-in-1 LEDs
Narrow beam to broad wash
21CH through 99CH
Manual specification
Manual specification
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.
Combine RGBW wash, narrow aerial output, rotating optics and pixel effects in dry indoor show environments.
Explore application 02Select from seven DMX footprints to balance whole-fixture operation and extended 19-pixel programming.
Explore application 03Use the visible 19-cell face, rotating lens and built-in effects for dynamic entertainment programming.
Explore application 04Evaluate the documented zoom, CTO, dimmer and control footprint against the production brief.
Explore application 05Test the RGBW engine, pixel looks and strobe behavior against the camera, control and flicker requirements of the project.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.

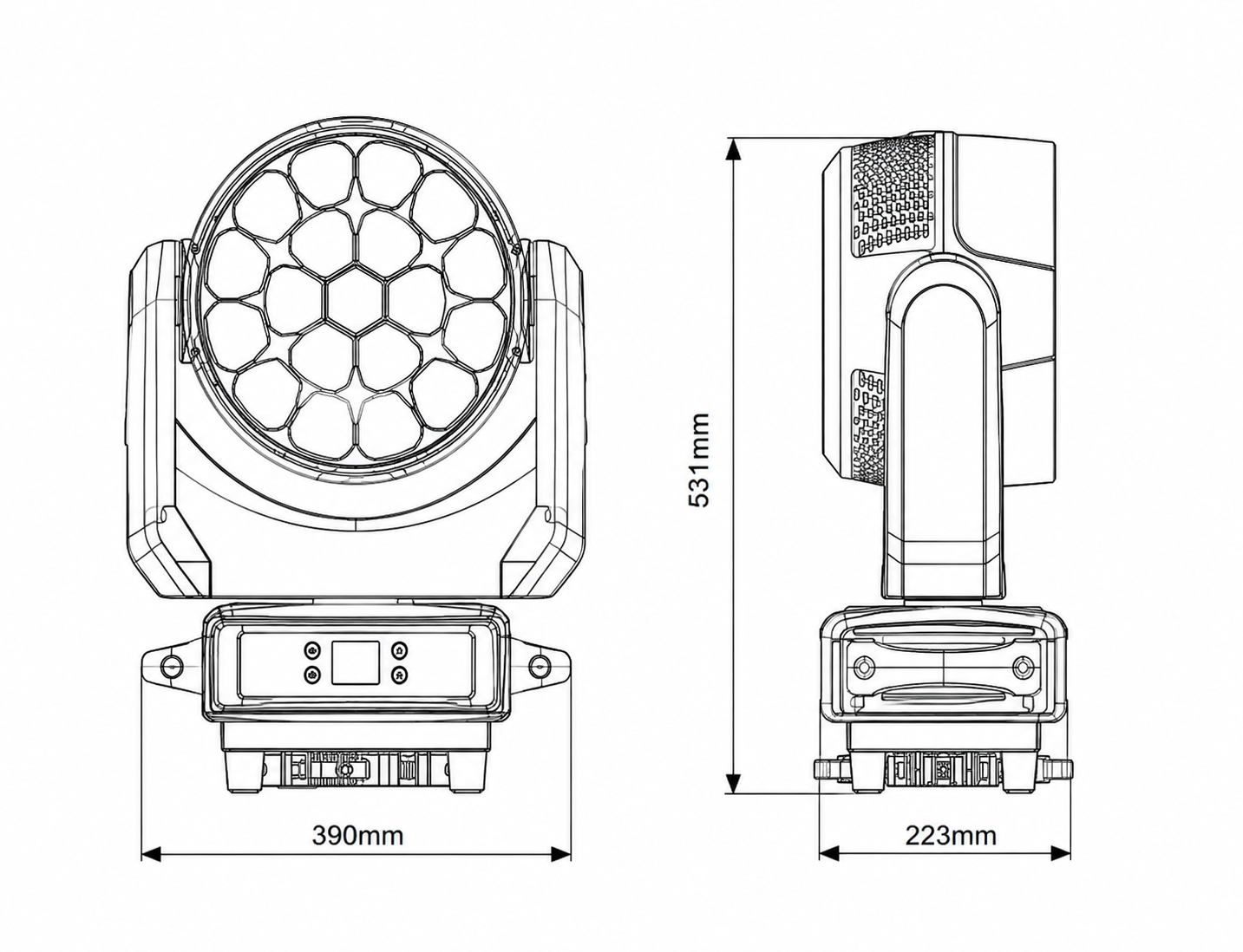

10 — PRODUCT DIMENSIONS
11 — DOWNLOADS & FIXTURE LIBRARIES
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
Model-labelled W09 English material supplied for technical evaluation.
Model-specific drawing supplied for rig and transport planning.
Compatibility must be checked against the target console, software version, fixture firmware and selected 30CH personality before programming.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
Yes. The 78CH and 92CH modes provide RGB control for nineteen pixels; the 97CH and 99CH modes provide RGBW control for nineteen pixels.
13 — RELATED KNOWLEDGE
Use these focused Aolait articles for product selection, control, operation and project preparation.
Understand cells, zones, rotating optics, modes and programming footprint.
Read knowledge articlePlan personalities, universes, fixture profiles and network control.
Read knowledge articleCompare cell count and LED formats without treating nominal wattage as measured output.
Read knowledge article14 — RELATED PRODUCTS
7-cell RGBW engine · 12-pixel RGB Aura · 7°–45° zoom
View Product
37-cell RGBW engine · 7°–50° zoom · Extended pixel control
View Product
