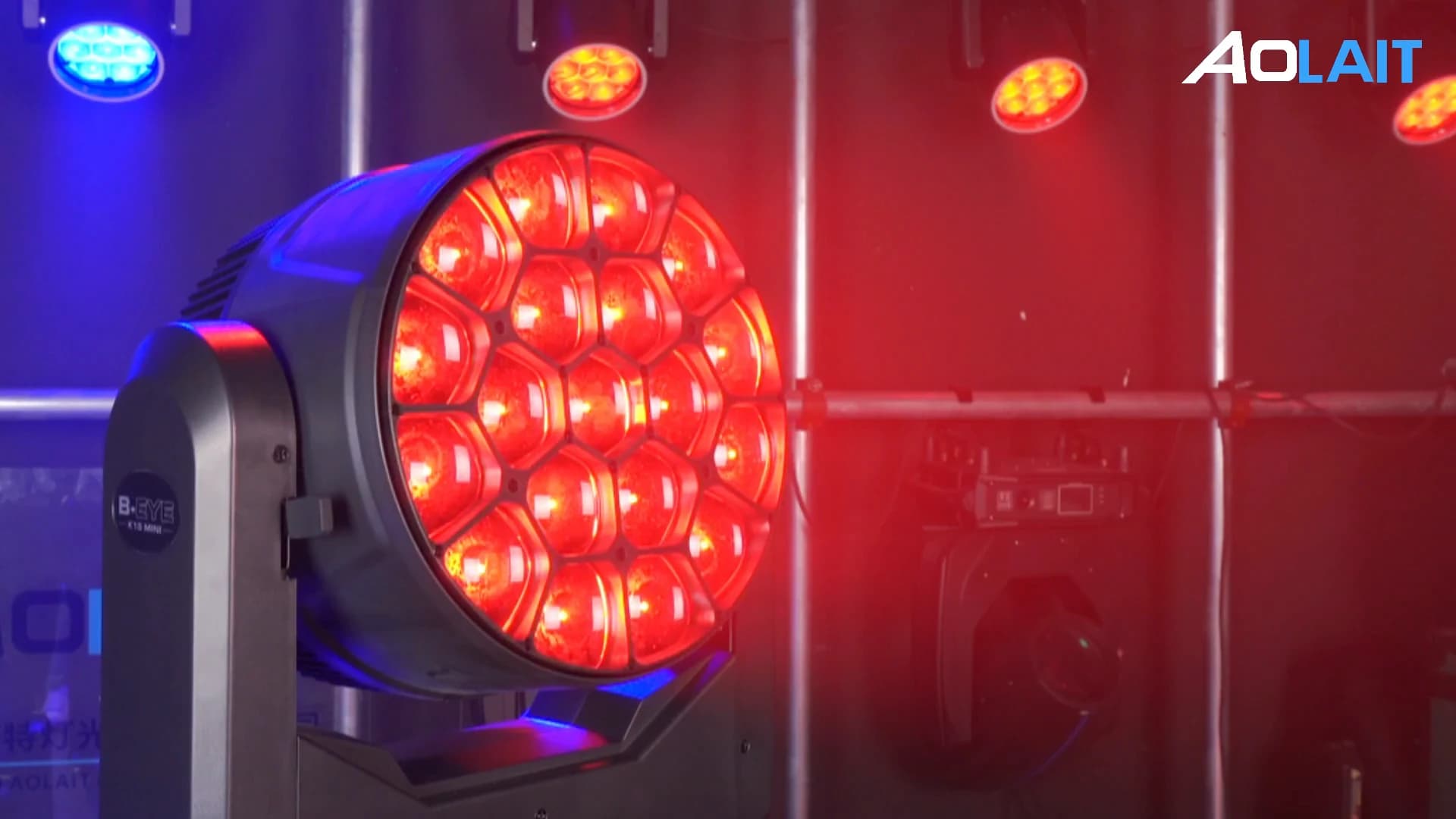

COMPACT 19-PIXEL BEE EYE MOVING HEAD
A compact nineteen-cell RGBW Bee Eye moving head combining motorized zoom, continuous front-lens rotation and extended pixel programming.
AL1940WR combines 19 × 40W RGBW 4-in-1 LEDs, 4°–60° motorized zoom, continuous front-lens rotation and five DMX personalities in a dry-indoor moving-head platform.
02 — PRODUCT VIDEO
Load only the selected video. Playback is user-controlled, muted by default and optimized for product evaluation.
03 — HIGHLIGHT

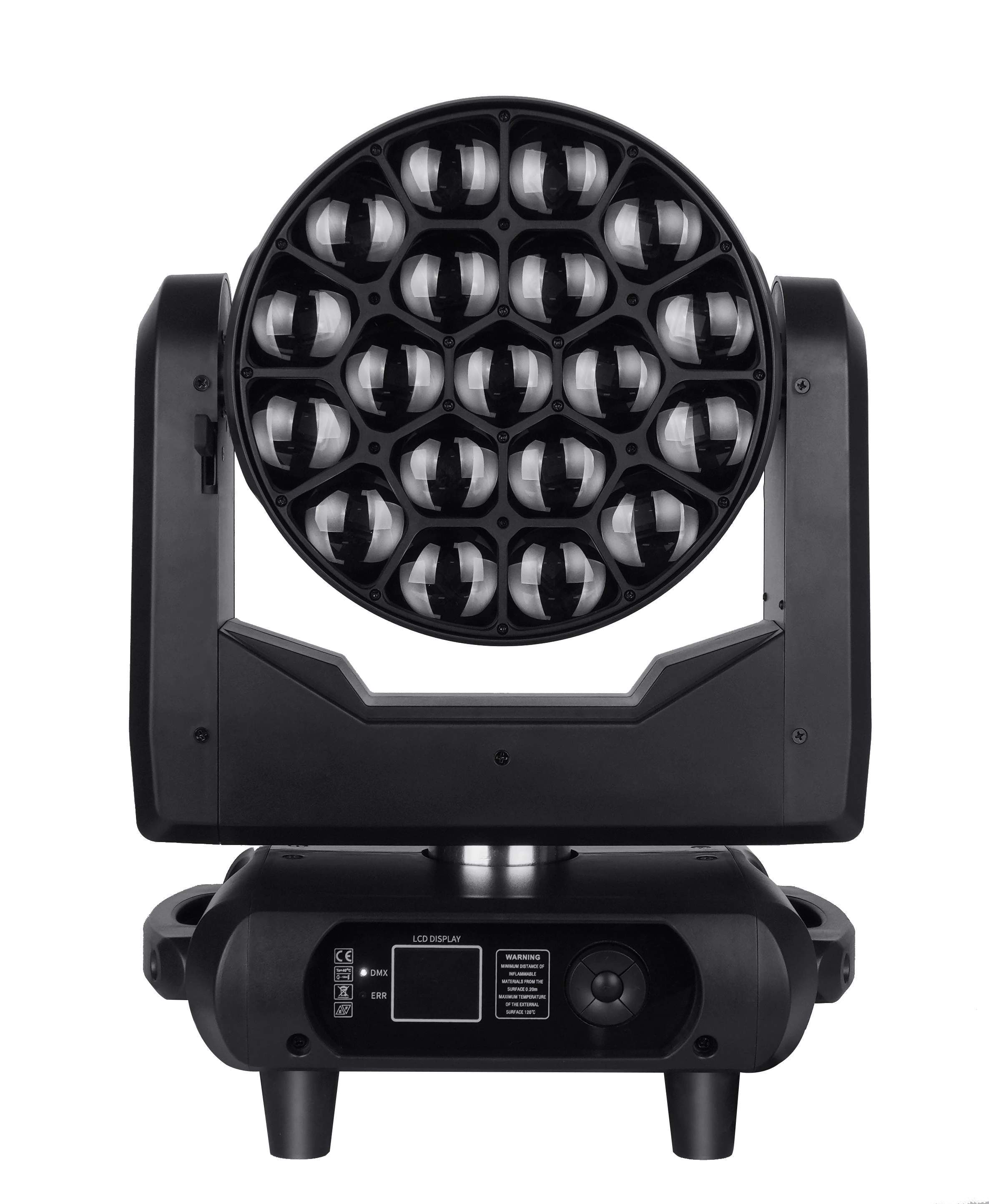

Nineteen RGBW 4-in-1 LEDs form the optical engine. The 78CH and 92CH personalities provide direct RGB data for all nineteen pixels, while the 97CH personality extends each pixel to RGBW control.
04 — HIGHLIGHT
The documented motorized zoom changes the field from a narrow 4° beam to a broad 60° wash. Continuous front-lens rotation supports vortex and kaleidoscope-style looks from the same nineteen-cell face.
07 — OPTICAL, COLOR & CONTROL
We publish model-specific optical, color, movement and control data for each selected fixture configuration.
Nineteen four-color cells
Narrow beam to broad wash
21CH through 97CH
Includes pulse and random effects
16-bit fine channels documented
08 — APPLICATIONS
We help production teams match optics, control, protection and fixture format to each professional lighting application.

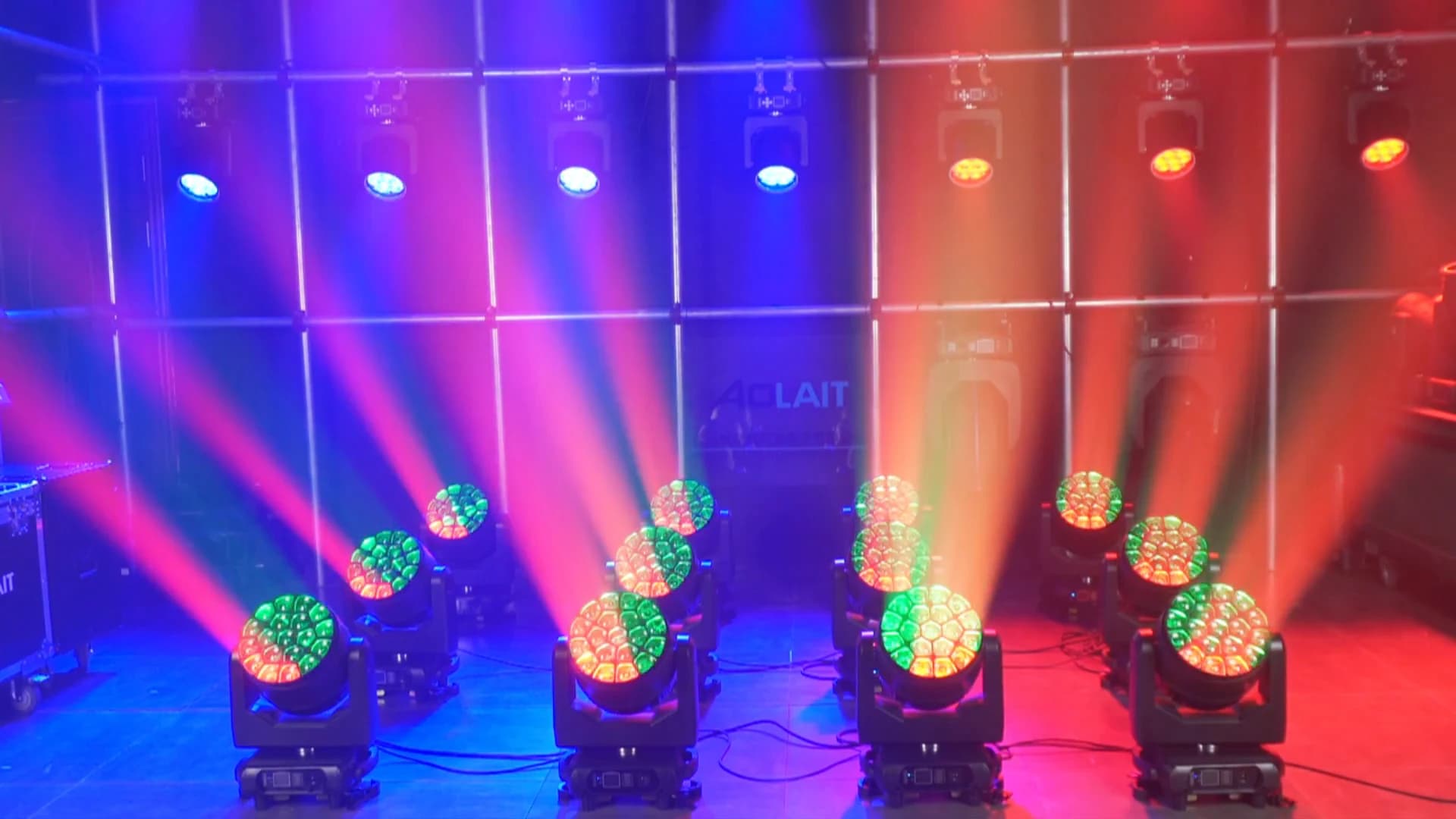

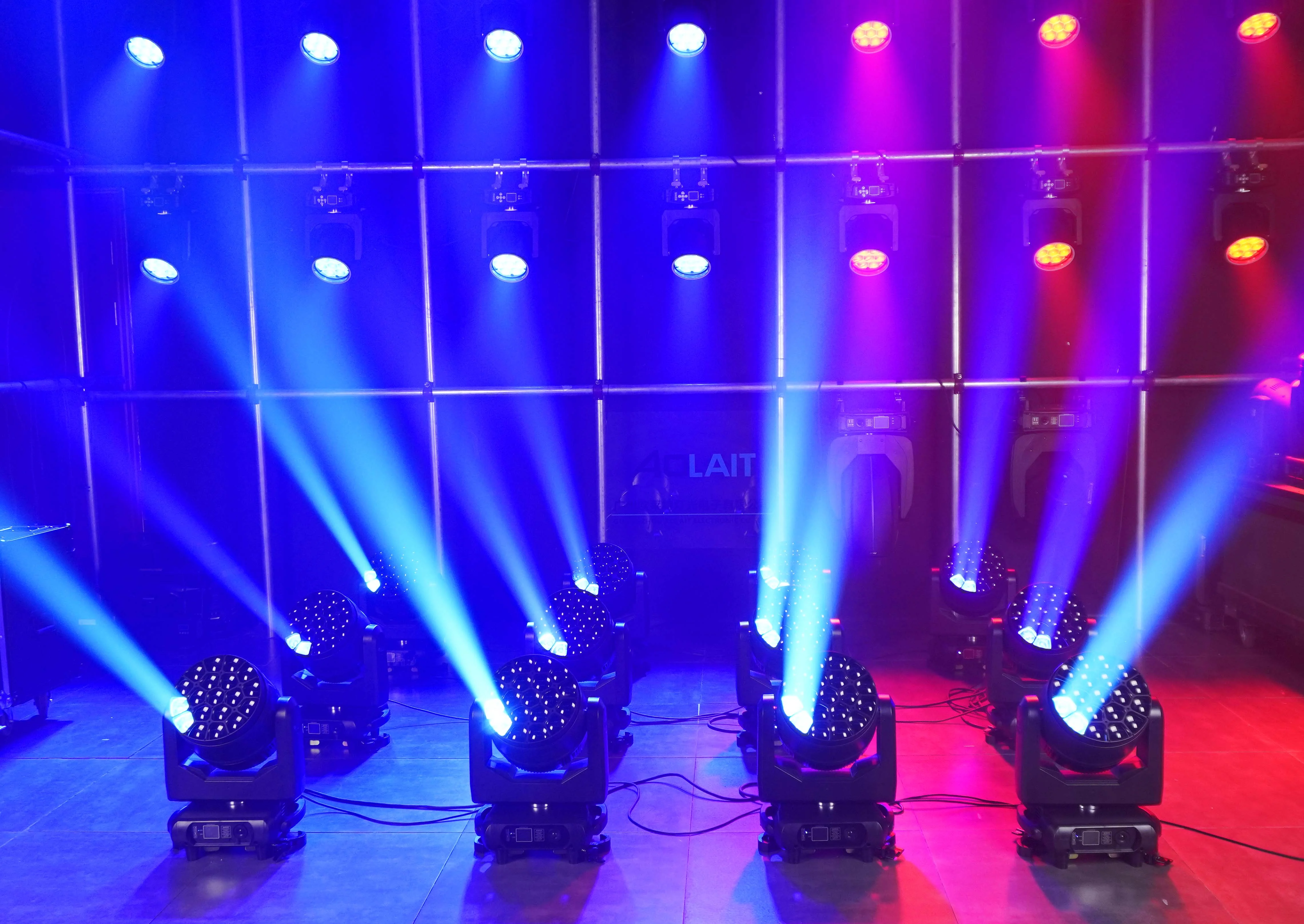

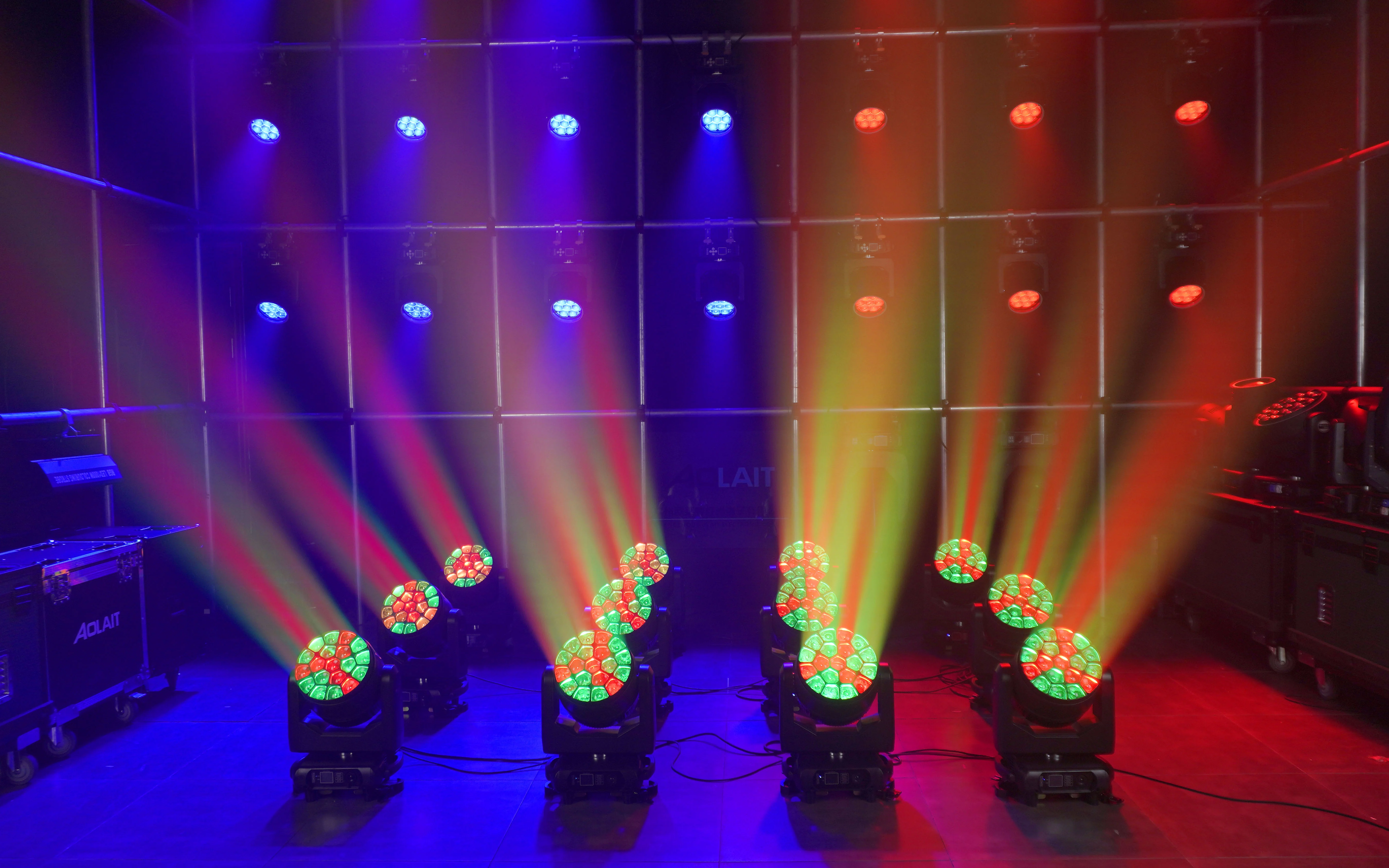

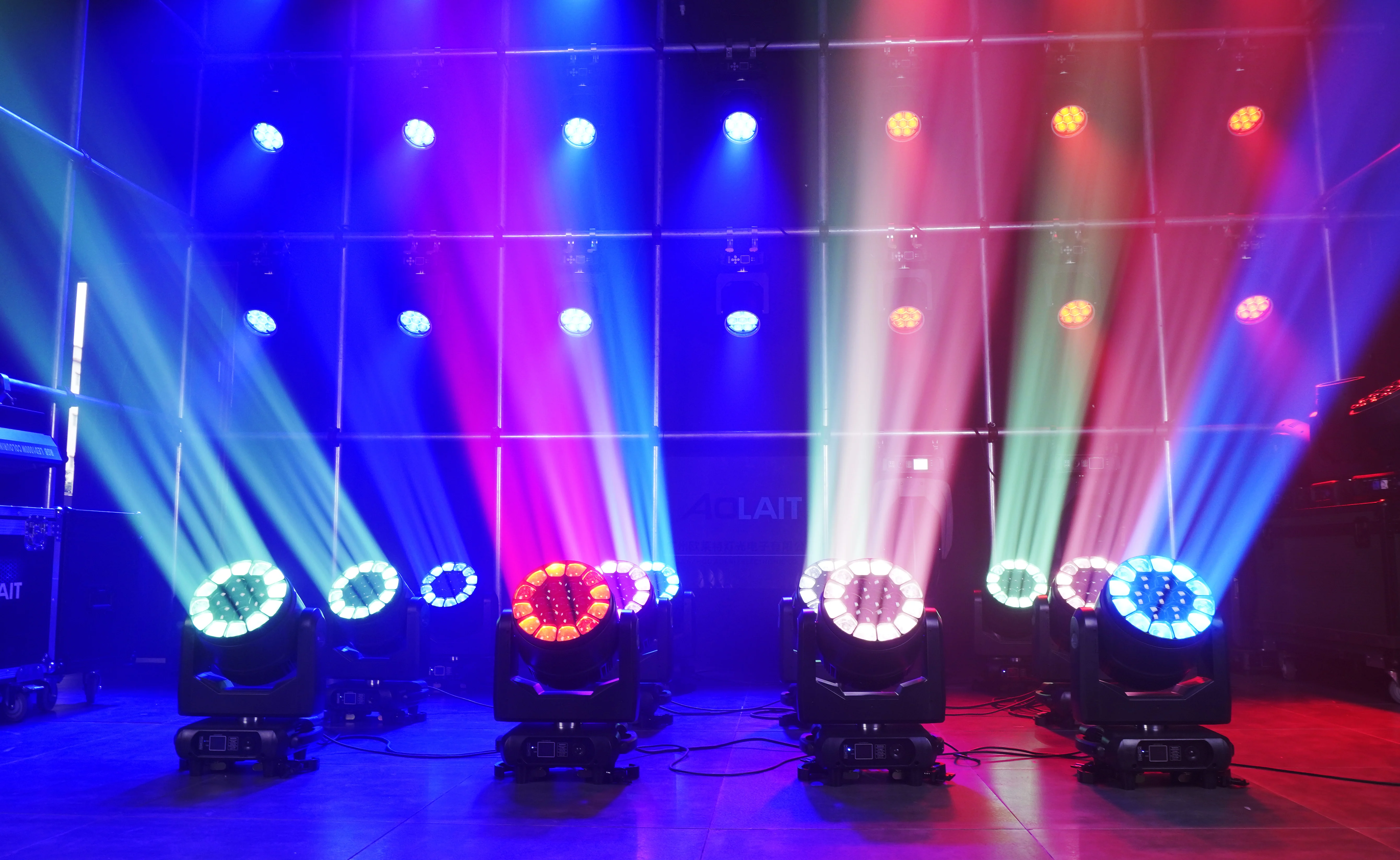

Combine RGBW wash, narrow aerial output, rotating optics and pixel effects in protected indoor show environments.
Explore application 02Select from five DMX footprints to balance whole-fixture operation, shape tools and extended pixel programming.
Explore application 03Evaluate the documented zoom, color mixing, dimming and movement range against the production brief.
Explore application 04Test RGBW output, pixel looks and strobe behavior with the intended camera, control and flicker requirements.
Explore application 05Use the visible nineteen-cell face, rotating lens and programmed effects for dynamic protected indoor installations.
Explore application09 — TECHNICAL SPECIFICATIONS
We organize model-specific optical, electrical, control and mechanical data for clear project planning.
11 — DOWNLOADS & FIXTURE LIBRARIES
We provide model-specific manuals, DMX channel information and available fixture files. Our technical team also supports firmware, DMX-mode and console-profile matching for project programming.
12 — FAQ
Our team provides clear model, control, application and technical-file guidance for professional projects.
Yes. The 78CH and 92CH modes provide RGB control for all nineteen pixels, while the 97CH mode provides RGBW control for all nineteen pixels.
